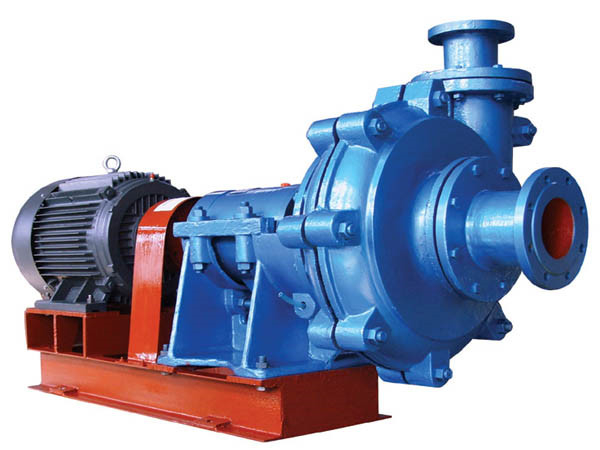

GMZ series Slurry pump

  • Flow: 8-2600 m3/h
  • Head:9-110m
  • Matched power:3-630kW
  • Medium concentration:mortar 45%,pulp 50%
  • Seal form:mechanical seal and packing seal
  • Flow passage component:High chromium wear-resistant allo
Availability:
Quantity:
Inquire

GMZ series Slurry pump

Product Description

As a single stage single suck and axial sucking cantilever horizontal centrifugal pump, the GMZ series slurry pump can be applied to many industries, such as metallurgy、mine、electric power、desulfurization、aeroconcrete、chemical engineering and so on. This pump can be used for conveying the corrosive slurry with large quantity solid material.
1、The flow components of GMZ slurry pump adopt high strength and wear resistant material, so it applies to deep-etching 、high concentration and large particle slurry, and within the maximum working pressure, this pump can be used in multilevel series .
2、According to different sucking medium, the GMZ slurry pump can be changed with different flow components, generally, there are wear-resistant alloy Cr26、Cr 28、No.2 wear-resistant、A49、CD4. For the feature of high content chlorine liquid ion in flue gas desulfurization flurry, our company introduced wear-resistant and anticorrosion Cr30, which is the most advanced around the world, from France, in Cr30, the Mo、Cr、Cu、N as well as a certain active elements, it has excellent anti scour as well as better strength and toughness.

Performance and Main Technical Datas of GMZ Slurry pumps and Other pumps(1)


Model

Pump lift
（m）

Flow rate
（m3/h）

Rev
(r/min)

Net positive suction head（m）

Efficiency
（%）

Matching motor

Model

Power(KW)

GMZ40－10－15

8
15
18

10.6
10
9.7

1430

3.5

38
48
50

Y100L2-4

3

GMZ50－15－15

8
15
18

16
15
13

1430

3.5

40
50
49

Y100L2－4

3

GMZ50－60－80

45
80
95

65
60
53

2950

4.2

40
50
50

Y200L1－2

30

GMZ50－80－60

30
60
72

85
80
70

2950

3.5

38
50
49

Y200L2-2

37

GMZ65－15－40

20
40
80

16
15
13.2

970

4.5

35
50
47

Y160L-6

11

GMZ65－20－40

25
40
80

24
22
21

1460

4.5

43
59
61

Y160L-4

15

GMZ80－20－80

40
80
100

25.1
24.4
19.7

1470

4

58
72
69.6

Y180M-4

18.5

GMZ80－20－110

60
110
130

26
22
20.6

1470

4.5

64.8
70
72

Y180M－4

18.5

GMZ80－30－70

35
70
85

37.7
34
32

1470

4

34
52
54

Y180M-4

18.5

GMZ80－30－80

40
80
100

35
34
30

1470

4

44
55
57

Y180M-4

18.5

Performance and Main Technical Datas of GMZ Slurry pumps and Other pumps(2)


Model

Pump lift
（m）

Flow rate
（m3/h）

Rev
(r/min)

Net positive suction head（m）

Efficiency
（%）

Matching motor

odel

Power(KW)

GMZ100-18-170

90
170
200

21
16
14.5

970

4.5

54
56
60

Y200L2－6

22

GMZ100-24-120

60
120
140

26.8
24
23

980

4

43
62
66

Y225M－6

30

GMZ100-24-200

100
200
220

30
25
22

1470

4.8

66.5
84.6
78.5

Y200L－4

30

GMZ100-27-140

70
140
170

31
27
24

1470

4.5

53
63
62

Y200L－4

30

GMZ100-30-80

40
80
100

34.2
32.2
20.2

970

3.5

35
55
39.5

Y200L2-6

22

GMZ100-30-140

80
140
160

35.5
33.7
33

1470

3.8

41
54.4
56

Y200L-4

30

GMZ100-30-200

100
200
240

34
30
28

1480

4.8

53
64
63

Y225S-4

37

GMZ100-35-250

130
250
300

38
35
28

1480

5

54
68
71

Y250M－4

55

GMZ100-40-50

30
50
60

40
39
37

1470

4.5

30
31
36

Y180L－4

22

GMZ100-40-200

120
170
200

53.7
51
44

1480

4.6

56
66
70

Y250M-4

55

Performance and Main Technical Datas of GMZ Slurry pumps and Other pumps(3)


Model

Pump lift
（m）

Flow rate
（m3/h）

Rev
(r/min)

Net positive suction head（m）

Efficiency
（%）

Matching motor

Model


Power(KW)

GMZ80-50-120

60
120
140

55
51
49

1480

4.5

34
52
43

Y225S－4

37

GMZ100-52-80

40
80
100

56
55
53

1480

4

43.3
56
58

Y225M-4

45

GMZ100-60-80

40
80
120

64
60
62.4

1480

4

21
39
49

Y225M-4

45

GMZ100-60-200

90
195
240

71.3
69.3
67.3

1480

4.5

33
52.4
59

Y280M－4

90

GMZ100-70-180

120
180
210

78
77
76

1480

4.5

47
58
63.3

Y315S-4

110

GMZ100-80-200

100
200
240

82
80
76

1480

4.5

31
55
56

Y315S-4

110

GMZ100-95-250

120
250
300

104.8
102.9
99.3

1485

5

36
63
69

Y315L1-4

160

GMZ100-140-120

60
120
140

14.48
142.9
140.2

1488

4.5

20
34
38

Y355M3-4

250

GMZ150-25-500

300
500
600

28
25
20

980

5

53
55
67

Y280M-6

55

GMZ150-30-320

200
320
360

29.4
28.4
26.9

980

4.8

52
67
68

Y315S-6

75

Performance and Main Technical Datas of GMZ Slurry pumps and Other pumps(4)


Model

Pump lift
（m）

Flow rate
（m3/h）

Rev
(r/min)

Net positive suction head（m）

Efficiency
（%）

Matching motor

Model

Power(KW)

GMZ150-32-400

240
400
480

39.3
36.8
34

980

5

63
75
73

Y315S-6

75

GMZ150-40-300

180
300
360

43
40
36

980

4.3

52
66
66

Y315M-6

90

GMZ150-40-900

540
900
1080

43
40
37

990

5

62
70
65

Y355L1－6

220

GMZ150-45-500

300
500
540

56.7
53
39

990

5

52
63
55

Y355M1-6

160

GMZ150-47-240

120
240
300

49.3
48.9
47.7

980

4

33.3
53.3
58

Y315M-6

90

GMZ150-58-320

210
330
390

61.1
59.2
57.7

980

4.8

47
59
62.2

Y315L2-6

132

GMZ150-60-450

225
450
540

64
61.5
58.7

990

5

62
75.8
76.6

Y355M2-6

160

GMZ150-73-500

300
500
600

81
73
66

990

5

51
56
60

Y355M2-6

185

GMZ150-75-350

240
350
420

76
75
73

990

4.8

38
48
52

Y355M2-6

185

GMZ150-85-530

340
542
640

83
80
77

988

5

44
54
56

Y4004-6

280

Performance and Main Technical Datas of GMZ Slurry pumps and Other pumps(5)


Model

Pump lift
（m）

Flow rate
（m3/h）

Rev
(r/min)

Net positive suction head（m）

Efficiency
（%）

Matching motor

Model

Power(KW)

GMZ150-87-410

246
410
492

90
87
86

990

4.8

45
62
62

Y355m4-6

200

GMZ150-40-300

180
300
360

43
40
36

980

4.3

52
66
66

Y315M-6

90

GMZ150-40-900

540
900
1080

43
40
37

990

5

62
70
65

Y355L1－6

220

GMZ150-45-500

300
500
540

56.7
53
39

990

5

52
63
55

Y355M1-6

160

GMZ150-47-240

120
240
300

49.3
48.9
47.7

980

4

33.3
53.3
58

Y315M-6

90

GMZ150-58-320

210
330
390

61.1
59.2
57.7

980

4.8

47
59
62.2

Y315L2-6

132

GMZ150-60-450

225
450
540

64
61.5
58.7

990

5

62
75.8
76.6

Y355M2-6

160

GMZ150-73-500

300
500
600

81
73
66

990

5

51
56
60

Y355M2-6

185

GMZ150-75-350

240
350
420

76
75
73

990

4.8

38
48
52

Y355M2-6

185

GMZ150-85-530

340
542
640

83
80
77

988

5

44
54
56

Y4004-6

280

Performance and Main Technical Datas of GMZ Slurry pumps and Other pumps(6)


Model

Pump lift
（m）

low rate
（m3/h

Rev
(r/min)

Net positive suction head（m）

Efficiency
（%）

Matching motor

Model

Power(KW)

GMZ150-90-400

240
400
480

94
90
86

1488

5.2

56
65
64

Y255M3-4

250

GMZ150-100-300

180
300
360

105
104
102

990

4.5

36
50
54

Y355L3-6

250

GMZ150-120-390

330
390
450

119
118.2
100.4

1488

5

49
53.3
50

355L2-4

280

GMZ200-70-550

300
550
600

74
72
70

990

5

45
62
63

Y355L1-6

220

GMZ200-70-850

500
850
1020

74
72
63

990

5

51
60
60

Y4005-6

315

GMZ250-14-800

480
800
960

16
14
12

740

5

63
73
74

Y315S-8

55

GMZ250-32-1220

730
1220
1460

37
32
27

990

5.5

63
73
73.5

Y355L1-6

220

GMZ250-55-1100

640
1120
1360

59.7
56.2
51.3

740

5.5

59
71
69

Y4506-8

315

GMZ250-110-1100

660
1100
1320

116
110
100

990

5.5

55
65
63

Y4506-6

630

GMZ300-22-2100

1260
2100
2520

25
22
21

740

6

54
65
66

Y4506-8

315

GMZ300-25-1800

1080
1800
2160

27
25
23

740

5.8

51
60
60

Y4007-8

250
