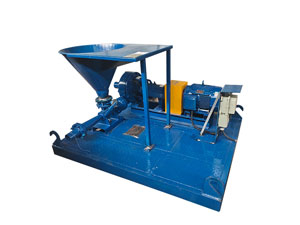

The HHQ150 jet mixing device is composed of a centrifugal mud pump and a jet mixing funnel connected with a manifold valve and installed on a base.
Jet slurry mixing device is used to prepare drilling fluid and change the density, viscosity, acidity and alkalinity of the drilling fluid.
The mud mixing device can meet the requirements of aggravation and preparation of drilling fluid in the solids control system of drilling from 1000 meters to 9000 meters, with safe and reliable performance and convenient transportation.
Mud mixer technical parameters
Model | HHQ150 | HHQ125 | HHQ100 | HHQ80 |
Matching Sand Pump | SB8×6(55kW) | SB6×5(45kW) | SB5×4(37kW) | SB4×3(15kW) |
Capacity | 240m3/h | 180m3/h | 120m3/h | 80m3/h |
Inlet Diameter | 200mm | 155mm | 125mm | 100mm |
Output Diameter | 150mm | 125mm | 100mm | 80mm |
Nozzle Diameter | 30mm | 28mm | 25mm | 20mm |
Dimension: L×W×H mm | 2200*1700*1200 | 2200*1700*1200 | 2000*1650*1100 | 1800*1600*1000 |
Weight (kg) | 1300 | 1200 | 1100 | 700 |

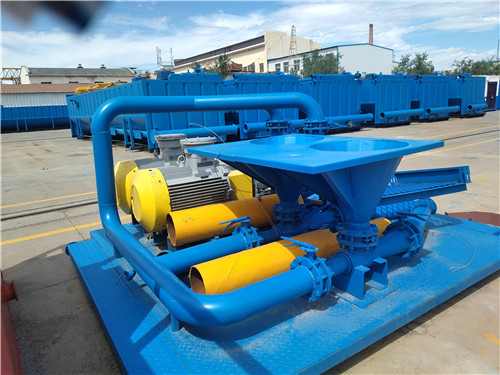

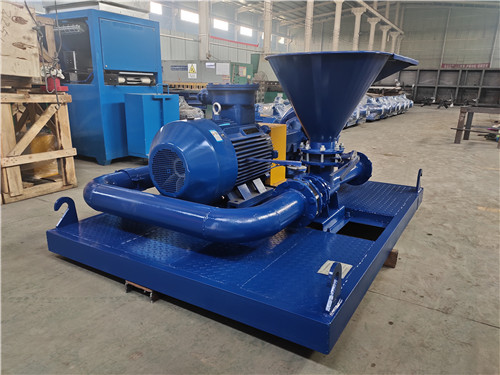

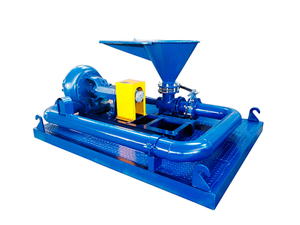

Mud mixer pictures
 |  |
