The spray pump is the cooling pump of the oil field mud pump. The main mud pump cylinder liner is cooled and flushed to improve the service life of the cylinder liner piston.
40SB180J technical parameters
Model: 40SB180J-3kW Flow (m3/h): 15, Head (m): 10, Efficiency (%): 53, Speed (r/min): 1420/1750, Power (kW): 3

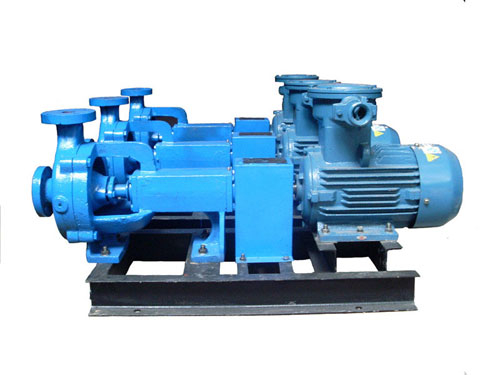

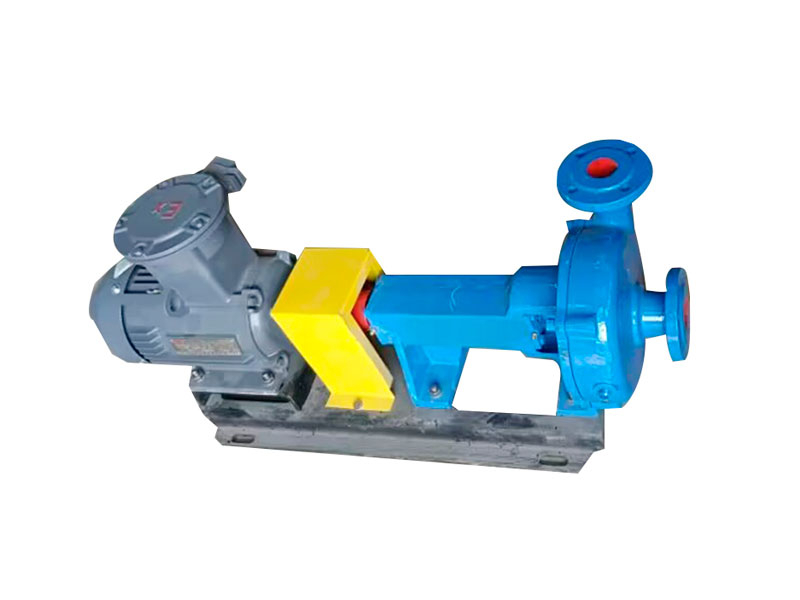

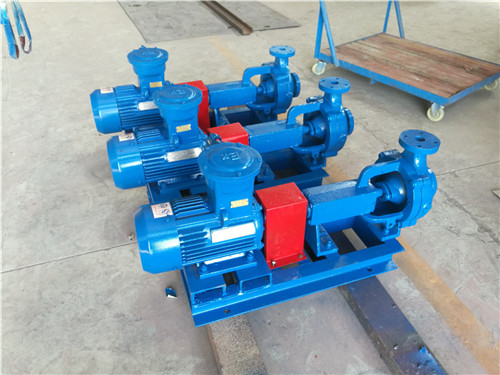

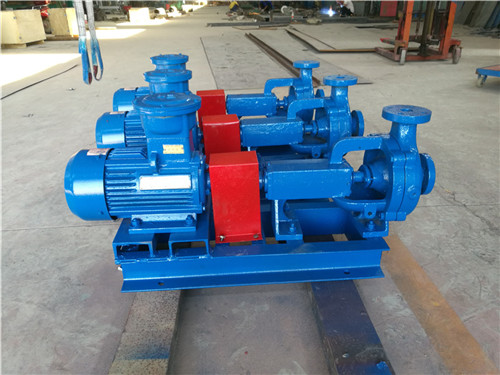

40SB180J spray pump pictures
40SB180J spray pump spare parts list
Item | Description | Part No | Qty. | Item | Description | Part No | Qty. |
1 | Pump body | 40SB180J0001 | 1 | 15 | Packing | 40SB180J0015 | 1 |
2 | Cap nut | 40SB180J0002 | 1 | 16 | Oil seal | 40SB180J0016 | 2 |
3 | Spring gasket | 40SB180J0003 | 1 | 17 | Bearing cover | 40SB180J0017 | 2 |
4 | Washer | 40SB180J0004 | 1 | 18 | Pump base | 40SB180J0018 | 1 |
5 | Impeller | 40SB180J0005 | 1 | 19 | Bearing | 40SB180J0019 | 2 |
6 | Key | 40SB180J0006 | 1 | 20 | Shaft | 40SB180J0020 | 1 |
7 | Paper gasket | 40SB180J0007 | 1 | 21 | Paper gasket | 40SB180J0021 | 2 |
8 | Double head studs | 40SB180J0008 | 4 | 22 | Oil cup | 40SB180J0022 | 2 |
9 | Screw nuts | 40SB180J0009 | 4 | 23 | Screw bolts | 40SB180J0023 | 8 |
10 | Spring gasket | 40SB180J0010 | 4 | 24 | Spring gasket | 40SB180J0024 | 8 |
11 | Mechanical seal | 40SB180J0011 | 1 | 25 | Double head studs | 40SB180J0025 | 2 |
12 | Shaft sleeve | 40SB180J0012 | 1 | 26 | Screw nuts | 40SB180J0026 | 2 |
13 | Pump cover | 40SB180J0013 | 1 | 27 | Spring gasket | 40SB180J0027 | 2 |
14 | Packing gland set | 40SB180J0014 | 1 | 28 | Bolt Plug | 40SB180J0028 | 1 |
