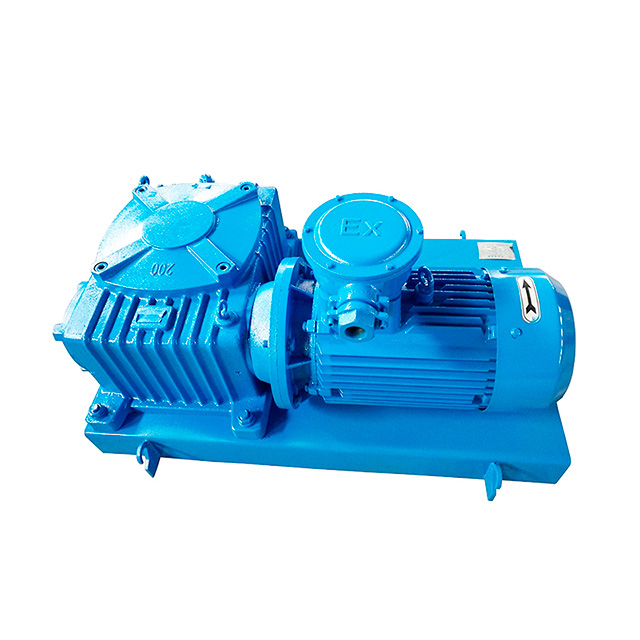

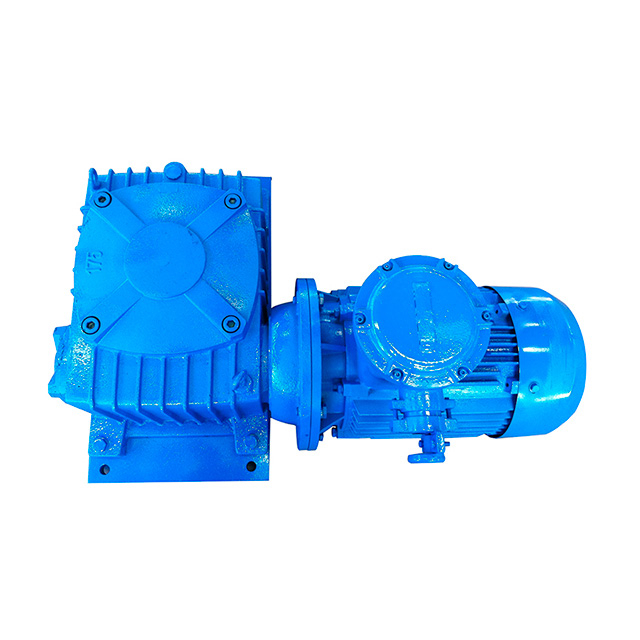

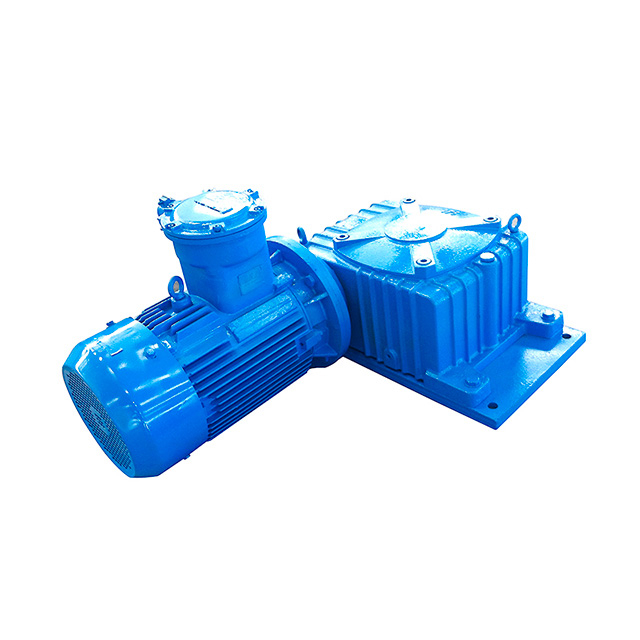

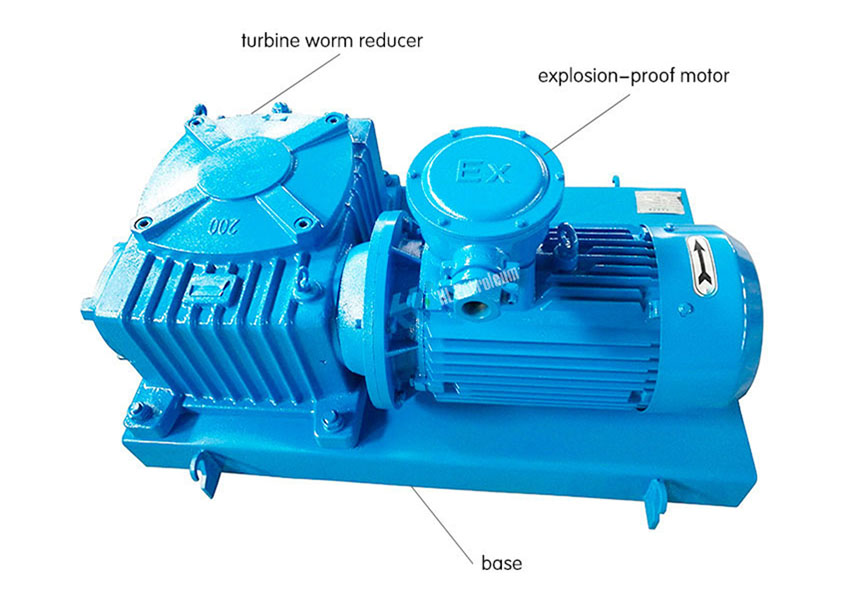

Flange Connection Mud Agitator are composed of a direct-connected worm gear reducer, a vertical explosion-proof motor, a base and a shaft; because of its compact structure, small size, high transmission efficiency, and easy maintenance, it is highly commended by users in oil and gas fields.
Flange Connection Mud Agitator Parameters
| Model | HJB5.5 | HJB7.5 | HJB11 | HJB15 | HJB18.5 | HJB22 |
| Power(kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Rated Revolution(r/min) | 1440 | 1440 | 1460 | 1460 | 1470 | 1470 |
| Impeller’s Revolution (r/min) | 72 | 72 | 73 | 73 | 73 | 73 |
| Impeller’s Revolution(r/min) | 800 | 860 | 940 | 1040 | 1140 | 1240 |
| Weight(kg) | 295 | 400 | 462 | 563 | 785 | 815 |
| Dimensions(mm）(L×W×H) | 954×549 ×583 | 1101×664 ×623 | 1222×664 ×665 | 1334×734 ×685 | 1445×888 ×770 | 1465×888 ×770 |
