Mud Mixing System

  • Combination of Venturi tube and jet nozzle, high mixing efficiency and sufficient mixing
  • Large processing capacity, fast time, saving labor
  • Safe and reliable performance, easy to move
  • The tank body adopts corrugated structure, high strength, strong and durable

The main function of the HMM mud mixing system is to make mixing mud. The working principle of the mixing system is jet mixing and impeller mixing at the same time. The    mixing system is characterized by full mixing, fast speed, and each mud preparation is  completed within 15 minutes. It is widely used in geological drilling, oil drilling, and trenchless  pipeline construction.

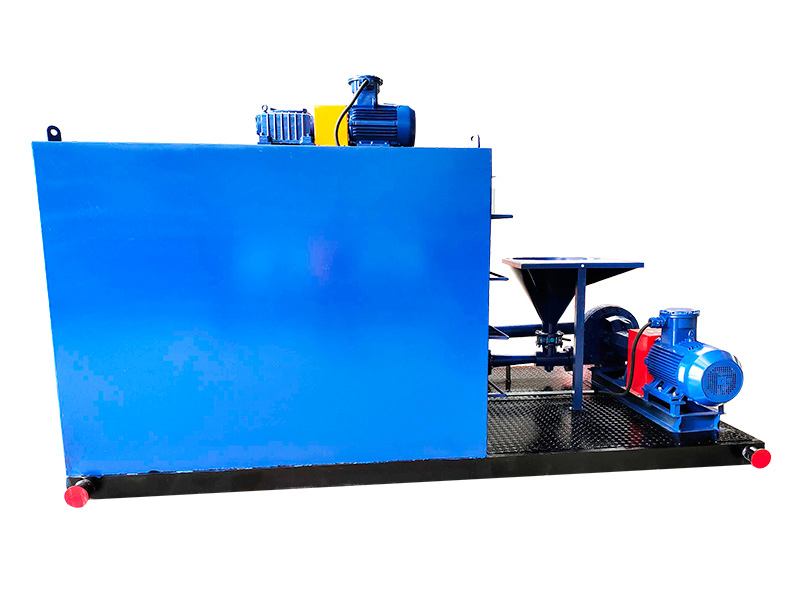

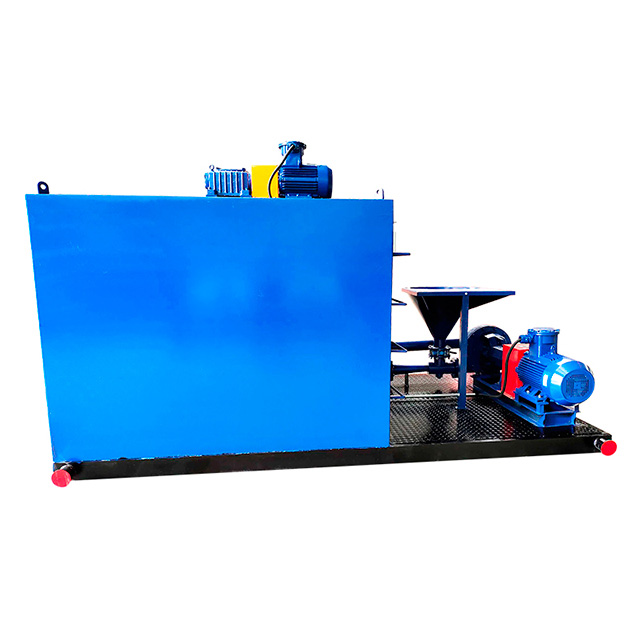

Mud Mixing System Pictures

mud mixing systemmud mixing system

The mud mixing system of our company is mainly composed of several mud tanks with agitators. The tanks are connected in parallel through rubber hoses, and they can be   used separately through valves. The jet mixing device is connected to one of the tanks, which can suck mud from any tank, mix it and discharge it into any tank, and the configured mud is finally input to the drilling rig for recycling through the mud pump.

The shape of the mud tank is welded by corrugated structural steel plate and section steel. It has good strength, is not easy to deform, and can withstand large tension. The bottom is made of channel steel, the top is made of non-slip mesh plate, and the upper and lower boxes have ladders, which ensure the safety, convenience and long service life of the construction. There is a mud agitator on the top of the tank, a mud gun inside the tank, and a jet mixing device on the side of the tank. Factory sales have a price advantage, and provide you with satisfactory after-sales technical services, using our products to bring you efficiency and benefits.
