Desilter (drilling fluid desilter) is the 3rd stage of drilling fluid solids control system equipment, combined with vibrating screen, can effectively remove suspension solid phased particles with size 15-47μm in drilling fluid. It's a stable and important equipment of adjusting drilling fluid technology index.
The desilter is suitable for ZJ70,ZJ50 and ZJ40 all kinds of drilling rig, which can be used with closed loop drilling fluid systems.

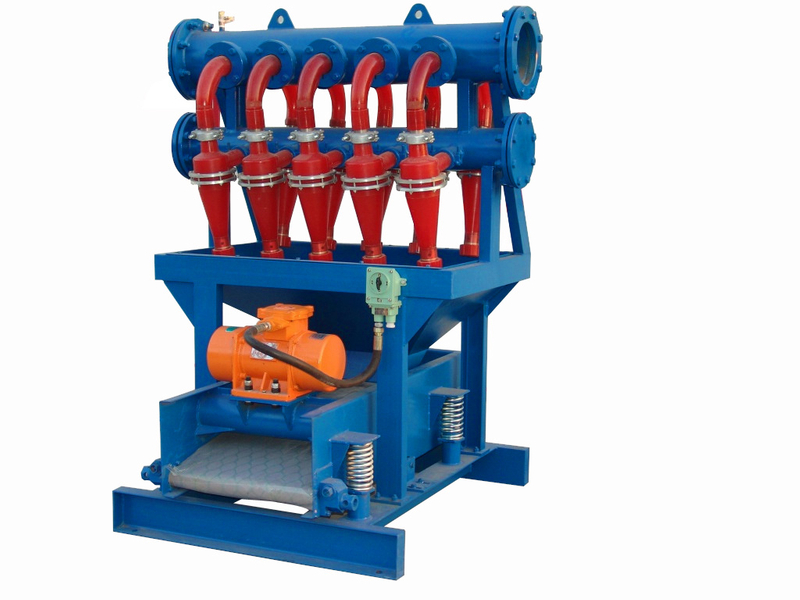

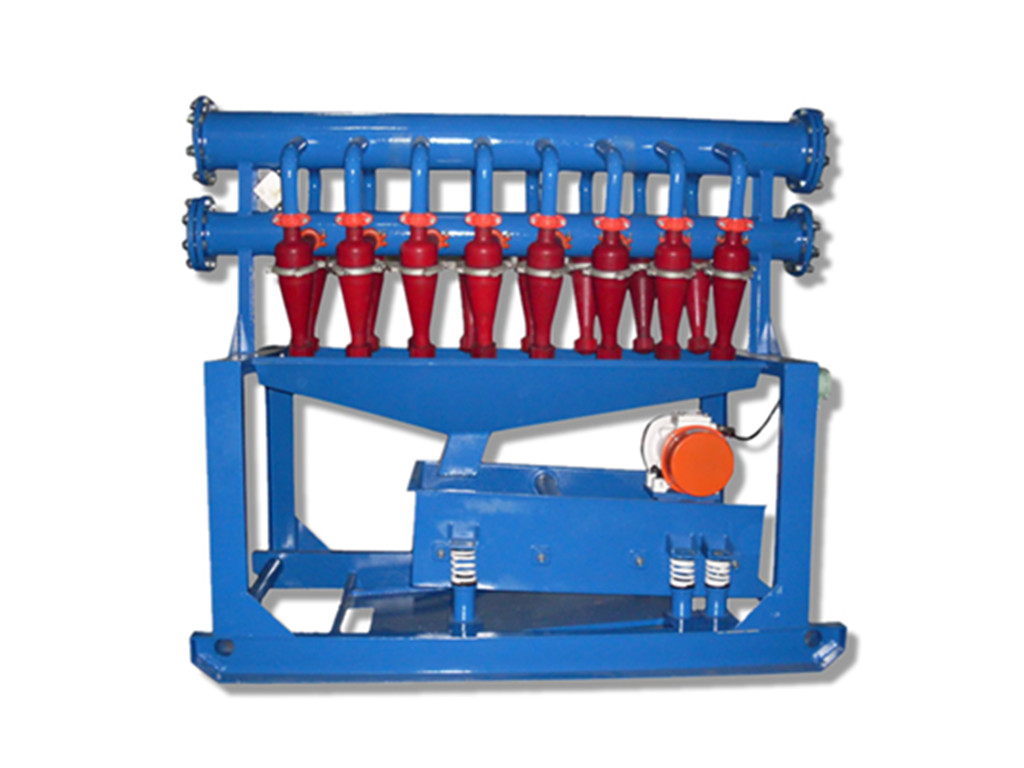

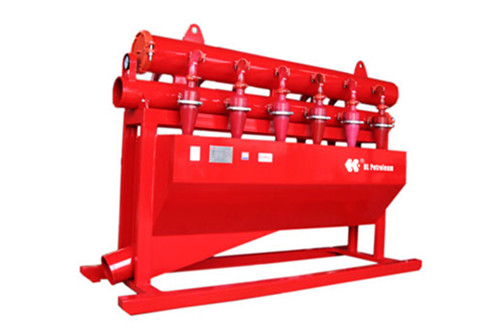

Desilter Pictures
Desilter Technical Parameters
Model | HCN100×6S | HCN100×8S | HCN100×10S |
Capacity (m3/h) | 100 | 200 | 240 |
Cyclone dia. | 100mm（4″） | ||
Cyclone no. | 6 | 8 | 12 |
Motor power (KW) | 0.4 | ||
Separation size(μm) | 15-20 | ||
Screen mesh | 200 mesh | ||
Work pressure | 0.25~0.45MPa | ||
Dimension(mm) | 1500×1200×1800 | 1500×1300×2000 | 1500×1500×2000 |
Weight (KG) | 750 | 800 | 1100 |
