The main function of the sand pump shaft is to transmit power and support the impeller to keep it in normal operation. One end is connected to the motor shaft through a coupling, and the other end supports the impeller for rotating motion. The shaft is equipped with bearings and axial seals, etc.
Material and structure of sand pump shaft
Because the pump shaft is used to transmit power and rotate at high speed, in pumps that transport clean water and other non-corrosive media, they are generally made of 45 steel and are quenched and tempered. In pumps that transport weakly corrosive media such as salt solutions, the pump The shaft material is 40Cr and is quenched and tempered. In terms of corrosion resistance, that is, pumps used to transport strong corrosive media such as acid and alkali, the shaft material is generally stainless steel such as Cr18N, Cr18Ni9Ti.
The sand pump shaft is a stepped shaft part, generally as a whole, but in anti-corrosion pumps, due to the high price of stainless steel, sometimes combined parts are used, the part contacting the medium is made of stainless steel, and the bearing and coupling are installed. Use high-quality carbon cable structural steel, bearing connection between stainless steel and carbon steel, and pin reinforcement for interference fit.

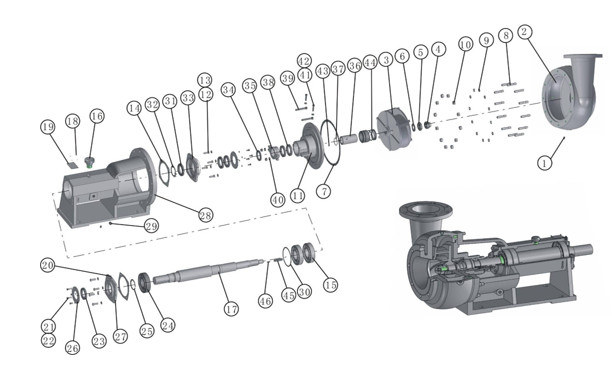

SB6x8 ZJ sand pump spare parts list
Item | Description | Part No. | Qty. | Item | Description | Part No. | Qty. |
1 | PlugZG1/2” | SB68ZJ0001 | 5 | 24 | Bearing | SB68ZJ0024 | 1 |
2 | Case | SB68ZJ0002 | 1 | 25 | Retainer | SB68ZJ0025 | 1 |
3 | Impeller-J | SB68ZJ0003 | 1 | 26 | Cover | SB68ZJ0026 | 2 |
4 | Cap nuts M30X2-LH | SB68ZJ0004 | 1 | 27 | Cover, inboard | SB68ZJ0027 | 1 |
5 | Nuts M30X2-LH | SB68ZJ0005 | 1 | 28 | Frame | SB68ZJ0028 | 1 |
6 | Washer | SB68ZJ0006 | 1 | 29 | Oil gauge | SB68ZJ0029 | 1 |
7 | Paper gasket | SB68ZJ0007 | 1 | 30 | Paper gasket | SB68ZJ0030 | 1 |
8 | Stud | SB68ZJ0008 | 12 | 31 | Lock nut M68X2-LH | SB68ZJ0031 | 1 |
9 | Spring washer | SB68ZJ0009 | 12 | 32 | Lock washer 68 | SB68ZJ0032 | 1 |
10 | Nuts | SB68ZJ0010 | 12 | 33 | Cvoer out board | SB68ZJ0033 | 1 |
11 | Cover of seal | SB68ZJ0011 | 1 | 34 | Slinger | SB68ZJ0034 | 1 |
12 | Screw bolts | SB68ZJ0012 | 8 | 35 | Packing gland set | SB68ZJ0035 | 1 |
13 | Spring washer | SB68ZJ0013 | 8 | 36 | Sleeve shaft | SB68ZJ0036 | 1 |
14 | Paper gasket | SB68ZJ0014 | 2 | 37 | O-ring | SB68ZJ0037 | 1 |
15 | Bearing | SB68ZJ0015 | 2 | 38 | Packing | SB68ZJ0038 | 2 |
16 | Oil cover | SB68ZJ0016 | 1 | 39 | Gland bolt | SB68ZJ0039 | 2 |
17 | Shaft-J | SB68ZJ0017 | 1 | 40 | Washer | SB68ZJ0040 | 2 |
18 | Rivet | SB68ZJ0018 | 4 | 41 | Screw bolt | SB68ZJ0041 | 2 |
19 | Nameplate | SB68ZJ0019 | 1 | 42 | Nut | SB68ZJ0042 | 2 |
20 | Grease cup | SB68ZJ0020 | 2 | 43 | Pin | SB68ZJ0043 | 1 |
21 | Screw bolts | SB68ZJ0021 | 8 | 44 | Mechanical seal | SB68ZJ0044 | 1 |
22 | Spring Washer | SB68ZJ0022 | 8 | 45 | Key | SB68ZJ0045 | 1 |
23 | Oil seal | SB68ZJ0023 | 3 | 46 | Key | SB68ZJ0046 | 1 |

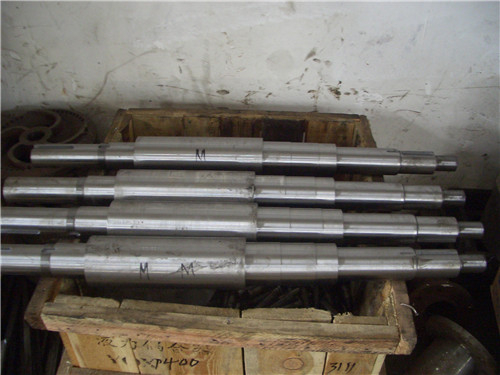

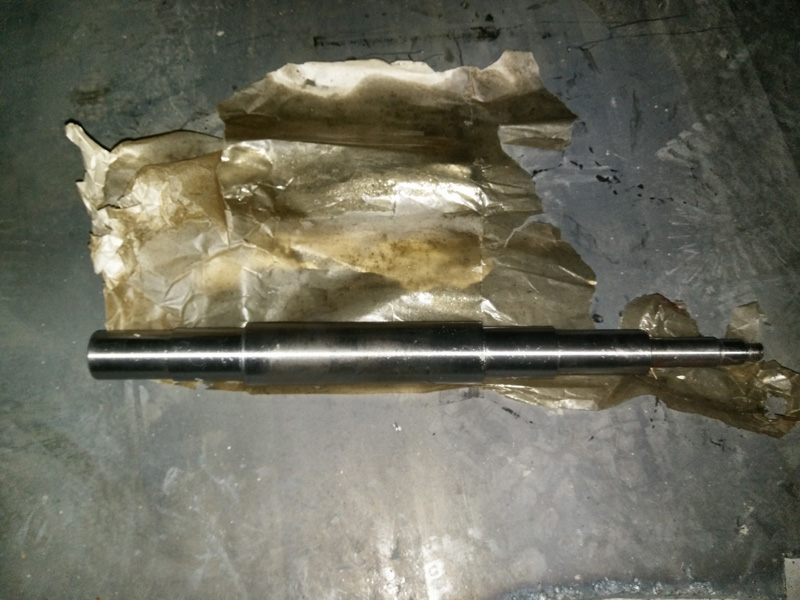

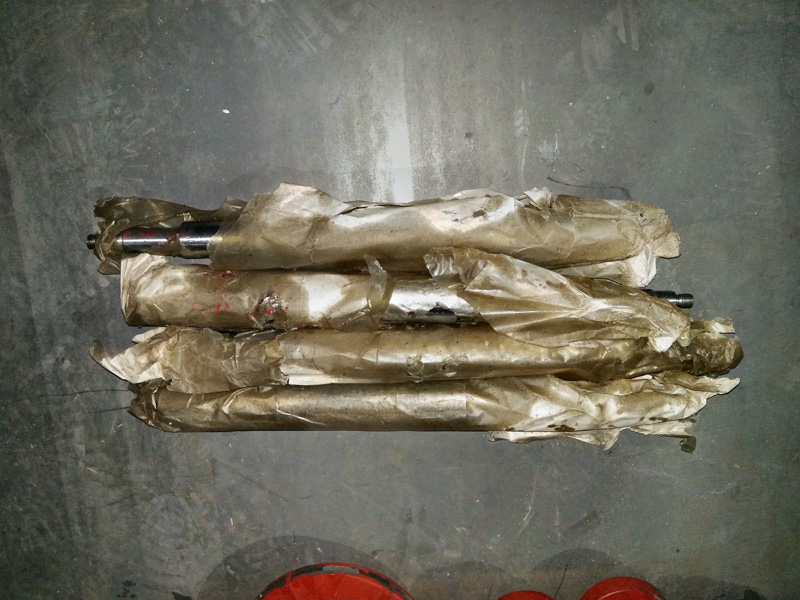

Sand pump shaft pictures
 |  |
