Product Description

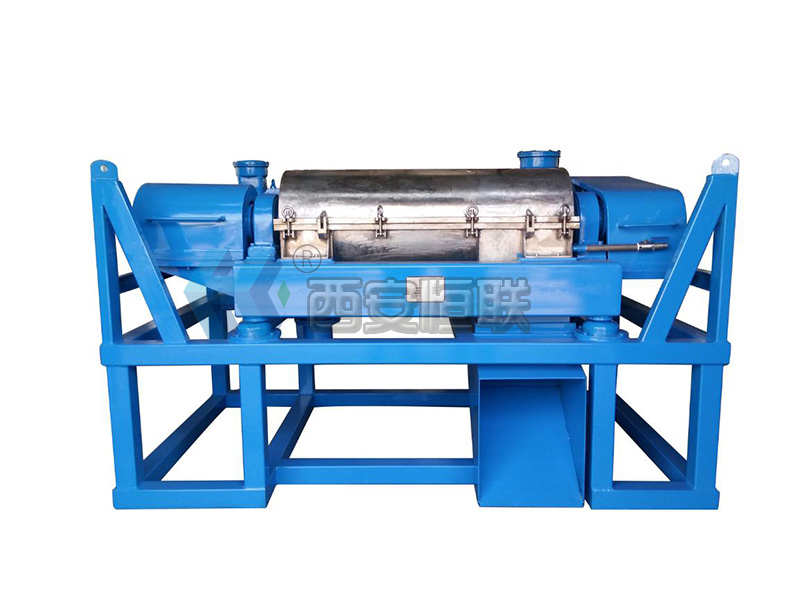

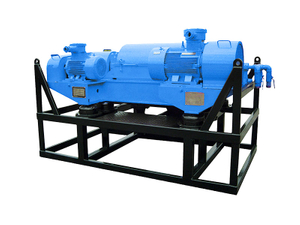

The Drilling Fluid Centrifuge is one of the important equipment for solid-liquid separation in solids control equipment. It is usually installed at the last stage of the solids control system to remove harmful fine solid particles such as cuttings in the mud , to ensure fast and safe drilling, or to recover valuable heavy materials such as barite, and save mud costs. According to the working speed, the centrifuges are divided into low speed centrifuges, medium speed centrifuge, and high speed centrifuges. The separation particle sizes are as follows:
Low speed centrifuge: 1500~1800RPM, separation particle size is 6~12μm
Medium speed centrifuge: 1900~2200RPM, separation particle size is 5~9μm
High speed centrifuge: 2300~3500RPM, separation particle size is: 2~7μm
>>Send an Enquiry sales@hlsolidscontrol.com<<
TDS
Technical Parameters of Drilling Fluid Centrifuge >>Send an Enquiry sales@hlsolidscontrol.com<<
Model | LW355×1257-N | LW450×842-N | LW450×1000-N | LW500×1000-N | LW600×1000-N |
| Bowl Diameter(mm) | 355 | 450 | 450 | 500 | 600 |
| Bowl Length(mm) | 1257 | 842 | 1000 | 1000 | 1000 |
| Max. Capacity(m³/h) | 30 | 40 | 50 | 50 | 60 |
| Max Bowl Speed(rpm) | 3200 | 1800 | 2200 | 2500 | 1600 |
| Separation Factor | ≤2296 | ≤820 | ≤1218 | ≤1817 | ≤900 |
| Main Motor Power(KW) | 30 | 22 | 30 | 37 | 45 |
| Auxiliary Motor Power(KW) | 7.5 | 5.5 | 7.5 | 7.5 | 7.5 |
| Dimension:Lx Wx H(mm) | 3000×1500×1650 | 2370×1700×1800 | 2580×1700×1850 | 2660×1670×1760 | 3060×1870×1790 |
| Weight(kg) | 3300 | 2950 | 3300 | 3400 | 3500 |
Remarks: The above models all have medium-high speed and frequency conversion models, please let us know when you place an order.

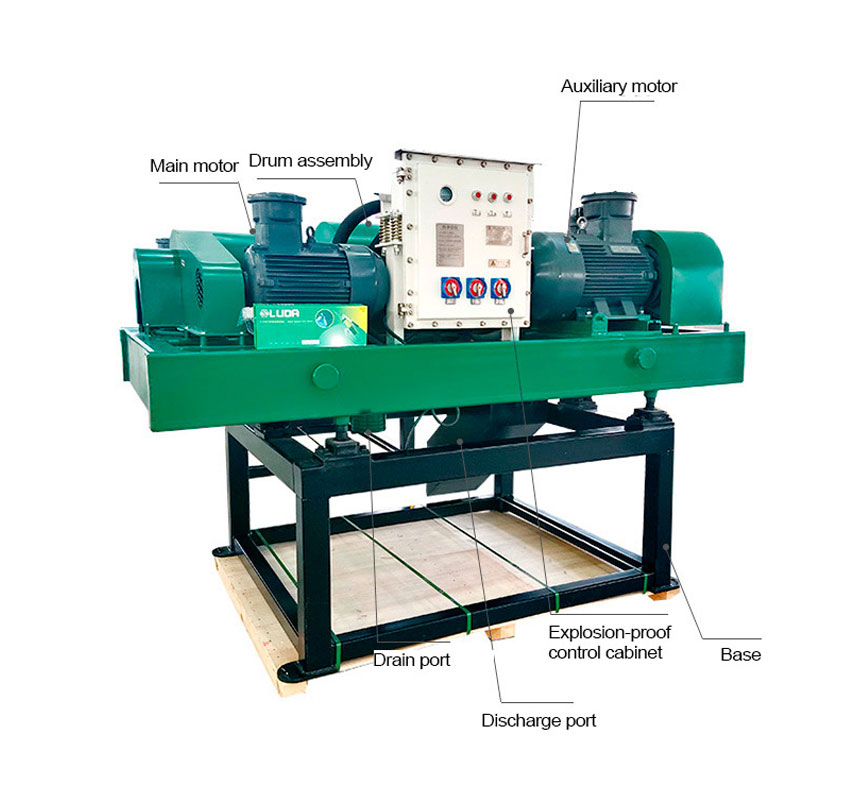

Drilling Fluid Centrifuge Features
This series of oilfield decanting centrifugeuse a hydraulic coupling to drive the drum, adjust the spiral speed through a planetary gear differential to achieve low-speed and high-torque power transmission, and are equipped with mechanical and electrical double overload protection devices. The inner spirals are all made of cemented carbide inserts, and are designed with a special suspension structure. The blades are highly resistant to wear and the whole machine has a large processing capacity.
Drilling Fluid Centrifuge Application
There are two main reasons for using centrifuges in the drilling fluid maintenance process:
(1) Selective separation and aggravation of colloidal particles and ultrafine particles in the drilling fluid.
(2) Remove fine particles in non-aggravated drilling fluid

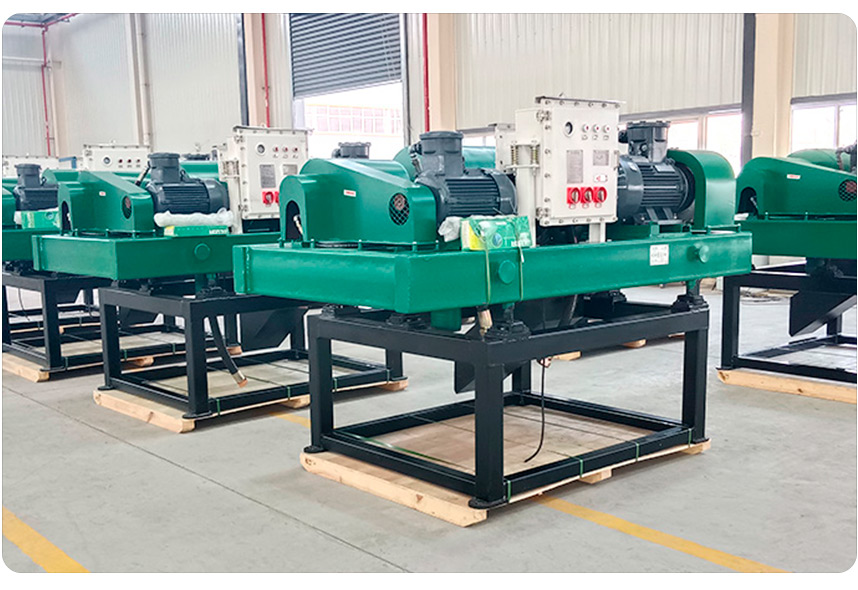

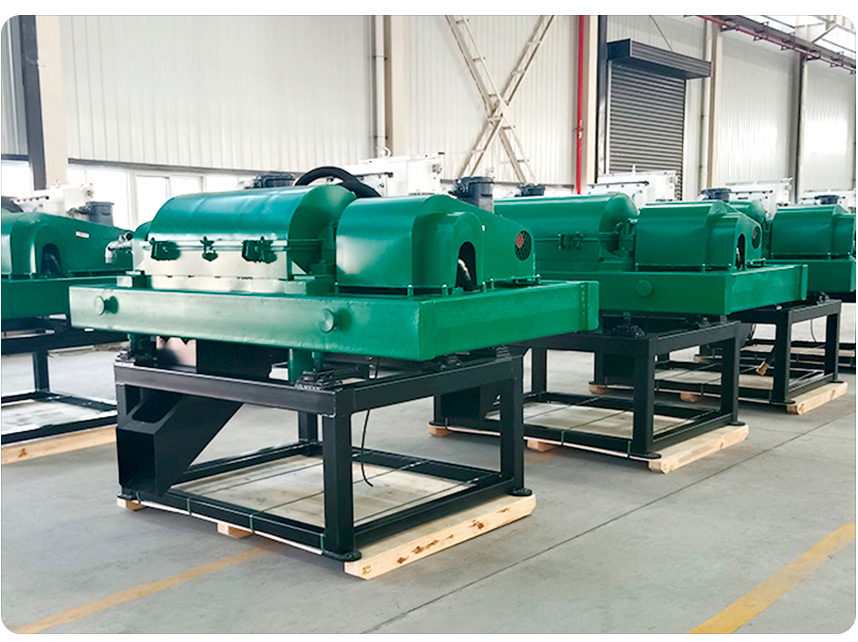

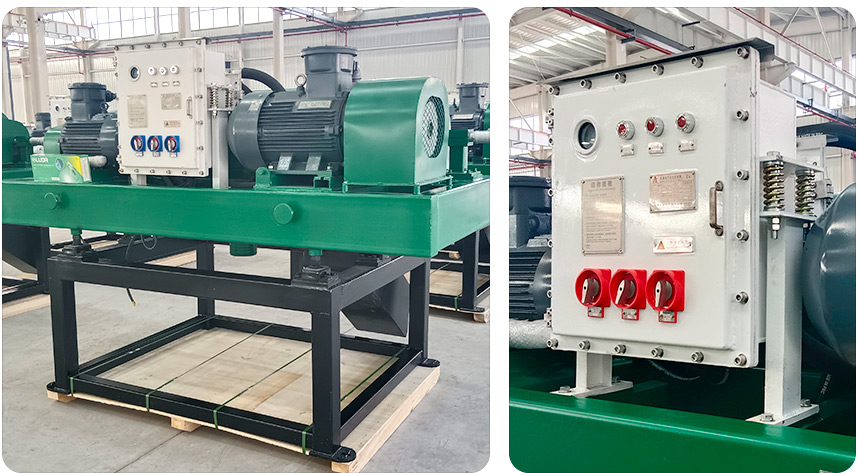

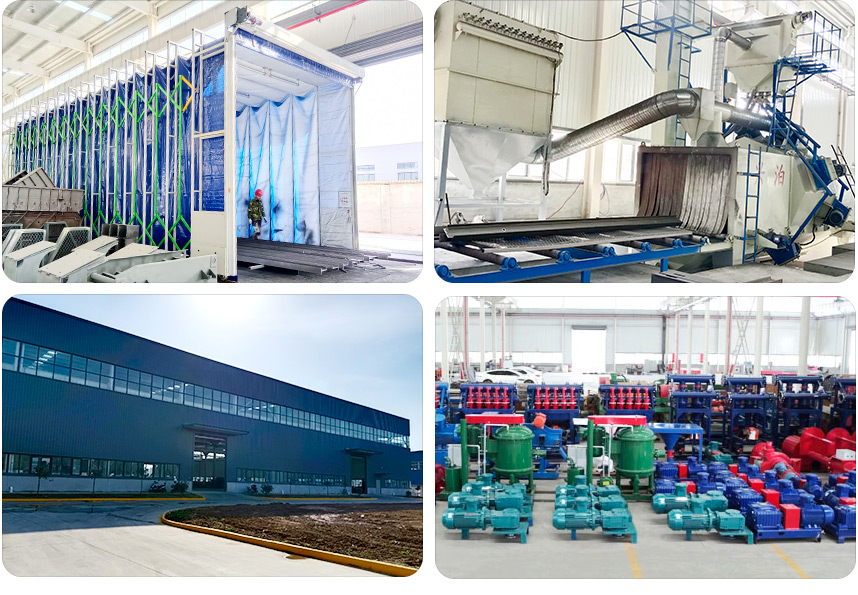

Factory Pictures

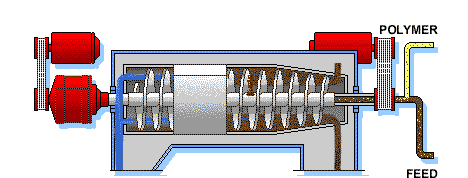

Drilling Fluid Centrifuge Working principle
When the drilling fluid is continuously fed from the feed pipe, it enters the bowl from the feed hole, and the bowl rotates at a high speed; under the action of the differential, the auger rotates at a speed slightly lower than that of the bowl. It forms a separation-conveying mechanism with a certain differential speed and high-speed rotation in the same direction with the screw pusher.
Centrifuge LW450x1000 operation manual.pdf
HL Petroleum provides OEM services for clients worldwide,designs centrifuge mud cleaning system,sludge dewatering centrifuge,
centrifuge drilling mud system, not only for oil and gas drilling rigs, but also trenchless hdd projects,Geothermal drilling,etc.
