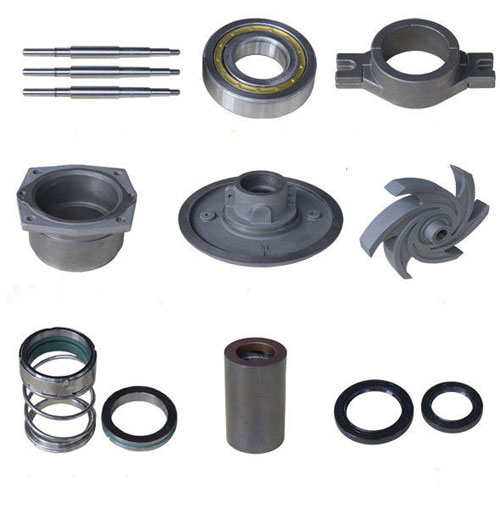

XBSY centrifugal sand pumps are available in 6x8, 5x6, 4x5, 3x4, 2x3, and the main accessories include mechanical seals, pump casings, impellers, pump shafts, pump covers, etc.
Sand pump is mainly used to match the circulating solids control system of oilfield drilling rigs. Its function is to provide drilling fluid with a certain displacement and pressure for desanders, desilters, mixers, etc., to ensure that these equipment work efficiently.
All types of sand pumps of Henglian adopt mechanical seals, with long service life and reliable performance. All parts of the sand pump and western oil sand pump parts can be interchanged, so that users can find the vulnerable parts and replace them more conveniently.
XBSY 6x8 sand pump spare parts list
Item | Description | Part No. | Qty. | Item | Description | Part No. | Qty. |
1 | PlugZG1/2” | SB68ZJ0001 | 5 | 24 | Bearing | SB68ZJ0024 | 1 |
2 | Case | SB68ZJ0002 | 1 | 25 | Retainer | SB68ZJ0025 | 1 |
3 | Impeller-J | SB68ZJ0003 | 1 | 26 | Cover | SB68ZJ0026 | 2 |
4 | Cap nuts M30X2-LH | SB68ZJ0004 | 1 | 27 | Cover, inboard | SB68ZJ0027 | 1 |
5 | Nuts M30X2-LH | SB68ZJ0005 | 1 | 28 | Frame | SB68ZJ0028 | 1 |
6 | Washer | SB68ZJ0006 | 1 | 29 | Oil gauge | SB68ZJ0029 | 1 |
7 | Paper gasket | SB68ZJ0007 | 1 | 30 | Paper gasket | SB68ZJ0030 | 1 |
8 | Stud | SB68ZJ0008 | 12 | 31 | Lock nut M68X2-LH | SB68ZJ0031 | 1 |
9 | Spring washer | SB68ZJ0009 | 12 | 32 | Lock washer 68 | SB68ZJ0032 | 1 |
10 | Nuts | SB68ZJ0010 | 12 | 33 | Cvoer out board | SB68ZJ0033 | 1 |
11 | Cover of seal | SB68ZJ0011 | 1 | 34 | Slinger | SB68ZJ0034 | 1 |
12 | Screw bolts | SB68ZJ0012 | 8 | 35 | Packing gland set | SB68ZJ0035 | 1 |
13 | Spring washer | SB68ZJ0013 | 8 | 36 | Sleeve shaft | SB68ZJ0036 | 1 |
14 | Paper gasket | SB68ZJ0014 | 2 | 37 | O-ring | SB68ZJ0037 | 1 |
15 | Bearing | SB68ZJ0015 | 2 | 38 | Packing | SB68ZJ0038 | 2 |
16 | Oil cover | SB68ZJ0016 | 1 | 39 | Gland bolt | SB68ZJ0039 | 2 |

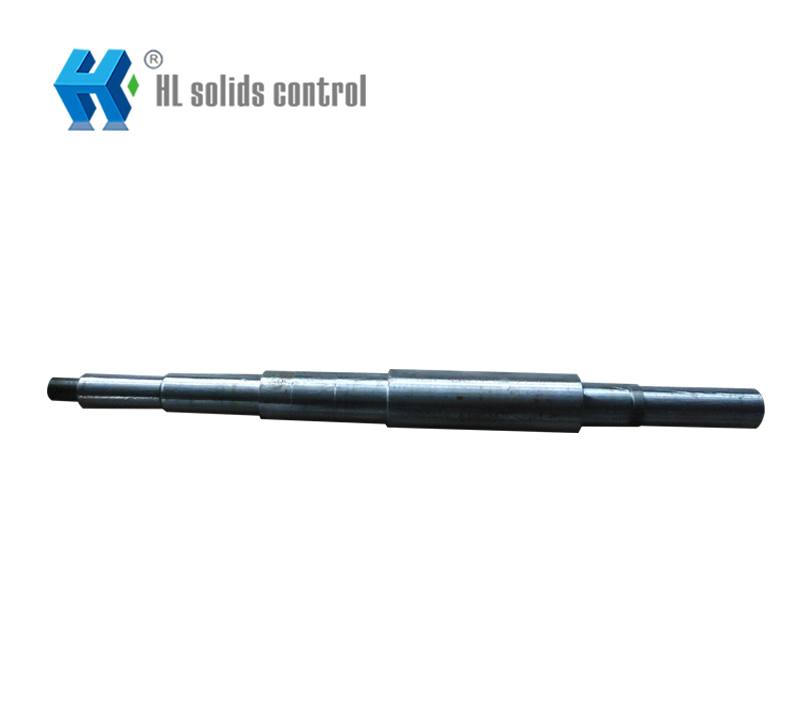

17 | Shaft-J | SB68ZJ0017 | 1 | 40 | Washer | SB68ZJ0040 | 2 |
18 | Rivet | SB68ZJ0018 | 4 | 41 | Screw bolt | SB68ZJ0041 | 2 |
19 | Nameplate | SB68ZJ0019 | 1 | 42 | Nut | SB68ZJ0042 | 2 |
20 | Grease cup | SB68ZJ0020 | 2 | 43 | Pin | SB68ZJ0043 | 1 |
21 | Screw bolts | SB68ZJ0021 | 8 | 44 | Mechanical seal | SB68ZJ0044 | 1 |
22 | Spring Washer | SB68ZJ0022 | 8 | 45 | Key | SB68ZJ0045 | 1 |
23 | Oil seal | SB68ZJ0023 | 3 | 46 | Key | SB68ZJ0046 | 1 |
