The sand pump often has some small parts worn out during use, which needs to be replaced, Xi'an HL Petroleum can provide SB series sand pump accessories.
SB6x8 ZJ Sand Pump Explosive Drawing
| Item | Description | Part No. | Qty. | Item | Description | Part No. | Qty. |
| 1 | PlugZG1/2” | SB68ZJ0001 | 5 | 24 | Bearing | SB68ZJ0024 | 1 |
| 2 | Case | SB68ZJ0002 | 1 | 25 | Retainer | SB68ZJ0025 | 1 |
| 3 | Impeller-J | SB68ZJ0003 | 1 | 26 | Cover | SB68ZJ0026 | 2 |
| 4 | Cap nuts M30X2-LH | SB68ZJ0004 | 1 | 27 | Cover, inboard | SB68ZJ0027 | 1 |
| 5 | Nuts M30X2-LH | SB68ZJ0005 | 1 | 28 | Frame | SB68ZJ0028 | 1 |
| 6 | Washer | SB68ZJ0006 | 1 | 29 | Oil gauge | SB68ZJ0029 | 1 |
| 7 | Paper gasket | SB68ZJ0007 | 1 | 30 | Paper gasket | SB68ZJ0030 | 1 |
| 8 | Stud | SB68ZJ0008 | 12 | 31 | Lock nut M68X2-LH | SB68ZJ0031 | 1 |
| 9 | Spring washer | SB68ZJ0009 | 12 | 32 | Lock washer 68 | SB68ZJ0032 | 1 |
| 10 | Nuts | SB68ZJ0010 | 12 | 33 | Cvoer out board | SB68ZJ0033 | 1 |
| 11 | Cover of seal | SB68ZJ0011 | 1 | 34 | Slinger | SB68ZJ0034 | 1 |
| 12 | Screw bolts | SB68ZJ0012 | 8 | 35 | Packing gland set | SB68ZJ0035 | 1 |
| 13 | Spring washer | SB68ZJ0013 | 8 | 36 | Sleeve shaft | SB68ZJ0036 | 1 |
| 14 | Paper gasket | SB68ZJ0014 | 2 | 37 | O-ring | SB68ZJ0037 | 1 |
| 15 | Bearing | SB68ZJ0015 | 2 | 38 | Packing | SB68ZJ0038 | 2 |
| 16 | Oil cover | SB68ZJ0016 | 1 | 39 | Gland bolt | SB68ZJ0039 | 2 |
| 17 | Shaft-J | SB68ZJ0017 | 1 | 40 | Washer | SB68ZJ0040 | 2 |
| 18 | Rivet | SB68ZJ0018 | 4 | 41 | Screw bolt | SB68ZJ0041 | 2 |
| 19 | Nameplate | SB68ZJ0019 | 1 | 42 | Nut | SB68ZJ0042 | 2 |
| 20 | Grease cup | SB68ZJ0020 | 2 | 43 | Pin | SB68ZJ0043 | 1 |
| 21 | Screw bolts | SB68ZJ0021 | 8 | 44 | Mechanical seal | SB68ZJ0044 | 1 |
| 22 | Spring Washer | SB68ZJ0022 | 8 | 45 | Key | SB68ZJ0045 | 1 |
| 23 | Oil seal | SB68ZJ0023 | 3 | 46 | Key | SB68ZJ0046 | 1 |
Pictures

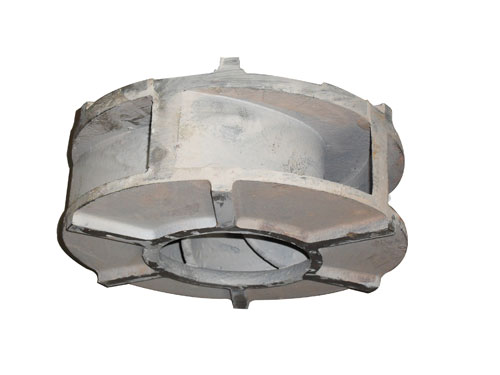

| Mechnical Seal | Impeller |
| Shaft Sleeve | Pump Shaft |
