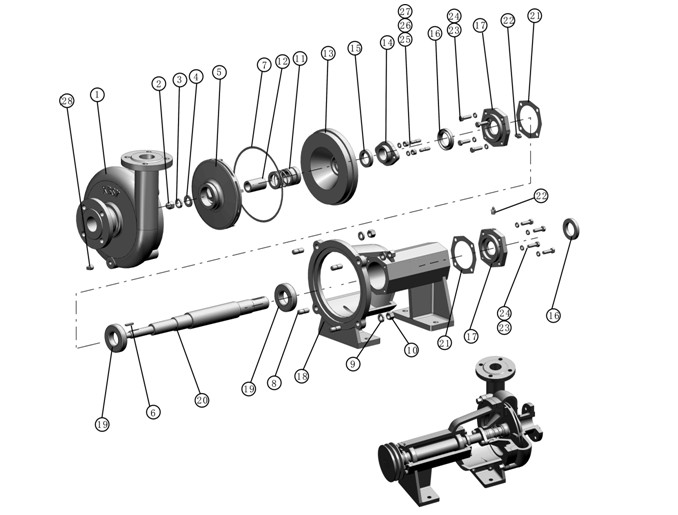

Item	Description	Part No	Qty.	Item	Description	Part No	Qty.

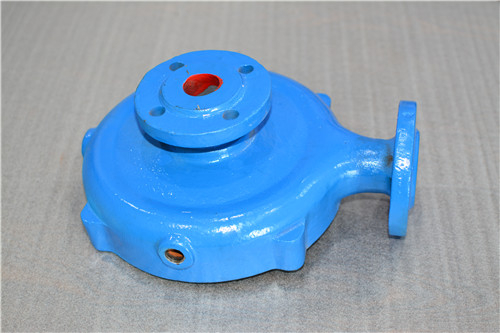

1	Pump body	40SB180J0001	1	15	Packing	40SB180J0015	1
２	Cap nut	40SB180J0002	1	16	Oil seal	40SB180J0016	２
３	Spring gasket	40SB180J0003	１	17	Bearing cover	40SB180J0017	２
４	Washer	40SB180J0004	１	18	Pump base	40SB180J0018	1

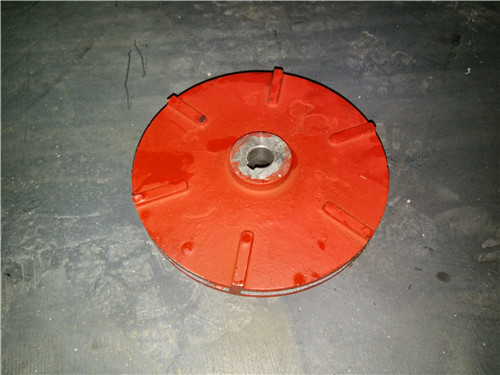

５	Impeller	40SB180J0005	1	19	Bearing	40SB180J0019	２
６	Key	40SB180J0006	1	20	Shaft	40SB180J0020	1
７	Paper gasket	40SB180J0007	1	21	Paper gasket	40SB180J0021	２
８	Double head studs	40SB180J0008	4	22	Oil cup	40SB180J0022	２
９	Screw nuts	40SB180J0009	4	23	Screw bolts	40SB180J0023	８
10	Spring gasket	40SB180J0010	4	24	Spring gasket	40SB180J0024	８

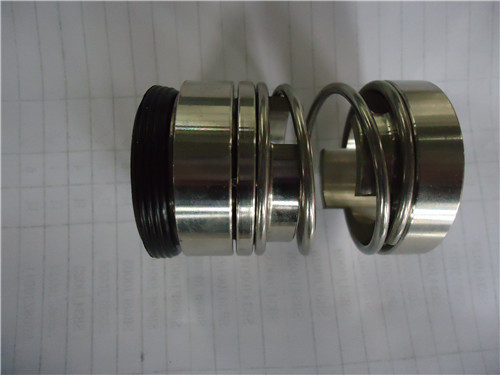

11	Mechanical seal	40SB180J0011	1	25	Double head studs	40SB180J0025	２
12	Shaft sleeve	40SB180J0012	1	26	Screw nuts	40SB180J0026	２

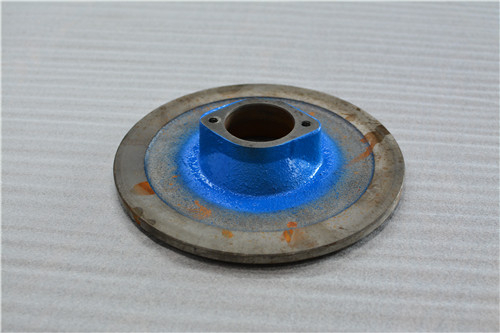

13	Pump cover	40SB180J0013	1	27	Spring gasket	40SB180J0027	２

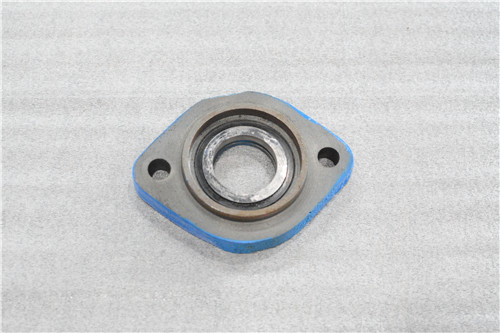

14	Packing gland set	40SB180J0014	1	28	Bolt Plug	40SB180J0028	１

Item	Description	Part No	Qty.	Item	Description	Part No	Qty.
1	Pump body	40SB180J0001	1	15	Packing	40SB180J0015	1
２	Cap nut	40SB180J0002	1	16	Oil seal	40SB180J0016	２
３	Spring gasket	40SB180J0003	１	17	Bearing cover	40SB180J0017	２
４	Washer	40SB180J0004	１	18	Pump base	40SB180J0018	1
５	Impeller	40SB180J0005	1	19	Bearing	40SB180J0019	２
６	Key	40SB180J0006	1	20	Shaft	40SB180J0020	1
７	Paper gasket	40SB180J0007	1	21	Paper gasket	40SB180J0021	２
８	Double head studs	40SB180J0008	4	22	Oil cup	40SB180J0022	２
９	Screw nuts	40SB180J0009	4	23	Screw bolts	40SB180J0023	８
10	Spring gasket	40SB180J0010	4	24	Spring gasket	40SB180J0024	８
11	Mechanical seal	40SB180J0011	1	25	Double head studs	40SB180J0025	２
12	Shaft sleeve	40SB180J0012	1	26	Screw nuts	40SB180J0026	２
13	Pump cover	40SB180J0013	1	27	Spring gasket	40SB180J0027	２
14	Packing gland set	40SB180J0014	1	28	Bolt Plug	40SB180J0028	１
