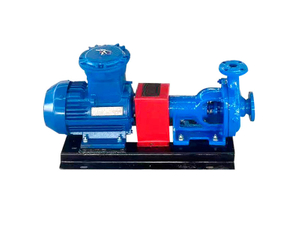

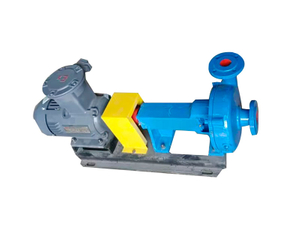

Spraying pump mainly consists of pump body, mechanically sealed pump cover, mechanical seal, impeller and pump base, etc. Advantages in its structure mainly include; mechanical sealing is adopted to ensure operation without leakage. In addition, the pump has two-drive type: motor direct drive and pulley drive.
Availability: | |
---|---|
Quantity: | |
Spray pump mainly consists of pump body, mechanically sealed pump cover, mechanical seal, impeller and pump base, etc. Advantages in its structure mainly include; mechanical sealing is adopted to ensure operation without leakage. In addition, the pump has two-drive type: motor direct drive and pulley drive.
Oilfield spray pump technical parameters
Type | Flow (m3/h) | Lift (m) | Efficiency (%) | Speed (r/min) | Power(kW) | |
Power of shaft | Power of motor | |||||
32SB180J-2.2kW | 7.5 | 10 | 48 | 1420/1750 | 0.55 | 2.2 |
32SB180J-4kW | 9 | 14 | 48 | 1750 | 0.93 | 3 |
40SB180J-3kW | 15 | 10 | 53 | 1420/1750 | 0.78 | 4 |
32PL | 7.5 | 10 | 48 | 1420 | 0.55 | / |
32PL(B) | 7.5 | 10 | 48 | 1420 | 0.55 | / |

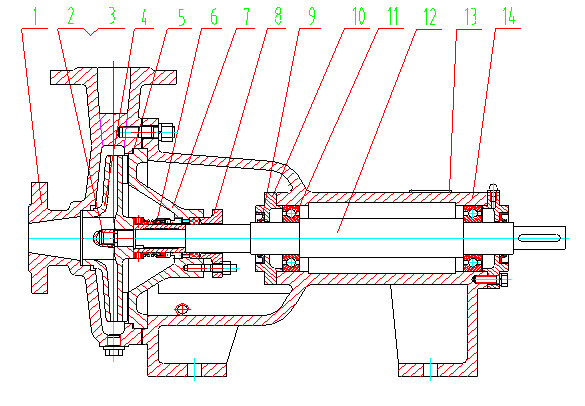

Structure drawing
1.Pump body 2.Cap nut 3.Washer 4.Impeller 5.Asbestine plank 6.Mechanical seal 7.Pump cover 8.Block
hydrosphere 9.Oil seal 10.Bearing cover 11.Bearing 12.Shaft 13.Nameplate 14.Pump base

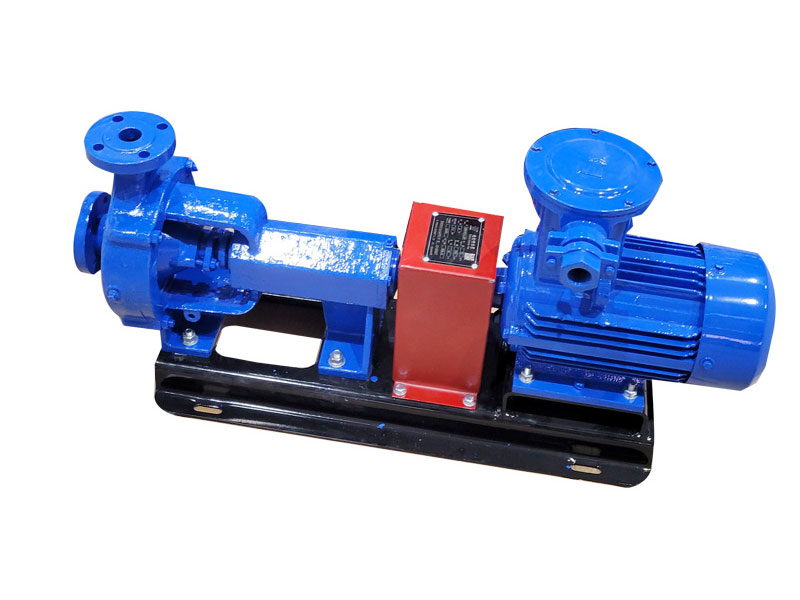

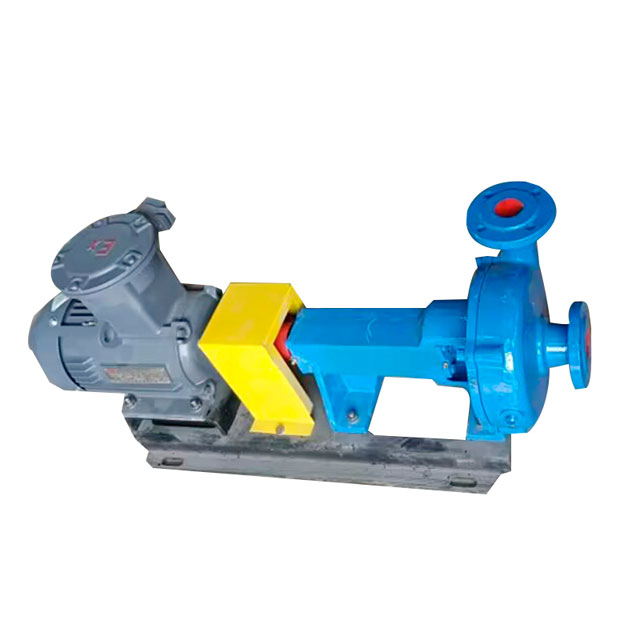

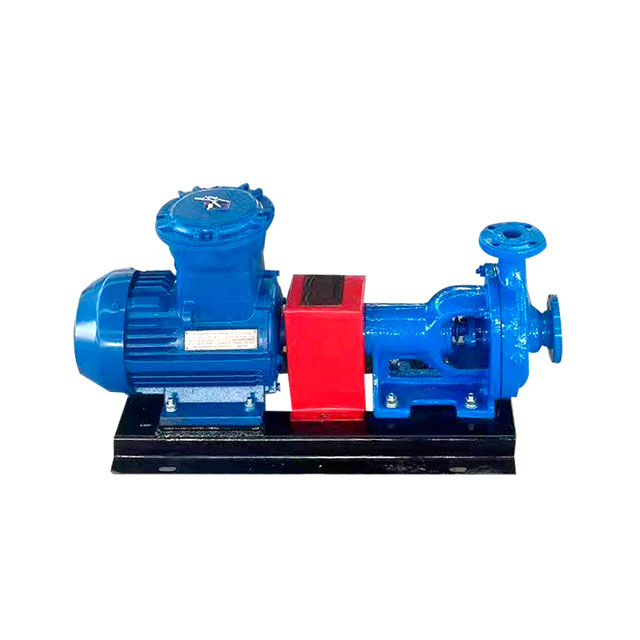

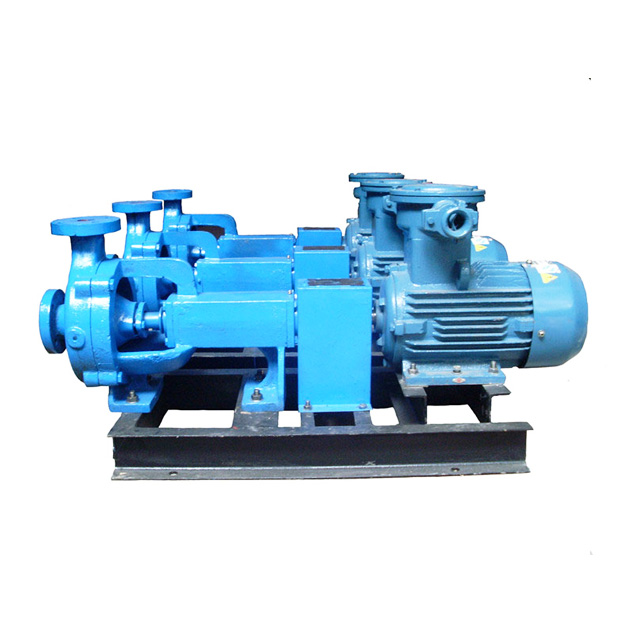

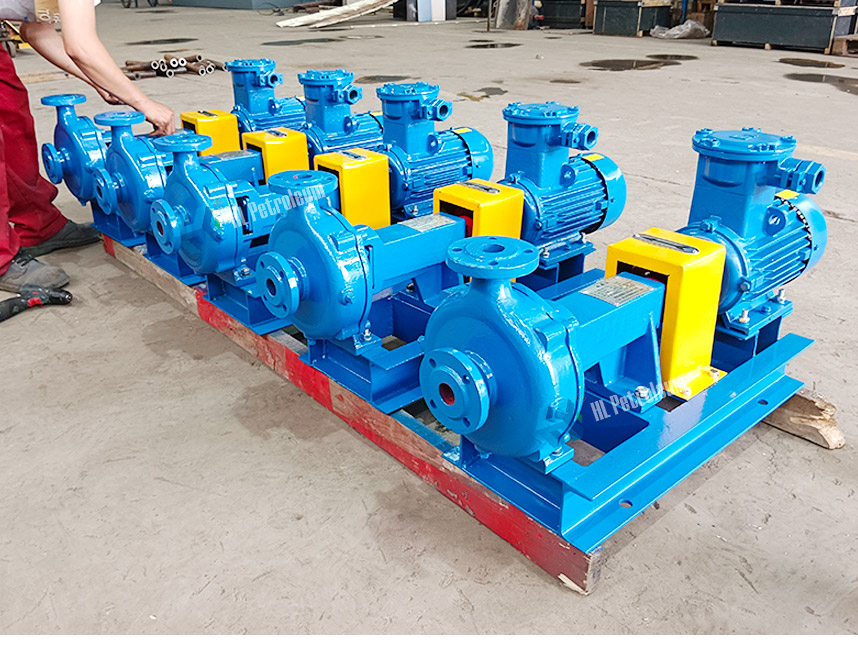

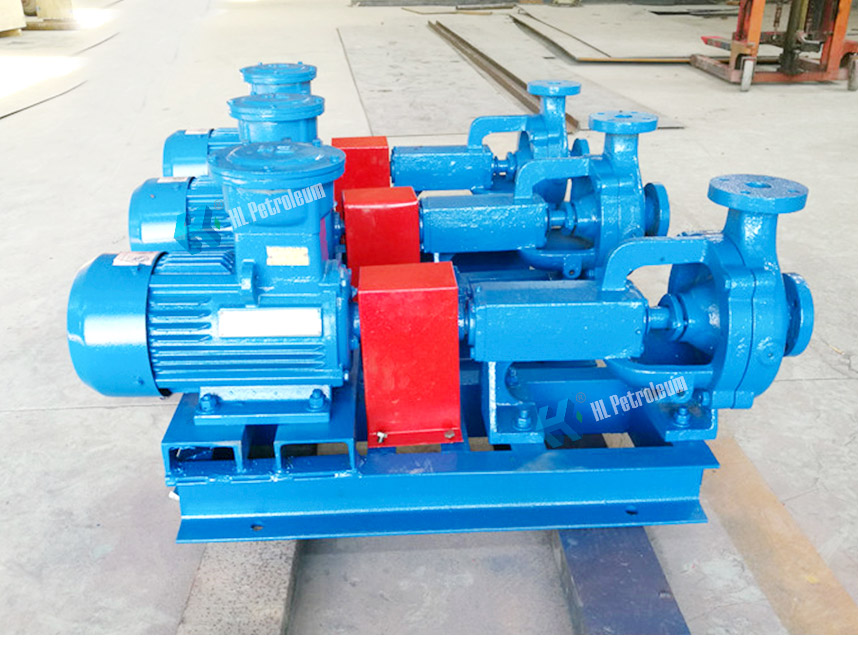

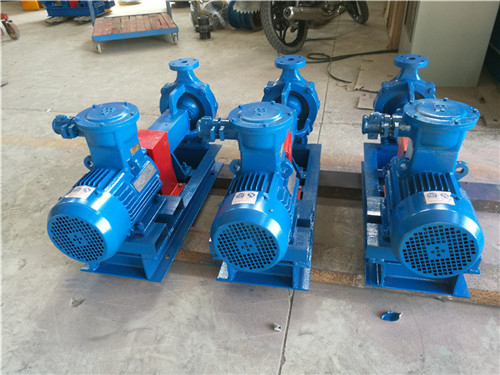

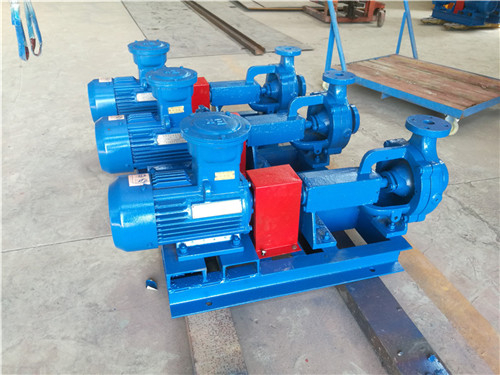

Electric spray pump pictures

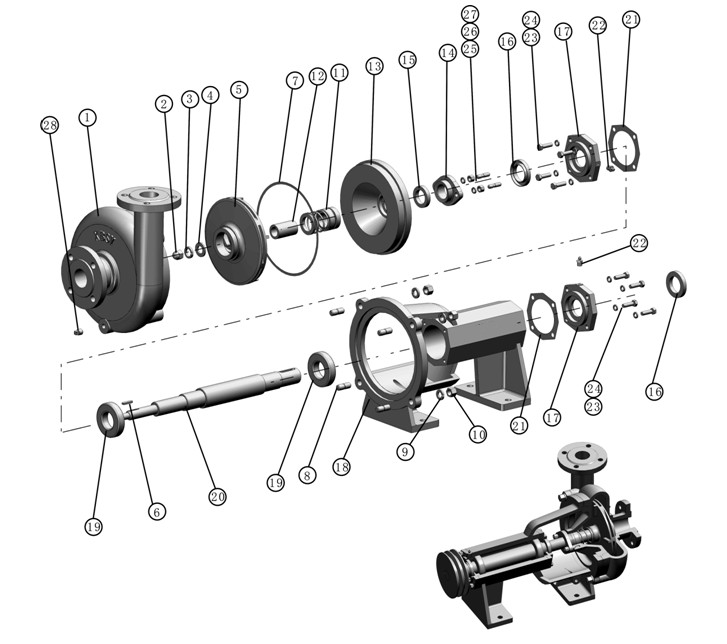

40SB180J spray pump spare parts list
Item | Description | Part No | Qty. | Item | Description | Part No | Qty. |
1 | Pump body | 40SB180J0001 | 1 | 15 | Packing | 40SB180J0015 | 1 |
2 | Cap nut | 40SB180J0002 | 1 | 16 | Oil seal | 40SB180J0016 | 2 |
3 | Spring gasket | 40SB180J0003 | 1 | 17 | Bearing cover | 40SB180J0017 | 2 |
4 | Washer | 40SB180J0004 | 1 | 18 | Pump base | 40SB180J0018 | 1 |
5 | Impeller | 40SB180J0005 | 1 | 19 | Bearing | 40SB180J0019 | 2 |
6 | Key | 40SB180J0006 | 1 | 20 | Shaft | 40SB180J0020 | 1 |
7 | Paper gasket | 40SB180J0007 | 1 | 21 | Paper gasket | 40SB180J0021 | 2 |
8 | Double head studs | 40SB180J0008 | 4 | 22 | Oil cup | 40SB180J0022 | 2 |
9 | Screw nuts | 40SB180J0009 | 4 | 23 | Screw bolts | 40SB180J0023 | 8 |
10 | Spring gasket | 40SB180J0010 | 4 | 24 | Spring gasket | 40SB180J0024 | 8 |
11 | Mechanical seal | 40SB180J0011 | 1 | 25 | Double head studs | 40SB180J0025 | 2 |
12 | Shaft sleeve | 40SB180J0012 | 1 | 26 | Screw nuts | 40SB180J0026 | 2 |
13 | Pump cover | 40SB180J0013 | 1 | 27 | Spring gasket | 40SB180J0027 | 2 |
14 | Packing gland set | 40SB180J0014 | 1 | 28 | Bolt Plug | 40SB180J0028 | 1 |
