LSB series vertical sand pump is an important part of drilling fluid solid phase control system
LSB series LSB150 vertical sand pump has a vertical structure. Its characteristic is that the working body is placed under the tank, and the motor part is placed on the surface of the tank. The space occupied is only the position of the motor. Therefore, the pump has the characteristics of compact structure and small footprint.
LSB150 vertical sand pump is mainly composed of pump body, pump cover, impeller, auxiliary impeller, auxiliary cover plate, pump shaft, oil seal and suspension bearing.
LSB vertical sand pump technical parameters
Model | Capacity (m3/h) | Head (m) | Efficiency (%) | Speed (rpm) | Motor model | Motor power(kw) |
LSB150-55 | 250 | 40 | 51 | 1480 | YB3-250M-4 | 55 |
LSB150-45 | 225 | 32 | 50 | 1480 | YB3-225M-4 | 45 |
LSB150-37 | 200 | 25 | 49 | 1480 | YB3-225S-4 | 37 |

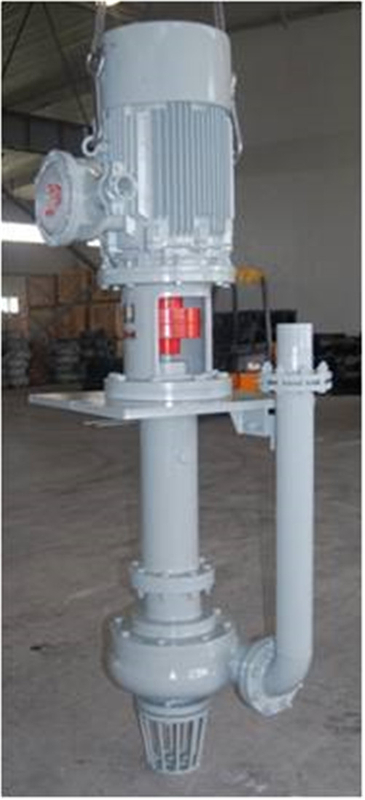

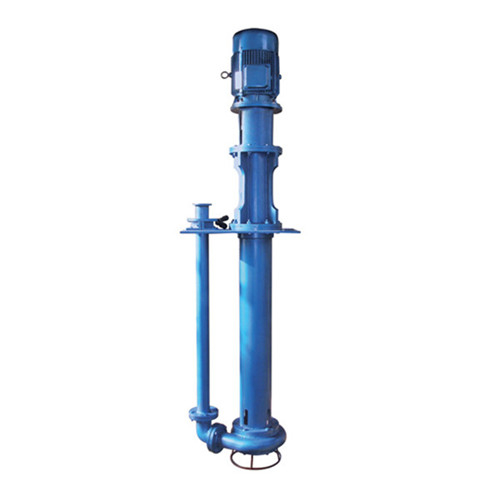

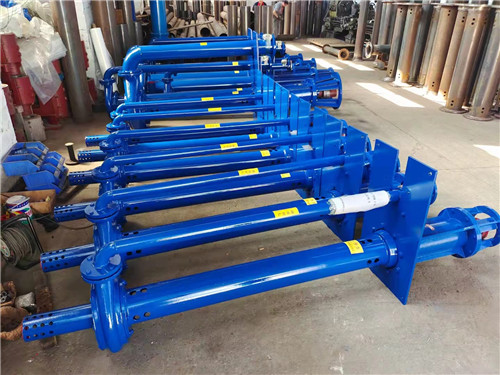

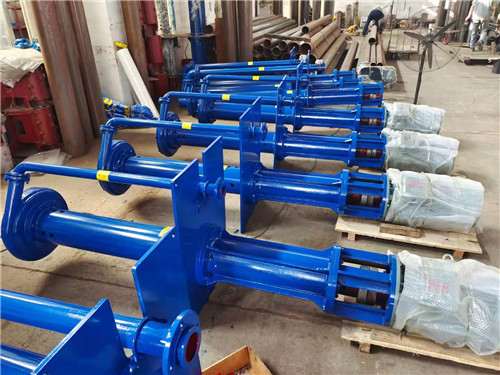

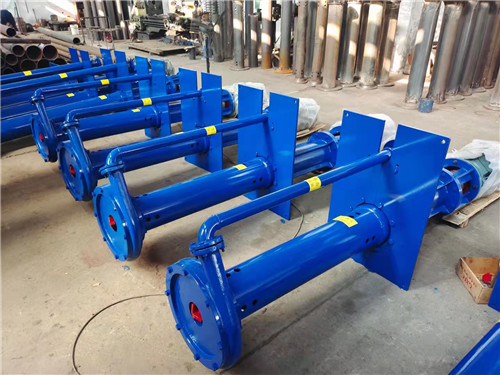

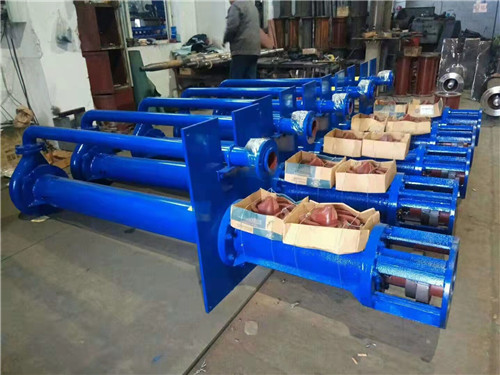

LSB150 vertical sand pump pictures
