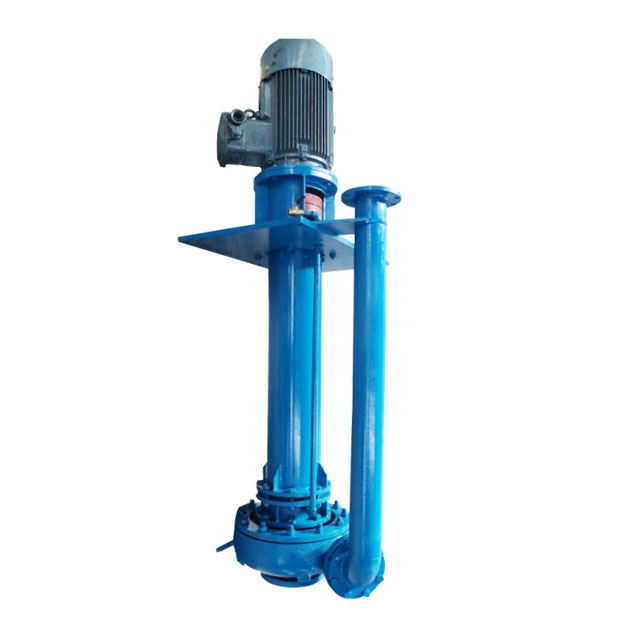

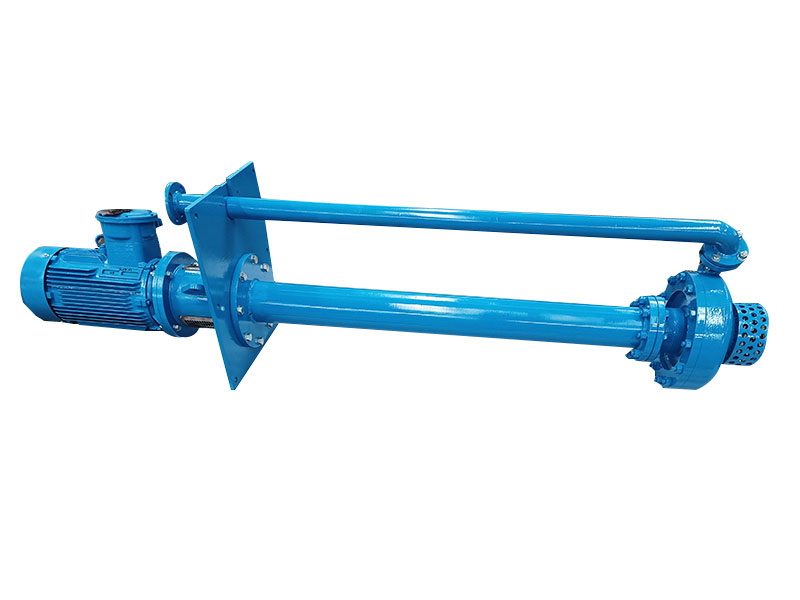

Vertical Slurry Pump

  • Maintenance-free
  • High temperature resistance for 500℃
  • Custom pump length
  • Bottom automatic mixing function
  • Mechanical seal
Availability:
Quantity:
Vertical Slurry Pump
Vertical Slurry Pump
Vertical Slurry Pump
Vertical Slurry Pump
Vertical Slurry Pump
Vertical Slurry Pump

Product Description

Vertical slurry pump (submersible slurry pump) is a drilling fluid transfer pump developed for special installation requirements. It is suitable for conveying corrosive drilling fluid with suspended particles or other liquid media in similar working conditions. It is mainly used in special occasions such as limited installation area and centrifuge feeding. Currently there are four series: LSB150, LSB100, LSB80, and LSB50. It can also be applied to the needs of 50HZ and 60HZ power grids. The LSB series vertical sand pump has a vertical structure and is an important part of the drilling fluid solid phase control system. Its characteristics are that the working body is placed under the tank, and the motor part is placed on the tank surface, and the space occupied is only the position of the motor. Therefore, the pump has the characteristics of compact structure and small footprint. >>Send an Enquiry sales@hlsolidscontrol.com<<

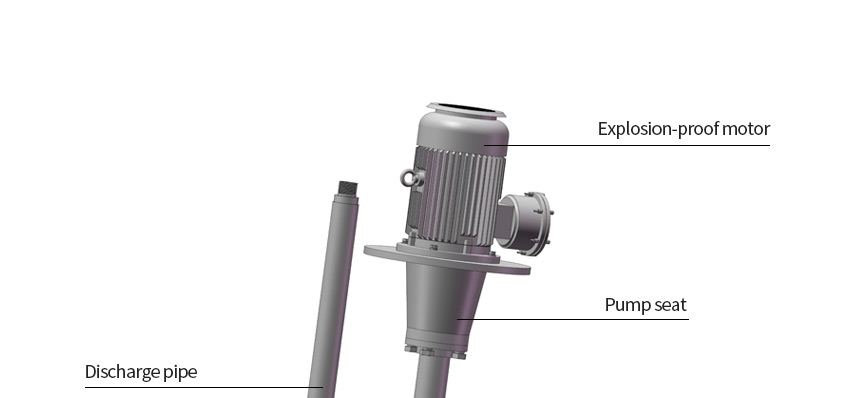

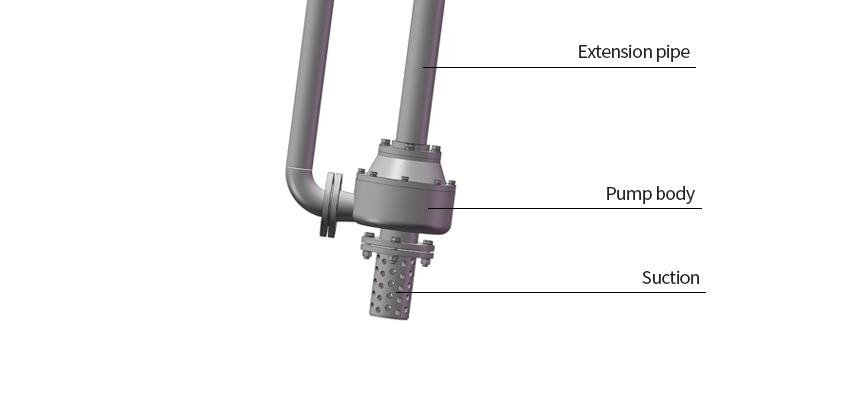

液下渣浆泵_01液下渣浆泵_02

TDS

Technical Parameters of Vertical Slurry Pump >>Send an Enquiry sales@hlsolidscontrol.com<<


Model Capacity (m3/h) Head (m) Efficiency (%) Speed (rpm) Motor model Motor power (kw)
LSB150-55 250 40 51 1480 YB3-250M-4 55
LSB150-45 225 32 50 1480 YB3-225M-4 45
LSB150-37

200

25 49 1480 YB3-250S-4 37
LSB100-30 150 33 51 1480 YB3-200L-4 30
LSB100-22 120 28 56 1470 YB3-180L-4 22
LSB100-15 100 20 53 1460 YB3-160L-4 15
LSB80-11 80 21 53 1460 YB3-160M-4 11
LSB50-7.5 60 18 48 1440 YB3-132M-4 7.5
LSB50-5.5 40 22 44 1440 YB3-132S-4 5.5

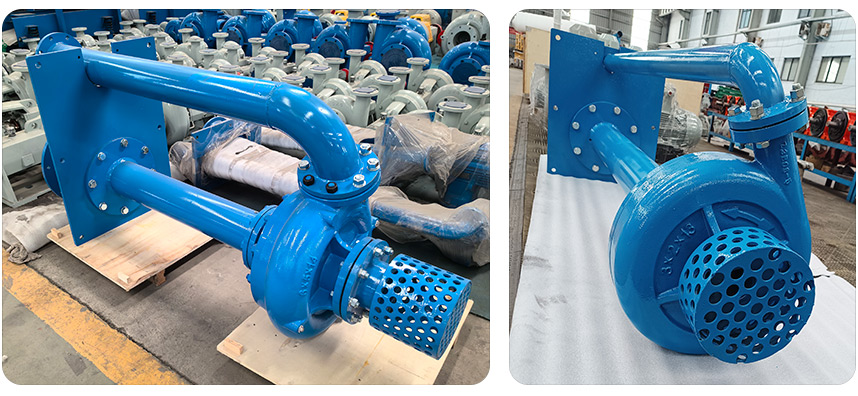

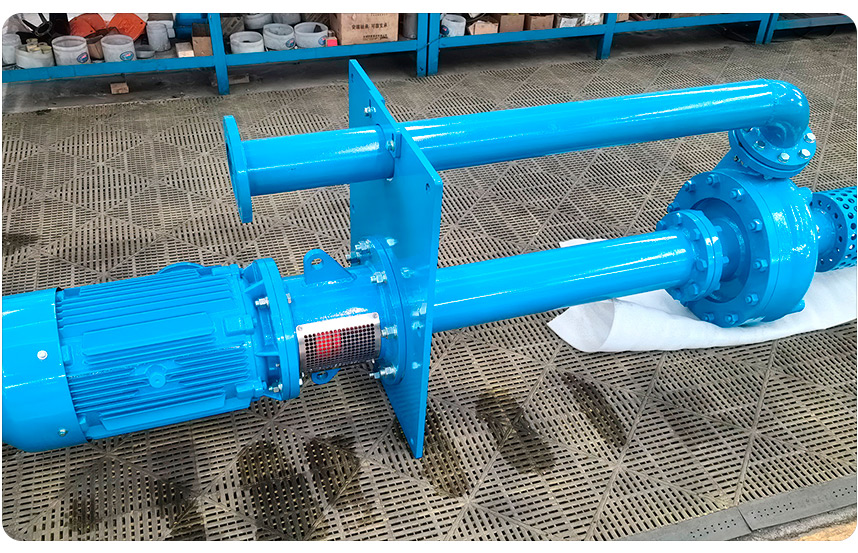

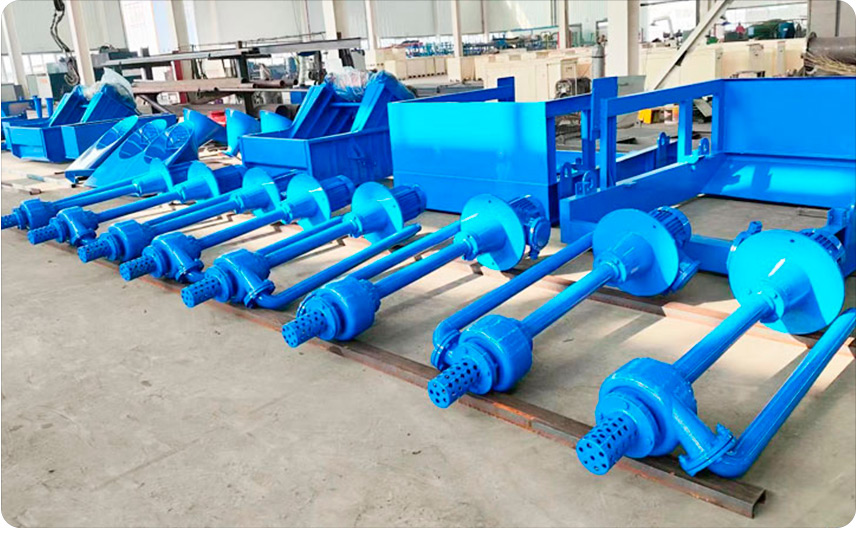

液下渣浆泵_03液下渣浆泵_04液下渣浆泵_05


Vertical Slurry Pump Features

1. The vertical slurry pump adopts vertical cantilever type, no mechanical seal and sleeve under the liquid, and single pump shell structure.

2. There is no bearing and shaft seal between the propeller and the pump body, maintenance-free and high temperature resistant.

3. The pump body is made of alloy cast iron, which has a longer service life.

4. The pump shell has a thick wall and is cast with a precision casting mold, which has good wear resistance and exquisite appearance.

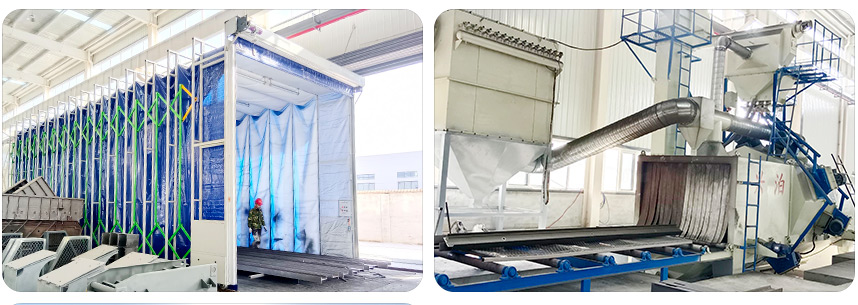

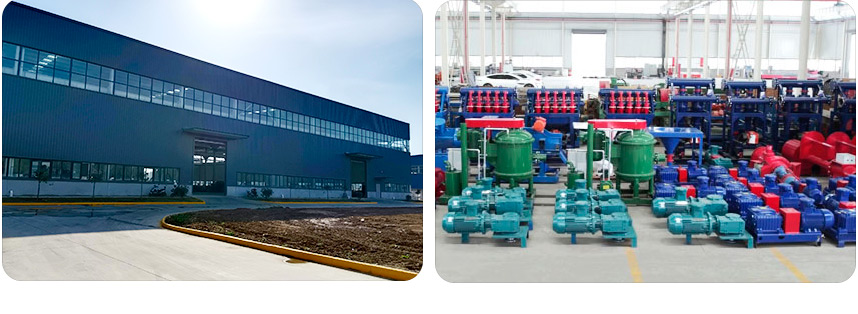

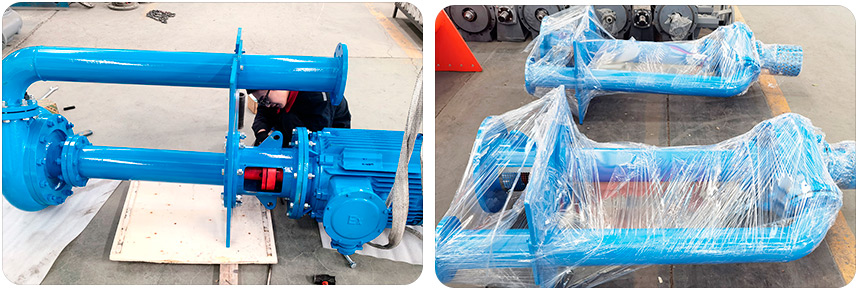

Factory Pictures

液下渣浆泵_06液下渣浆泵_07液下渣浆泵_08

Xi'an HL Petroleum Equipment Co., Ltd. produces various types of pumps such as centrifugal sand pumps, slurry pumps, shear pumps, spray pumps, etc. In addition, we can also customize according to user requirements. Welcome new and old customers to purchase. >>Send an Enquiry sales@hlsolidscontrol.com<<
