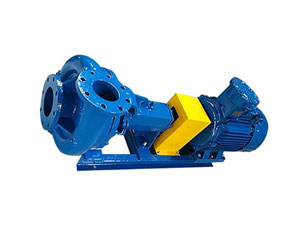

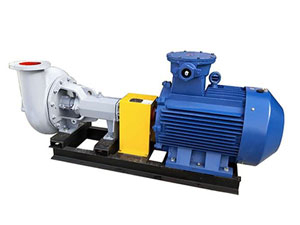

HL Petroleum is a professional Solid control centrifugal pumps factory in China.The SB2x3 drilling fluid sand pump produced by HL Petroleum is mainly used in solids control mud tanks or water tanks, also known as clean water pump.The impeller size of the pump is optional.
The technical parameters of SB centrifugal sand pumps
Model | Capacity (m3/h) | Head (m) | Speed (rpm) 380V 50HZ | Efficiency (%) | NPSH (m) | Power (KW) | |
| Shaft power | Motor power | ||||||
SB6×8J-13 | 240 | 37 | 1480 | 67 | 2.5 | 36 | 75 |
SB6×8J-12½ | 200 | 36 | 1480 | 66 | 2.5 | 31 | 55 |
SB6×8J-12 | 200 | 33 | 1480 | 64 | 3 | 28 | 45 |
SB5×6J-12½ | 200 | 33 | 1480 | 64 | 2.5 | 28 | 45 |
SB5×6J-12 | 180 | 31 | 1480 | 63 | 2.5 | 25 | 37 |
SB5×6J-11½ | 160 | 28 | 1470 | 62 | 2.5 | 18 | 30 |
SB5×6J-11 | 140 | 22 | 1470 | 62 | 2.5 | 16 | 22 |
SB4×5J-10 | 150 | 25 | 1470 | 61 | 2.8 | 13 | 22 |
SB4×5J-9 | 93 | 20 | 1460 | 58 | 2.8 | 8.8 | 15 |
SB3×4J-10 | 85 | 26 | 1460 | 61 | 2.8 | 10 | 15 |
SB3×4J-9½ | 80 | 23 | 1460 | 61 | 2.8 | 8.6 | 11 |
SB3×4J-9 | 54 | 18 | 1460 | 60 | 2.8 | 5.1 | 7.5 |
SB2×3J-10 | 60 | 22 | 1460 | 55 | 2.5 | 8.6 | 11 |
SB2×3J-9 | 50 | 18 | 1440 | 54 | 2.5 | 5.5 | 5.5 |
SB2×3J-8 | 40 | 16 | 1440 | 54 | 2.5 | 3.2 | 5.5 |

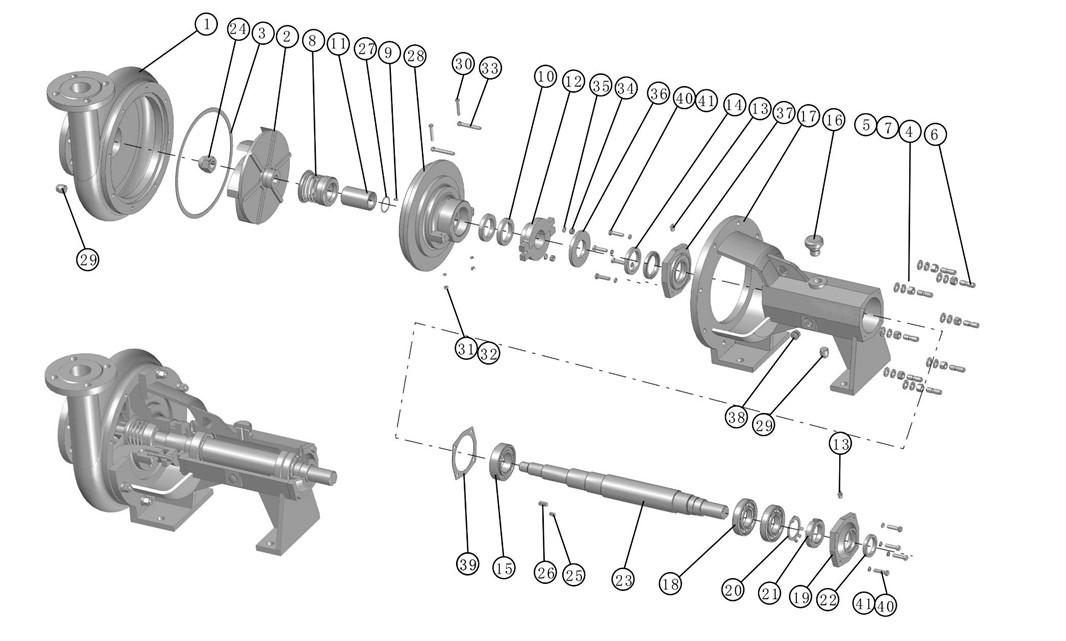

The spare parts list of SB2x3 drilling fluid sand pump
Item | Description | Part No. | Qty. | Item | Description | Part No. | Qty. |
1 | Case | SB23J0001 | 1 | 22 | Lip seal | SB23J0022 | 1 |
2 | Impeller-J | SB23J0002 | 1 | 23 | Shaft | SB23J0023 | 1 |
3 | Paper gasket | SB23J0003 | 1 | 24 | Cap nuts | SB23J0024 | 1 |
4 | Nuts | SB23J0004 | 8 | 25 | Key | SB23J0025 | 1 |
5 | Washer | SB23J0005 | 8 | 26 | Key | SB23J0026 | 1 |
6 | Screw column | SB23J0006 | 8 | 27 | O-ring | SB23J0027 | 1 |
7 | Spring washer | SB23J0007 | 8 | 28 | Cover of seal | SB23J0028 | 1 |
8 | Mechanical seal | SB23J0008 | 1 | 29 | Plug | SB23J0029 | 2 |
9 | Pin | SB23J0009 | 1 | 30 | Stud | SB23J0030 | 2 |
10 | Carbon fibre | SB23J0010 | 2 | 31 | Nuts | SB23J0031 | 2 |
11 | Sleeve,shaft | SB23J0011 | 1 | 32 | Washer | SB23J0032 | 2 |
12 | Packing gland set | SB23J0012 | 1 | 33 | Gland bolt | SB23J0033 | 2 |
13 | Grease cap | SB23J0013 | 2 | 34 | Nuts | SB23J0034 | 2 |
14 | Lip seal | SB23J0014 | 2 | 35 | Washer | SB23J0035 | 2 |
15 | Bearing | SB23J0015 | 1 | 36 | Flinger | SB23J0036 | 1 |
16 | Oil cover | SB23J0016 | 1 | 37 | Cover, inboard | SB23J0037 | 1 |
17 | Frame | SB23J0017 | 1 | 38 | Oil gauge | SB23J0038 | 1 |
18 | Bearing | SB23J0018 | 2 | 39 | Paper gasket | SB23J0039 | 1 |
19 | Cvoer,out board | SB23J0019 | 1 | 40 | Stud | SB23J0040 | 8 |
20 | Lock washer | SB23J0020 | 1 | 41 | Spring washer | SB23J0041 | 8 |
21 | Lock nut | SB23J0021 | 1 |
HL Petroleum provides you the best horizontal centrifugal pump prices, learn more details of SB Solid control centrifugal pump via sales@hlshiyou.com
