SB5x6 Sand Pump

Sand Pump is mainly used for the transportation of mud and sewage. It can be used as a slurry pump for solid-liquid separation equipment, as a slurry pump for jet mixing, and as a filling pump for replenishment pumps and slurry pumps. .

SB series sand pumps are sealed with mechanical seals, wear-resistant parts are precision casted with wear-resistant alloy ductile iron, and the base of the whole machine is cast integrally with long service life and reliable performance.

SB series sand pump shaft seal adopts grease lubrication; the bearing adopts oil lubrication, the bearing caps at both ends of the bearing have grease nipple, and the bearing can also be lubricated with grease.

The different models of SB5×6 sand pumps, the flow rate, head, speed, efficiency, NPSH, power, shaft power, and motor power of the sand pump are different. The following are the three models of SB5×6 sand pumps:

SB5×6J-12½ capacity 200m3/h, head 33m, speed 1480rpm, efficiency 64%, NPSH 2.5m, shaft power 28kW, motor power 45kW

SB5×6J-12 capacity 180m3/h, head 31m, speed 1480rpm, efficiency 63%, NPSH 2.5m, shaft power 25kW, motor power 37kW

SB5×6-11½ capacity 160m3/h, head 28m, speed 1470rpm, efficiency 62%, NPSH 2.5m, shaft power 18kW motor power 30kW

SB5×6J-11 capacity 140m3/h, head 22m, Speed 1470rpm, efficiency 62%, NPSH 2.5m, shaft power 16kW motor power 22kW

SB5x6 sand pump structure drawing

1.Pump case  2.Cap nut  3.Mechanical seal  4.Impeller 5.Shaft sleeve  6.Packing  7.Pressure plate assembly  8.Shaft  9.Slinger  10.Oil seal  11.Bearing  12.Shaft  13.Pump base  14.Bearing  15.Lock nut  16.Oil seal  17.Stuffing Box, Mech. seal

SB5x6 sand pump spare parts list

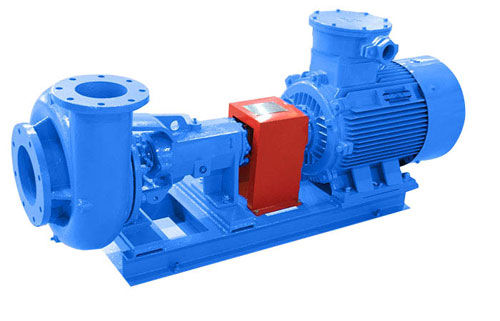

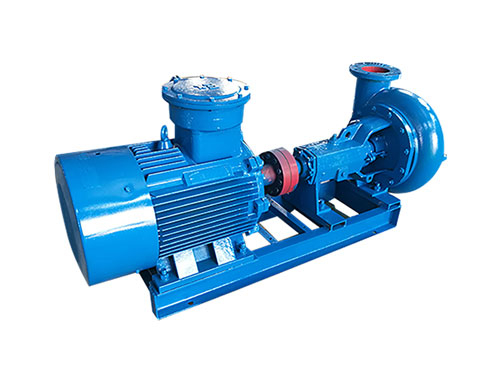

SB5x6 sand pump pictures
