HL Petroleum is a leading centrifugal pump suppliers in China,who designed SB series centrifugal sand pump, the main supporting pump for drilling fluid circulation in the solid control system of oil drilling rigs. SB sand pump is the best supporting pump for desander, desilter and mud mixers,also an ideal feeding pump for mud pumps.
SB6×8 centrifugal sand pump is recommended for use with drilling rigs above 3200m.
The different models of SB6×8 sand pumps are different in capacity, head, speed, efficiency, NPSH, power, shaft power, and motor power. Here are 3 models of SB6×8 drilling sand pumps:
SB6×8J-13 capacity 240m³/h, head 37m, speed 1480RPM(380V 50HZ), efficiency 67%, NPSH 2.5m, shaft power 36kW, motor power 75kW
SB6×8J-12½ capacity 200m³/h, head 36m, speed 1480RPM(380V 50HZ), efficiency 66%, NPSH 2.5m, shaft power 31kW, motor power 55kW
SB6×8J-12 capacity 200m³/h, head 33m, speed 1480RPM(380V 50HZ), efficiency 64%, NPSH 3m, shaft power 28kW, motor power 45kW

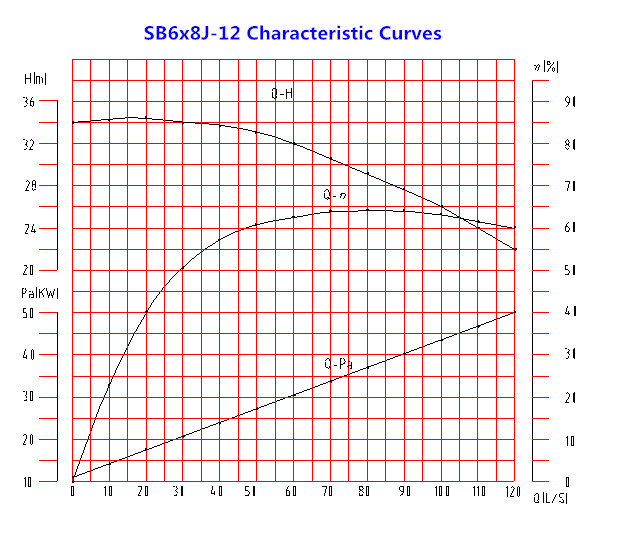

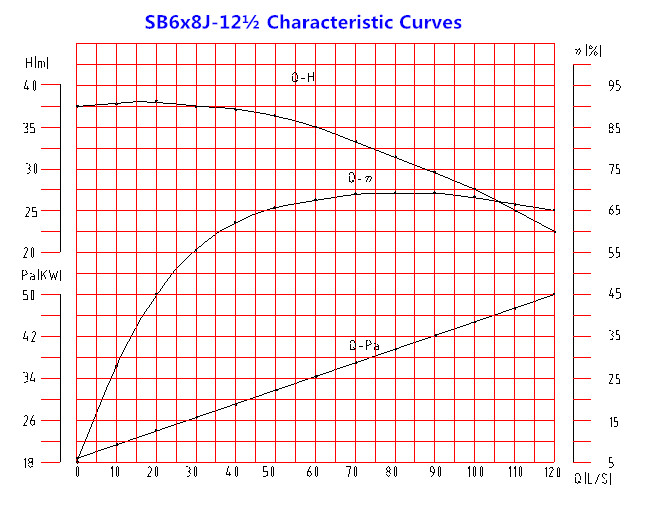

The characteristic curves

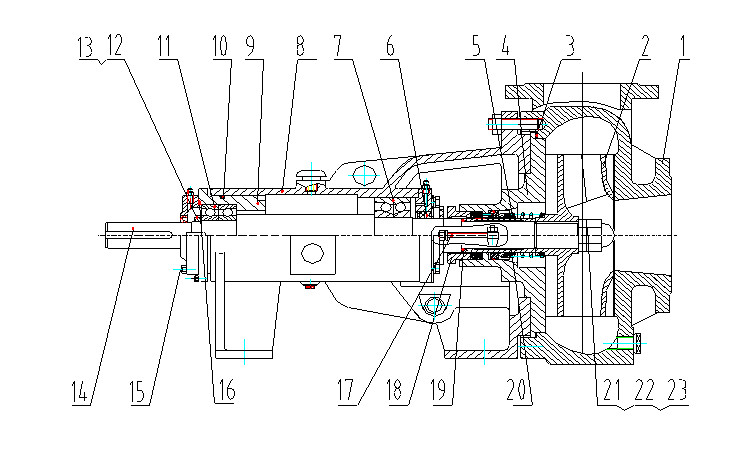

The structure drawing
1.Pump case 2.Impeller 3. gasket 4.Stuffing Box, Mech. seal 5.Mechanical seal 6.Oil seal 7.Bearing 8.Pump base 9.Bearing block 10.O-ring 11.Bearing Lock nut 13.Washer 14.Shaft 15.Adjusting bolt 16.O-ring 17.Dog bolt 18.Press plate assembly 19.O-ring 20.Shaft sleeve 21. Cap nut 22. Square nut 23. Washer

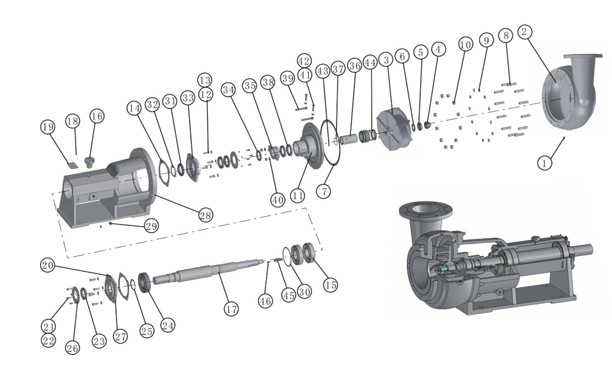

The parts list of SB6x8 drilling centrifugal pump
Item | Description | Part No. | Qty. | Item | Description | Part No. | Qty. |
1 | PlugZG1/2” | SB68ZJ0001 | 5 | 24 | Bearing | SB68ZJ0024 | 1 |
2 | Case | SB68ZJ0002 | 1 | 25 | Retainer | SB68ZJ0025 | 1 |
3 | Impeller-J | SB68ZJ0003 | 1 | 26 | Cover | SB68ZJ0026 | 2 |
4 | Cap nuts M30X2-LH | SB68ZJ0004 | 1 | 27 | Cover, inboard | SB68ZJ0027 | 1 |
5 | Nuts M30X2-LH | SB68ZJ0005 | 1 | 28 | Frame | SB68ZJ0028 | 1 |
6 | Washer | SB68ZJ0006 | 1 | 29 | Oil gauge | SB68ZJ0029 | 1 |
7 | Paper gasket | SB68ZJ0007 | 1 | 30 | Paper gasket | SB68ZJ0030 | 1 |
8 | Stud | SB68ZJ0008 | 12 | 31 | Lock nut M68X2-LH | SB68ZJ0031 | 1 |
9 | Spring washer | SB68ZJ0009 | 12 | 32 | Lock washer 68 | SB68ZJ0032 | 1 |
10 | Nuts | SB68ZJ0010 | 12 | 33 | Cvoer out board | SB68ZJ0033 | 1 |
11 | Cover of seal | SB68ZJ0011 | 1 | 34 | Slinger | SB68ZJ0034 | 1 |
12 | Screw bolts | SB68ZJ0012 | 8 | 35 | Packing gland set | SB68ZJ0035 | 1 |
13 | Spring washer | SB68ZJ0013 | 8 | 36 | Sleeve shaft | SB68ZJ0036 | 1 |
14 | Paper gasket | SB68ZJ0014 | 2 | 37 | O-ring | SB68ZJ0037 | 1 |
15 | Bearing | SB68ZJ0015 | 2 | 38 | Packing | SB68ZJ0038 | 2 |
16 | Oil cover | SB68ZJ0016 | 1 | 39 | Gland bolt | SB68ZJ0039 | 2 |
17 | Shaft-J | SB68ZJ0017 | 1 | 40 | Washer | SB68ZJ0040 | 2 |
18 | Rivet | SB68ZJ0018 | 4 | 41 | Screw bolt | SB68ZJ0041 | 2 |
19 | Nameplate | SB68ZJ0019 | 1 | 42 | Nut | SB68ZJ0042 | 2 |
20 | Grease cup | SB68ZJ0020 | 2 | 43 | Pin | SB68ZJ0043 | 1 |
21 | Screw bolts | SB68ZJ0021 | 8 | 44 | Mechanical seal | SB68ZJ0044 | 1 |
22 | Spring Washer | SB68ZJ0022 | 8 | 45 | Key | SB68ZJ0045 | 1 |
23 | Oil seal | SB68ZJ0023 | 3 | 46 | Key | SB68ZJ0046 | 1 |

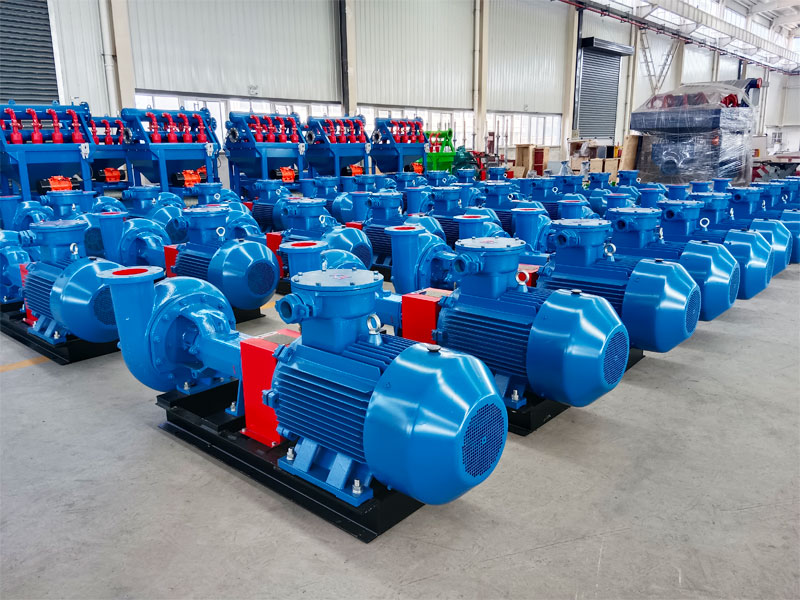

The pic of SB6x8 centrifugal sand pump
