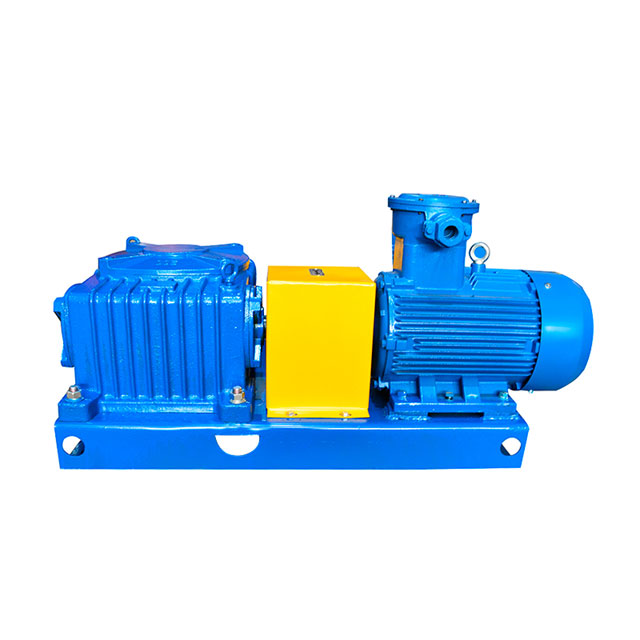

Mud Agitator

HL mud agitator design features:
1. The combination of reducer and explosion-proof motor is suitable for various harsh working conditions.
2. The worm gear reducer is used for transmission, with large torque transmission and smooth operation.
3. The unique impeller design has high mixing efficiency and uniform suspension of solid control particles.
4. The motor is placed horizontally for easy installation and maintenance.
5. The mixer components and performance configuration can be customized according to customer requirements.
6. Reliable operation, low energy consumption, low noise and high cost performance.
Availability:
Quantity:
Mud Agitator
Mud Agitator
Mud Agitator
Mud Agitator
Mud Agitator
Mud Agitator

Product Description

HJB series mud agitator (drilling fluid agitator) is one of the main equipment in the oil drilling fluid solids control system and horizontal directional drilling mud purification system. It is mainly used for mixing and mixing of drilling fluid. Under the stirring of the mud agitator, the strong up and down convection can maintain the uniformity of the drilling fluid and suspend the solid particles to prevent the solid particles of the drilling fluid from depositing in the tank circulation system. The mud agitator is accelerating the drilling fluid materials (bentonite, barite), it plays a very important role in the reaction, dissolution and wetting of chemical additives.

>>Send an Enquiry sales@hlsolidscontrol.com<<

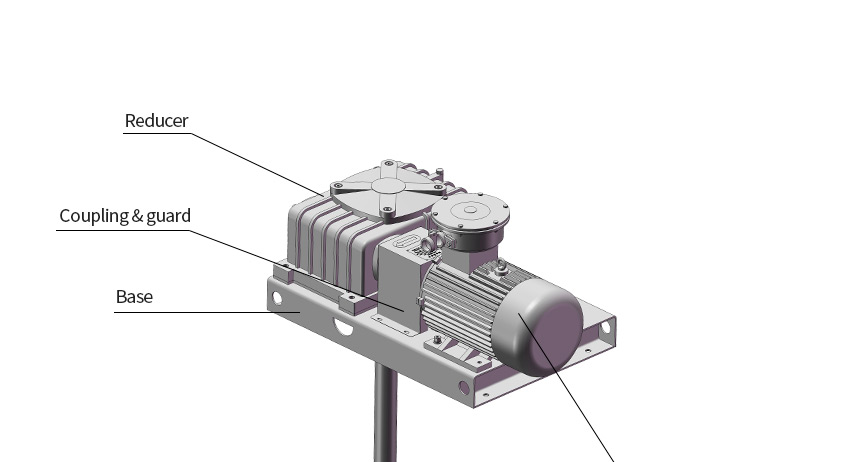

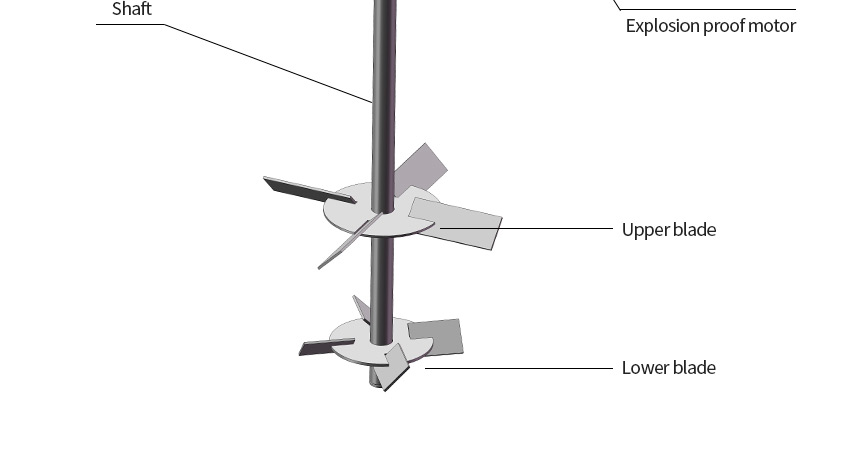

蜗轮蜗杆搅拌器_01蜗轮蜗杆搅拌器_02

Mud agitator technical parameters

Model

HJB5.5

HJB7.5

HJB11

HJB15

HJB18.5

Motor Power(kW)

5.5

7.5

11

15

18.5

Impeller Speed(rpm)

57

57

58

58

58

Impeller Diameter(mm)

800

850

900

1000

1200

Dimension: L×W×H(mm)

954*549*583

1101*664*623

1222*664*665

1334*734*685

1465*888*770

Weight(kg)

295

400

462

560

785


HJB mud agitator features

1. Using worm/worm gear reducer; compact structure, good meshing performance, reliable work

2. Explosion-proof motor phase combination, suitable for working in harsh outdoor conditions
3. The explosion-proof motor and the input shaft of the reducer are directly connected through an elastic coupling, and the rotation speed of the stirring impeller is constant
4. The stirring intensity is large, the spreading range is wide, and the structure design avoids the phenomenon of current overload when the motor is started
5. Double-layer impeller design, more adequate mixing. The explosion-proof motor is placed horizontally, which is very convenient for installation, adjustment or replacement.

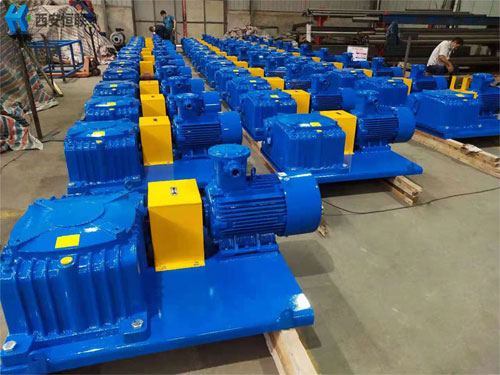

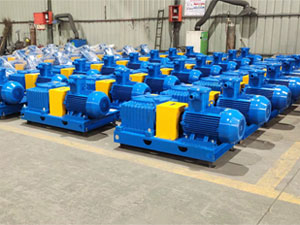

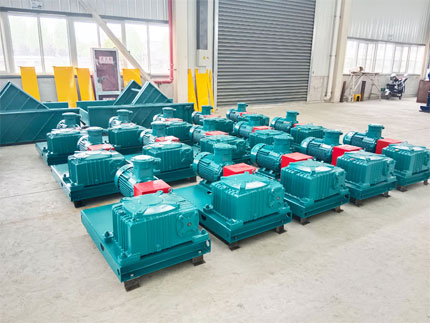

Pictures

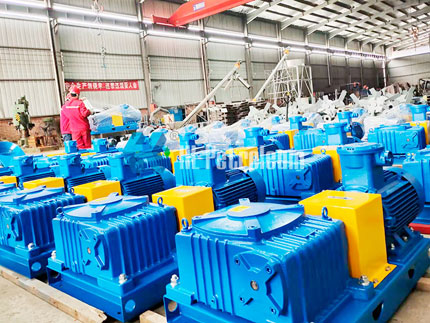

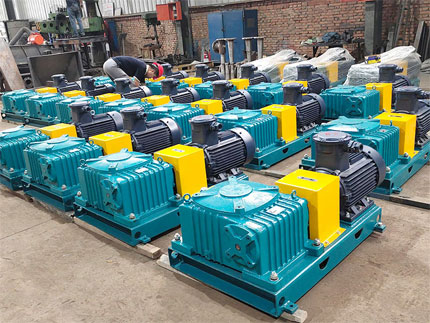

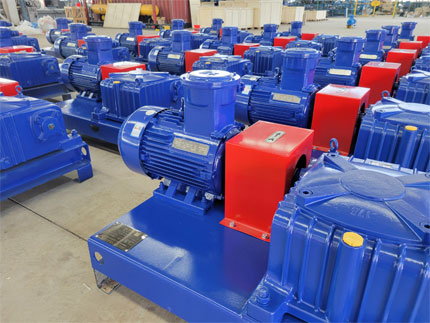

mud agitator 01 mud agitator 05
mud agitator04 mud agitator05

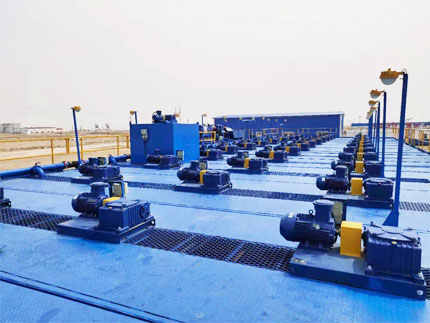

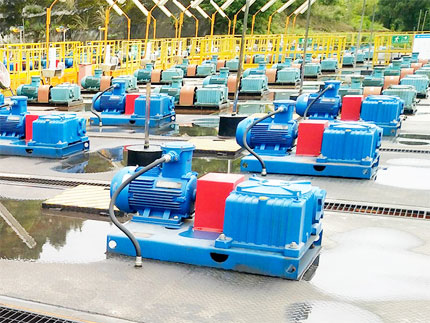

Mud agitator using site


mud agitator01

mud agitator02


TDS

Technical Parameters of HJB Mud Agitator >>Send an Enquiry sales@hlsolidscontrol.com<<

Model

HJB5.5

HJB7.5

HJB11

HJB15

HJB18.5

Motor Power(kW)

5.5

7.5

11

15

18.5

Impeller Speed(rpm)

57

57

58

58

58

Impeller Diameter(mm)

800

850

900

1000

1200

Dimension: L×W×H(mm)

954*549*583

1101*664*623

1222*664*665

1334*734*685

1465*888*770

Weight(kg)

295

400

462

560

785

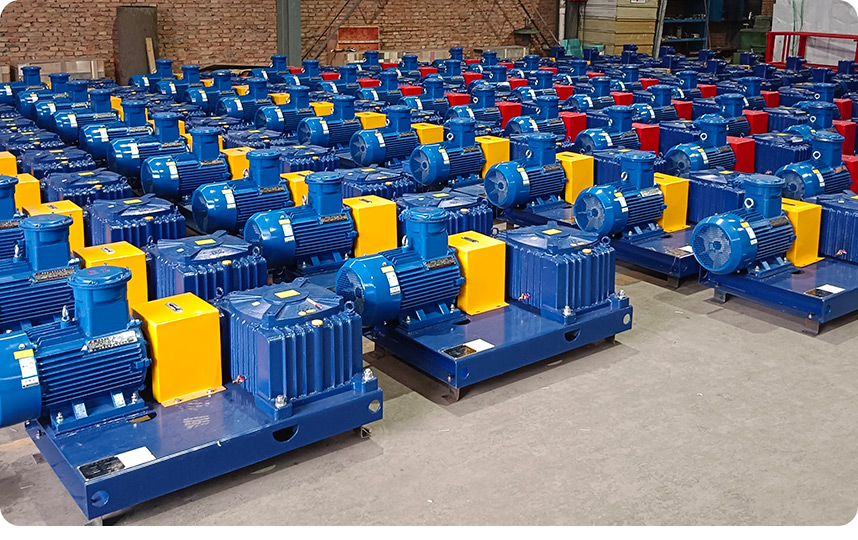

蜗轮蜗杆搅拌器_04蜗轮蜗杆搅拌器_05

HJB Mud Agitator Features

1. Using worm/worm gear reducer; compact structure, good meshing performance, reliable work

2. Explosion-proof motor phase combination, suitable for working in harsh outdoor conditions
3. The explosion-proof motor and the input shaft of the reducer are directly connected through an elastic coupling, and the rotation speed of the stirring impeller is constant
4. The stirring intensity is large, the spreading range is wide, and the structure design avoids the phenomenon of current overload when the motor is started
5. Double-layer impeller design, more adequate mixing. The explosion-proof motor is placed horizontally, which is very convenient for installation, adjustment or replacement.

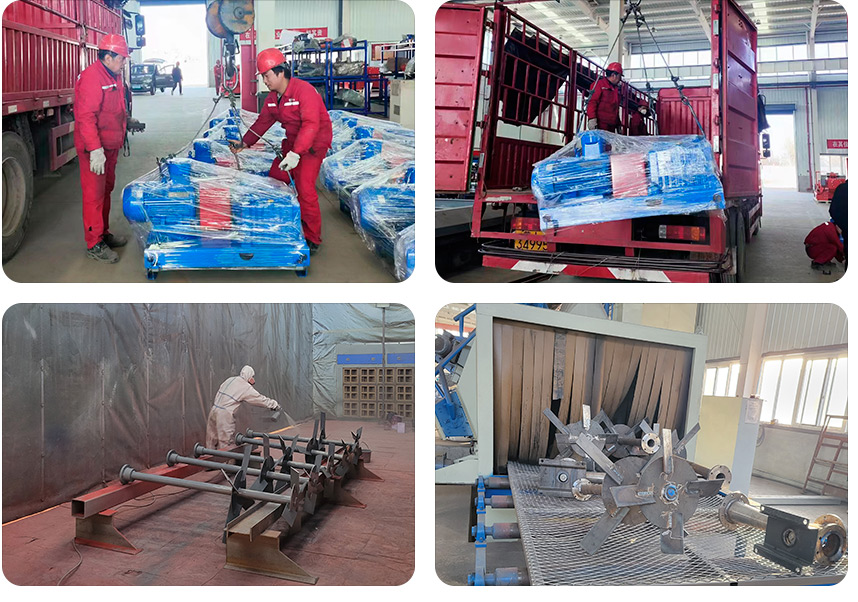

Processing Pictures

蜗轮蜗杆搅拌器_06

HL HJB series mud agitator has low energy consumption, low noise and high cost performance. The impeller of the agitator is divided into two types: detachable and non-detachable. The impeller has single impeller and multi-impeller for users to choose from. It can be customized according to the specific requirements of customers to meet the special needs of different customers.

蜗轮蜗杆搅拌器_07

HL Petroleum provides various types of mud agitators, including horizontal mud agitators, helical gear mud agitators, flange-connected mud agitators, turbine worm mud agitators, vertical mud agitators, etc., suitable for various types of oil and gas drilling and industrial applications.
