Horizontal Ignition Device

In oil field drilling, when drilling to high pressure oil and gas layer, if the drilling fluid column pressure is lower than the pressure of oil and gas layer, high pressure hydrocarbon flow will invade the wellbore, and gradually rise to the mouth of the well, so that the top of drilling fluid and form the overflow or kick.The drilling workers will be closed blowout preventer, throttle choke corresponding effective measures.But choke out gas must be ignited burn, otherwise it is mixed with air at a certain ratio might explode, and gas containing H2S will harm to people's life.

FPGY150 Horizontal Ignition Device Technical Parameters

Oil tank volume: 20L

Flame length: More than 3 meters

Remote-controlled distance: Less than 200 meters

Ignition medium: Diesel

Charging voltage: 220 v / 50 hz

Output high pressure: 2500 v

Dimension: L3400*W700*H1100(mm)

Weight: 500kg

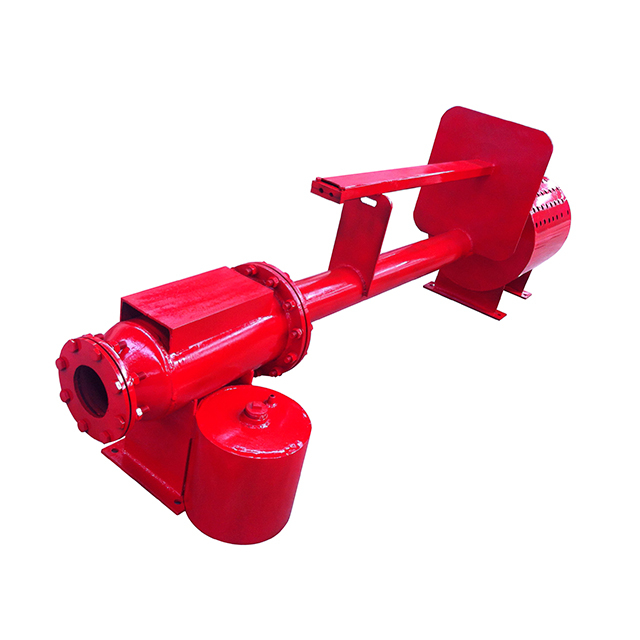

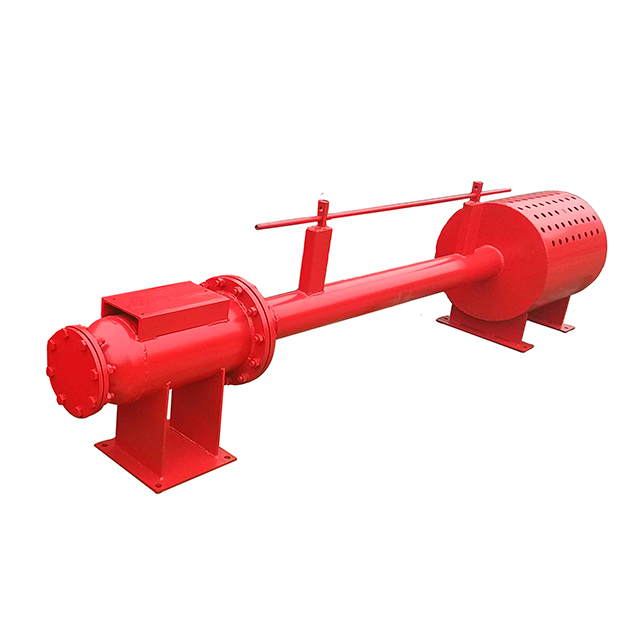

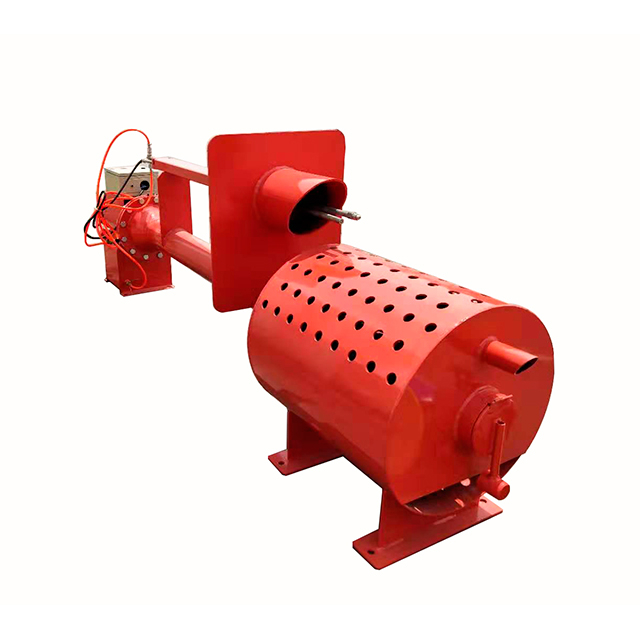

FPGY150 Horizontal Ignition Device is mainly composed of combustion cylinder, the torch head, electronic ignition rod, remote control, control box, cable, pipeline, clip, etc.The combustion tube connected directly at the end of the choke line.The rest of the parts with clamp fixed to the nozzle online.

Need ignition, the remote control transmitter, remote operators rotor of high-energy electron lighter mouth sends out "beep, beep, beep..."And put out the discharge gas ignited by the burning diesel emptying burned.

FPGY150 horizontal ignition device has simple structure, convenient operation, and can be simple to mud liquid gas separation, because it is long distance operation, avoiding the unsafe factors of artificial to close the ignition.
