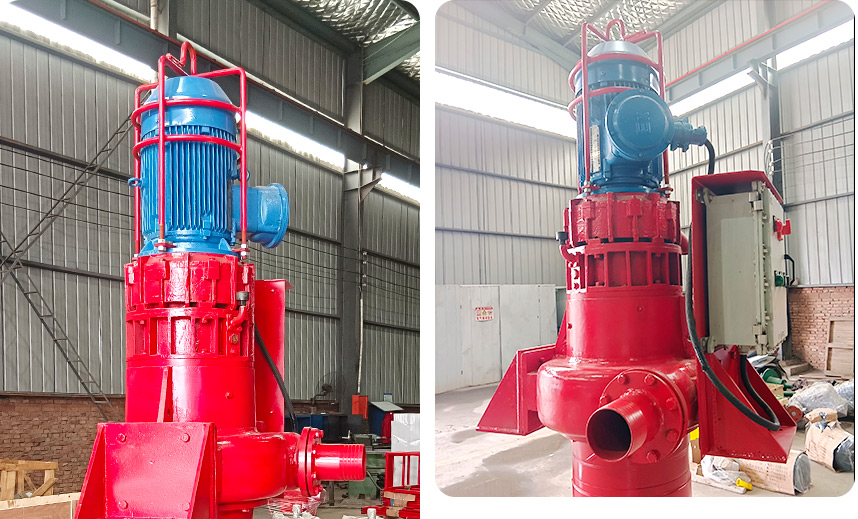

Product Description
Centrifugal Degasser is a new type of degassing equipment, which is a special equipment for processing gas intrusion drilling fluid. Usually installed after the vibrating screen. It is suitable for the matching of various mud purification systems. It plays an important role in restoring the specific gravity of the mud, stabilizing the viscosity performance of the mud, and reducing drilling costs.
The processing capacity of the atmospheric centrifugal degasser depends on the distance from the degasser bottom to the within mud tanks liquid surface and the density of the drilling fluid. The deeper the bottom is immersed in the drilling fluid, the greater the amount of gas-invaded drilling fluid that the centrifugal degasser can handle. >>Send an Enquiry sales@hlsolidscontrol.com<<

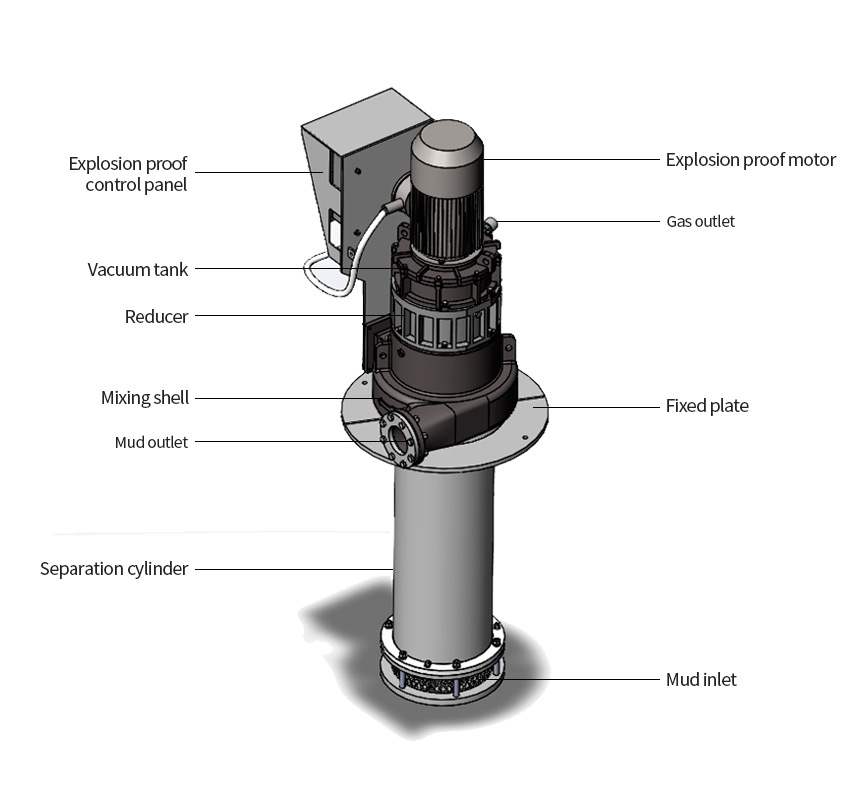

The centrifugal degasser is a type of atmospheric drilling degasser. The gas-invaded drilling fluid is pumped into the degassing tank through a pump, so that the drilling fluid impacts the tank wall, forming a thin layer of turbulence, thereby separating the bubbles from the drilling mud. This is a relatively new mud degasser that occupies a small space and combines the pump and the degasser tank. When the main shaft of the degasser rotates, the gas-invaded drilling fluid is first pumped from the pump wheel at the bottom of the degasser into the upper separation chamber. When the separation blades in the separation chamber rotate, the drilling fluid is driven to rotate with it, forming a turbulent thin wall of drilling fluid on the cylindrical inner wall of the separation chamber, and spirally moving upward in a vortex state. A centrifugal field has been formed in the rotating thin layer of drilling fluid, the liquid with high density is close to the tank wall, and the bubbles with low density move toward the center. The bubbles on the liquid surface quickly burst and are discharged by the exhaust pipe. The degassed drilling fluid continues to rise to the discharge port and is discharged into the mud circulation tank.
TDS
Technical Parameters of Centrifugal Degasser >>Send an Enquiry sales@hlsolidscontrol.com<<
| Model | HLCQ240 | HLCQ300 |
| Capacity | 240m³/h | 300m³/h |
| Vacuum Degree | 0.02~0.04Mpa | 0.03~0.05Mpa |
| Main Motor Power | llkw | 18.5kw |
| Mud-gas separation efficiency | ≥85% | ≥85% |
| Power supply | 380V、50Hz、3Ph | 380V、50Hz、3Ph |
| Weight | 900kg | 1100kg |
| Dimensions | 2741*1185*1105mm | 3570*1280*1000mm |
Centrifugal Degasser Features
1. Reasonable design and special speed reducer makes it working smooth and has a constant speed.
2. Low noise and long service time.
3. Wide fluid tread range: marsh funnel 20~80s
4. Long separation blade, makes the HLCQ centrifugal degasser has a better seperation efficiency.
5. New designed mud discharge, makes it has a big handling capacity.
Processing Pictures

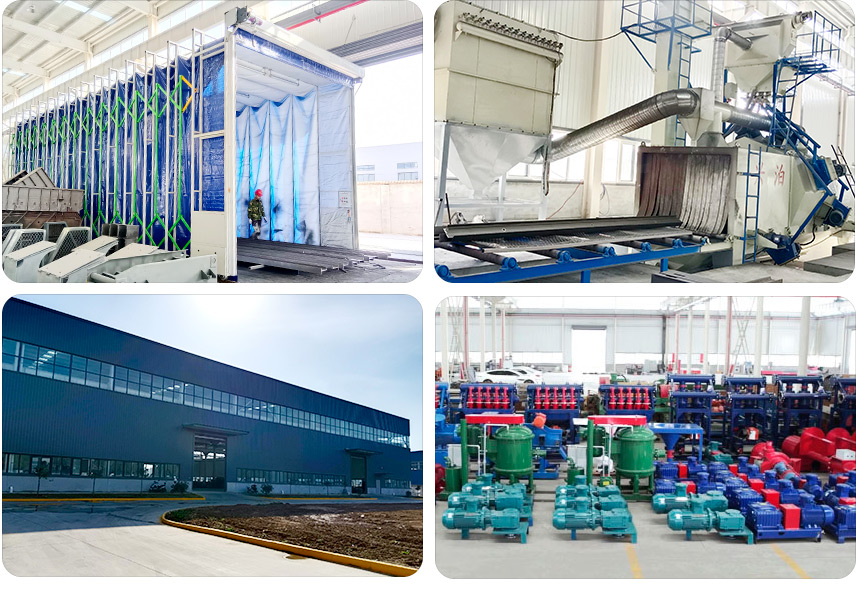

Xi'an HL Petroleum Equipment Co., Ltd. is a company specializing in the production and development of solids control equipment. It provides various types of products and supports customized services. If you are interested in drilling fluid degasser or other products, welcome to consult. You can contact our sales team to learn more about our product specifications, customization options, prices and more. We will wholeheartedly provide you with high-quality products and professional services.
Welcome all friends in oilfield drilling and gas drilling to communicate, HL Petroleum is ready for your requirements.
