Mud cleaner (drilling fluid cleaner) is in addition to the desanding cyclone,desilting cyclone and linear motion shale shaker, three for one.It is suitable for oil and gas drilling fluid solid control system, is used to separate the shale shaker after the processing of solid phase particles in drilling fluid.
HQJ series mud cleaner is one of the solid control system of main purification equipment, is the secondary and tertiary drilling mud solids control equipment, First,drilling fluid is separated by desander and desilter, the liquid phase overflow return circulation system, Solids is separated by shale shaker again. Removal of harmful solid phase of drilling fluid, can rapidly improve the drilling fluid performance, to meet the requirements of the new technology of high pressure jet drilling.
When necessary, can also be all-in-one vibrating screen directly used as the former vibrating screen.
According to user requirements configuration different number of desanding cyclone and desilting cyclone.

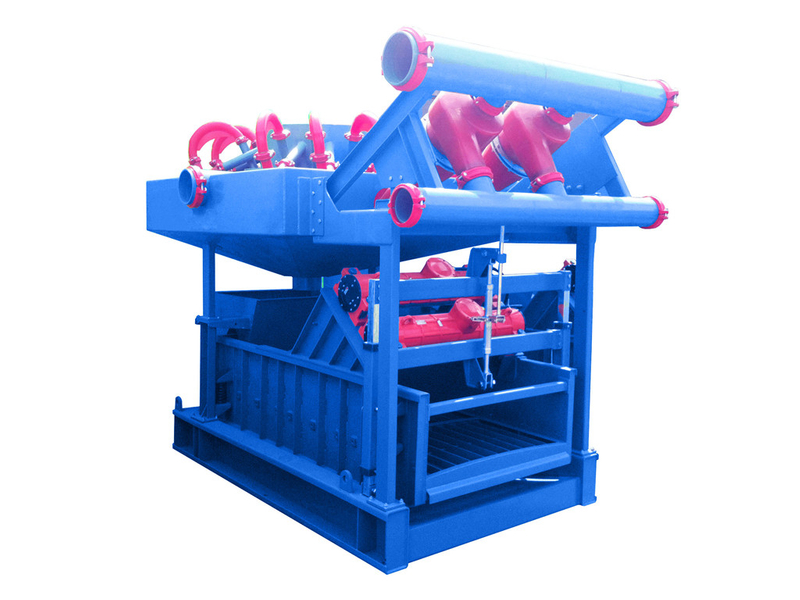

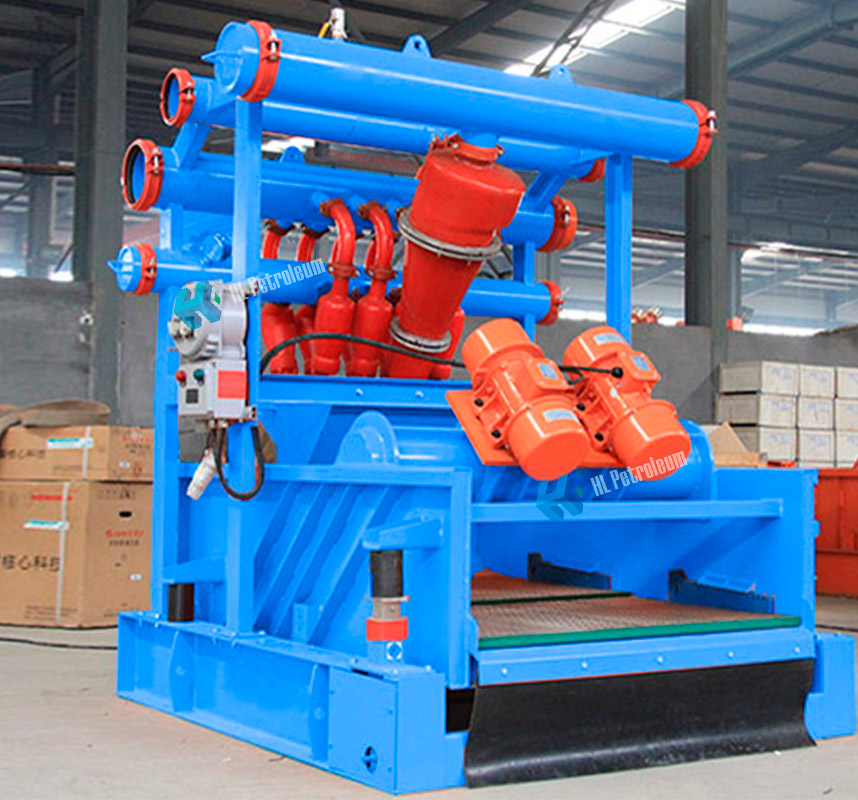

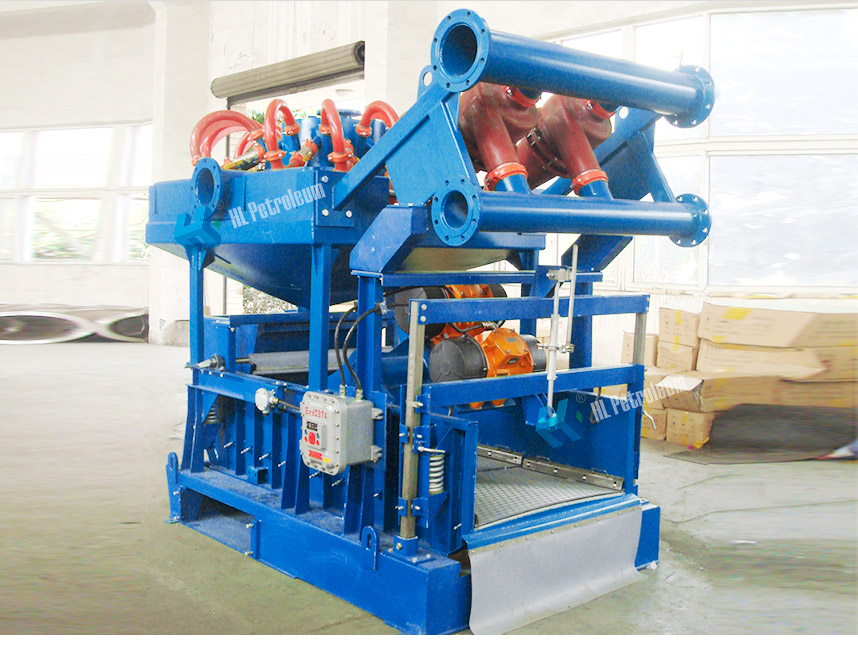

Mud Cleaner Pictures

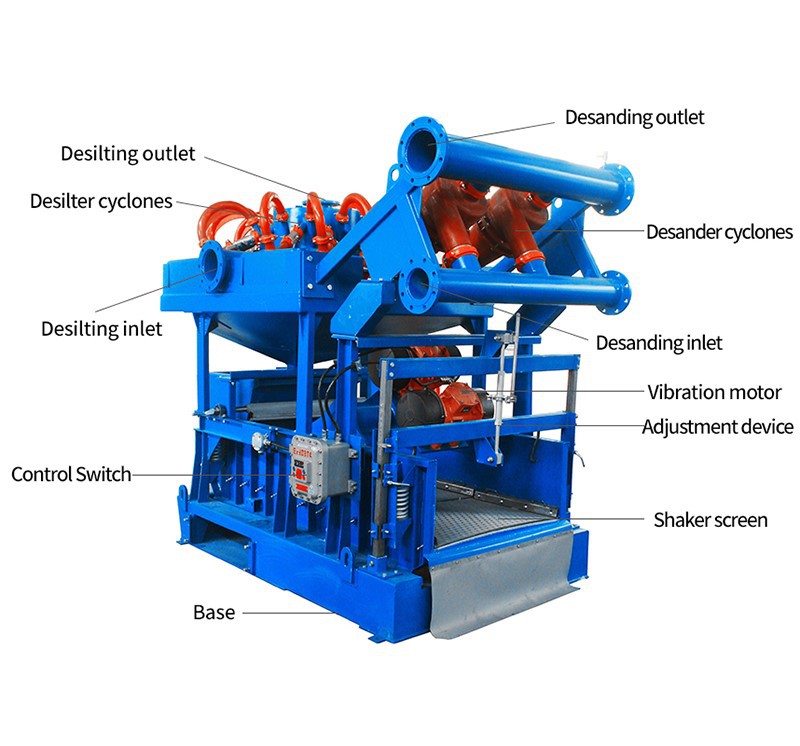

Mud Cleaner Components
Mud cleaner (drilling fluid cleaner) is in addition to the desanding cyclone,desilting cyclone and linear motion shale shaker, three for one.It is suitable for oil and gas drilling fluid solid control system, is used to separate the shale shaker after the processing of solid phase particles in drilling fluid.
Mud Cleaner Parameters
| Model | HQr250-100×6 | HQ300-100×8 | HQ/250×2-100×12 | HQ300×2-100×16 | HQ250×3-100×20 |
| Capaaity | 80m³/h | 100m³/h | 160m³/h | 200m/h | 240m3/h |
| Motor Power | 2×13KW | 2×13KW | 2×1.5KW | 2×2.2KW | 2×2.5KW |
| Vibration Ampitude | ≥5mm | ≥5mm | ≥5mm | ≥5mm | ≥5mm |
| Shale Shaker Screen | Crochetsoeen 2×1050×700mm | Gohet soeen 2×1050×700mm | Cnxhetsoeen 3×1050×700mm | Crochet soeen 4×1165×585mm | ooteso 5×1165×585mm |
| Desanding Cydone Diameter | 250mm(10”) | 300mm(12”) | 250mml10”) | 300mm/12”) | 250mm(10”) |
| Desanding Cydone Quantity | 1 | 1 | 2 | 2 | 3 |
| Desander Separation Partide Sze | 40~100μm | 50~150μm | 40~100μm | 50~150μm | 40~100μm |
| Desitering Cydone Diameter | 100mm(4") | 100mml4") | 100mml4") | 100mml4"1 | 100mml4”) |
| Desitering Cydone Quantity | 6 | 8 | 12 | 16 | 20 |
| Desiter Separation Paride Size | 15～44μm | 15～44μm | 15～44μm | 15～44μm | 15～44μm |
| Supporing Sand Pump | SB4×3-15KW | SB5×4-22KW | SB6×5-37KW | SB8×6-55KW | SB8×6-75KW |
| Weight | 1800KG | 2000KG | 2800KG | 3100KG | 3500KG |
| Dimension:L×WxH | 2565×1920×2670mm | 2565×1920×2670mm | 2865×1920×2670mm | 3065×1920×2700mm | 3365×1920×2700mm |
We are a source manufacturer of solid control equipment, focusing on the production and development of solid control equipment for nearly 20 years. The professional R&D team will continue to improve and develop new products based on on-site needs. The main products are divided into four categories: Solids Control Equipment, Mud Treatment System, Tank and Steel Structure, Drilling Tools and Spare Parts. At the same time, we provide overall solutions for oilfield drilling, trenchless horizontal directional drilling (HDD), and drilling waste treatment. Welcome to consult!
