Oilfield Mud Shear Pump

Mud shear pump is a kind drilling equipment that continuous high-efficiency cyclic shearing, refinement, mixing and changing of the molecular chain structure of the raw materials such as polymer and soil moving in the preparation of mud, eliminating the "fish eyes" to make the mud meet the requirements of the process, performance, and meet the drilling fluid (mud) higher performance requirements.

The mud shear pump has the following characteristics and advantages:

1. Mud shear pump can improve the dispersion and hydration degree of soil particles in water, and save more than 30% of bentonite.
2. Mud shear pump has high shear efficiency, which can dilute and hydrate the polymer faster.

3. The mud shear pump has large displacement, high lift, good suction and high efficiency; it can meet the requirements of new mud preparation and transportation.

4. The slurry shear pump adopts mechanical seal design, which greatly extends the service life.

5. The mud shearing pump is installed on a special base and driven by a belt pulley, narrow V-belt and explosion-proof motor. It is used with the shearing pump and there is a mixing funnel of suitable size to form a perfect shearing and hydration Use the system.

Shear pump structure drawing

1.Case  2.Impeller  3.Shear plate  4.Strengthening board  5.Cover of seal  6.Oil seal  7.Cover  8.Bearing  9.Frame  10.Bearing housing  11. Bearing  12.Luck nut  13.Lock washer  14.Oil seal  15.Shaft  16.Oil mark  17.Pipe plug  18.Mud throwing ring  19.Press plate assembly 20.O-ring  21.Stuffing  22.Pin  23.Shaft sleeve  24.Machine seal

Oilfield mud shear pump spare parts list

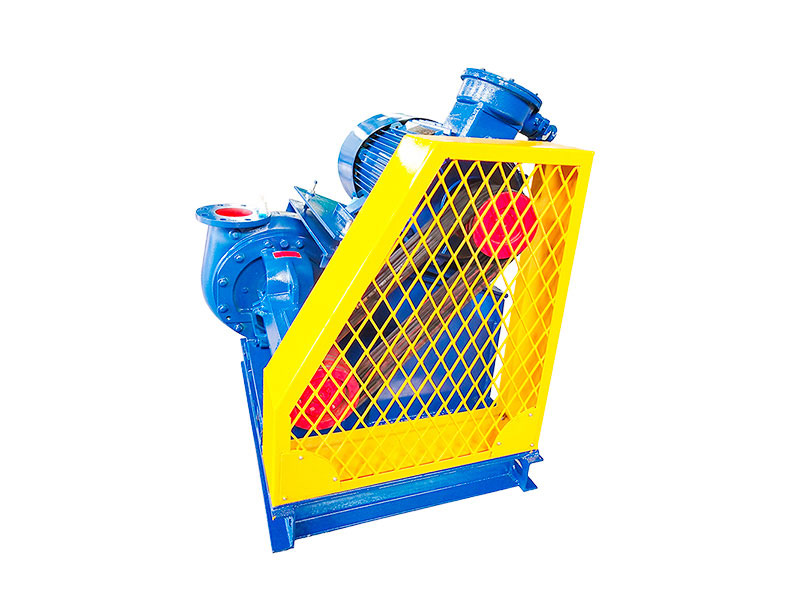

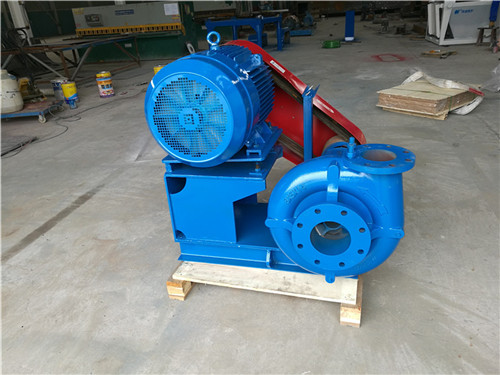

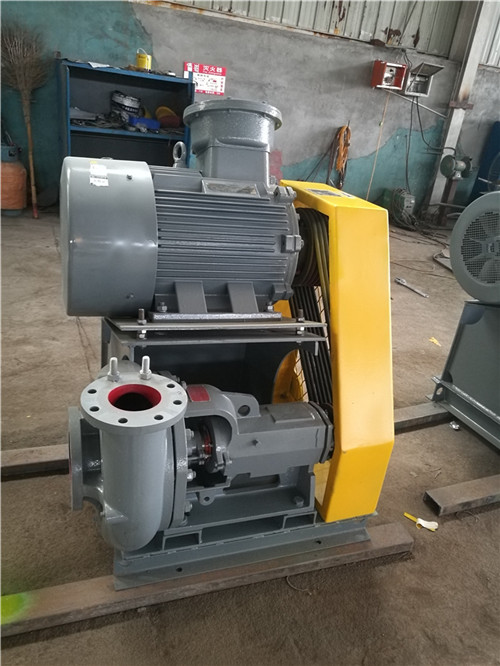

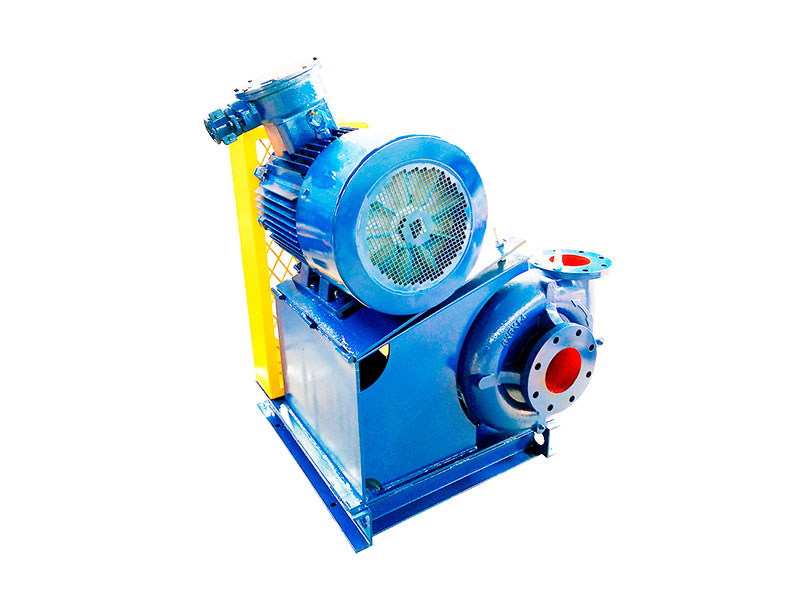

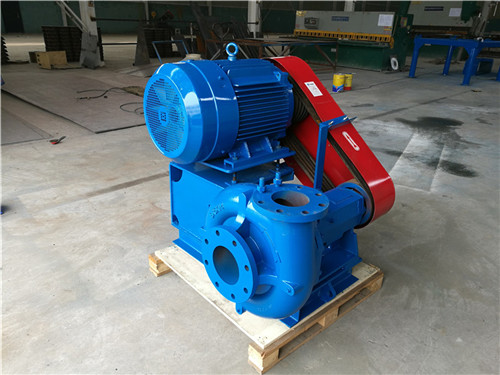

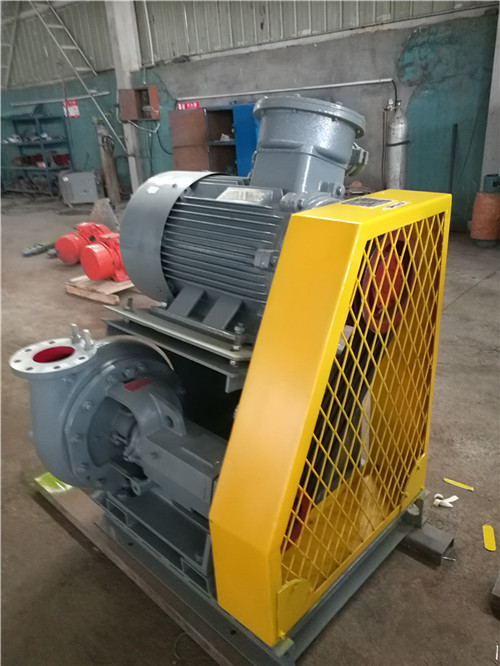

Pictures
