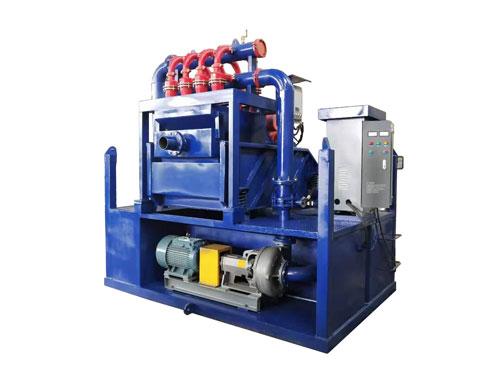

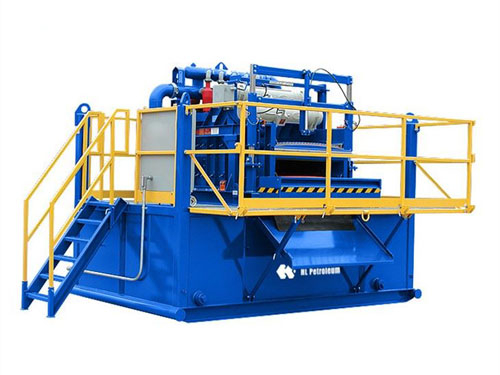

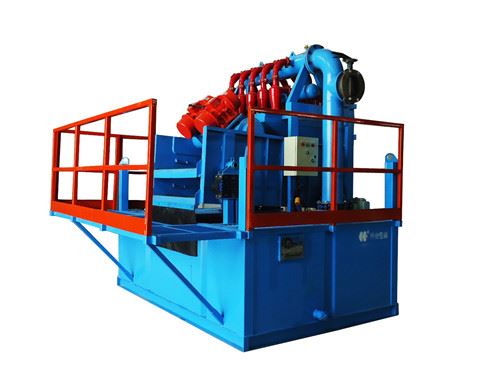

The mud separator is a mud purification device used in construction engineering, bridge pile foundation engineering, underground tunnel shield engineering and trenchless engineering construction.
Mud separator treatment process: the waste mud is transported by the pumping pump to the mud vibrating screen of the recovery system for coarse and fine two-stage desanding, and then enters the cyclone for further desilting and purification. After the mud purification treatment is completed, it enters the mud pump for circulating use.
Features of mud purification equipment:
After separation, the sludge content of the wastewater is less than 3%, which can ensure the use of mud for cleaning, pouring, and wall protection under the above construction conditions. The sand content is less than 15% and can be sold directly.
The cyclone used in the mud-water separator is customized by the manufacturer. It can be adjusted multiple times at 20 degrees, 15 degrees, and 8 degrees, and can be adjusted for different materials and concentrations to achieve the separation effect.
The whole equipment has good airtightness to prevent material leakage and mud splashing, and the environment is clean and tidy; the whole machine is anti-corrosive, and the pipes are brushed with glass fiber reinforced plastics, which has a long service life; screens, electric control boxes and other related accessories are all high-quality accessories.
 |  |
Mud Separator Technical parameters
| Model | Capacity (m3/h) | Separation Particle d50(µm) | Slag Separation Capacity (t/h) | Power (kW) | Dimensions: LxWxH (mm) | Weight(kg) |
| HMC20 | 20 | 16 | ≤10 | 4 | 1500×800×1100 | 700 |
| HMC40 | 40 | 20 | 10~20 | 7.7 | 1800×1100×1350 | 1500 |
| HMC60 | 60 | 20 | 20~30 | 13.6 | 2750×1850×2200 | 2700 |
| HMC80 | 80 | 20 | 25~40 | 18 | 3000×2100×2750 | 3500 |
| HMC100 | 100 | 25 | 30~50 | 25 | 3300×2100×2750 | 3850 |
| HMC120 | 120 | 30 | 30~60 | 33.6 | 3550×2250×2830 | 4500 |
| HMC160 | 160 | 35 | 40~60 | 41 | 3550×2250×2850 | 4800 |
| HMC200 | 200 | 40 | 50~70 | 50 | 3750×2350×2850 | 5100 |
Mud Separator Advantages

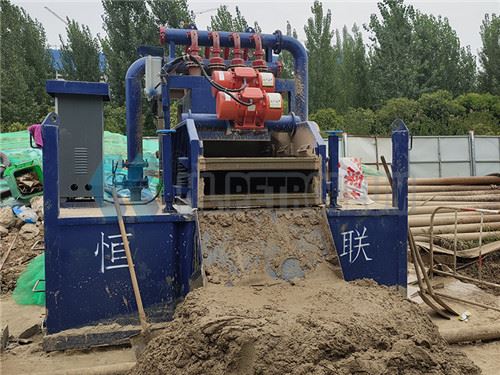

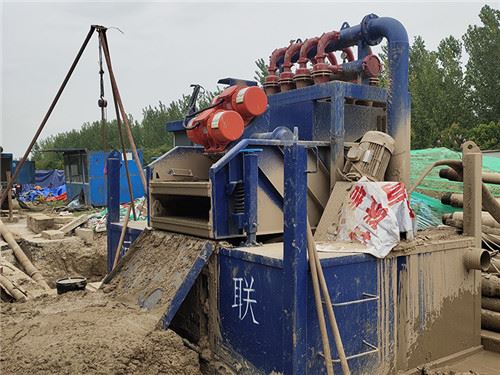

1. Multi-row application-the sediment purifier can be widely used in municipal engineering, urban construction, subway, shield tunneling, piling mud industry
2. Cost saving-it can save a lot of waste mud processing cost, greatly reduce the amount of waste slurry transportation and save engineering expenses.
3. Increase revenue-the sediment after the sediment separator has a water content of <15%, which can be sold directly for profit.
4. Reduce transportation costs-the sediment separator can realize the utilization of waste slurry and reduce the transportation cost in the process of waste slurry treatment.
