Mud Hopper

  • Large capacity
  • High mixing efficiency
  • Flexibility
  • Easy installation and operation

The mud hopper used in oilfield drilling is a specialized equipment for mixing and managing drilling fluid, also known as mud. It typically consists of a large-diameter hopper and an outlet pipe connected to the mud circulation system.

The primary purpose of a mud hopper is to blend additives, chemicals, and other components with the base drilling fluid to adjust its properties and performance according to specific drilling requirements. It helps control parameters such as viscosity, density, rheological characteristics, and solid content of the mud to ensure effective cooling of the drill bit, hole cleaning, wellbore stability, and efficient removal of drill cuttings.

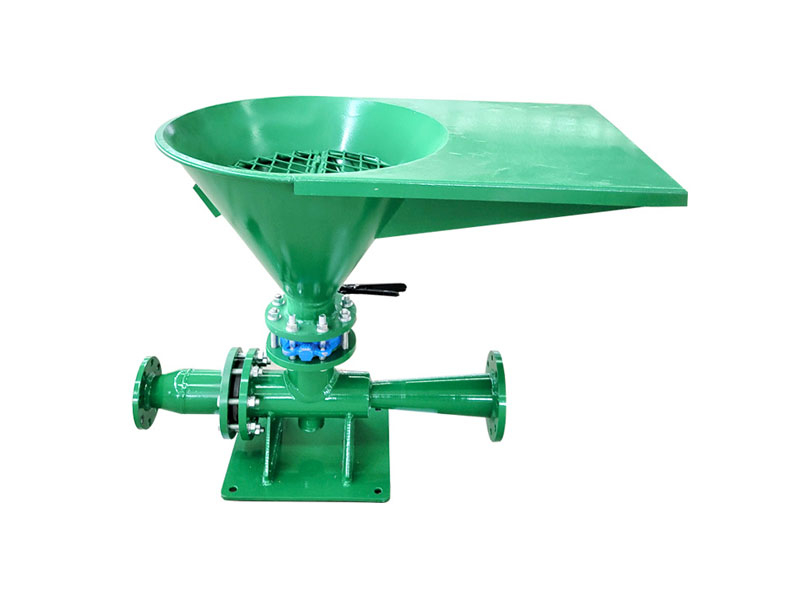

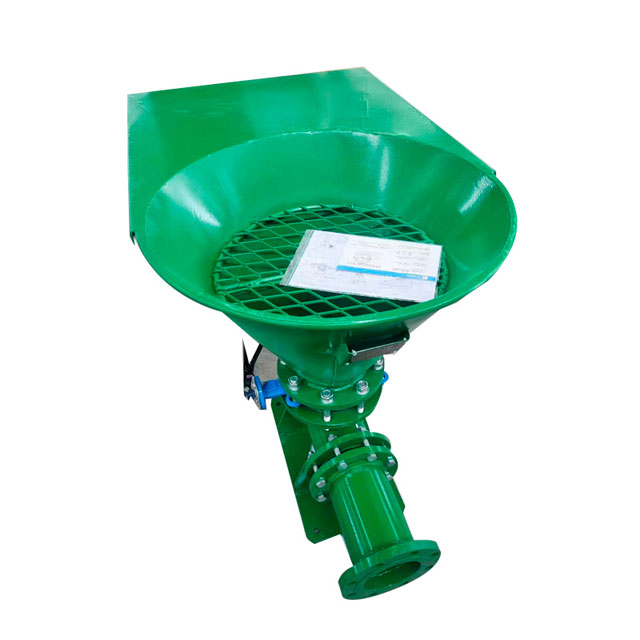

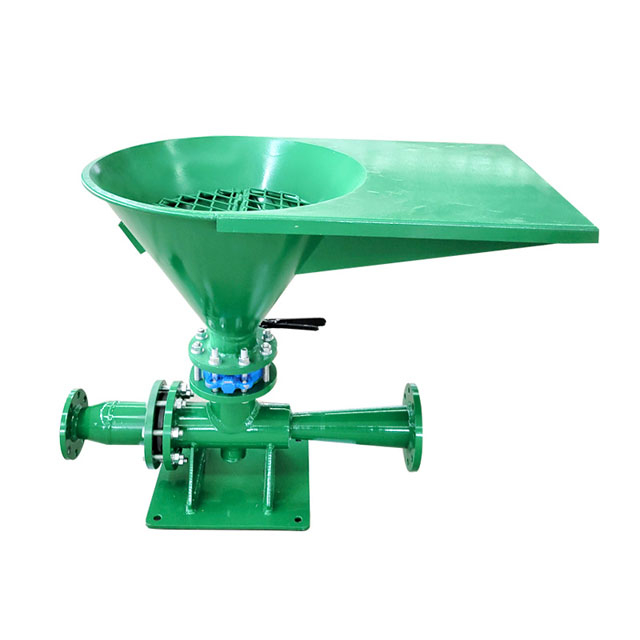

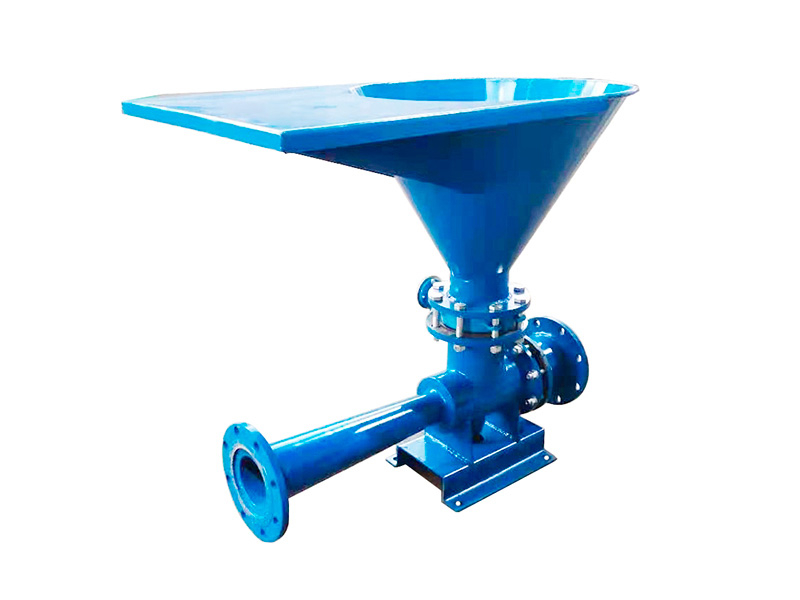

Mud Hopper Pictures

Mud Hopper

Mud Hopper Parameters

Inlet drainage: 180m3/h

Inlet head : >31m

Diameter of hopper: 708mm

Diameter of inlet: 125mm

Diameter of outlet: 125mm

Jet speed: 45m/s

Motor power: 55KW

Amalgamate speed: To barite unless 300Kg/min, To bentonite unless 150Kg/min

Sketch dimensions: 1518×708×989

Mud Hopper Features

1. Large capacity: Mud hoppers are designed with a substantial capacity to accommodate a significant volume of drilling fluid and additives, meeting the demands of drilling operations.

2. High mixing efficiency: Mud hoppers are engineered with a proper internal structure and mechanisms to facilitate fast and uniform mixing of drilling fluid and additives, ensuring the homogeneity and stability of the mud.

3. Flexibility: Mud hoppers demonstrate good adaptability and can be adjusted and customized based on different drilling conditions and operational requirements to meet diverse drilling needs.

4. Easy installation and operation: Mud hoppers are designed with simplicity in mind, allowing for convenient installation and operation. They can be quickly connected and disconnected from the drilling system, enhancing operational efficiency and convenience.

Mud Hopper Shipment

Mud Hopper Shipment

The mud hopper used in oilfield drilling is a crucial equipment for mixing and managing drilling fluid. It features a large capacity, high mixing efficiency, flexibility, and ease of installation and operation, providing reliable control and adjustment capabilities for drilling mud in oilfield operations.
