Product Description

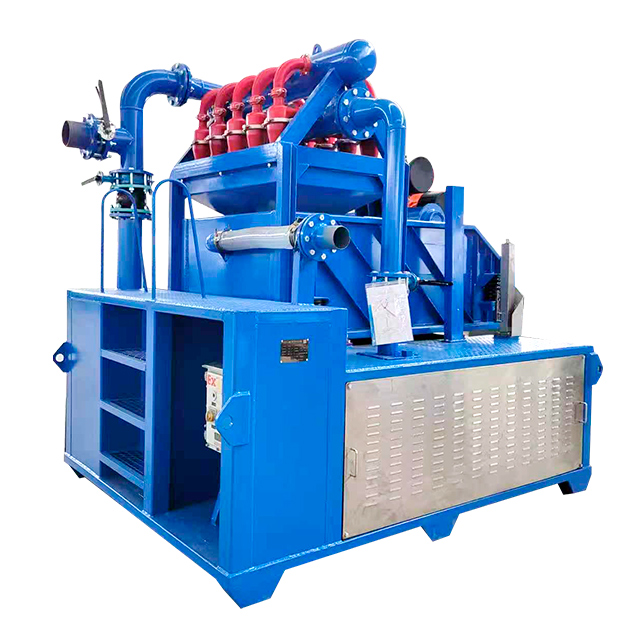

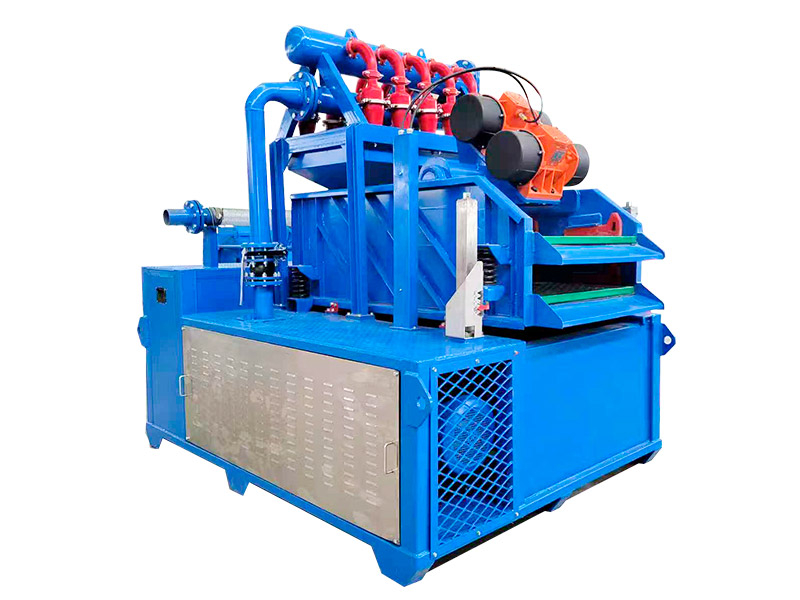

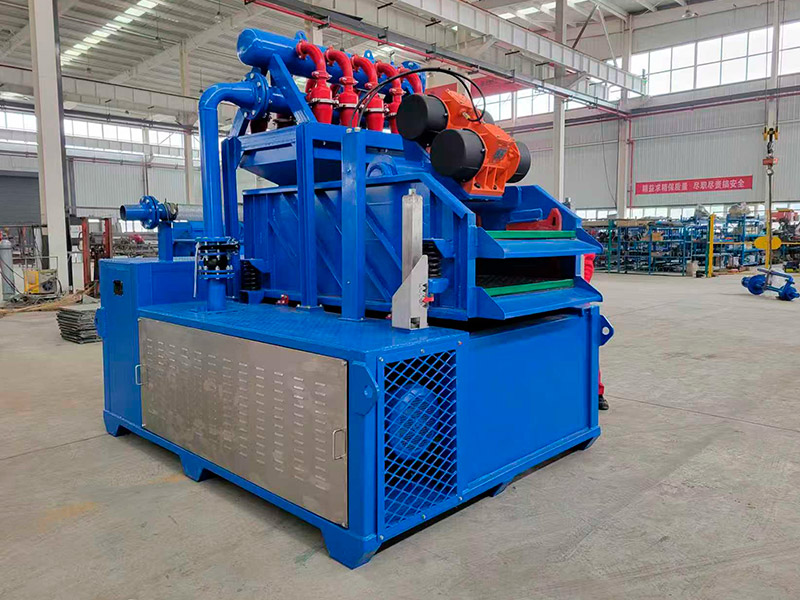

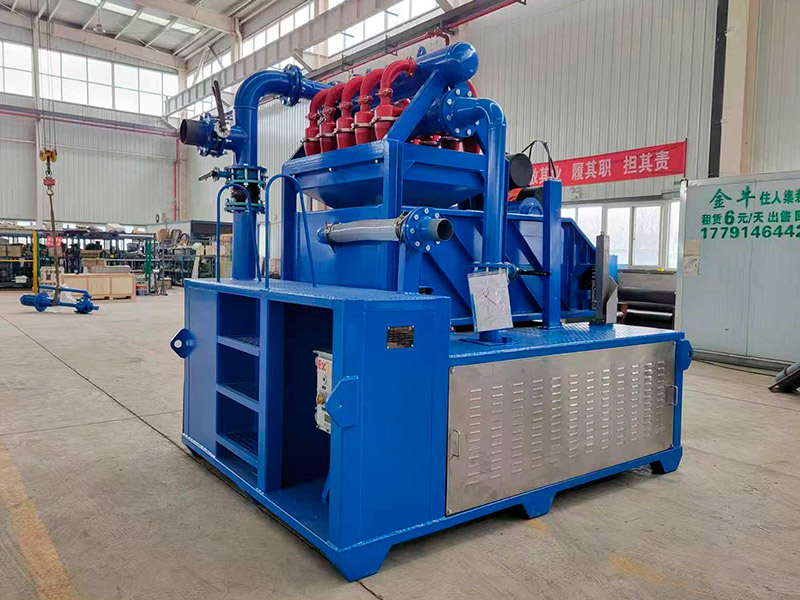

HMC160A Drilling Mud Recycling System adopts multi-stage solid control technology to clean and recycle drilling mud. It improves construction efficiency, lowers mud consumption, and meets environmental requirements for oil and gas drilling, HDD and shield engineering.
HMC160A Mud Recycling System Technical Parameters | |
Capacity | 160m³/h |
Motor power | 2.2KW |
Screen size | 6*1250*700mm(Double deck) |
Screen area | 5.2㎡ |
Cyclone specification | 4” |
Cyclone nos. | 16个 |
Cyclone material | PU |
Separation particle size | 15~44μm |
Feeding pump motor power | 37KW |
Inlet diameter | 5” |
Outlet diameter | 8” |
Control mode | Soft start |
Structure type | Frame type / Mobile type |
Dimension | 2700*1980*2650mm |
Weight | 4100kg |
Full-function wireless remote control
Cr26 Alloy submersible sludge pump
Three-layer shaker screen structure
Desludging-level separation effect
Switchable vibration mode; adjustable vibration frequency
The mud reclaimer operates through a multi-stage separation process:
Mud Collection
Used drilling fluid returns from the borehole to the system.
Primary Screening
The shale shaker removes coarse solids and debris.
Hydrocyclone Separation
Desander and desilter cones separate finer particles using centrifugal force.
Fluid Recovery
Cleaned drilling fluid is collected in tanks and recirculated back into the drilling system.
Trailer-Mounted Mud Reclaimer
PLC Automatic Control System
Centrifuge for Ultra-Fine Separation
Jet Mud Mixing System Integration
Explosion-Proof Electrical System
