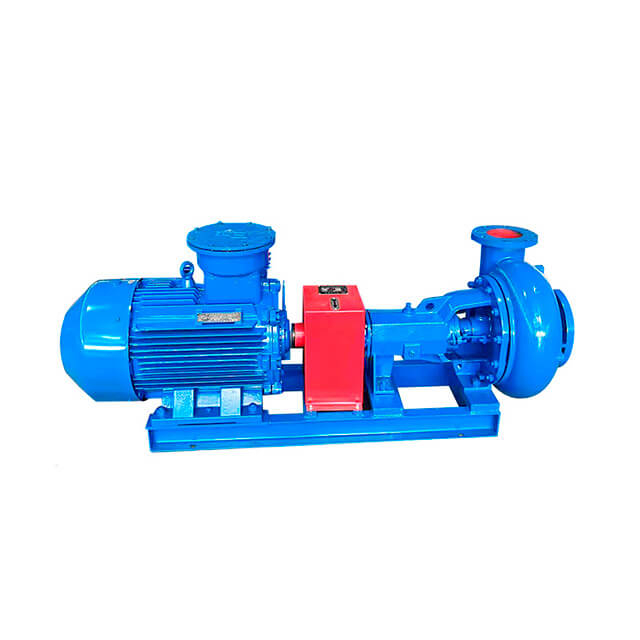

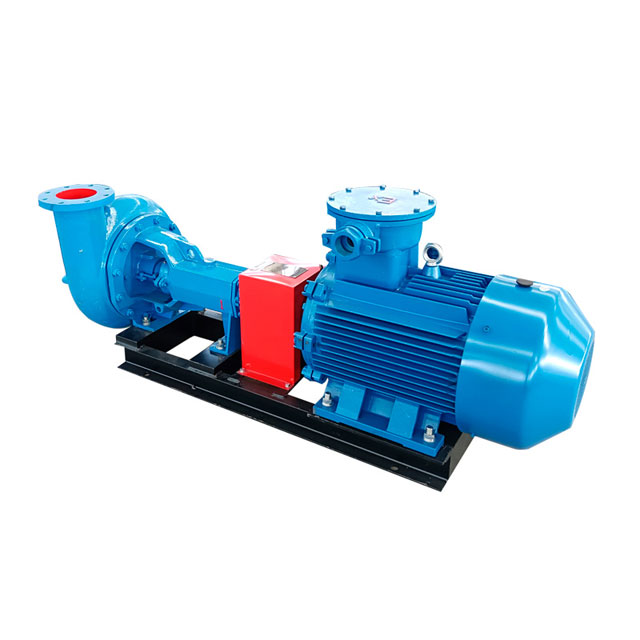

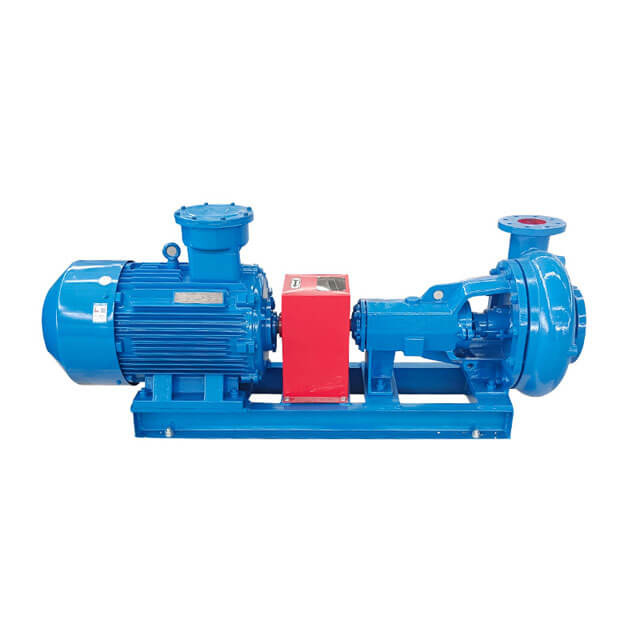

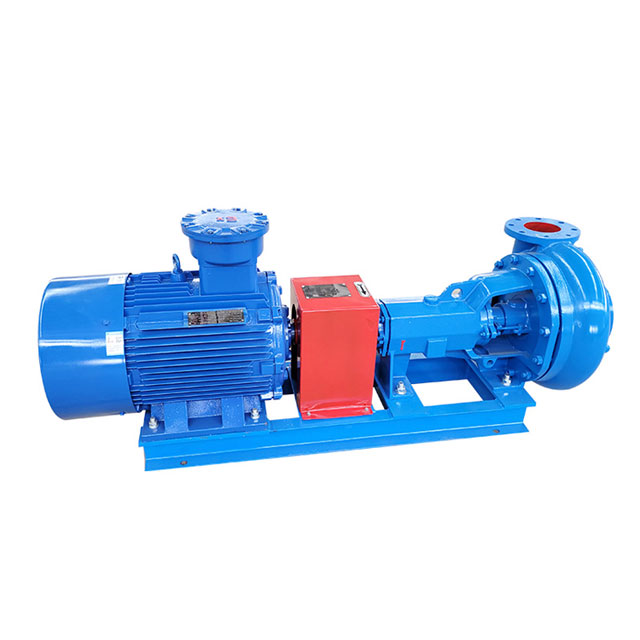

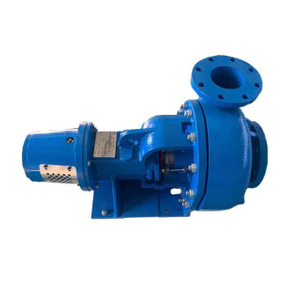

Mission Magnum Pump

HL Mission pump design features:
1. Large flow, fluid mechanics blade curve design.
2. Flow-through parts are made of wear-resistant and corrosion-resistant materials.
3. Mechanical seal and packing seal are used for double-stage sealing.
4. Open impeller structure, can convey high-density and high-viscosity fluid media.
5. External impeller adjustment structure, easy to adjust.
6. 6 series, 24 specifications, suitable for different industries.
7. Metric and imperial interfaces to meet different user needs.

Availability:
Quantity:
Inquire

Mission Magnum Pump
Mission Magnum Pump
Mission Magnum Pump
Mission Magnum Pump
Mission Magnum Pump

Product Description

MISSION Magnum I pumps are proven as reliable, heavy-duty, low-cost slurry pumps. The 3x2x13 through 10x8x14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements. Standard models are equipped with a heavy-duty 2 1/2-in. shaft protected by a stainless-steel shaft sleeve, double-row outboard bearings, and inboard roller bearings.

Mission Magnum Pump


TDS

Main Technical Parameters

Type Rotation speed (r/min) Capacity (m3/h) Pressure head/m Efficiency (%) Motor HP.(kw)
HCP3×2×13 1450/1750 40-60 24-35 65 7.5/11/15
HCP4×3×13 1450/1750 60-80 26-33 65 11/15
HCP5×4×14 1450/1750 120-150 28-33 65 22/30/37
HCP6×5×14 1450/1750 180-240 26-33 65 37/45/55
HCP6×5×11 1450/1750 160-170 24-26 65 30/37
HCP8×6×14 1450/1750 240-260 33-35 65 55/75
HCP8×6×11 1450/1750 220-240 24-26 65 37/45
HCP10×8×14 1450/1750 280-320 33-38 65 75/90

mission magnum 1


Mission Magnum Pump Applications

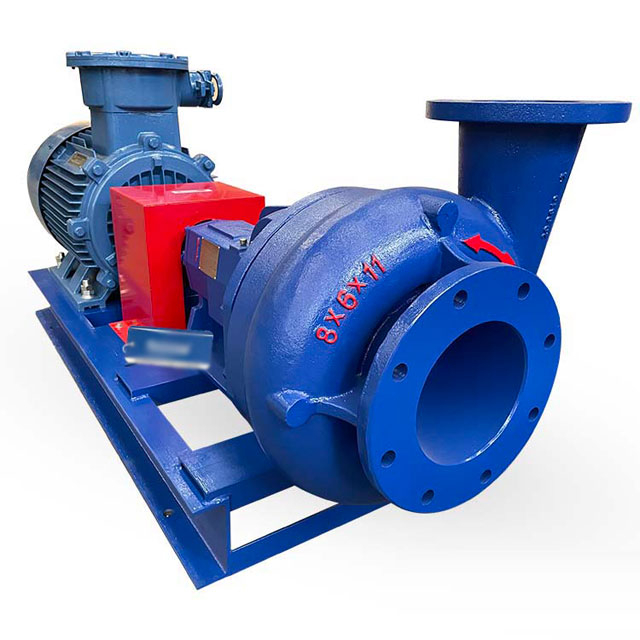

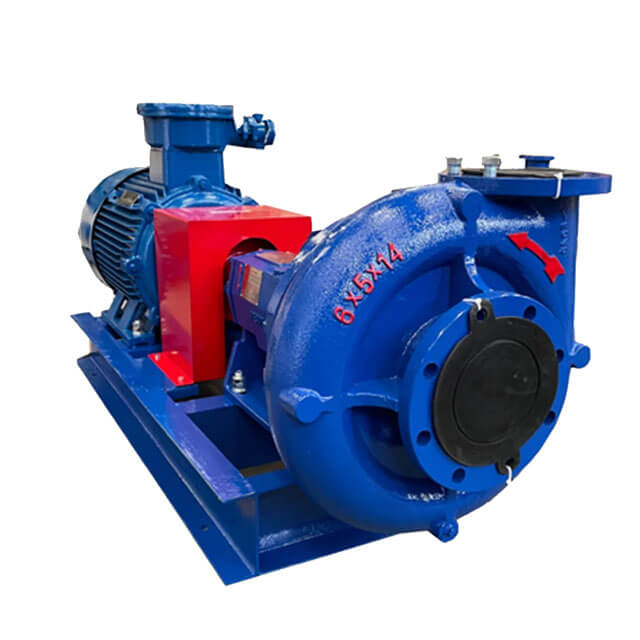

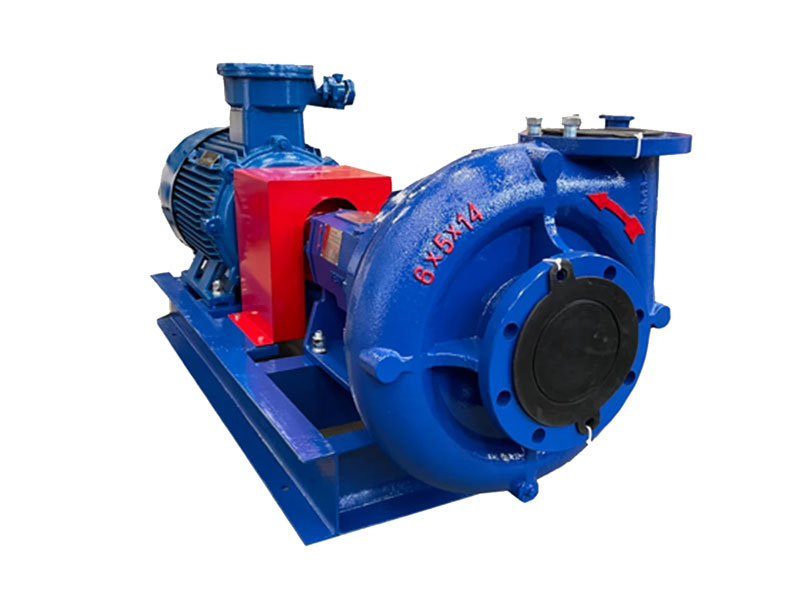

The model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6x5x11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.

Processing Pictures

Mission Magnum Pump Processing

砂泵_05


Xi'an HL Petroleum Equipment Co., Ltd. is a company specializing in the production and development of solids control equipment. It provides various types of products and supports customized services. If you are interested in Mission type centrifugal sand pump or other products, welcome to consult. You can contact our sales team to learn more about our product specifications, customization options, prices and more. We will wholeheartedly provide you with high-quality products and professional services.

砂泵_06

FAQ

Q1: How can I make order online?

A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, you can make order.

Q2: Can I buy parts separately?

A: Yes, all of the pump spare parts can buy separately.
