Mission 2500 Supreme Pump

HL Mission pump design features:
1. Large flow, fluid mechanics blade curve design.
2. Flow-through parts are made of wear-resistant and corrosion-resistant materials.
3. Mechanical seal and packing seal are used for double-stage sealing.
4. Open impeller structure, can convey high-density and high-viscosity fluid media.
5. External impeller adjustment structure, easy to adjust.
6. 6 series, 24 specifications, suitable for different industries.
7. Metric and imperial interfaces to meet different user needs.

Availability:
Quantity:
Inquire

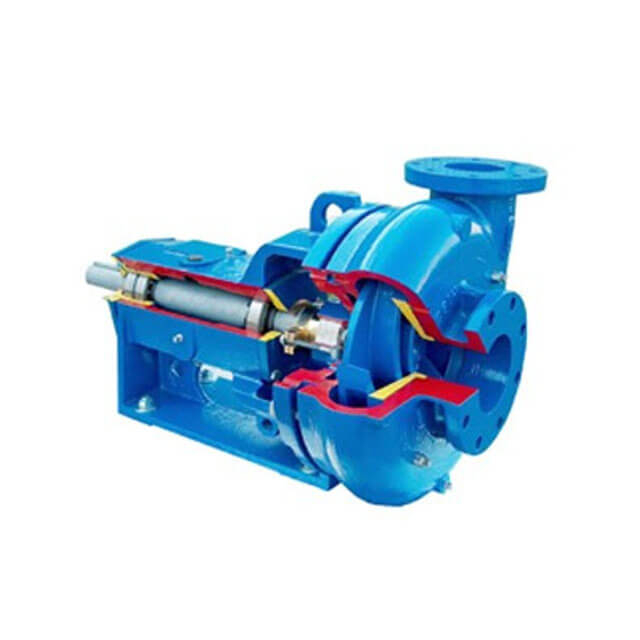

Mission 2500 Supreme Pump

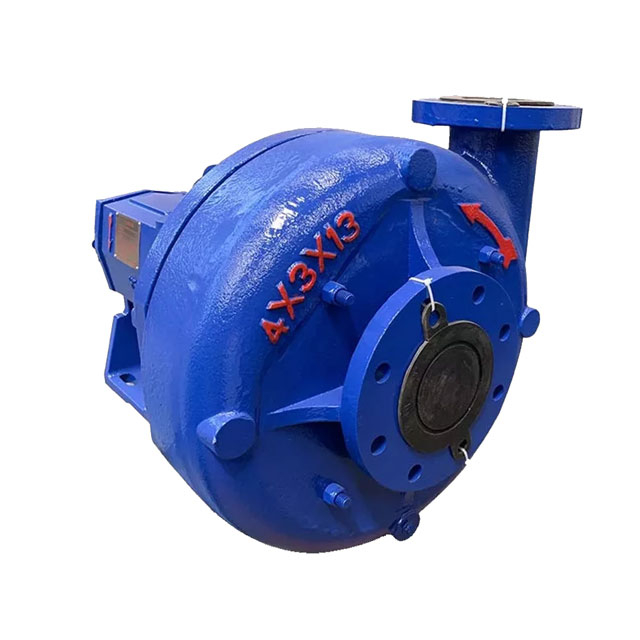

Mission 2500 Supreme Pump
Mission Magnum Pump

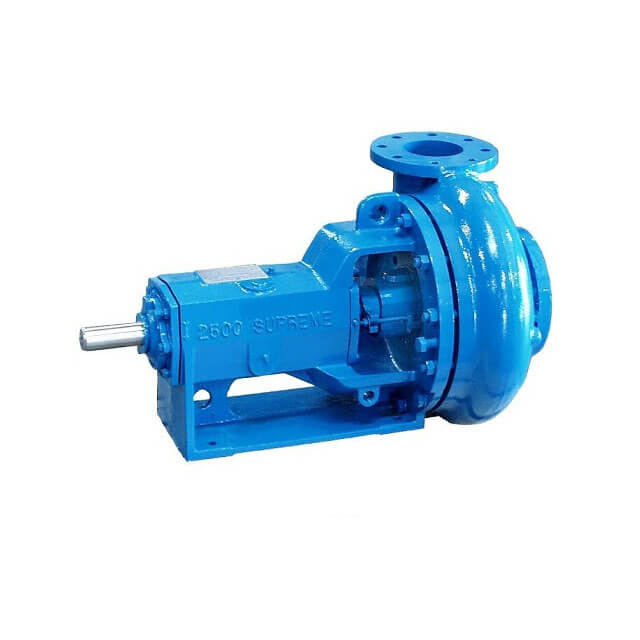

Mission 2500 Supreme Pump

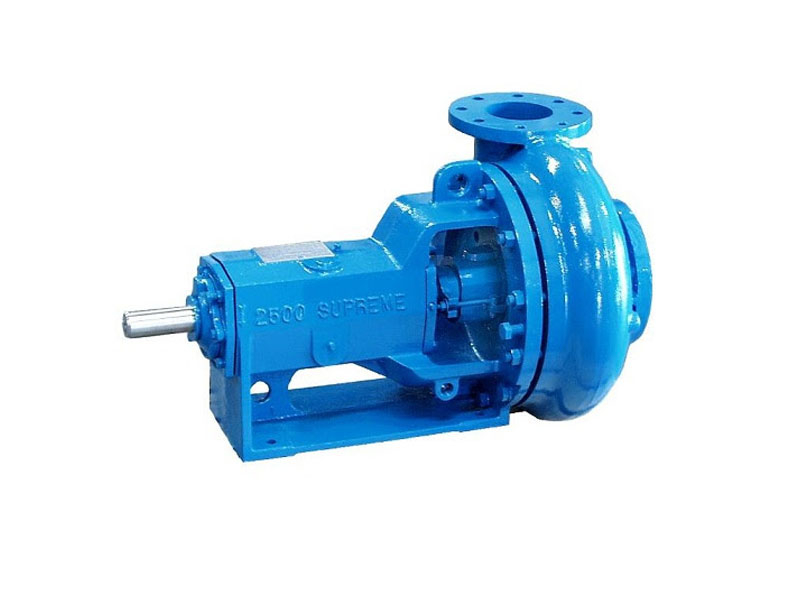

Mission 2500 Supreme Pump

Product Description

The Mission 2500 Supreme Pump has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 Supreme is available in hard iron, supreme hard iron, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

mission 2500 supreme pump


TDS

Main Technical Parameters

Type Rotation speed (r/min) Capacity (m3/h) Pressure head/m Efficiency (%) Motor HP.(kw)
HCP3×2×13 1450/1750 40-60 24-35 65 7.5/11/15
HCP4×3×13 1450/1750 60-80 26-33 65 11/15
HCP5×4×14 1450/1750 120-150 28-33 65 22/30/37
HCP6×5×14 1450/1750 180-240 26-33 65 37/45/55
HCP6×5×11 1450/1750 160-170 24-26 65 30/37
HCP8×6×14 1450/1750 240-260 33-35 65 55/75
HCP8×6×11 1450/1750 220-240 24-26 65 37/45
HCP10×8×14 1450/1750 280-320 33-38 65 75/90


Typical Applications

1. Barite, ferric oxide, and mineral oil

2. Base drilling muds

3. Glass fibers

4. Sugar processing

5. Ash or coal conveyers

6. Cement

7. Mine de-watering

8. Lime slurries

9. Kaolin clay

10. Crystalline forms

Dimensional Data

Dimensional Data

Processing Pictures

Mission Magnum Pump Processing

砂泵_05


Xi'an HL Petroleum Equipment Co., Ltd. is a company specializing in the production and development of solids control equipment. It provides various types of products and supports customized services. If you are interested in Mission type centrifugal sand pump or other products, welcome to consult. You can contact our sales team to learn more about our product specifications, customization options, prices and more. We will wholeheartedly provide you with high-quality products and professional services.

砂泵_06

FAQ

Q1: How can I make order online?

A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, you can make order.

Q2: Can I buy parts separately?

A: Yes, all of the pump spare parts can buy separately.
