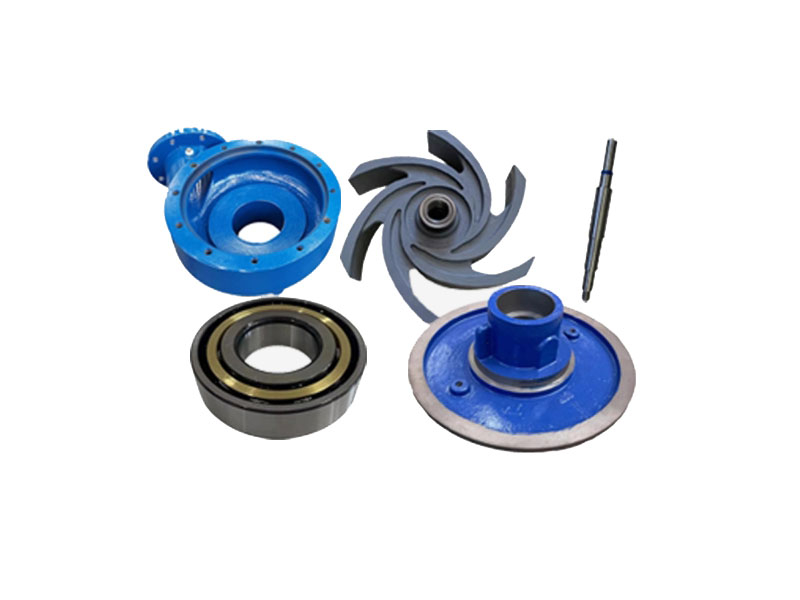

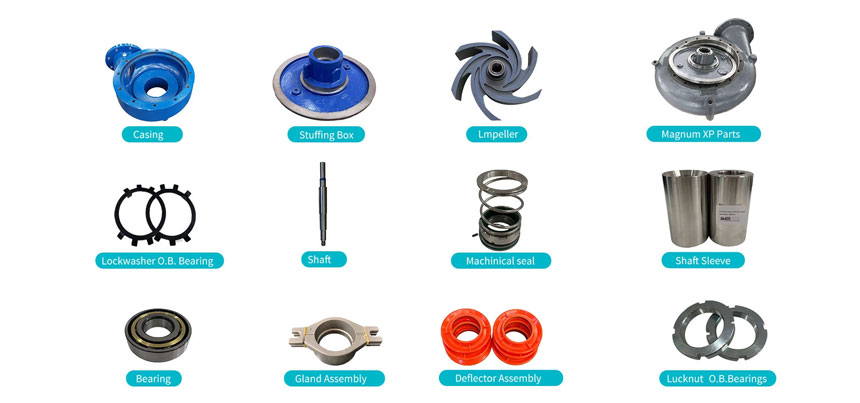

Mission Pump Parts

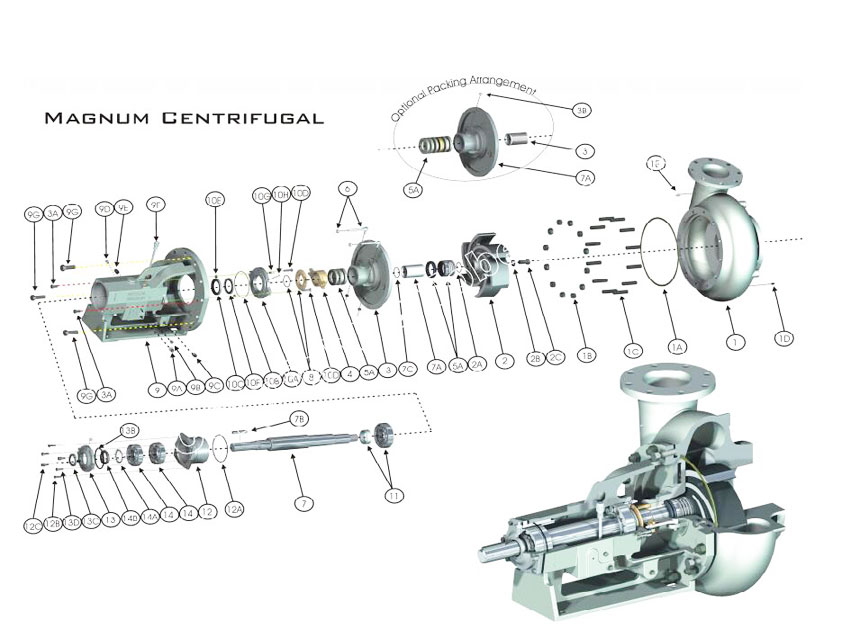

Mission Centrifugal Pump Parts List:
Item | Qty | Part No. | Processing# | Description |
1* | 1 | See below | See below | Casing |
1A | 1 | 10399-46-1 | 648403012 | Gasket,casing |
1B | 12 | 3932-61 | 648402014 | Nut,casing |
1C | 12 | 3862-76 | 648401115 | Stud,casing |
1D | 1 | 8505-04-01 | 86485503 | Plug,Casing Drain |
1E | 1 | 8505-04-01 | 646400507 | Plug,flush line |
2* | 1 | See below | See below | Impeller |
2A | 1 | 19110-72 | 64845082 | Seal,impeller |
2B | 1 | 7300239 | Washer,impeller | |
2C | 1 | 7415648 | Bolt,impeller lock | |

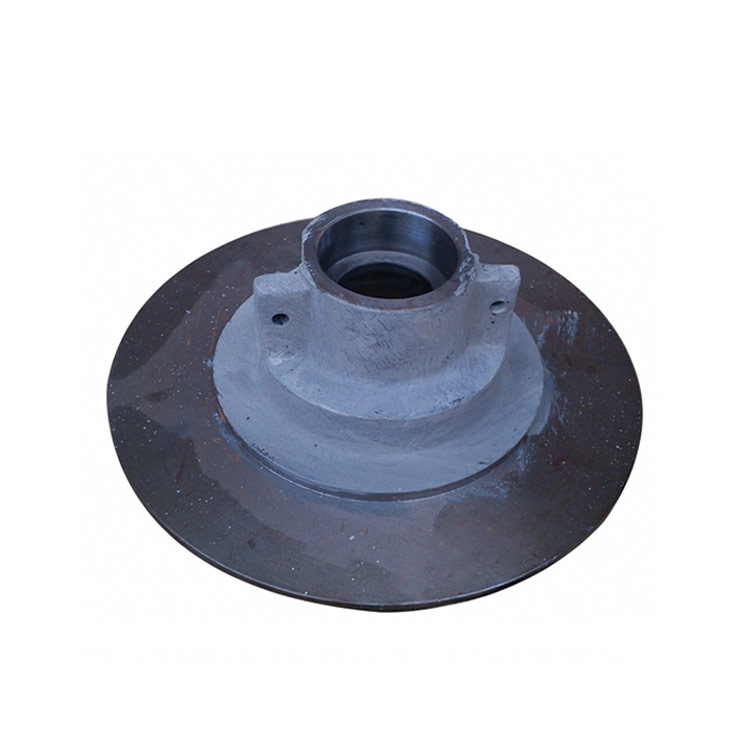

3* | 1 | 22223-01-30 | 641116157 | Stuffing box,mech.seal |
3* | 1 | 20614-01-30 | 643365042 | Stuffing box,packed |
3A | 2 | 3861-117 | 648401016 | Bolt,stuffing box |
3B | 1 | 19368-01 | 601499403 | Grease fitting |
4 | 1 | 20622A | 641103338 | Gland assy,packing |

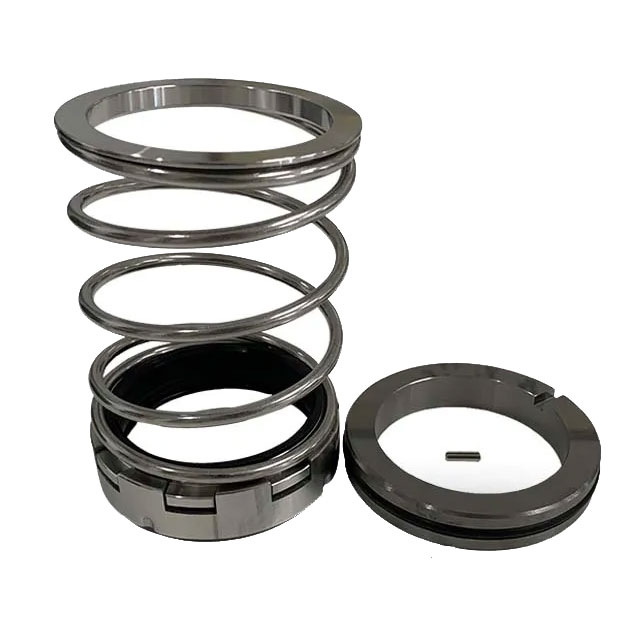

5A# | 1 | 22451-1 | 648414308 | Seal,mechanical |
5A# | 3 | 25014-04M-B | 661007005 | Packing, Shaft |
6 | 2 | B3701A | 601102494 | Bolt assy,gland |
7 | 1 | 20612-02-33 | 646490557 | Shaft |
7A | 1 | 20943-21 | 641102182 | Sleeve,shaft,M.S. |
7A | 1 | 20613-21G-7A | 641102181 | Sleeve,shaft,Pack |
7B | 1 | 4372-5-21 | 601212392 | Key,shaft |
7C | 1 | 23444-01-72 | 648415156 | Seal,shaft sleeve |
8 | 1 | 22210-1A | 641116108 | Deflector assembly |
9 | 1 | 20618-12-1 | 644302499 | Frame,grease lubricated |
9A | 1 | 8505-05 | 601474737 | Plug,oil drain |
9B | 3 | 2538-1H | 648403608 | Plug,oil fil |
9C | 1 | 8505-05 | 601474737 | Plug, Frame Drain |
10A | 1 | 20626 | 644303109 | Cover,inboard bearing |
10B | 1 | 20625 | 648408706 | Gasket,I.B.Brg.Cover |
10C | 1 | 20619-01 | 648408300 | Oil seal, I.B.Brg.Cover |
10D | 2 | 3861-1 | 601407505 | Bolt, I.B.Brg.Cover |
10E | 2 | 3932-2 | 601408560 | Nut, I.B.Brg.Cover |
10F | 1 | 21641-01 | 661010033 | Grease fitting |
11 | 1 | 20615-1 | – | Bearing,inboard |
12 | 1 | 20624-01-01 | 644308504 | Housing,O.B.bearing |
12A | 1 | 7496-253 | 648402295 | Seal, O.B.Brg.housing |
12B | 4 | 3861-138 | 648401057 | Bolts, O.B.Brg.housing |
12C | 2 | 3932-62 | 658404702 | Nut, O.B.Brg.housing jam |
13 | 1 | 20617-01-01 | 641103296 | Cover,O.B.Bearing |
13A | 1 | 19368-01 | 661010020 | Grease zerk, O.B.Brg.Cover |
13B | 1 | 7496-26 | 72200017 | O-ring, O.B.Brg.Cover |
13C | 1 | 20619-02 | 648408359 | Oil seal, O.B.Brg.Cover |
13D | 2 | 3861-139 | 648401081 | Bolt, O.B.Brg.Cover |
14 | 2 | 20616-1 | 648408201s | Bearing, O.B. |
14A | 1 | 6124-4 | 648402105 | Lockwasher,O.B.Bearing |
14B | 1 | 6123-4 | 648402055 | Locknut, O.B.Bearing |

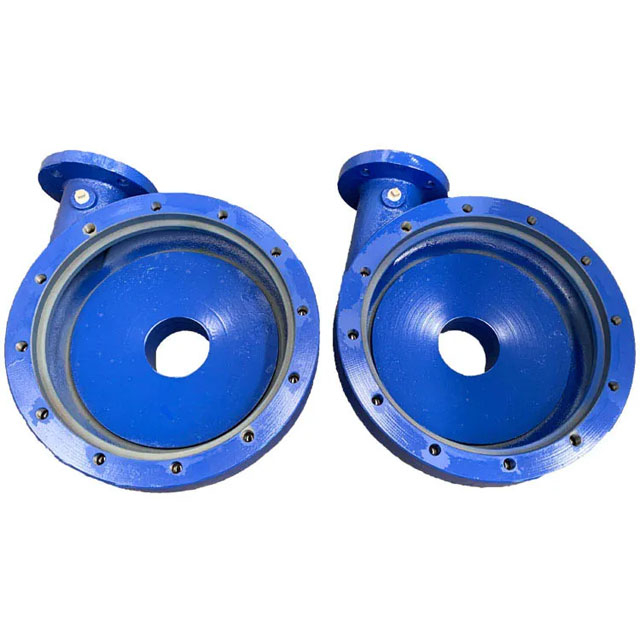

| Casing ( including studs, nuts and gaskets) | ||||
Item | Qty | Part No. | Processing# | Description |
1* | 1 | 19203-01-30A | 641101753 | Casing,3×2×13 |
1* | 1 | 19205-01-30A | 641101902 | Casing,4×3×13 |
1* | 1 | 19222-01-30A | 641102058 | Casing,5×4×14 |
1* | 1 | 19122-01-30A | 641101456 | Casing,6×5×11 |
1* | 1 | 19123-01-30A | 641101605 | Casing, 6×5×14 |
1* | 1 | 19763-01-30A | 641102157 | Casing, 8×6×11 |
1* | 1 | 19763-01-30A | 641101308 | Casing,8×6×14 |
1* | 1 | 20937-01-30A | 641102322 | Casing,10×8×14 |
| Impellers | ||||
Item | Qty | Part No. | Processing# | Description |
2* | 1 | 19204-XX-30 | 641215603 | Impeller,3×2×13 |
2* | 1 | 19206-XX-30 | 641217005 | Impeller,4×3×13 |
2* | 1 | 19224–XX-30 | 641217831 | Impeller,5×4×14 |
2* | 1 | 19121-XX-30 | 641211602 | Impeller,6×5×11 |
2* | 1 | 19121-XX-30 | 641212105 | Impeller, 6×5×14 |
2* | 1 | 19121-XX-30 | 641211602 | Impeller, 8×6×11 |
2* | 1 | 19116-XX-30 | 641209903 | Impeller,8×6×14 |
