Product Description

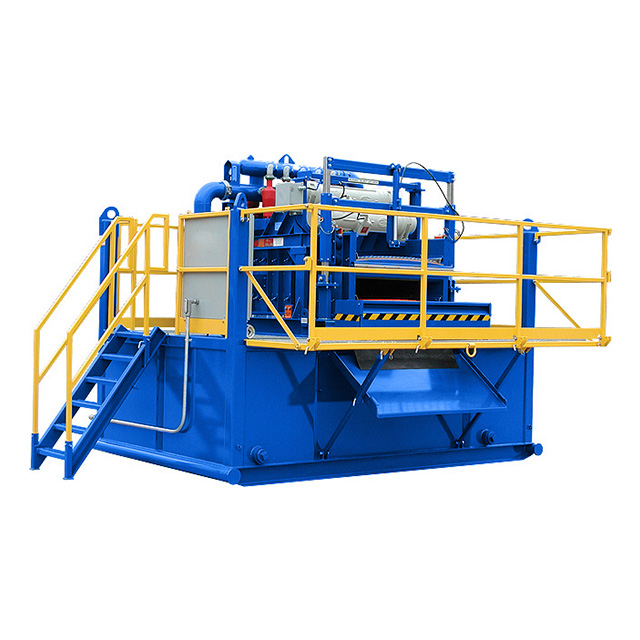

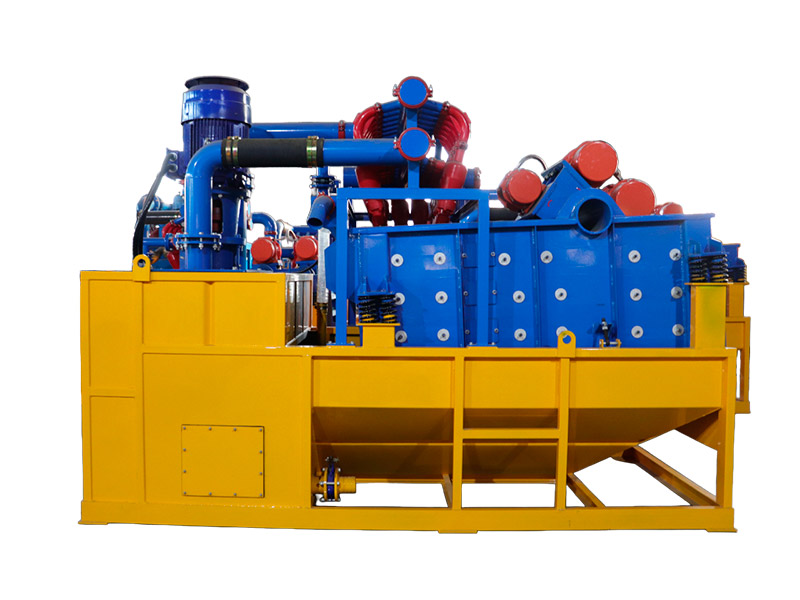

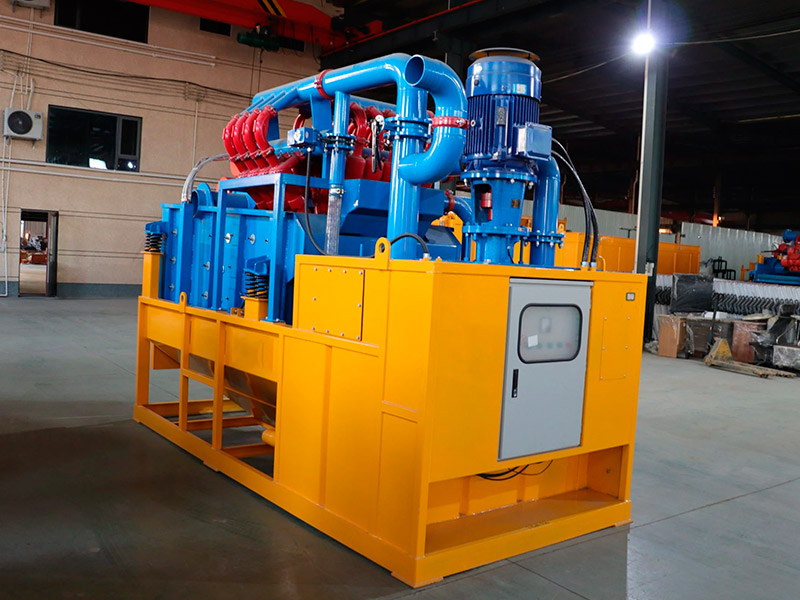

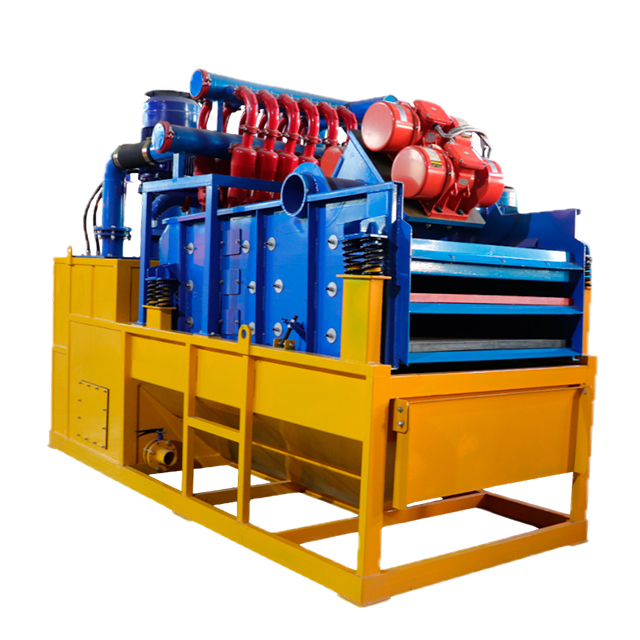

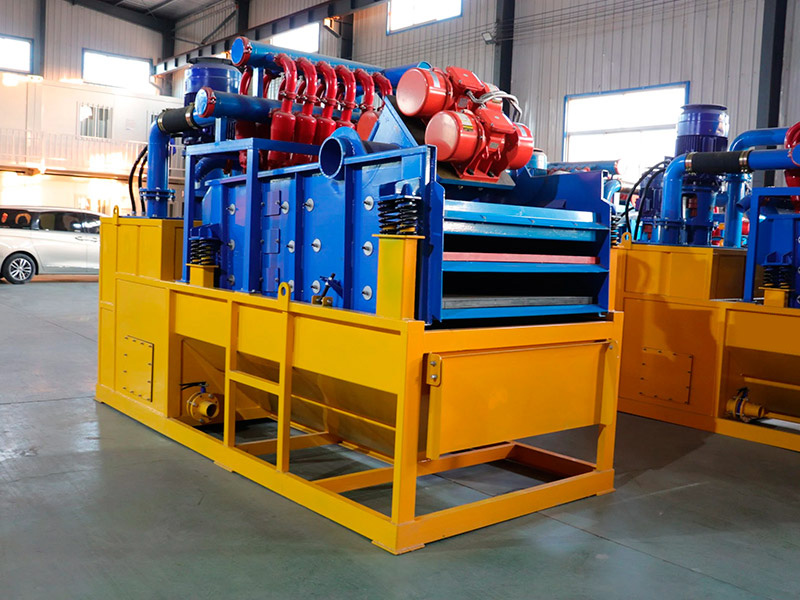

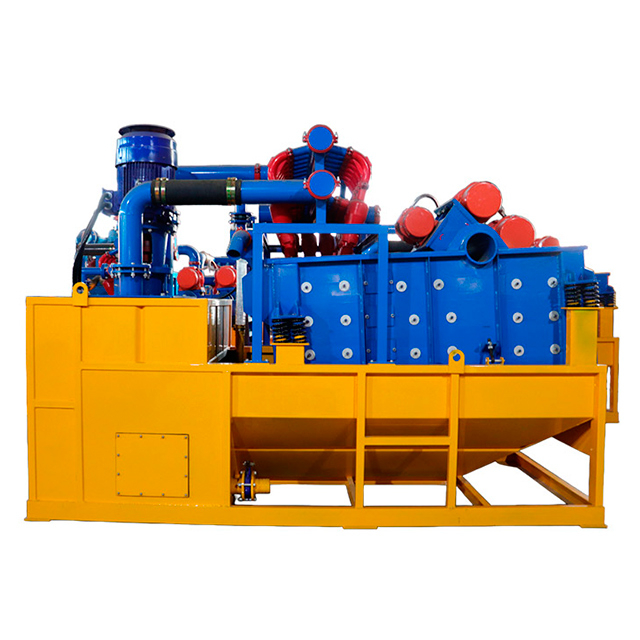

A HMC200A Drill Mud Recycling System is a compact and efficient solids control system designed to recover, clean, and reuse drilling fluid (mud) during drilling operations. It removes sand, silt, and fine solids from used mud, ensuring optimal performance while reducing waste and operational costs.
HMC200A Drill Mud Recycling Systems are widely used in Horizontal Directional Drilling (HDD), trenchless construction, microtunneling, and foundation engineering, where continuous mud circulation is essential.
HMC200A Mud Recycling System Technical Parameters | |
Capacity | 200m³/h |
Motor power | 2.5KW |
Screen size | 8*1250*700mm(Double deck) |
Screen area | 7.0㎡ |
Cyclone specification | 4” |
Cyclone nos. | 20个 |
Cyclone material | PU |
Separation particle size | 15~44μm |
Feeding pump motor power | 45KW |
Inlet diameter | 6” |
Outlet diameter | 8” |
Control mode | Soft start |
Structure type | Frame type / Mobile type |
Dimension | 3400*2100*2750mm |
Weight | 4800kg |
(1) Simple and useful treatment process, as well as convenient installation, operation and maintenance;
(2) Modular and integrated design, transportation and installation subject to standard container size, foldable operating platform, compact structure, small footprint and flexible field use;
(3) Adjustable G-force of shale shaker, screen panel angle and mesh size, strong overall system adaptability and easier treatment of materials from various formations;
(4) Meet separation requirements on various materials and customize process as per the cut point of D 50 ; meet the requirements on different handling capacities, 100~3000m³/h;
(5) Meet various power specifications as per construction needs, and even generator set can be used for operation;
(6) The whole system is skid-mounted integrated system and can be also changed into vehicle-mounted mobile treatment units.
Our mud reclaimers are widely used in:
Horizontal Directional Drilling (HDD)
Trenchless Pipe Installation
Microtunneling Projects
Water Well Drilling
Foundation & Piling Works
Oil & Gas Drilling (Small to Medium Scale)
