Solids Control System

Solid control system is mainly to control and separate the solids of petroleum drilling fluid, which can make the drilling fluid recycle, also called the mud purification system. It is suitable for the drilling process of oil wells ranging from 2,000 meters to 7,000 meters. Solids control system consists of 3 to 7 modular combined tanks; the bottom of the purification tank adopts a new type of cone bottom structure, and the mud mixing system is used at the edge to prevent sand settling; The tanks and tanks of the entire circulation system can be separated and connected to meet the needs of drilling operations. The bottom valve of the suction manifold can be opened flexibly and sealed reliably after closing. The entire circulation system is equipped with 5-stage purification equipment, vibrating screens in supporting equipment, sand and desilter cleaners, vacuum degassers and agitators, etc. The use of new oil drilling mud purification systems reduces mud discharge and has obvious environmental protection Protective effects.

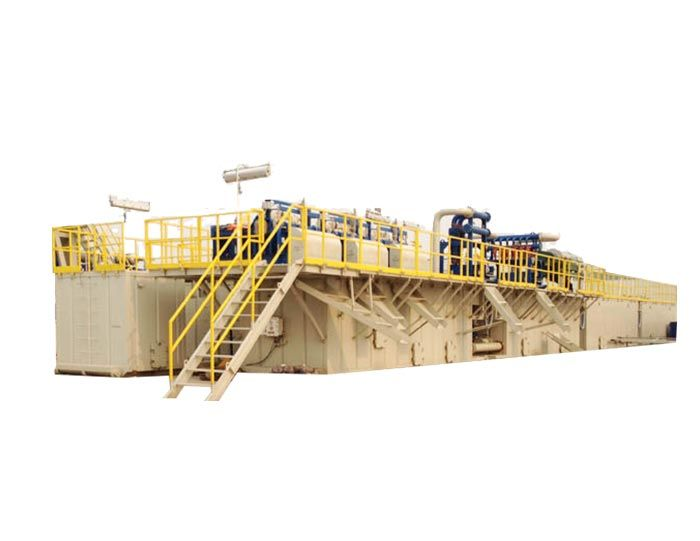

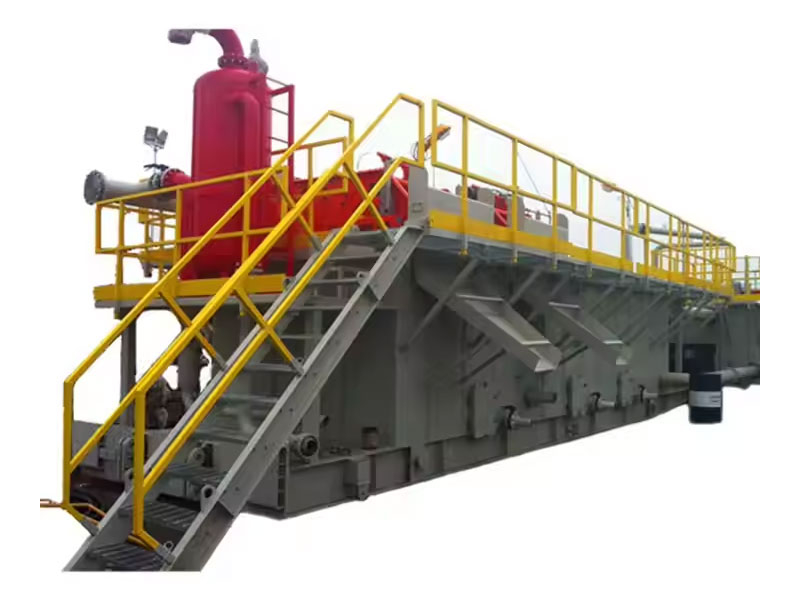

Solids Control System Pictures

Commonly used solid control systems include two-stage purification system and three-stage purification system, and the highest can reach five-stage purification.

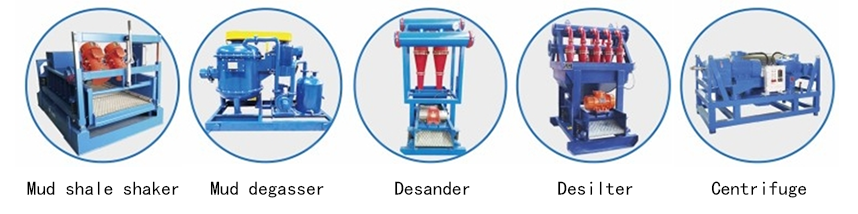

Solids Control System Components

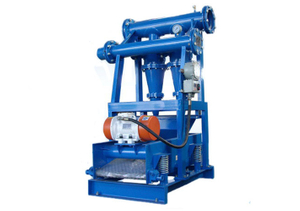

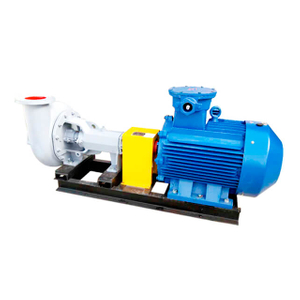

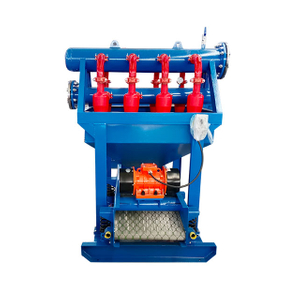

The drilling fluid solids control system is mainly composed of drilling fluid purification equipment (Mud shale shaker, degasser, desander, desilter, centrifuge, centrifugal pump, mixing hopper,    mud mixer, mud gun), drilling fluid circulation tank and other auxiliary equipment.
