Product Description

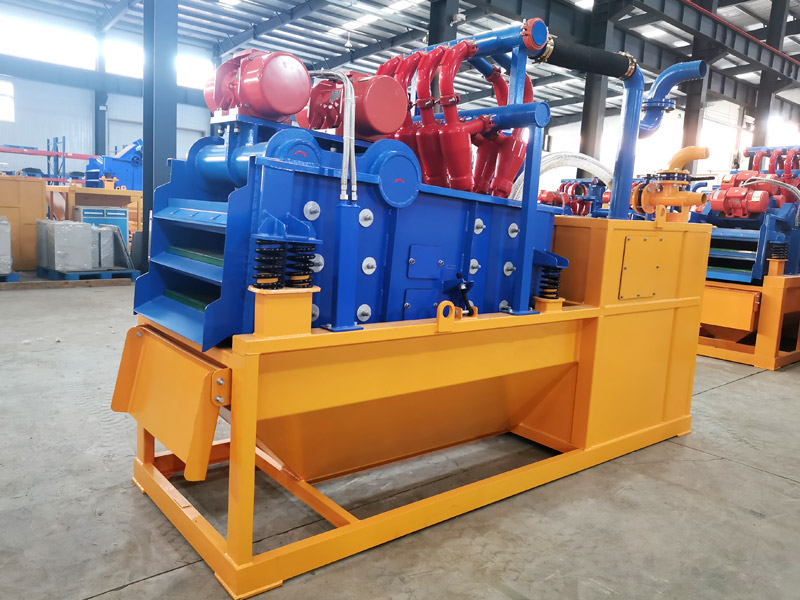

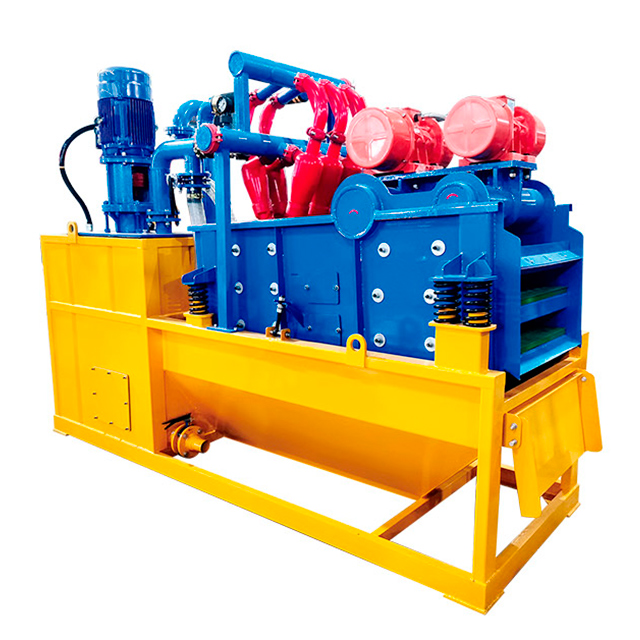

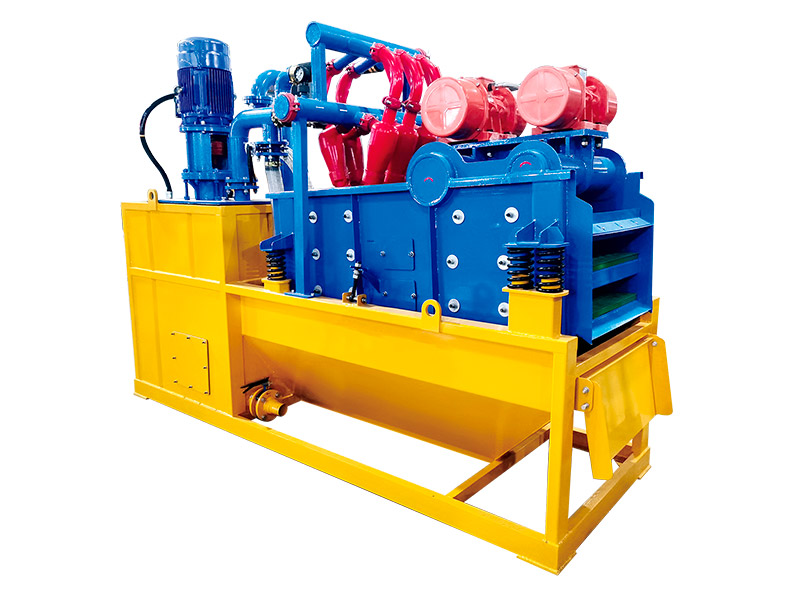

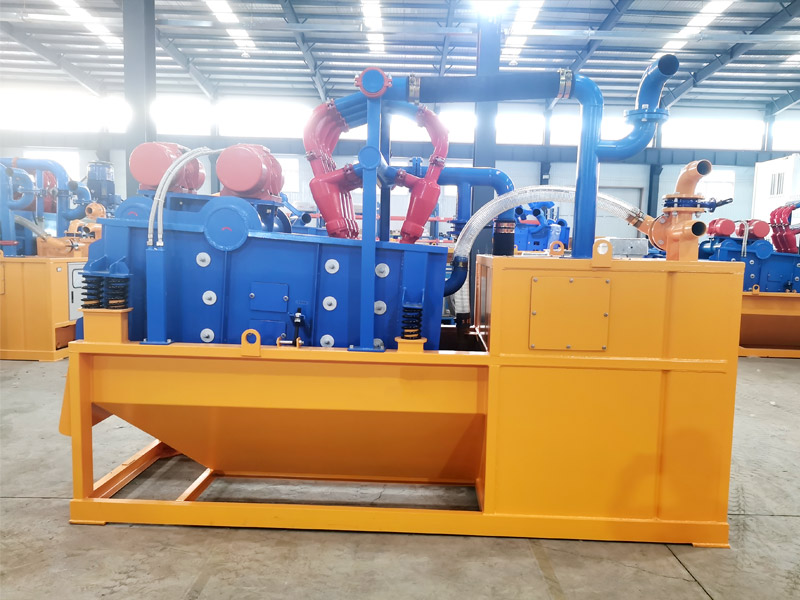

HMC60A HDD Mud Recovery Equipment provides closed-loop purification and reuse of drilling fluid. It delivers high separation efficiency, cost saving and eco-friendly operation for on-site construction.
HMC60A Mud Recycling System Technical Parameters | |
Capacity | 60m³/h |
Motor power | 1.3KW |
Screen size | 4*800*900mm(Double deck) |
Screen area | 2.88㎡ |
Cyclone specification | 4” |
Cyclone nos. | 6个 |
Cyclone material | PU |
Separation particle size | 15~44μm |
Feeding pump motor power | 11KW |
Inlet diameter | 4” |
Outlet diameter | 6” |
Control mode | Magnetic start |
Structure type | Frame type / Mobile type |
Dimension | 2200*1280*2100mm |
Weight | 2700kg |
1. The easy-to-operate vibrating screen has a low failure rate, and is easy to install, use and maintain.
2. The vibration motor has high power, low energy consumption and significant energy saving effect.
3. The centrifugal slag pump with high wear resistance and corrosion resistance has the characteristics of advanced structure, high degree of generalization, reliable operation and convenient disassembly and maintenance. The heavy wear parts and heavy bracket make it suitable for long-term transportation and strong abrasion concentrated slurry.
4. The unique backflushing device can effectively prevent the slurry tank from silting and spreading the slurry, thus keeping the equipment running for a long time.
Our mud recycling systems are widely used in:
Oil & Gas Drilling Rigs
Horizontal Directional Drilling (HDD)
Trenchless Engineering Projects
Foundation & Piling Construction
Tunnel Boring Projects (TBM)
