Product Description
A Mud Recycling System is an advanced solids control solution designed to separate, clean, and reuse drilling fluids during drilling operations. It removes unwanted solids such as sand, silt, and drill cuttings, ensuring optimal mud performance while reducing waste and operational costs.
Widely used in oil & gas drilling, HDD (Horizontal Directional Drilling), trenchless construction, piling, and tunneling projects, this system plays a critical role in maintaining drilling efficiency and environmental compliance.

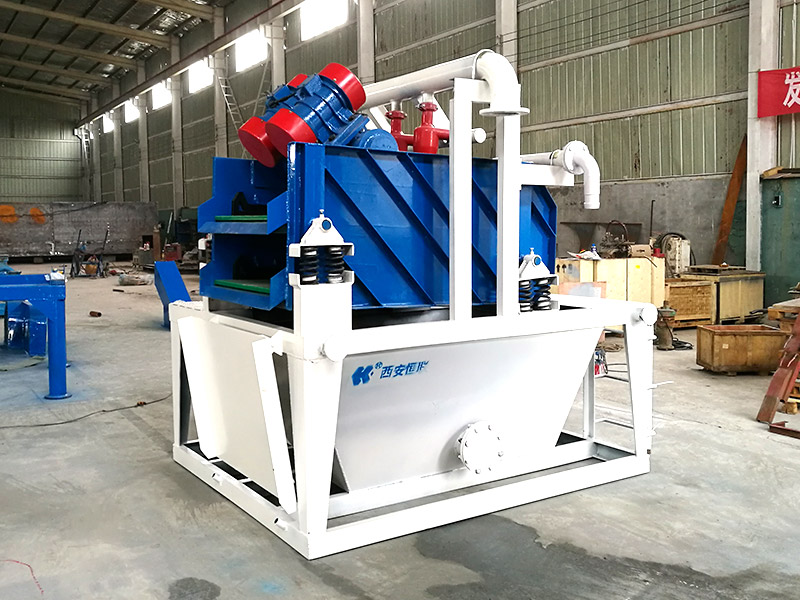

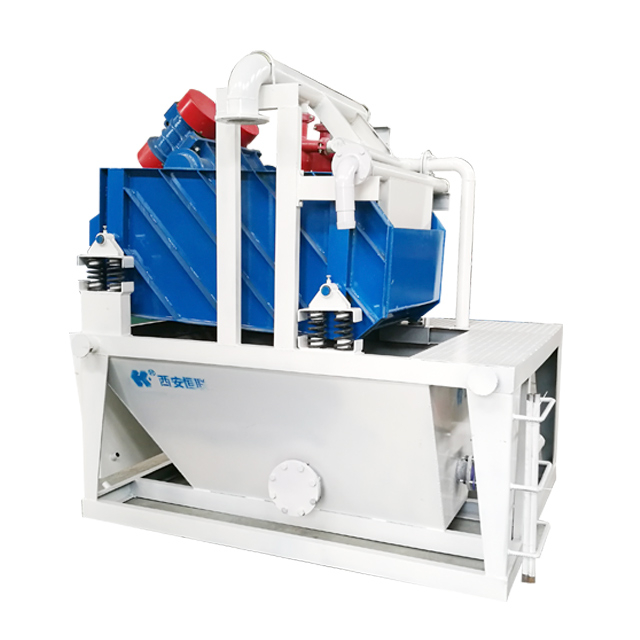

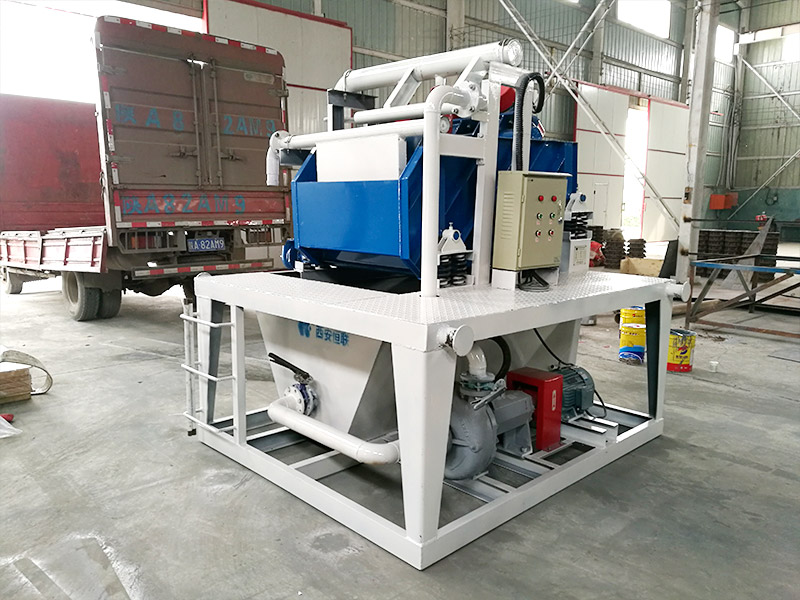

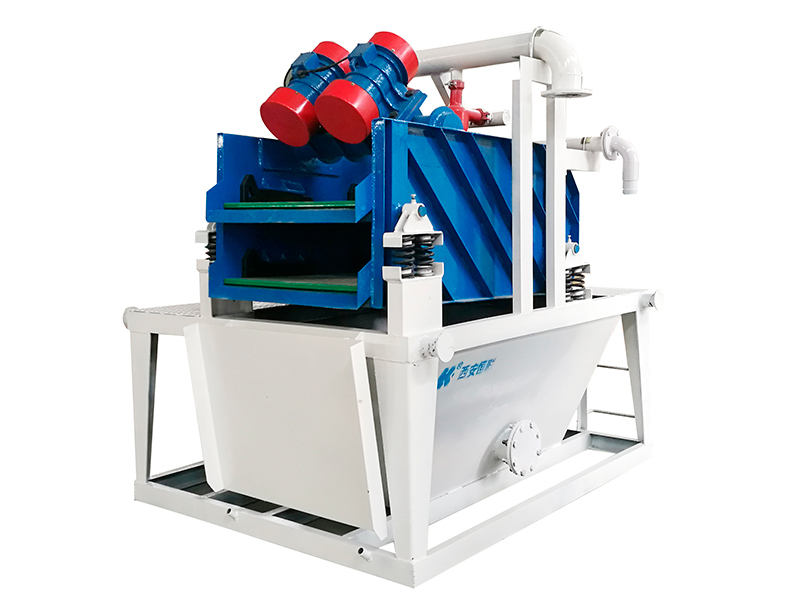

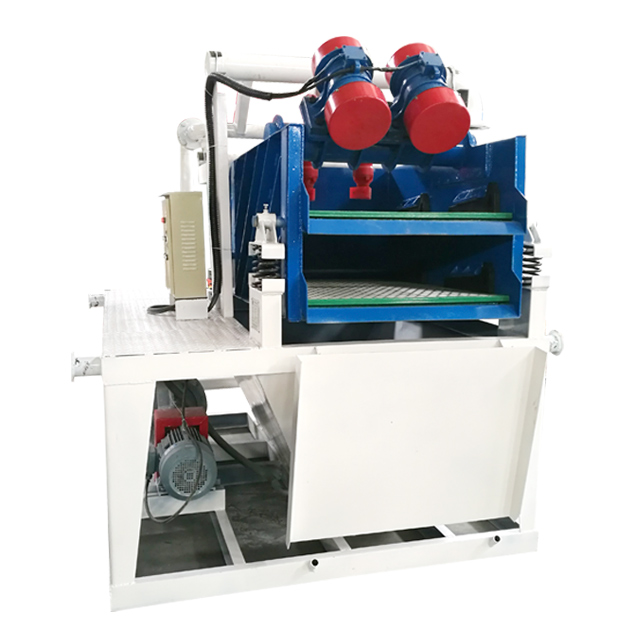

HMC20A Mud Recycling System Technical Parameters | |
Capacity | 20m³/h |
Motor power | 0.5KW |
Screen size | 2*650*1200mm(Double deck) |
Screen area | 1.44㎡ |
Cyclone specification | 4” |
Cyclone nos. | 2个 |
Cyclone material | PU |
Separation particle size | 15~44μm |
Feeding pump motor power | 5.5KW |
Inlet diameter | 3” |
Outlet diameter | 4” |
Control mode | Magnetic start |
Structure type | Frame type / Mobile type |
Dimension | 1500*800*1600mm |
Weight | 900kg |
1. Adequate purification of the mud is conducive to controlling the performance index of the mud, reducing sticking accidents and improving the quality of hole making.
2. The effective separation of muck and soil is beneficial to improve the hole-making effect
3. The repeated use of mud is conducive to saving slurry materials and reducing construction costs
4. The closed-circuit mud circulation method and the reduced water content of the slag material are beneficial to reduce environmental pollution.
