Product Description
Mud Reclaimer is an integrated solid-control equipment that purifies, recycles and reuses drilling mud. It efficiently removes solid particles, stabilizes mud performance, reduces material cost and environmental pollution, widely used in drilling, trenchless construction and tunneling projects.

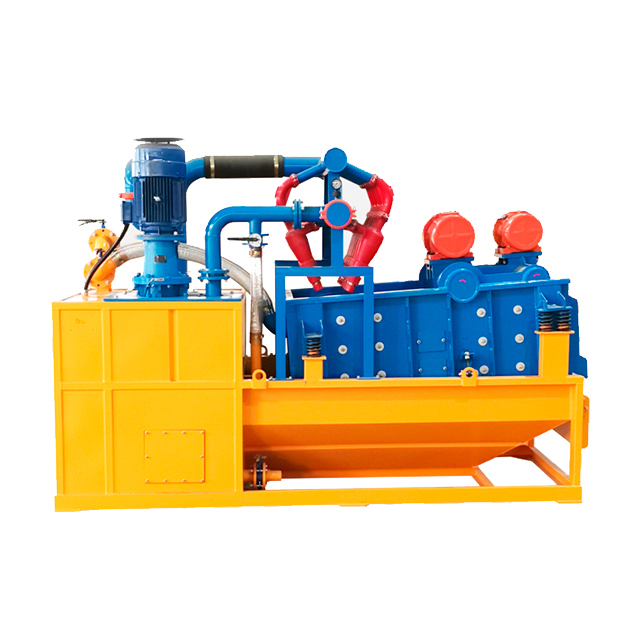

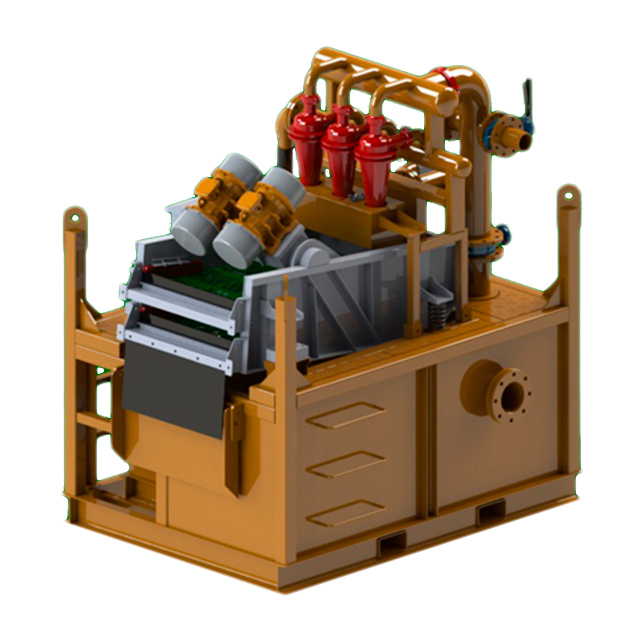

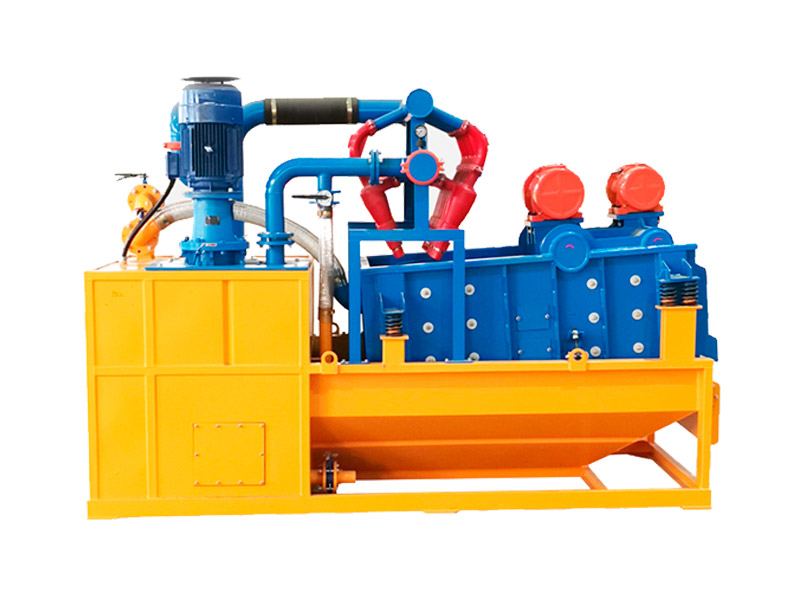

HMC40A Mud Recycling System Technical Parameters | |
Capacity | 40m³/h |
Motor power | 0.75KW |
Screen size | 6*650*600mm(Double deck) |
Screen area | 2.34㎡ |
Cyclone specification | 4” |
Cyclone nos. | 4个 |
Cyclone material | PU |
Separation particle size | 15~44μm |
Feeding pump motor power | 7.5KW |
Inlet diameter | 3” |
Outlet diameter | 4” |
Control mode | Magnetic start |
Structure type | Frame type / Mobile type |
Dimension | 1800*980*1860mm |
Weight | 1200kg |
By recycling drilling fluid, the system significantly lowers the need for fresh mud materials like bentonite and polymers.
Clean mud enhances drilling performance, reduces wear on equipment, and minimizes downtime.
Efficient solids removal reduces waste discharge and helps meet strict environmental regulations.
Modular design allows quick setup, dismantling, and transport between job sites.
