Product Description

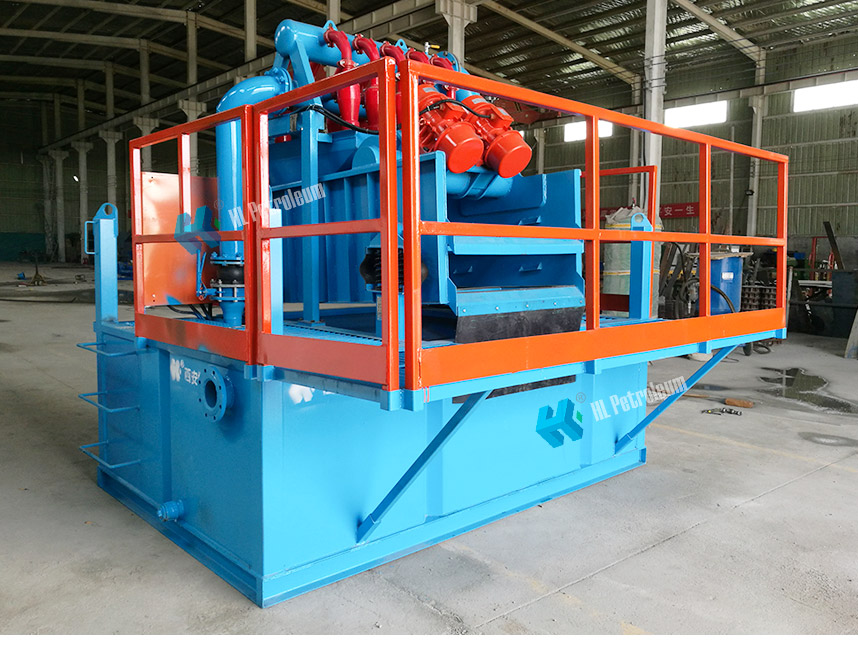

The mud separator is a mud purification device used in construction engineering, bridge pile foundation engineering, underground tunnel shield engineering and trenchless engineering construction.
Mud separator treatment process: the waste mud is transported by the pumping pump to the mud vibrating screen of the recovery system for coarse and fine two-stage desanding, and then enters the cyclone for further desilting and purification. After the mud purification treatment is completed, it enters the mud pump for circulating use.

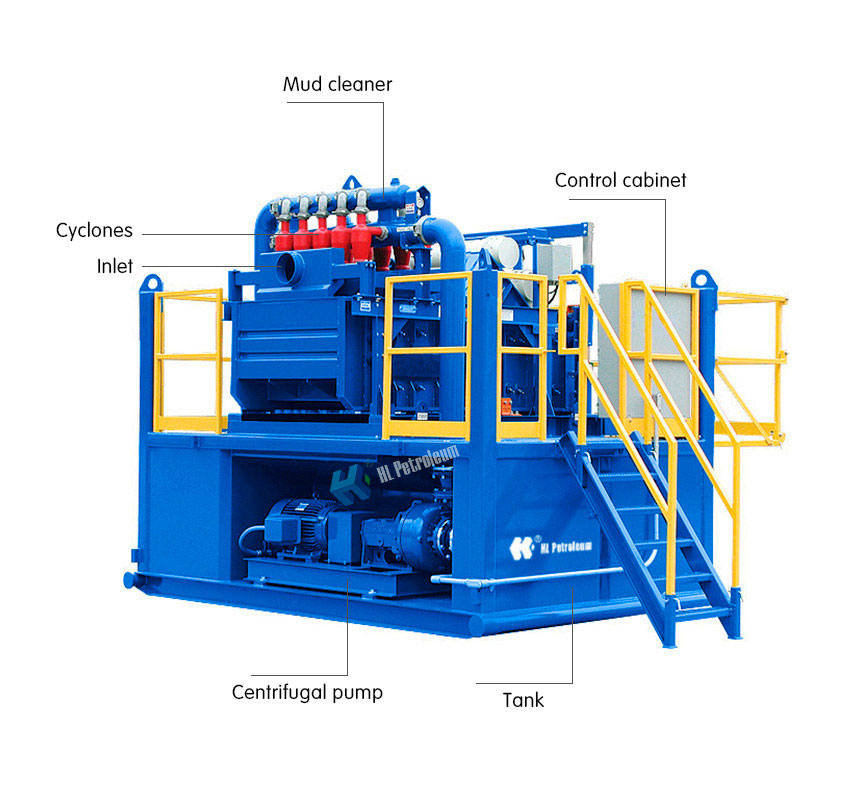

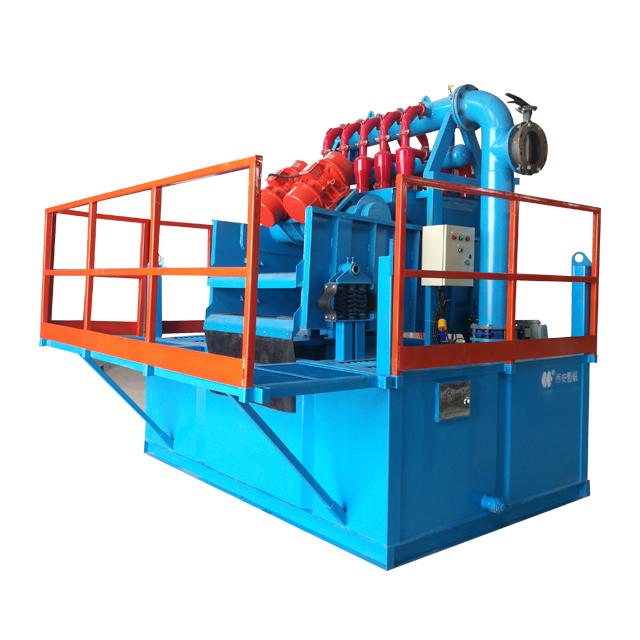

| HMC120A Mud Recycling System Technical Parameters | |
Capacity | 120m³/h |
Motor power | 2.0KW |
Screen size | 6*1165*585mm(Double deck) |
Screen area | 4.0㎡ |
Cyclone specification | 4” |
Cyclone nos. | 12个 |
Cyclone material | PU |
Separation particle size | 15~44μm |
Feeding pump motor power | 22KW |
Inlet diameter | 4” |
Outlet diameter | 8” |
Control mode | Magnetic start |
Structure type | Frame type / Mobile type |
Dimension | 2600*1880*2480mm |
Weight | 3500kg |
1. Multi-row application-the sediment purifier can be widely used in municipal engineering, urban construction, subway, shield tunneling, piling mud industry
2. Cost saving-it can save a lot of waste mud processing cost, greatly reduce the amount of waste slurry transportation and save engineering expenses.
3. Increase revenue-the sediment after the sediment separator has a water content of <15%, which can be sold directly for profit.
4. Reduce transportation costs-the sediment separator can realize the utilization of waste slurry and reduce the transportation cost in the process of waste slurry treatment.
