Product Description
A Mud Mixing System is a critical component in modern drilling operations, designed to efficiently prepare, mix, and maintain drilling fluids (mud) used in oil & gas drilling, HDD (Horizontal Directional Drilling), and trenchless projects. It ensures uniform mixing of additives and optimal mud properties, improving drilling performance and reducing operational costs.
Our advanced mud mixing systems are engineered for high efficiency, durability, and ease of operation, making them ideal for demanding field environments worldwide.

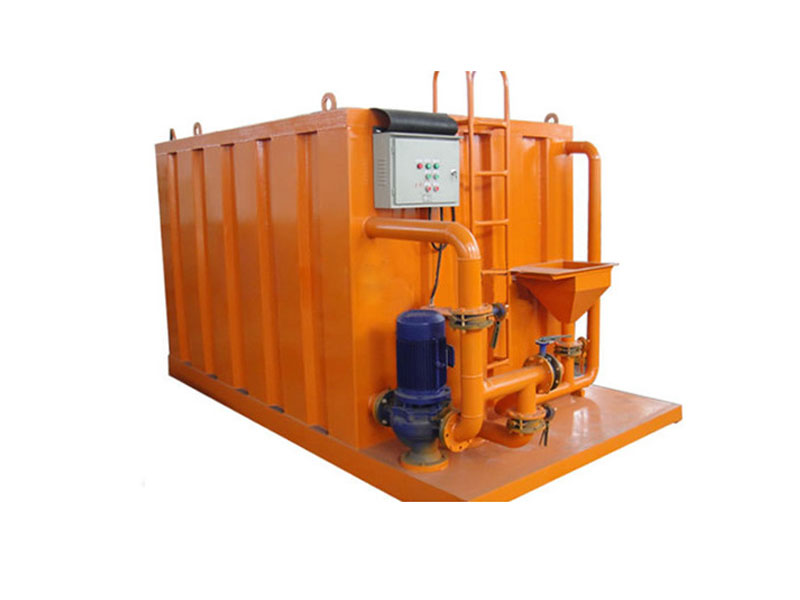

HMM1060 Mud Mixing System Technical Parameters | |
capacity | 60m³/h |
Motor power | 7.5KW |
Tank volume | 10m³ |
Mud agitator power | 7.5KW |
Inlet diameter | 4" |
Outlet diameter | 4" |
Control mode | Magnetic start |
Dimension | 5000×2000×2380mm |
Weight | 5000kg |
1. The size and structure of the mud tanks are the same, and the interchangeability is strong
2. The mixing speed is fast and the mixing effect is good
3. The tank body adopts corrugated structure, high strength, strong and durable
4. Explosion-proof control box, explosion-proof lighting, safe and reliable
