Product Description

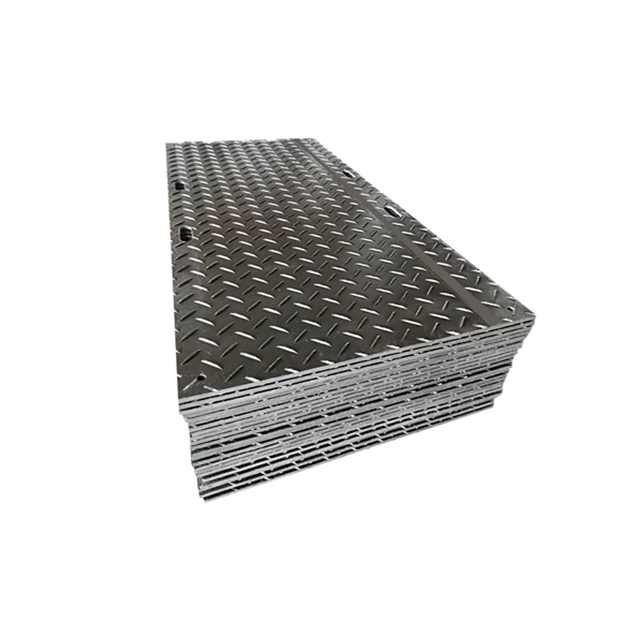

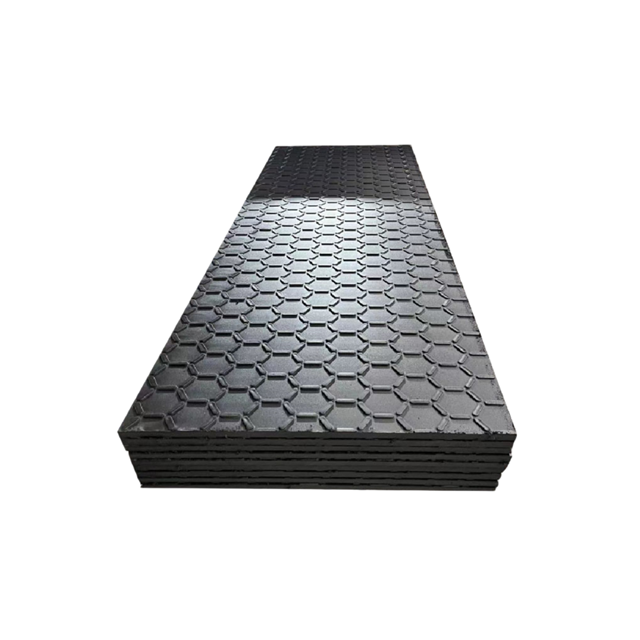

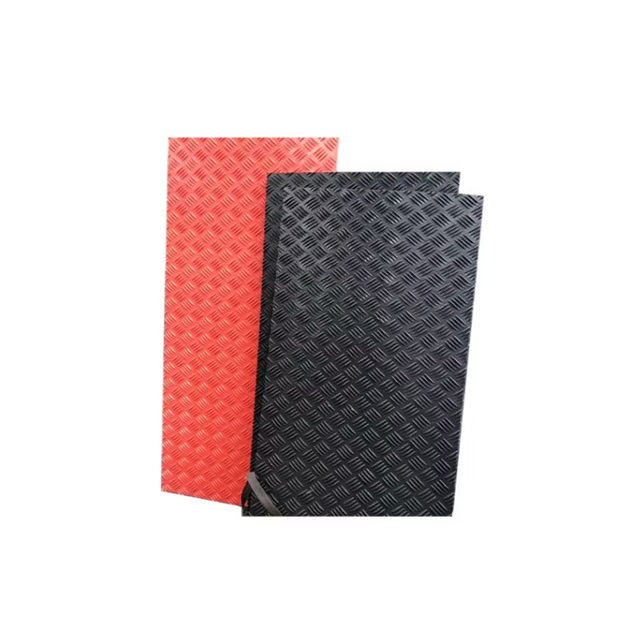

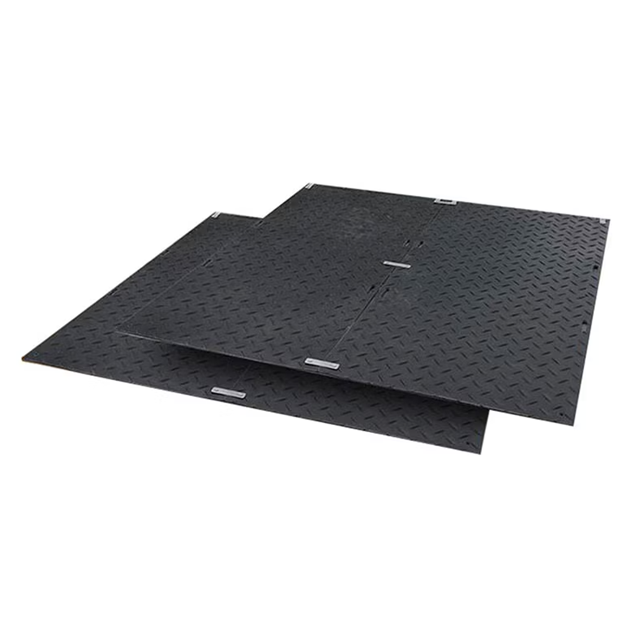

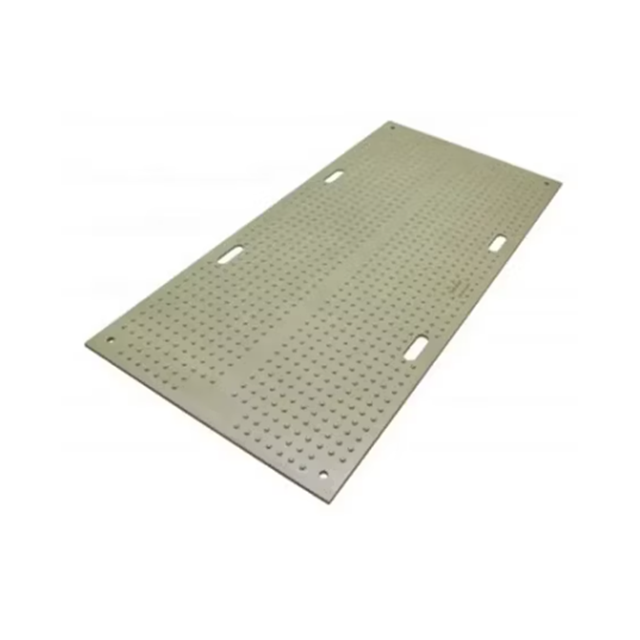

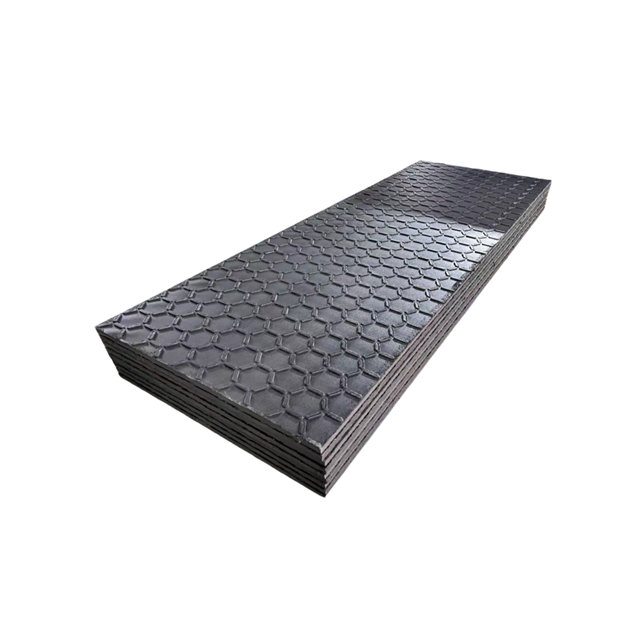

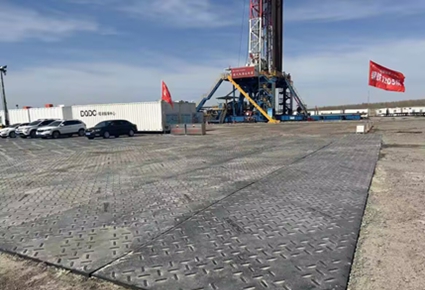

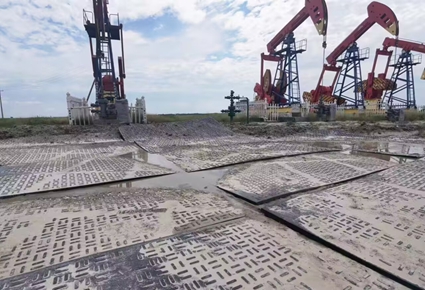

The Heavy Duty Mats supplied by HL Petroleum are suitable for scenes such as Oil and Gas rigs, Contstruction site, utilities, pipeline construction, general construction, heavy haul,etc, to disperse the applied heavy loads and improve the stability of operation. This type of plastic mats can be reused many times and is 100% recyclable. In addition, the mat is made of HDPE (high-density polyethylene) or UHMW (ultra-high molecular weight polyethylene) material, which can minimize the impact on the environment. Our composite rig mats are an ideal alternative to traditional steel and wood rig mats.
Product Specification
Model | Length | Width | Thickness | Weight | Load Capacity | Qty in Container |
HXD-01 | 9.8’ /3000mm | 8.2’/2500mm | 1.5’’/38mm | 292kgs/ 645lbs | 150tons | 78pcs in 40ft 26pcs in 20ft |
HXD-02 | 13.1’/4000mm | 6.5’/2000mm | 1.5’’/38mm | 312kgs/687lbs | 150tons | 80pcs in 40ft 40pcs in 20ft |
HXD-03 | 14.8’/4500mm | 6.5’/2000mm | 1.5’’/38mm | 351kgs/774lbs | 160tons | 80pcs in 40ft 40pcs in 20ft |
HXD-04 | 19.7’/6000mm | 6.5’/2000mm | 1.6’’/40mm | 490kgs/1080lbs | 170tons | 40pcs in 40ft 20pcs in 20ft |
How to install this heavy duty mats?

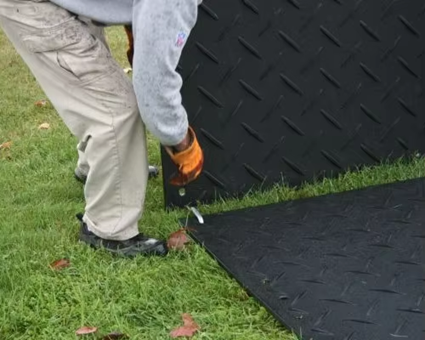

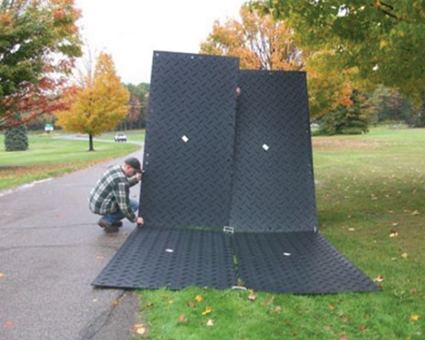

Step 1: Lay the first mat flat on the ground and insert one end of the connector into the hole in the corner of the mat. |

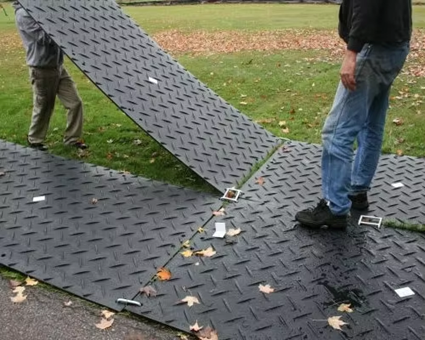

Step 2: Place the short side of the second mat against the short side of the mat already on the ground and lift it up at a 45- to 60-degree angle from the ground. Insert the other end of the connector on the already laid mat into the same hole on the second mat. Choose the appropriate connector based on the total area that the mat needs to cover. |
Step 3: Lay the second mat down on the ground. |

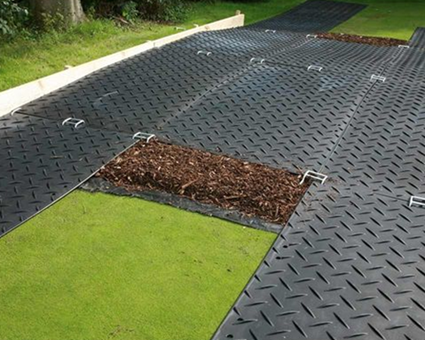

Step 4: Repeat steps 2 and 3 until all mats are connected. |
Why select durabase composite mats from HL Petroleum?
* The mat is resistant to breakage, corrosion, impact and aging. It is also UV-resistant and performs well in both extremely hot and cold climates, easy to install, reusable and suitable for different applications.
* The matting is non-toxic and odorless, does not cause damage to ground facilities and the environment, with high environmental value.
* The cost of the product itself and the transportation cost are lower than those of traditional mats, making it your best choice.
* HL Petroleum is your reliable supplier, with strict product quality inspections and fast delivery.
