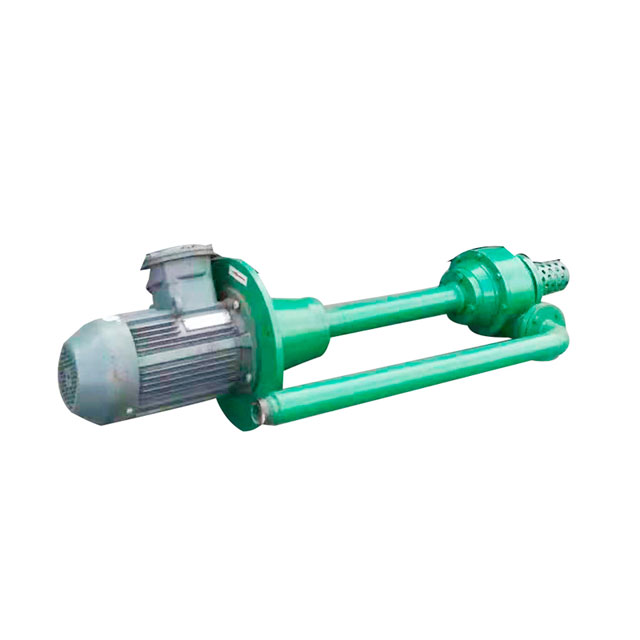

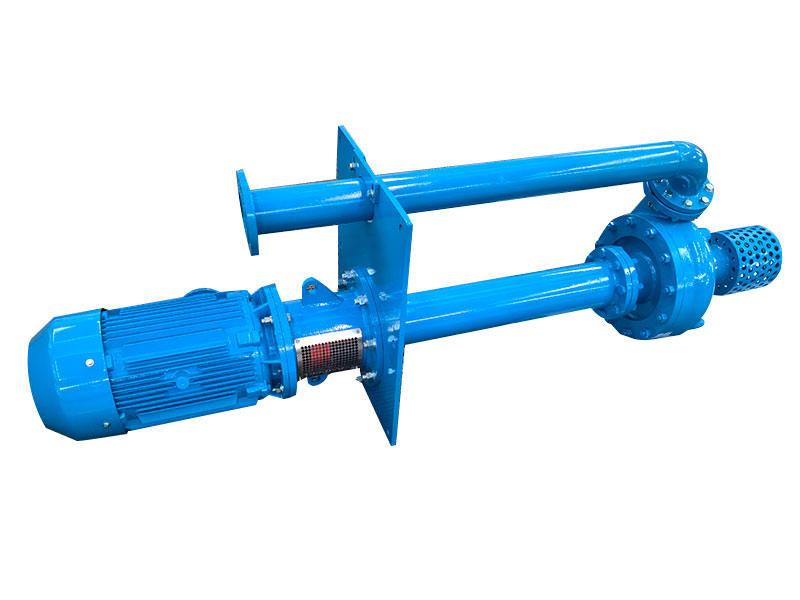

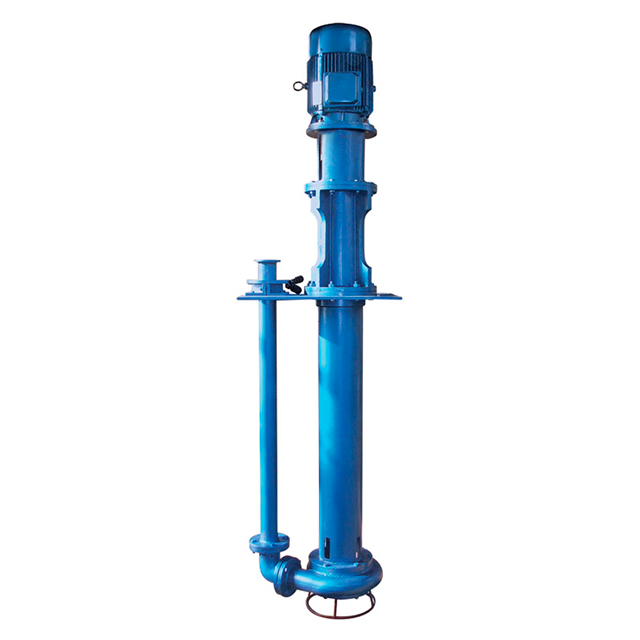

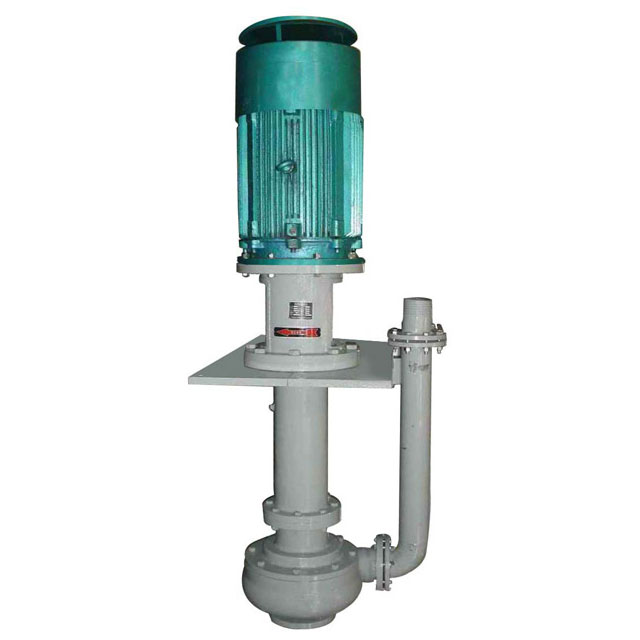

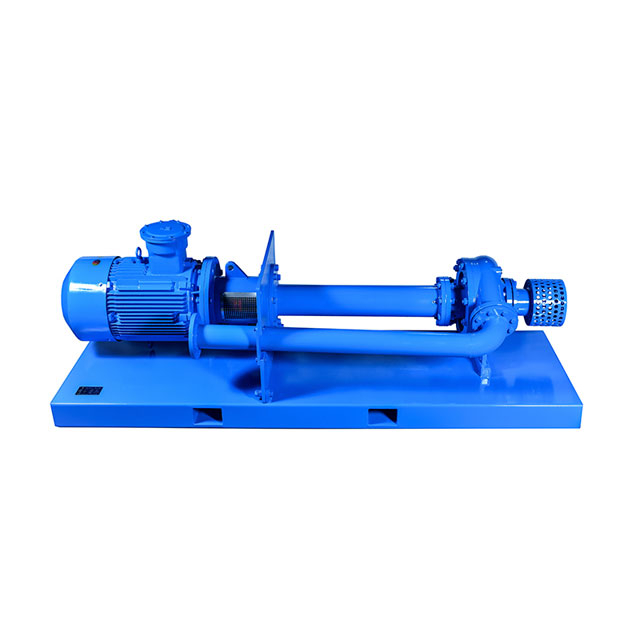

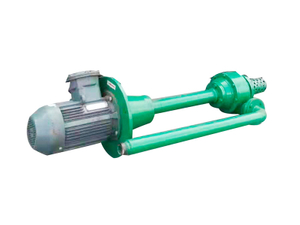

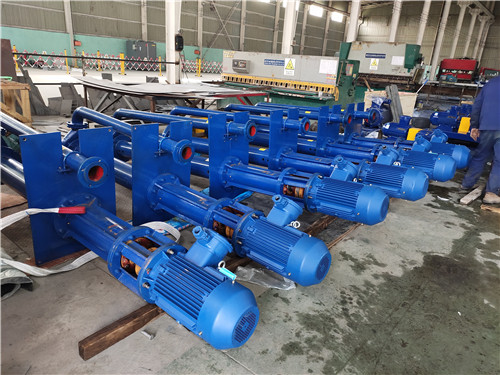

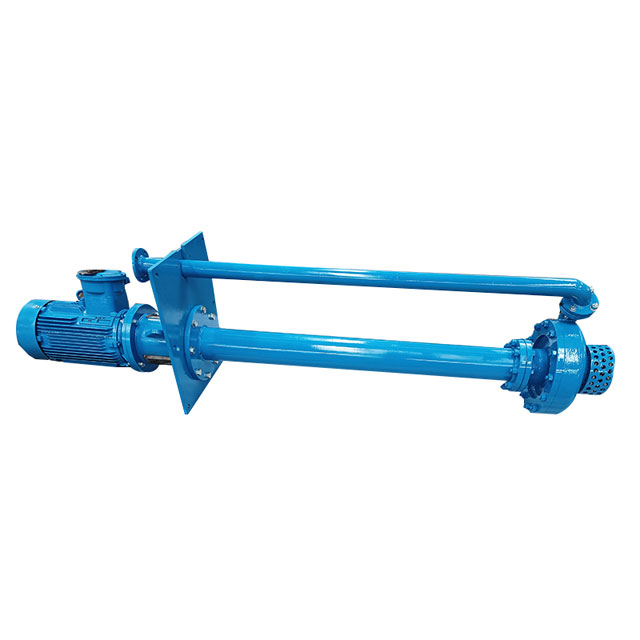

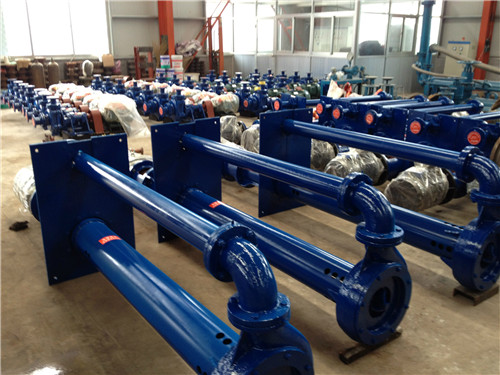

LSB100 Submersible Slurry Pump

The LSB series Submersible Slurry Pump manufactured by HL Petroleum is one of the widely used vertical sand pump in the drilling fluid solids control system. The structure of LSB Submerged Pump is vertical, its characteristic is to work under the fuselage into mud tanks, motor parts in the tank surface. Therefore, the pump has the characteristics of compact structure and small footprint. LSB100 Submersible Slurry Pump is a popular model in oilfield drilling projects.

The technical parameters of LSB100 vertical sand pump

LSB100-30 Capacity (m³/h) 150, Head (m) 33, Efficiency (%) 56, Motor power (KW)30
LSB100-22 Capacity (m³/h) 120, Head (m) 28, Efficiency (%) 53, Motor power (KW)22
LSB100-15 Capacity (m³/h) 100, Head (m) 20, Efficiency (%) 53, Motor power (KW)15

The application of LSB Series of Submersible Slurry Pump

(1)preliminary desanding after vibrating screen of drilling fluid at a certain pressure and displacement into the hydrocyclone desander and desilter, to further reduce the sand content in drilling fluid.

(2) As a centrifuge supply pump to provide drilling fluid for the centrifuge.

(3) Provide mud transportation for mud transfer station.
