Product Description

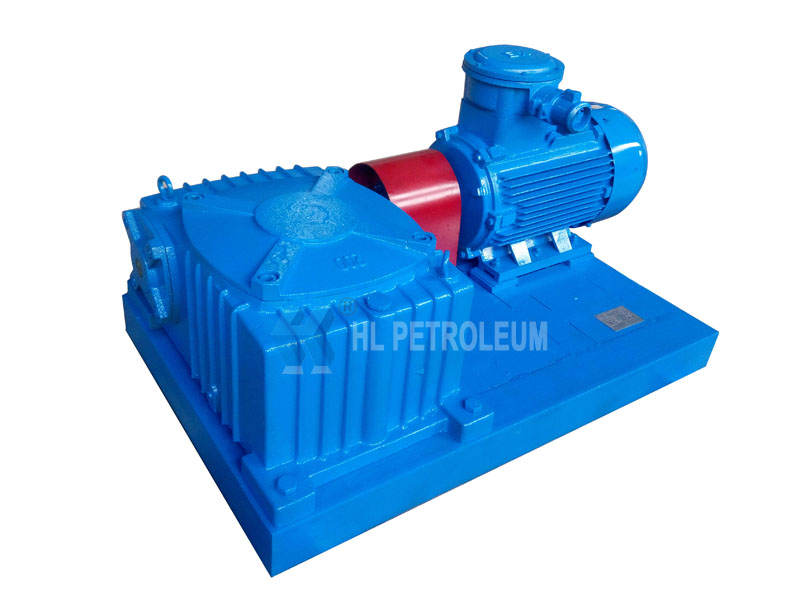

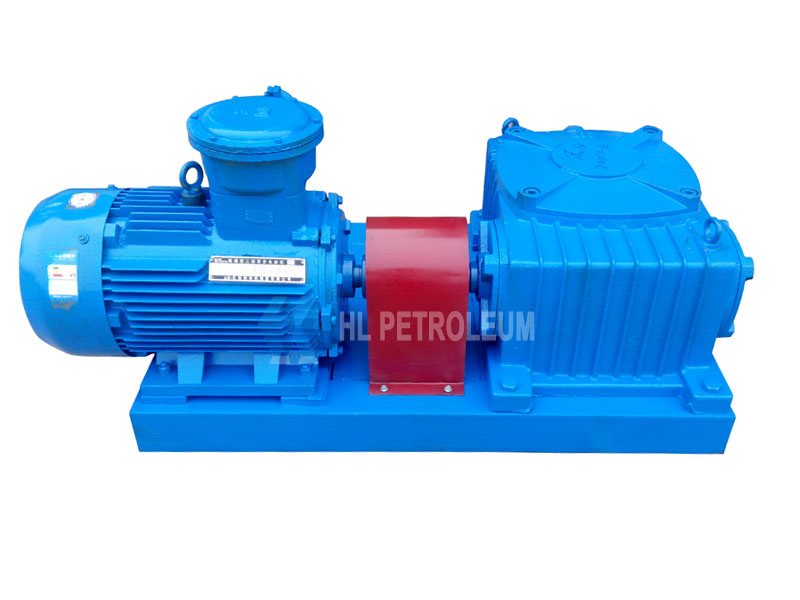

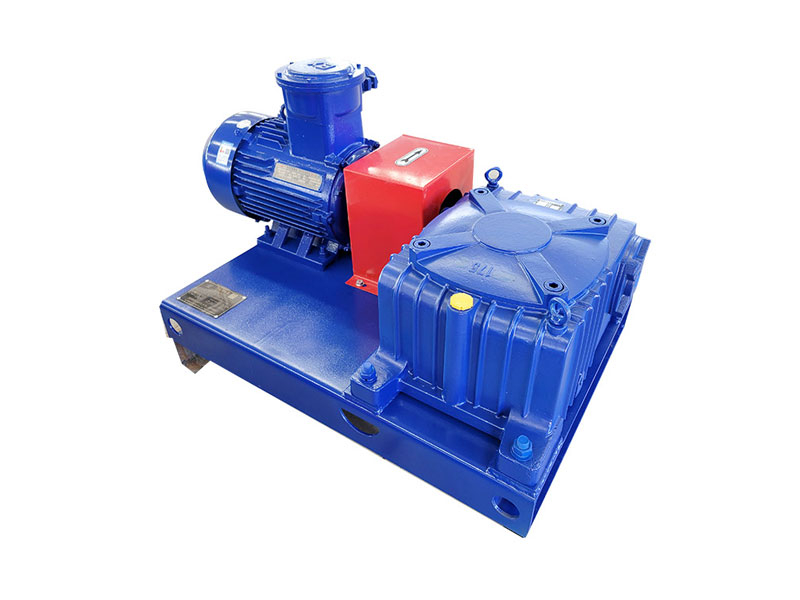

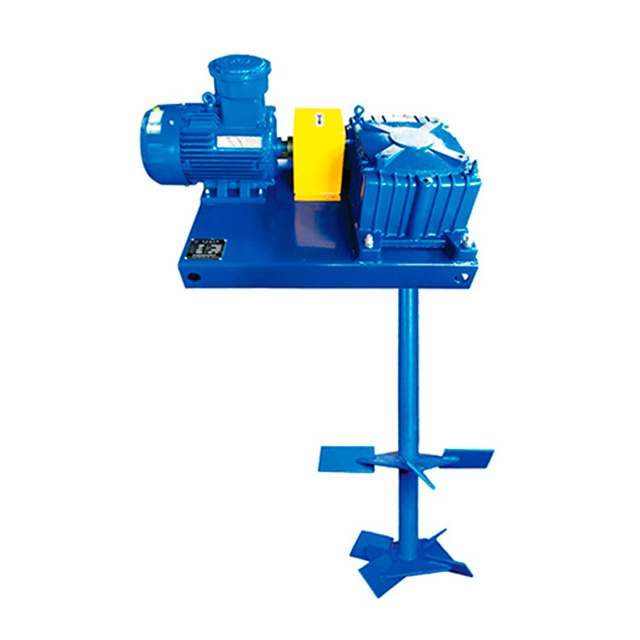

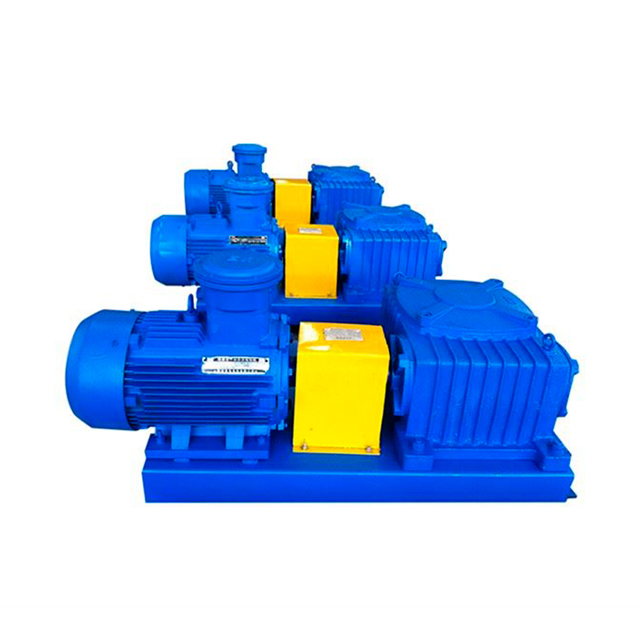

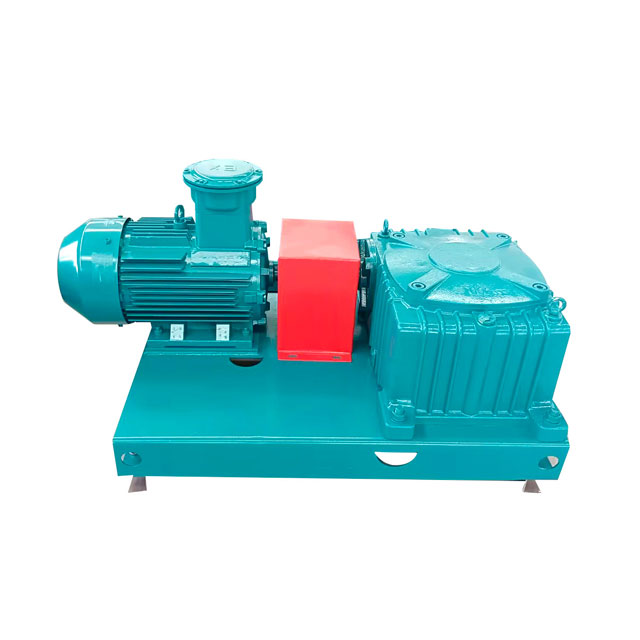

Mud agitator(drilling fluid agitator) is an important equipment on mud tank of solids control system, it is mainly used for drilling fluid mixing, in case of drilling fluid solid phase particle deposition in the tank circulation system, make the circulating drilling fluid performance is stable, mixed evenly.
HJB series mud agitator is a the main mud mixing equipment in oilfield drilling solids control system and horizontal directiona, it is mainly used for drilling fluid mixing, under the mixing of mud agitator, strong and convection can maintain the uniformity of the drilling fluid and solid particle suspension, to prevent drilling fluid solid phase particle deposition in the tank circulation system, mud agitator to accelerate drilling fluid material (bentonite and barite) and the reaction of chemical additives, dissolve and wetting plays a very important role.
Mud Agitator Show Details

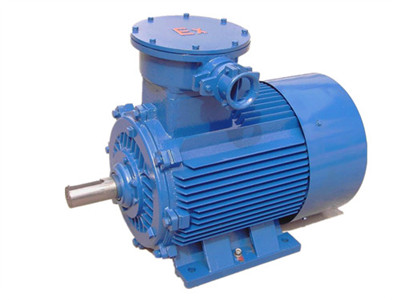

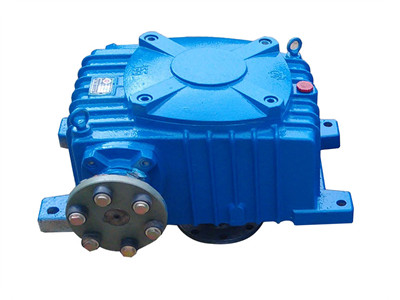

Worm Reducer Explosion-proof Motor

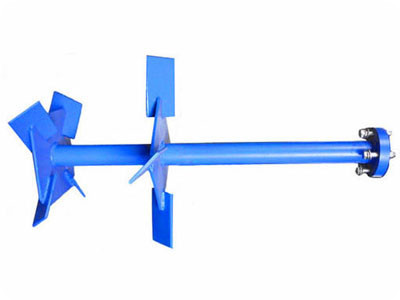

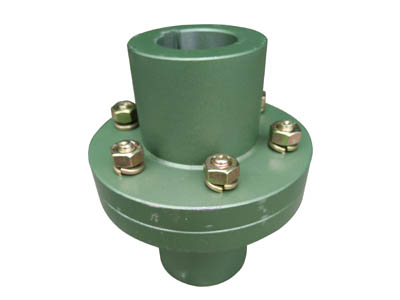

Coupling Double impeller
HJB series Mud Agitator Technical Parameters
Type | HJB-5.5 | HJB-7.5 | HJB-11 | HJB-15 | HJB-18.5 | HJB-22 |
Motor power(kW) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
Speed(r/min) | 1440/1750 | 1440/1750 | 1460/1750 | 1460/1750 | 1470/1750 | 1470/1750 |
Power supply(r/min) | 380V/50Hz 460V/60Hz | 380V/50Hz 460V/60Hz | 380V/50Hz 460V/60Hz | 380V/50Hz 460V/60Hz | 380V/50Hz 460V/60Hz | 380V/50Hz 460V/60Hz |
Impeller speed(r/min) | 57/72 | 57/72 | 58/73 | 58/73 | 58/73 | 58/73 |
Impeller diameter(mm) | 600 | 650/750 | 700/800 | 1000 | 900/1000 | 900/1000 |
Weight(kg) | 295 | 400 | 462 | 560 | 785 | 815 |
Dimension(mm) | 954×549×583 | 1101×664×623 | 1222×664×665 | 1334×734×685 | 1445×888×770 | 1465×888×770 |
