Product Description

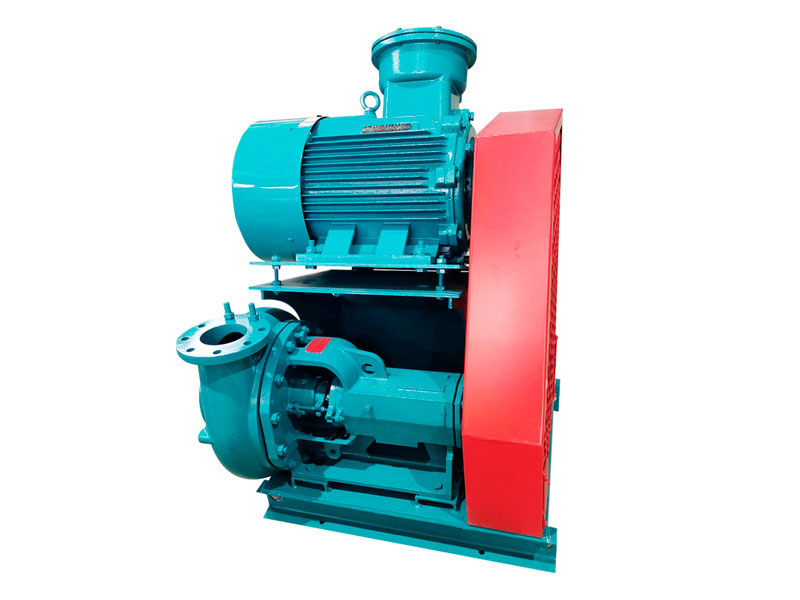

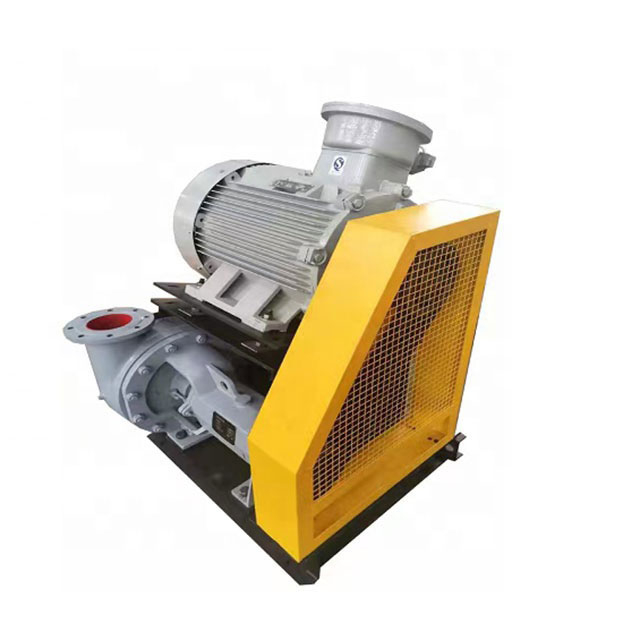

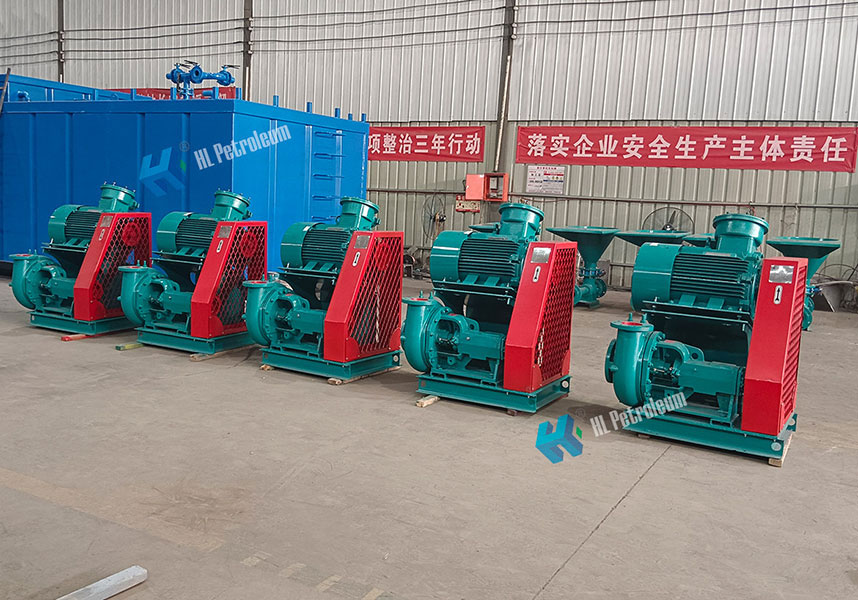

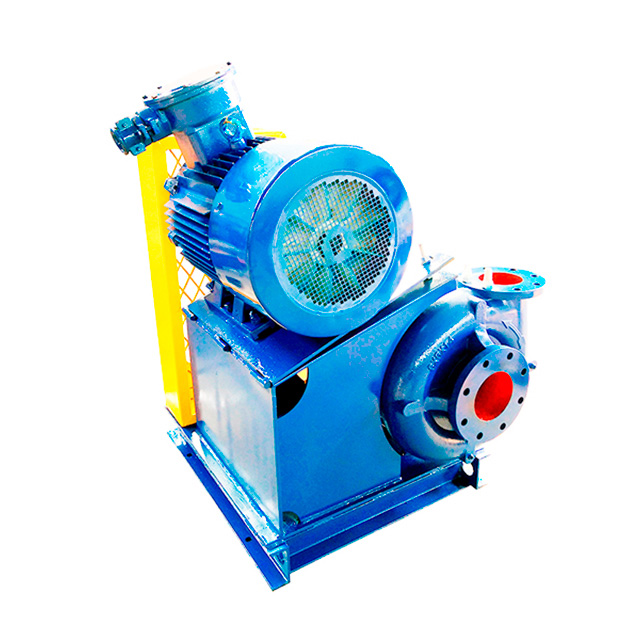

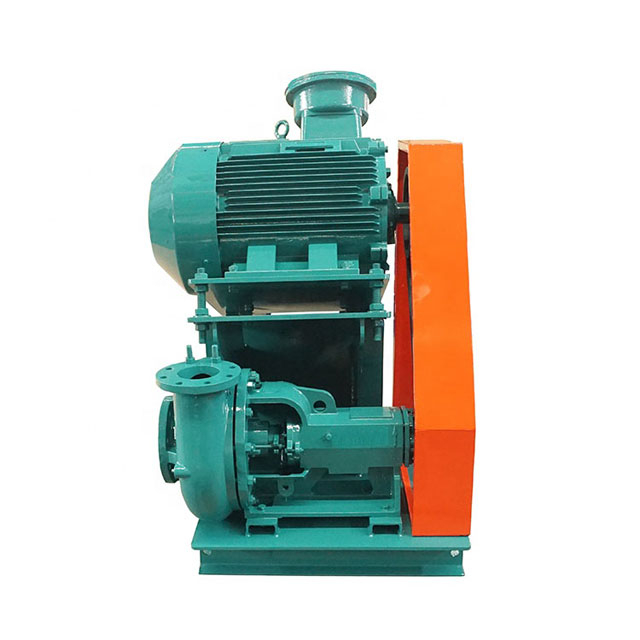

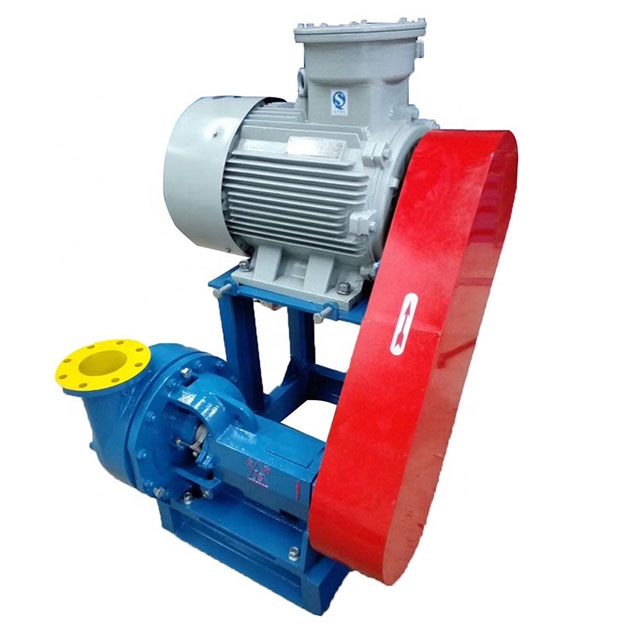

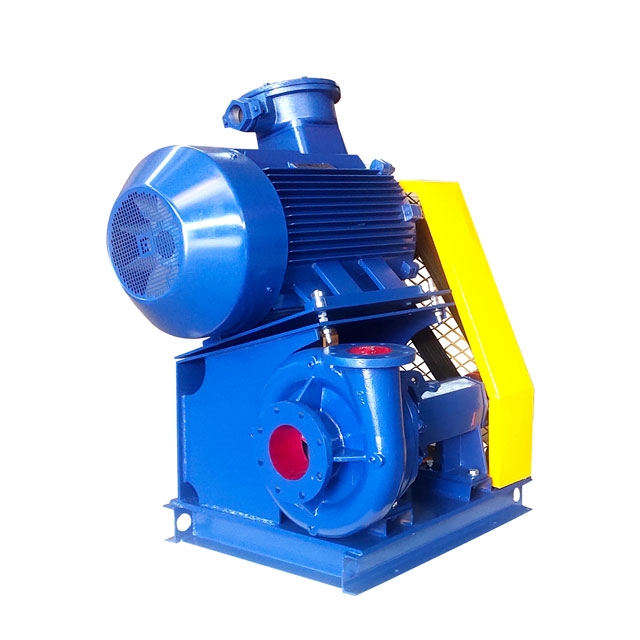

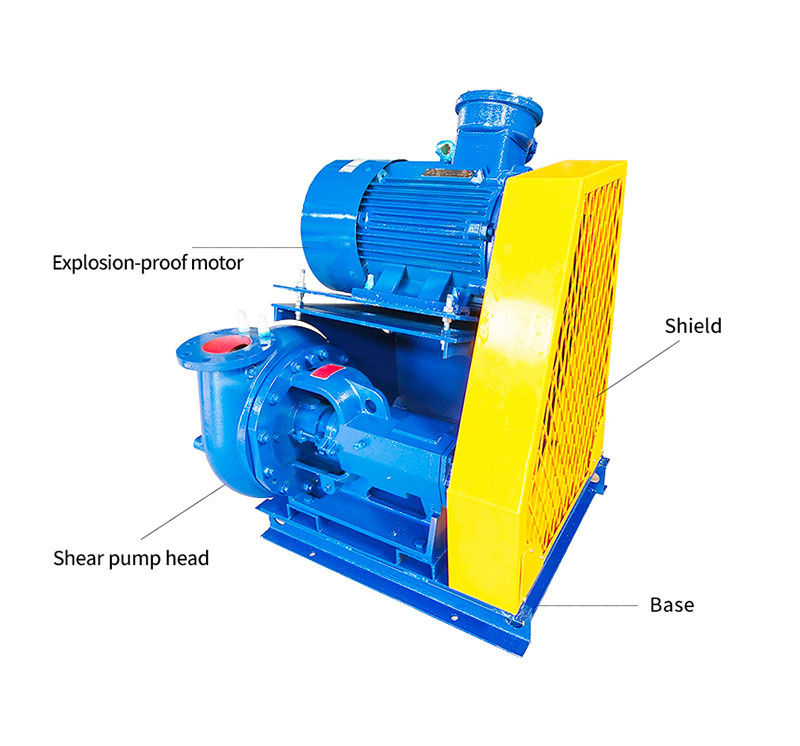

Drilling Mud Shear Pump is uniquely designed pump for shearing polymers and clays.
WJQ shear pump has proven best for applying the high shear necessary to hydrate polymers and clays and to their best properties. Using the WJQ shear pump reduces the bentonite clay needed by 33% or more and polymer needed by 15% or more. It also improve fluid loss and filter cake, builds gel strength, and low shear rate viscosity to better hold up solids. With reliable shaft seal structure and more convenient in operation and maintenance, it comes up to advanced world standards in the same products.
>>Send an Enquiry sales@hlshiyou.com<<
Shear Pump Technical Parameters
Type | Flow (m3/h) | Head(m) | Speed(rpm) | Efficiency (%) | Power(kW) | |
Shaft power | Motor power | |||||
WJQ5×6J-75 | 150 | 30 | 2150 | 28 | 46 | 75 |
WJQ5×6J-55 | 140 | 26 | 2050 | 28 | 35 | 55 |
WJQ5×6J-45 | 105 | 24 | 1750 | 28 | 25 | 45 |
WJQ5×6J-37 | 105 | 24 | 1750 | 28 | 25 | 37 |
Warning! This pump can not be used on active mud system since it will shear drill solids and barite. These solids will also damage pump very quickly.
Drilling Mud Shear Pump Operation Manual.pdf
