Product Description

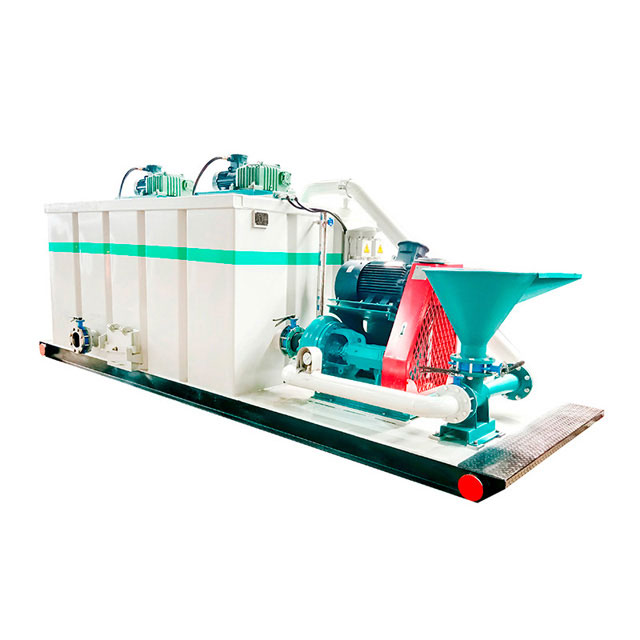

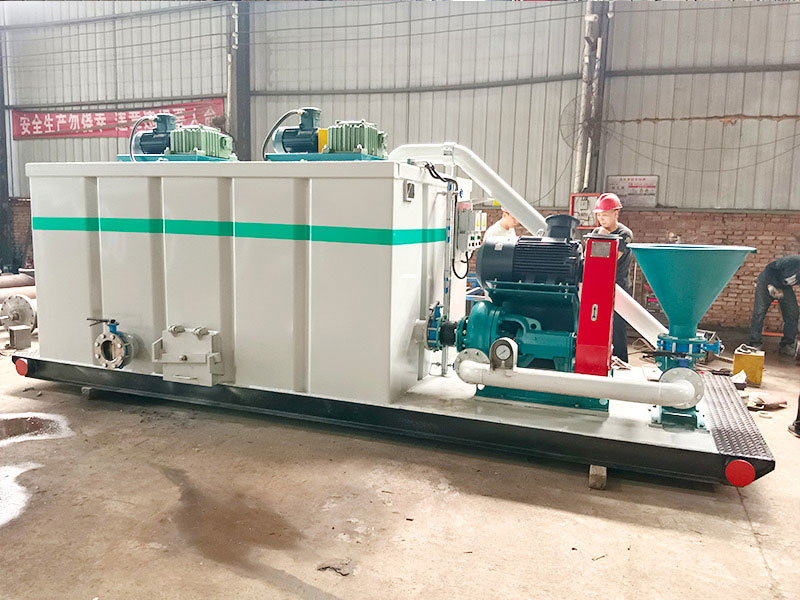

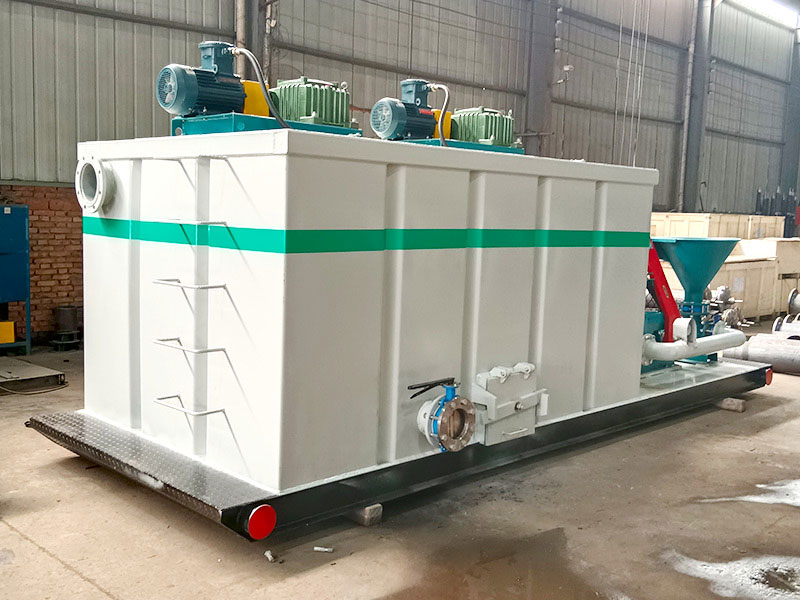

The shear mixing system is simply composed of a shear mixing device, a mud agitator and a mud tank. The shear mixing device consists of a shear pump and a jet funnel. The shear mixing system has a simple structure, small footprint, uniform mixing and good treatment effect.This shear mixing system is a relatively simple one among many mixing systems of our company!
Our company independently developed and produced a mud mixing system specially designed for drilling and trenchless construction. Since the system was developed and put into the market, it has been used by many construction units and has received unanimous praise, highlighting its characteristics: small input power, large output torque, large volume and uniform mixing, good effect, beautiful appearance and convenient transportation. It is an ideal construction supporting equipment.
HMM5020 Mud Mixing System Technical Parameters | |
capacity | 120m³/h |
Motor power | 55KW |
Tank volume | 50m³ |
Mud agitator power | 15KW |
Inlet diameter | 8" |
Outlet diameter | 6" |
Control mode | Soft start |
Dimension | 11000×2800×2750mm |
Weight | 13800kg |
HL Petroleum has been committed to the research of related mud fields such as oil and gas, coalbed methane horizontal directional drilling for many years. Over the years, it has been recognized and trusted by domestic and foreign customers with its reliable product quality and good after-sales service. This shear mixing system is also customized according to customer requirements.
