Product Description

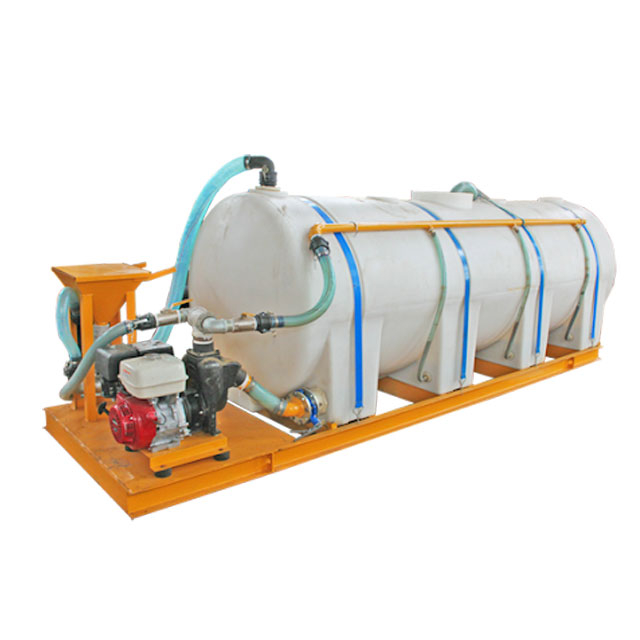

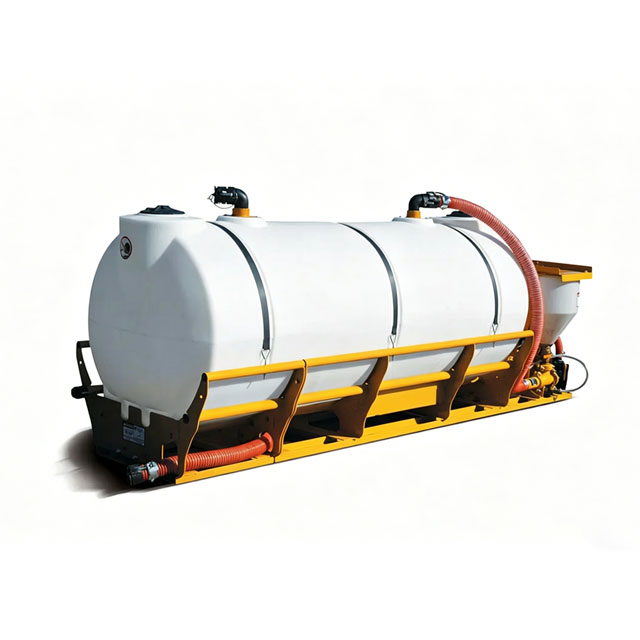

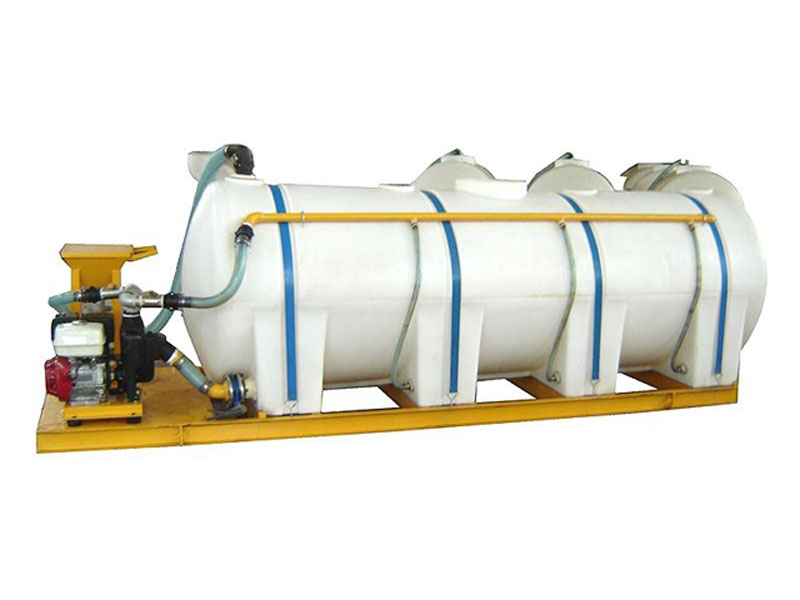

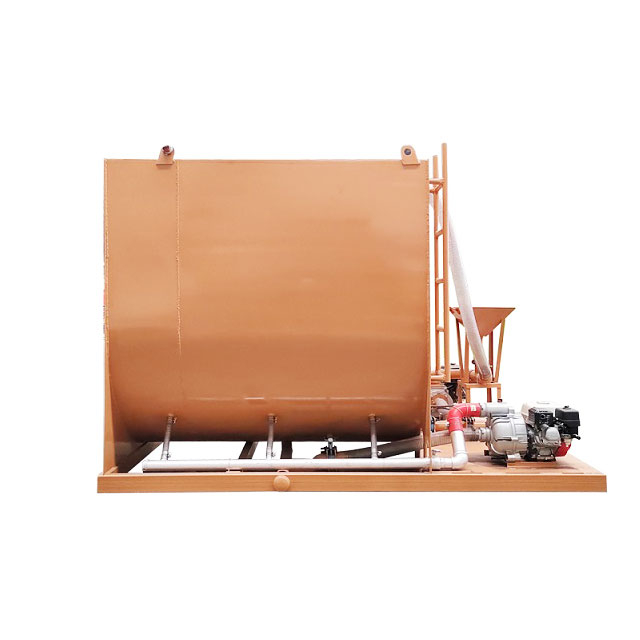

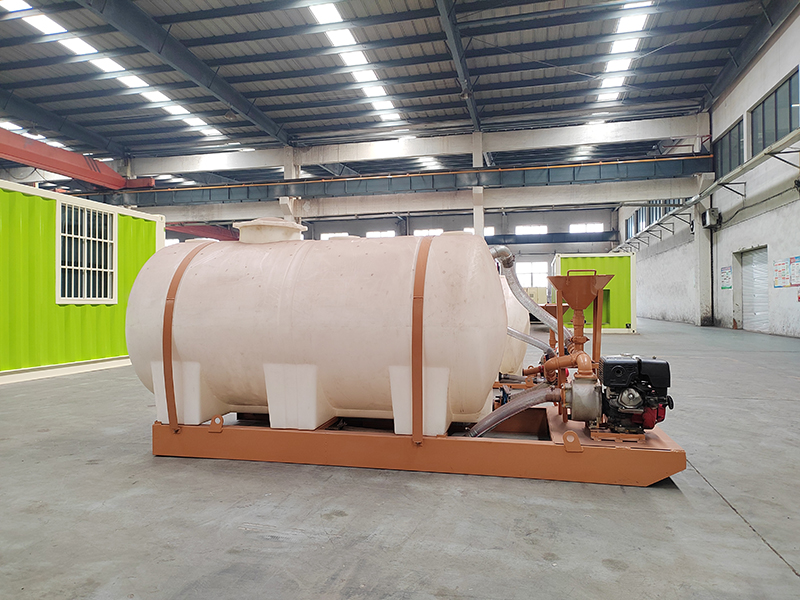

This HMM5000 mud mixing system is designed for fast, efficient drilling fluid preparation. It integrates a high‑shear mixing hopper, mixing pump, mud agitator and mud tank to ensure uniform mud performance. Ideal for oil drilling, HDD, piling and foundation engineering, it features stable operation, easy installation and low maintenance.
HMM5000 Mud Mixing System Technical Parameters | |
capacity | 50m³/h |
Motor power | 13HP |
Tank volume | 5m³ |
Mud agitator power | Nozzle agitation |
Inlet diameter | 4" |
Outlet diameter | 4" |
Control mode | Recoil start |
Dimension | 4500*1780*1960mm |
Weight | 3300kg |
Fast and uniform mud preparation
Reduced material waste
Improved drilling efficiency
Easy maintenance and operation
Customizable solutions for different industries
Mud Mixing Systems are widely used in:
Oil and gas drilling rigs
Horizontal Directional Drilling (HDD)
Trenchless engineering projects
Mining and exploration drilling
Piling and foundation construction
It prepares and mixes drilling fluids with additives to achieve the required properties for drilling operations.
Yes, we offer fully customizable solutions based on capacity, power, and project needs.
Oil & gas, HDD, mining, tunneling, and construction industries widely use these systems.
