Product Description
Xi'an HL Petroleum Equipment Co., Ltd. is specialized in the design and manufacturing of oilfield drilling fluid solids control system. We independently design and produce a full set of solids control equipment and complete systems, including skid-mounted and vehicle-mounted mud solids control system. This type of system is used in oil drilling rigs, work-over rigs, and natural gas drilling rigs. At present, we can produce supporting mud systems for ZJ10, ZJ20, ZJ30, ZJ40, ZJ50, ZJ70 and ZJ90 drilling rigs suitable for 1000-9000 meters of oil drilling projects, as well as XJ550-XJ750 work-over rig vehicle-mounted mud solids control systems.
The following focuses on the mud system that HL Petroleum produces for the ZJ70 drilling rig.

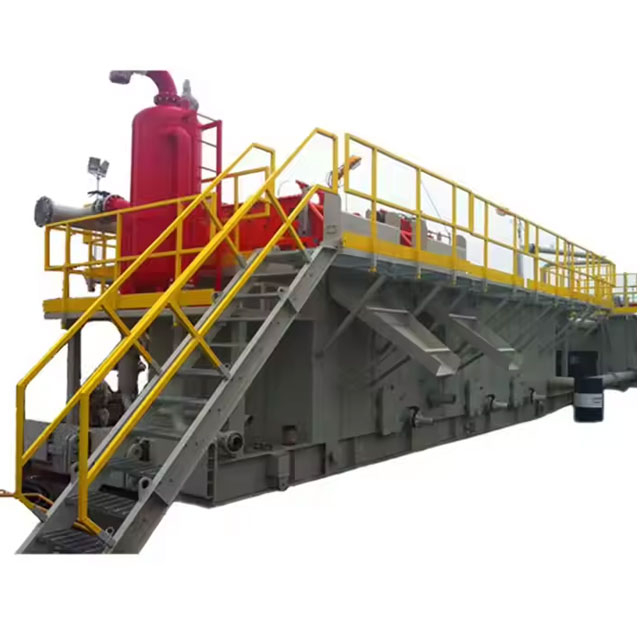

The ZJ70 drilling rig is also known as 2000HP rig. The mud system for ZJ70rig usually consists of shale shakers, mud cleaner, vacuum degasser, decanter centrifuges, Mud-gas separator, electronic ignition device, mud mixers, mud agitators, centrifugal sand pumps, mud tanks, water tanks, oil tanks and electronic control system. Different projects will have its own requirements on the processing capacity of the system, and the size and quantities of equipment, etc. Please discuss with our technical engineer in detail for the specific plan.

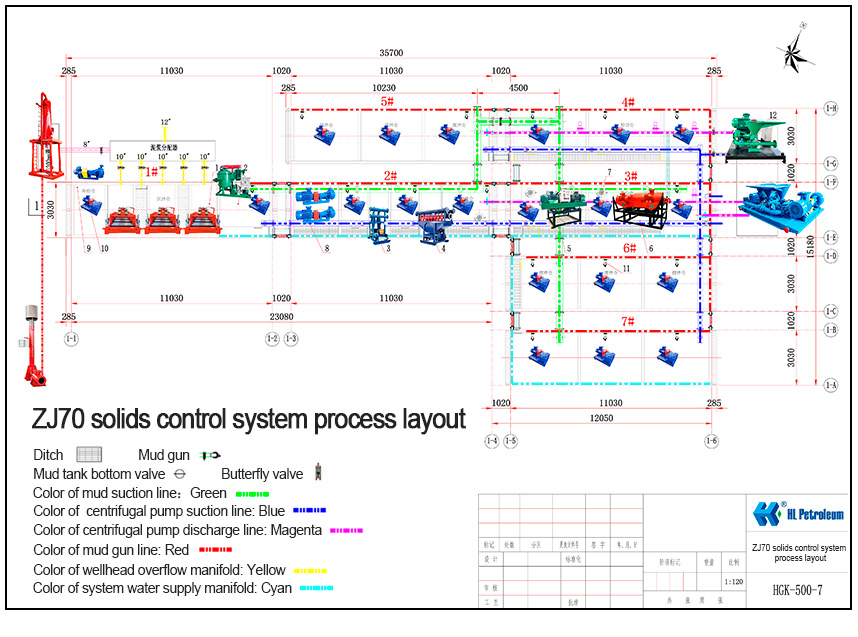

The Typical Layout Of ZJ70 Drilling Rig Solids Control System
Specification
The Main parameters of ZJ70 rig solids control system produced by HL Petroleum (for reference only. Depending on the project details, the processing capacity and quantity of the equipment may be different, subject to the actual requirements of your project)
No. | Equipment | Specification | Quantity |
1 | Mud tanks | Volume ≥300m³/h | 1set |
2 | Vibrating screen | Capacity ≥ 181.5m³/h | 2units |
3 | Desander | Capacity ≥ 181.5m³/h | 1unit |
4 | Desilter | Capacity ≥ 181.5m³/h | 1unit |
5 | Medium speed centrifuge | Capacity ≥40m³/h, Separation particle size: 5~7μm | 1unit |
6 | Mud Mixing device | Capacity≥200m³/h,Lift 36m | 1unit |
7 | Shear pumps | Capacity ≥155m³/h,Lift 32m | 1unit |
8 | Feeding centrifugal pump | Capacity ≥150m³/h,Lift 28m | 1unit |
9 | Degasser | Capacity ≥ 181.5m³/h | 1unit |
10 | High speed centrifuge | Capacity ≥40m³/h, Separation particle size: 2~5μm | 1unit |
More about the Mud System for ZJ70 rig
The type of mud system | Skid-mounted / vehicle-mounted / heat-insulated |
Application industry | Oil drilling /coalbed methane drilling/natural gas drilling/shale gas drilling |
Mud handling equipment | Shale shaker, degasser, desander desilter hydrocyclones, decanter centrifuge, mud tanks, mud guns, mud tank bottome valves, mud agitators, jet mixers, shear mixer, sand pumps, medicine tank, guardhouse, Mud-gas separator, water tanks, oil tanks, etc. |
The accessories of mud system | Tank guardrails, stairs, aisles and floating platforms between tanks; mud backflow troughs, mud pump suction hoses, inverted tooth joints; level gauges, manifold systems, butterfly valves, hoses, unions, pipelines, connecting fasteners, etc |
Electronic control system | General cables, explosion-proof lighting lamps, sealed safety connectors, explosion-proof plug-in boxes, explosion-proof magnetic starters, explosion-proof buttons, explosion-proof flexible pipes, button brackets, tank wall cable troughs,etc. |
System solution | Equipment dimension, layout, pipeline, etc. designed according to your requirements |
Delivered Cases

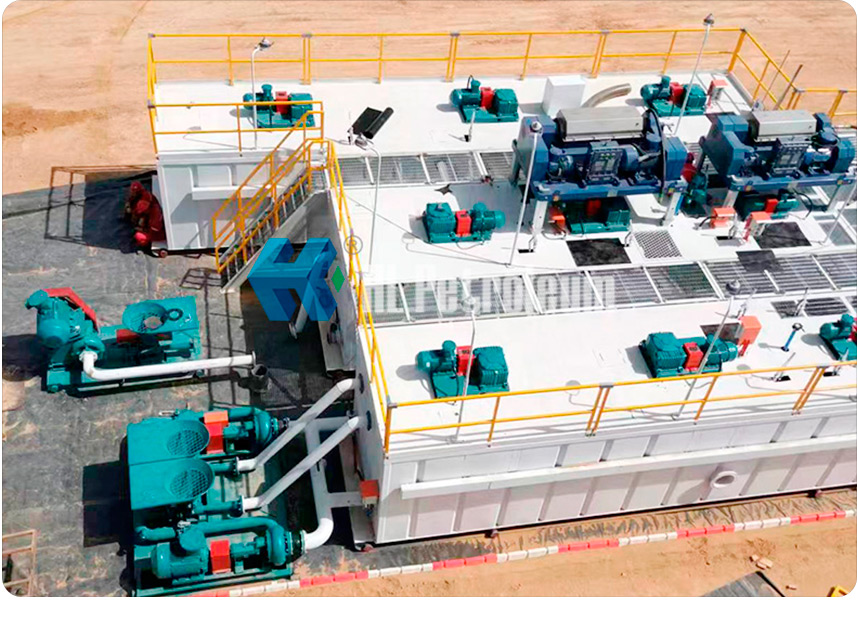

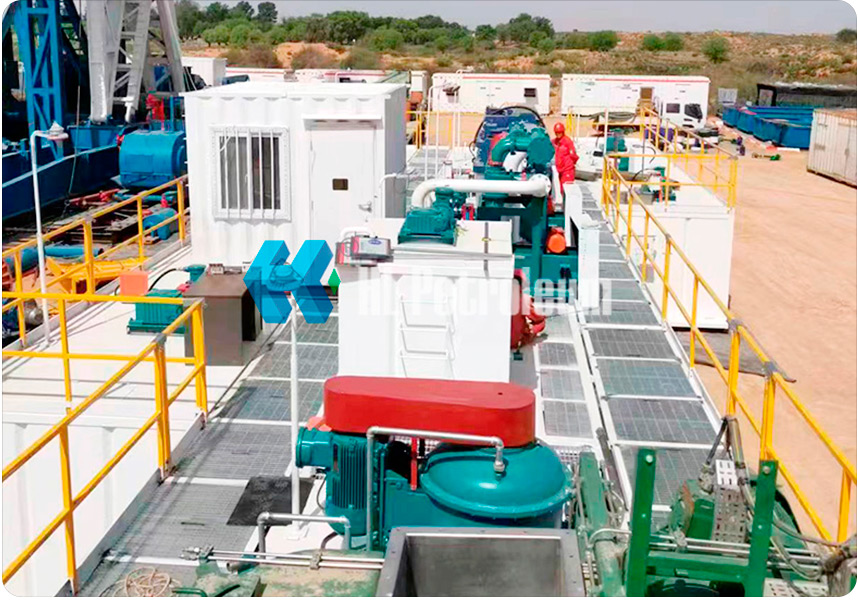

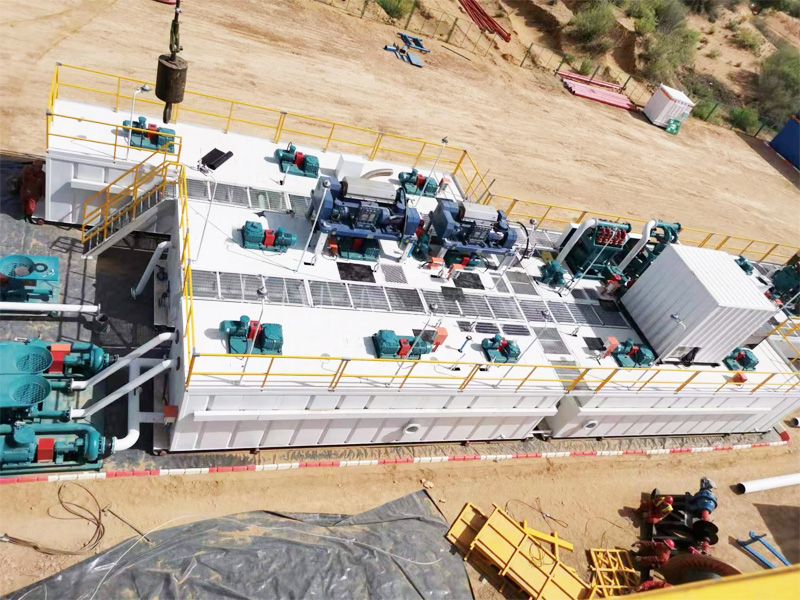

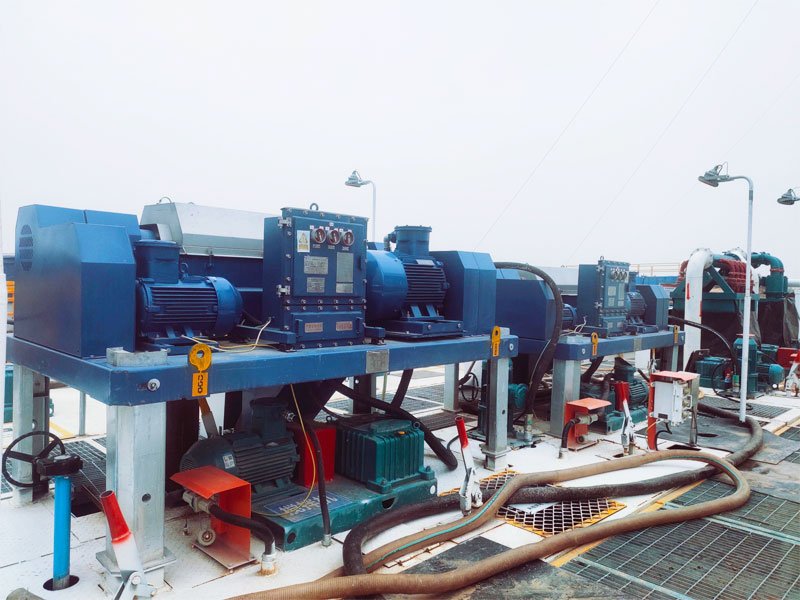

HL Petroleum has successfully delivered several drilling mud systems.
Advantage
Why select HL Petroleum's drilling fluid solids control system?

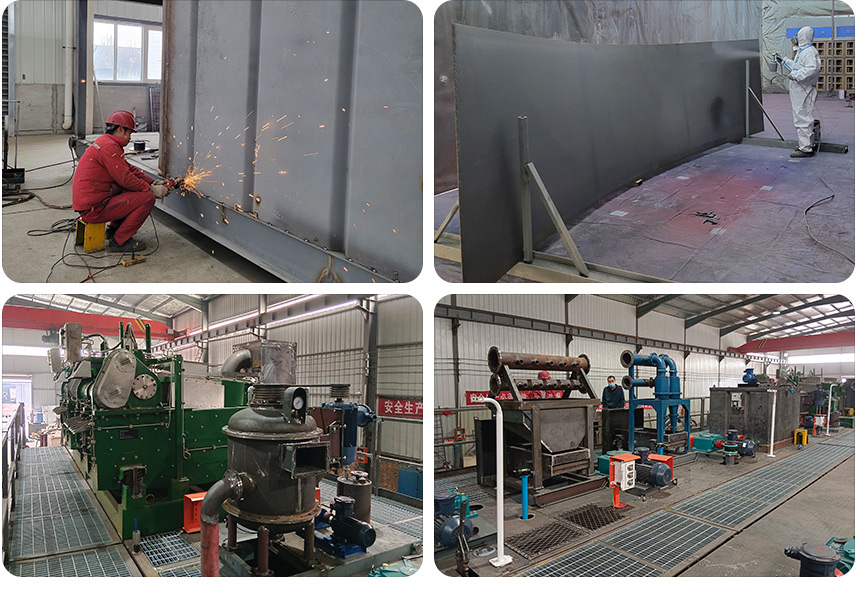

HL Petroleum specializes in providing non-standard customized processing services,who can provide ISO9001 cert and EU CE cert. It has an experienced technical team that can independently design and produce solids control equipment and mud system; and has its own production center, complete mechanical processing equipment, and advanced manufacturing processes. Relying on its own years of industry technology accumulation, HL Petroleum is able to provide you with a complete set of drilling fluid solids control system solutions, as well as on-site installation and operation solutions.
The Features of HL Petroleum mud system for ZJ70 rig
* The mud tank body usually adopts a skid-mounted corrugated structure, which is welded with steel plate and steel section. The materials meet the standard of the international oilfield industry. The tank side is 8mm steel plate (Q235), the tank bottom steel plate is 10mm (Q235), and the partition plate is 8mm (Q235). The base is welded with HM300*300*10*15 H steel (Q235) cross beams (four paths) and HM300*300*10*15 H steel longitudinal beams (Q235). The tilted design of the tank bottom effectively prevents mud deposition and easy to clean.
* The layout of the solid control equipment is reasonable, reaching the five-level purification standard (shale shaker, degasser, desander, desilter, centrifuge). And mud mixing unit is designed to maximize the optimization of mud performance.
* The tank surface is made of galvanized steel grating and patterned cover, which is light, corrosion-resistant, and easy for workers to observe and operate.
* The tank body is connected with pneumatic union and fiberglass pipe, which is easy to install and reliable in sealing.
* The whole process can meet the needs of the equipment process flow, the pipeline layout is reasonable, and different units have the dual functions of complementary and independent work.
* The effective volume of mud tanks is 300m³ at least.
* The water supply system realizes automatic control, and each tank or compartment can meet the requirements of uniform water supply at the same time.
* Thorough anti-corrosion. Using advanced processes including sandblasting and rust removal, spraying marine special paint, etc., the surface strength of the tank body is enhanced, beautiful and durable.
