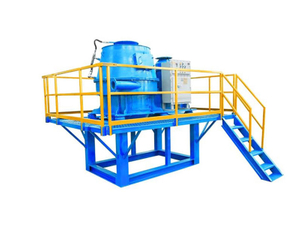

Vertical Cuttings Dryer

One of the main drilling waste management equipment,
* Flights and rotor assembly are balanced separately
* Air knife benefits screen cleaning without blincking
* The outlet can be equipped with a screw conveyor to facilitate the conveying of dry drill cuttings
Availability:
Quantity:
Vertical Cuttings Dryer
Vertical Cuttings Dryer
Vertical Cuttings Dryer
Vertical Cuttings Dryer
Vertical Cuttings Dryer

Product Description

Drilling cuttings dryer is an important equipment in drilling waste management projects, mainly used for treating oil-based mud(OBM) and composite base mud (SBM). HL Petroleum mainly produces 2 models of vertical drilling cuttings dryers with different processing capacities, HSG700 and HSG1000. The dryer uses the centrifugal force generated by high-speed rotation as the filtering driving force to separate the liquid phase from the solid phase separated by the vibrating screen. The separated liquid phase is further separated and treated to meet the requirements and purposes of reuse, thereby achieving the reduction of drilling fluid waste.

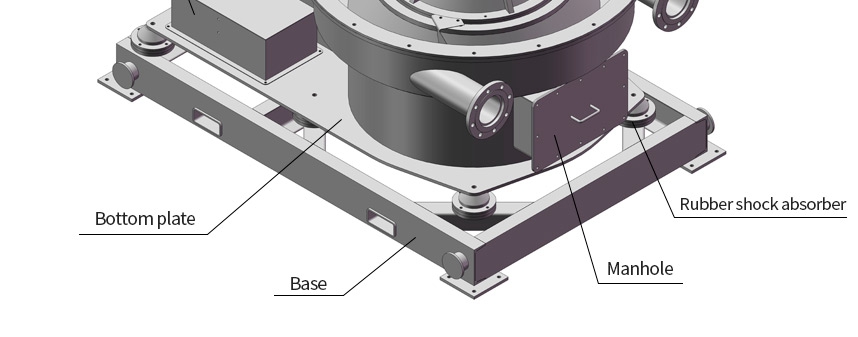

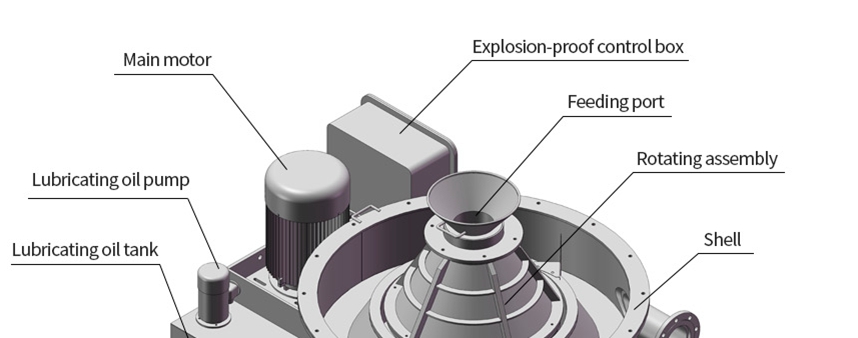

The Classic structure

TDS

Technical Parameters>>Send an Enquiry sales@hlshiyou.com<<

Model

HSG700

HSG1000

Capacity(Ton/h)

5~15

30~50

Feeding particle size(mm)

0~13

0~13

Screen diameter(mm)

720

930

Rotation speed(rpm)

700

900

G-Force(G)

621

420

Motor power(KW)

22

55

Drive mode

Soft starting

Soft starting

Dimension (mm)

2200×1690×2150

3420×2395×2620

Weight(KG)

3500

4350

The Features of HL Petroleum cuttings dryer

* Large processing capacity, strong anti-blocking ability, integrated design, more convenient installation and transportation.

* Integrated lubrication station design, dual functions of lubrication and heat dissipation, easier installation and maintenance.

* High-hardness surface spray scraper and high-strength wear-resistant screen basket ensure long service life.

* Adjustable speed, logic electronic control, multiple safety protections.

* Marine anti-corrosion coatings and processes, suitable for use in harsh outdoor environments.

Delivered Cases

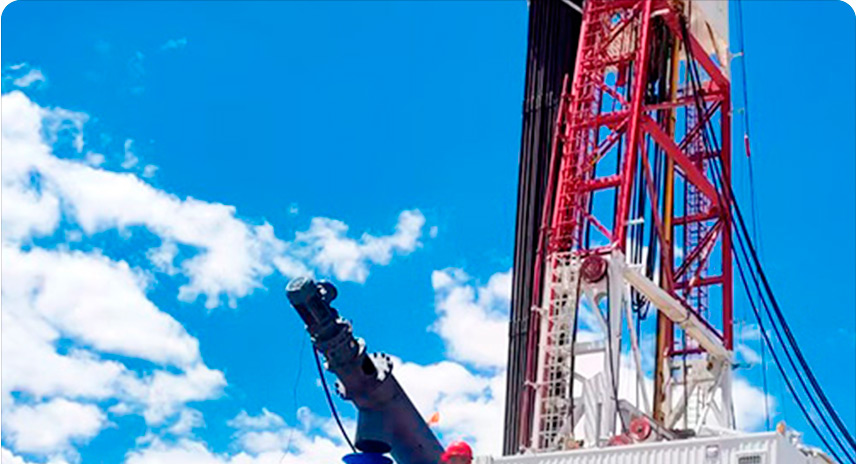

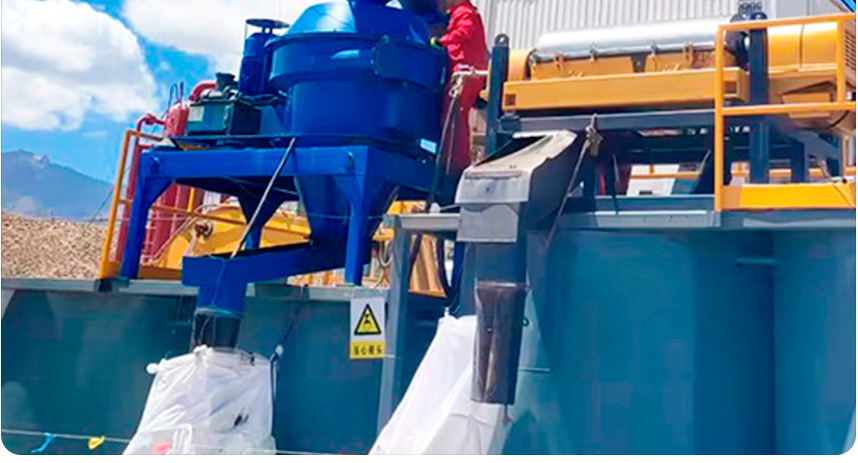

HL Petroleum actively provides reliable solutions for drilling waste treatment environmental protection projects in the oil drilling industry. Here is an using site of our HSG700 drilling cuttings dryer. The oil content of the mud after treatment is less than 10%.

In addition, HL Petroleum can provide you with a full range of oil-based mud waste treatment equipment and systems.

>>Send an Enquiry sales@hlshiyou.com<<

OBM treatment system flow chart HL Petroleum
