HL Petroleum supplies a full range of oilfield Feeding Centrifugal Pumps with pump sizes ranging from 3x2 to 10x8, which can meet the requirements of the solids control system of drilling rigs with different horsepower. The impeller size of the centrifugal pumps is optional.
SB3x4 Feeding Centrifugal Pump is one of the most widely used pump for small size mud tanks, power source is Electric-driven or diesel/gasoline engine.
The technical parameters of HL Petroleum SB centrifugal sand pumps
Type | Capacity (m3/h) | Head (m) | Speed (rpm),380V 50HZ | Efficiency (%) | NPSH (m) | Power (KW) | |
Shaft power | Motor power | ||||||
SB6×8J-13 | 240 | 37 | 1480 | 67 | 2.5 | 36 | 75 |
SB6×8J-12½ | 200 | 36 | 1480 | 66 | 2.5 | 31 | 55 |
SB6×8J-12 | 200 | 33 | 1480 | 64 | 3 | 28 | 45 |
SB5×6J-12½ | 200 | 33 | 1480 | 64 | 2.5 | 28 | 45 |
SB5×6J-12 | 180 | 31 | 1480 | 63 | 2.5 | 25 | 37 |
SB5×6J-11½ | 160 | 28 | 1470 | 62 | 2.5 | 18 | 30 |
SB5×6J-11 | 140 | 22 | 1470 | 62 | 2.5 | 16 | 22 |
SB4×5J-10 | 150 | 25 | 1470 | 61 | 2.8 | 13 | 22 |
SB4×5J-9 | 93 | 20 | 1460 | 58 | 2.8 | 8.8 | 15 |
SB3×4J-10 | 85 | 26 | 1460 | 61 | 2.8 | 10 | 15 |
SB3×4J-9½ | 80 | 23 | 1460 | 61 | 2.8 | 8.6 | 11 |
SB3×4J-9 | 54 | 18 | 1460 | 60 | 2.8 | 5.1 | 7.5 |
SB2×3J-10 | 60 | 22 | 1460 | 55 | 2.5 | 8.6 | 11 |
SB2×3J-9 | 50 | 18 | 1440 | 54 | 2.5 | 5.5 | 5.5 |
SB2×3J-8 | 40 | 16 | 1440 | 54 | 2.5 | 3.2 | 5.5 |

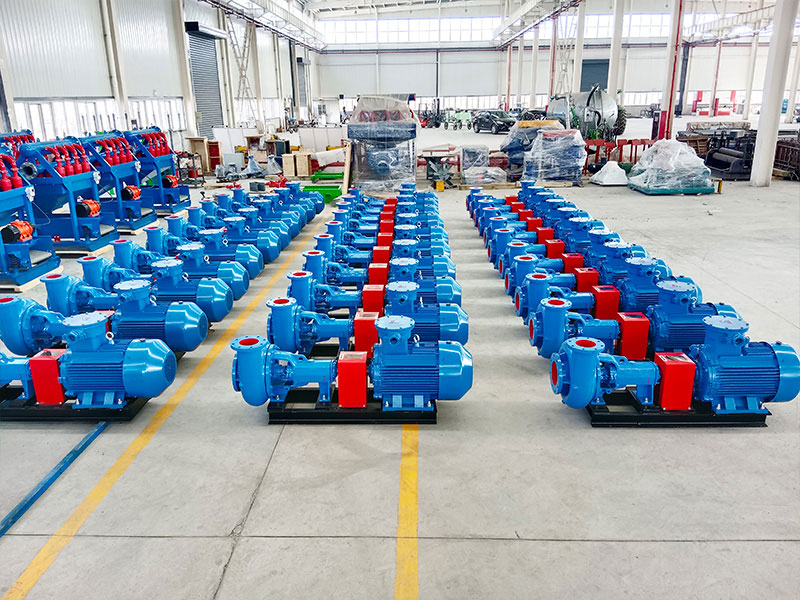

HL Petroleum SB3x4 Feeding Centrifugal Pump is ready to ship.
Our pump adopts the same structure of the Mission Magnum centrifugal pumps and XBSY SB centrifugal sand pump, which can be the complete replacement of these 2 brands of pumps and related accessories. Learn details via sales@hlshiyou.com, whatsapp 008617742483609
