Product Description
Oil rig mats, also known as drilling rig mats, are often used in oil field drilling site, or used as a temporary road mat during field operations.HL Petroleum designs HGM series oil mats for clients, which is a new matting developed by HL Petroleum according to the needs of the well site. The rig mats replaces the traditional concrete foundation.
The drilling rig mats are mainly used for the equipment foundation of various drilling wellsites such as rig base, mud pump, purification tank, power generation room, SRC room, oil tank, water tank, etc., to ensure the stability of drilling equipment for a long time.
What is the characteristic of HL Petroleum Rig Mats?
* The matting is processed by embedding hard larch into the steel frame structure.
* Timber is harder and more water-resistant than Korean pine.
* According to the national standard GB9221-88 technology for railway sleeper timber anti-corrosion, the precision-processed and designed square timber specifications are treated with anti-corrosion treatment.
* All steels are made of standard mould steel, and the pressure-bearing capacity and shock absorption capacity have reached the standards for use in the well site, which can completely replace the original concrete foundation structure.
* Strong bearing capacity, high strength, strong shock absorption, no fear of water, no deformation, no cracking, corrosion resistance, good interchangeability, convenient transportation, low cost, convenient and fast installation, long service life, etc., and easy to recycle Storage, relocation of well team
* The land can be directly replanted, and there is no problem that the land cannot be used after the well site is relocated.
* HL Petroleum can design and produce steel and wood foundations of different specifications according to your requirements.
TDS
Technical Parameters
Model | Length(mm) | Width(mm) | Height(mm) | Weight(kg) |
HGM3220 | 3000 | 2000 | 200 | 1200 |
HGM4220 | 4000 | 2000 | 200 | 1600 |
HGM5220 | 5000 | 2000 | 200 | 2000 |
HGM3218 | 3000 | 2000 | 180 | 1080 |
HGM4218 | 4000 | 2000 | 180 | 1440 |
HGM5218 | 5000 | 2000 | 180 | 1800 |
HGM3218 | 3000 | 2000 | 160 | 960 |
HGM4218 | 4000 | 2000 | 160 | 1280 |
HGM5218 | 5000 | 2000 | 160 | 1600 |
In addition, HL Petroleum produces drilling mattings of suitable size and thickness according to your requirements, spraying the paint you specify.>>Send an Enquiry sales@hlshiyou.com<<
Production details

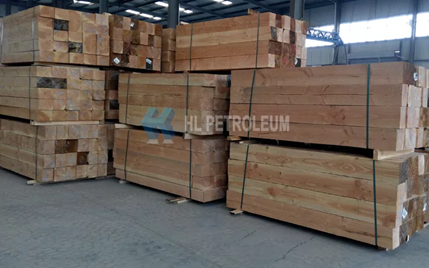

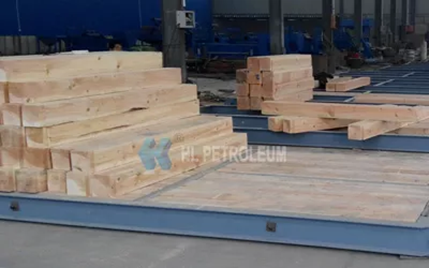

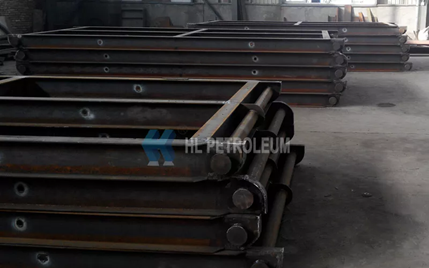

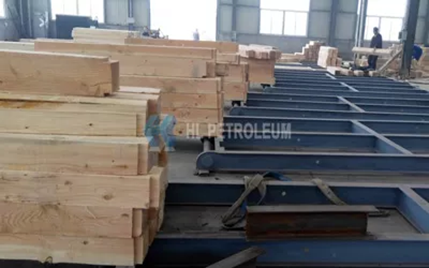

The drilling rig matting is mainly composed of high-quality Wooden pillow and steel frame. The wood HL Petroleum used are hard pine wood which has been treated with anti-corrosion fumigation.

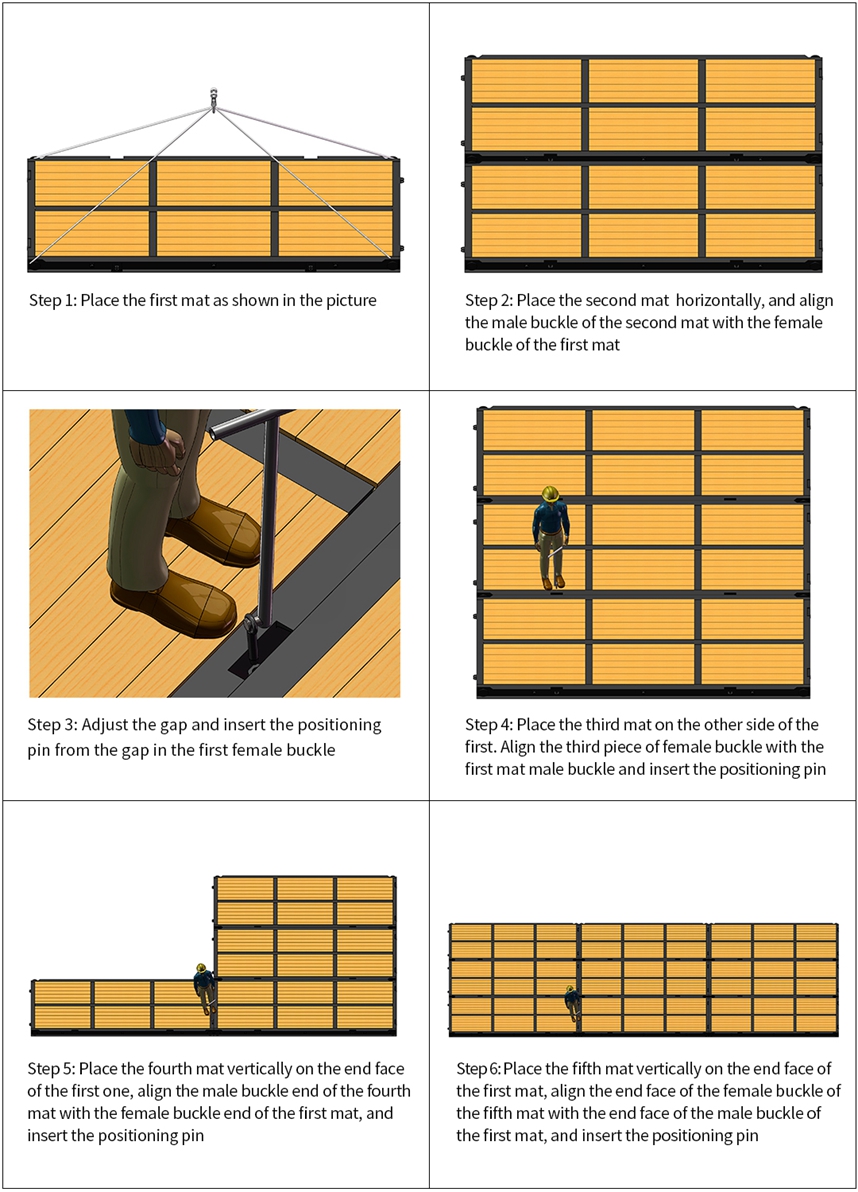

Installation Manual
Installation of steel-wood foundation(rig mats)
HL Petroleum comprehensively considers the on-site use environment and experience, and designs steel-wood foundations that are known for their flexibility and practicality. The drilling rig mattings we produce can be spliced together to a large area, which is easy to install.
