Poor Boy Separator

Mud Gas Separator Advantage
* Prevent blowout
* Adjust the specific gravity of mud
* Mechanical separation, zero energy consumption
* Special material, resistant to H2S corrosion
Availability:
Quantity:

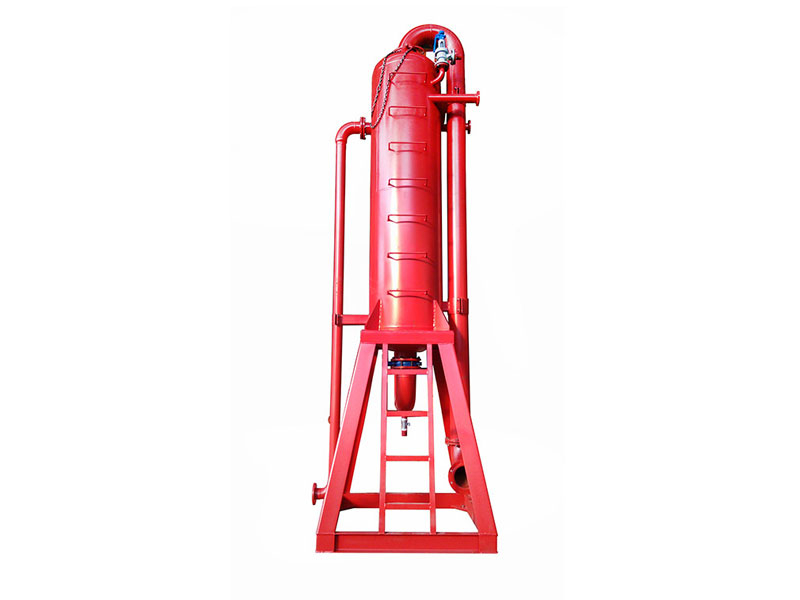

Poor Boy Separator
Poor Boy Separator
Poor Boy Separator
Poor Boy Separator
Poor Boy Separator
Poor Boy Separator

Product Description

The mud gas separator is one of the commonly used equipment in the drilling fluid solid control system. It is mainly used to separate large bubbles in the gas-invaded drilling fluids. Large bubbles here refer to the expanding gas with a diameter of about 3~25mm. If the bubbles remain in the drilling fluid, they may cause well kicks, endangering the safety of drilling workers. The difference between this degassing equipment and the degasser is mainly the size of the bubbles to be processed.


HL Petroleum is a professional manufacturer of Poor boy separators. At present, the mud gas separators we produce mainly include 3 types according to their structure: fixed base type, lifting type, and folding type. Except HL Petroelum own brand, we also provide you with customized services, design suitable structures and Cylinder sizes according to your requirements. >>Send an Enquiry sales@hlshiyou.com<<

Working Principle

Drilling fluid with gas invades goes into the separator at the import tangentially and drops to a series baffles along the inner wall. After collision to increasing the contact area, It flows downward and become to a turbulent state which makes gas separate from mud and the free gas passes through the top of tank and discharged from the gas export. The length of gas export pipe can be determined at site and be induced to the safe place. The drilling fluid without gas will flow into the circular tank.

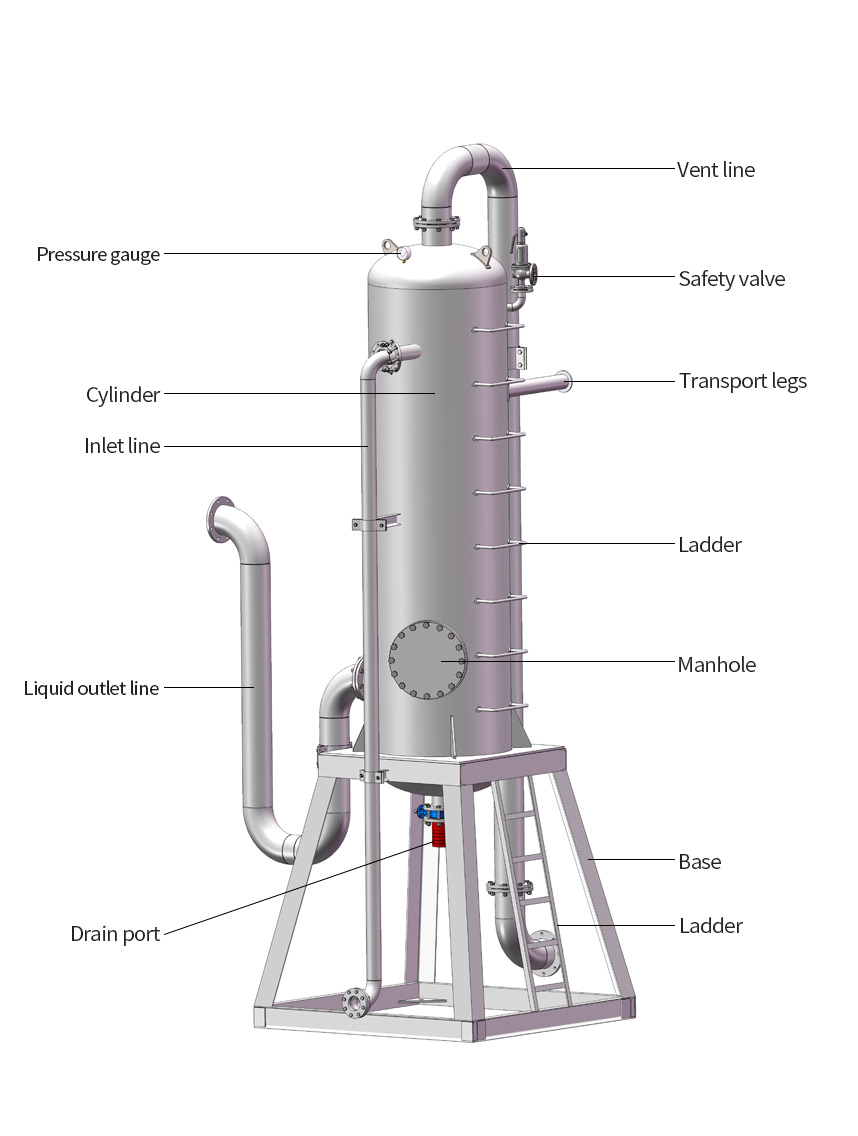

Classical Structure


TDS

Technical Parameters

Model

HYQ800

HYQ1000

HYQ1200

HYQ1400

Liquid handling capacity

6000m³/d

7000m³/d

8000m³/d

8000m³/d

Gas handling capacity

100000m³/d

120000m³/d

147000m³/d

147000m³/d

Cylinder Diameter

800mm

1000mm

1200mm

1400mm

Cylinder Volume

≥1.6m³

≥3.0m³

≥4.0m³

≥6.0m³

Max. Working Pressure

1.0MPa

1.0MPa

1.0MPa

1.0MPa

Gas Output Diameter

159(6’’)mm

219(8’’)mm

219(8’’)mm

219(8’’)mm

Liquid Output Diameter

219(8’’)mm

219(8’’)mm

273(10’’)mm

273(10’’)mm

Inlet Diameter

133(5’’)mm

133(5’’)mm

133(5’’)mm

133(5’’)mm

Dimension

1900X1900X5700mm

2150X1960X4900mm

2400X2000X6130mm

2700X2600X7400mm

Weight

1900KG

2300KG

3500KG

3800KG

HL Petroleum support OEM services. If other specification of poor boy degasser you are looking for, please  >>Send an Enquiry sales@hlshiyou.com<<


Poor Boy Degasser Features

1. The poor boy degasser uses bottom drainage to control the working liquid level to ensure a constant liquid level in the separator and solve the problem of sand accumulation in the tank at the same time;

2. There is a special channel for gas separation in the liquid-gas separator tank, and the gas is emptied smoothly, which improves the gas treatment effect;

3. The liquid-gas separator adopts a combination of centrifugal separation, physical shock separation, vacuum separation and other separation technologies to ensure the gas separation effect;

4. Each bend of the liquid-gas separator supply pipe is equipped with a buffer device and a replaceable impact-resistant baffle is installed, which can be regularly inspected and replaced according to the wear and tear, which prolongs the service life of the equipment;

5. Liquid-gas separator anti-sulfur-type liquid-gas separator is manufactured and treated with special materials as a whole, which can completely prevent the damage of equipment by hydrogen sulfide gas in the gas.

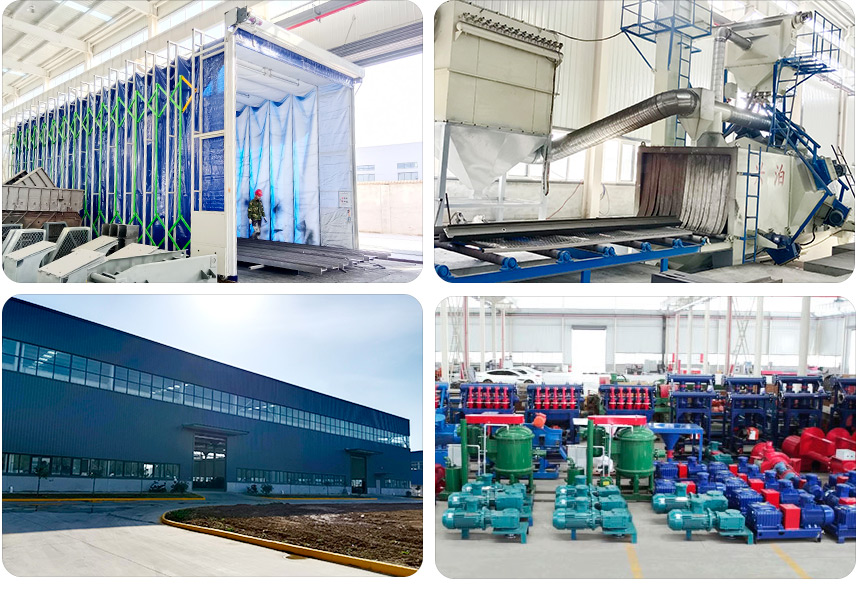

How does HL Petroleum manufacture Mud Gas Separator?

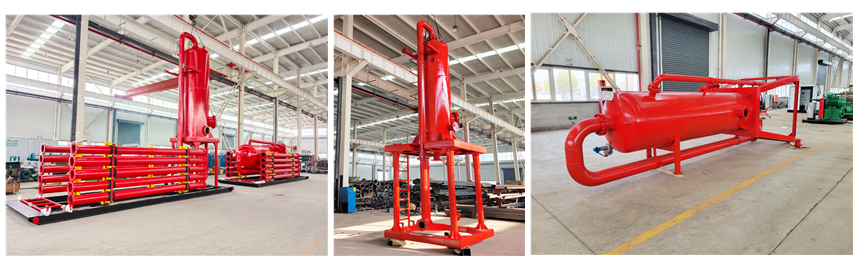

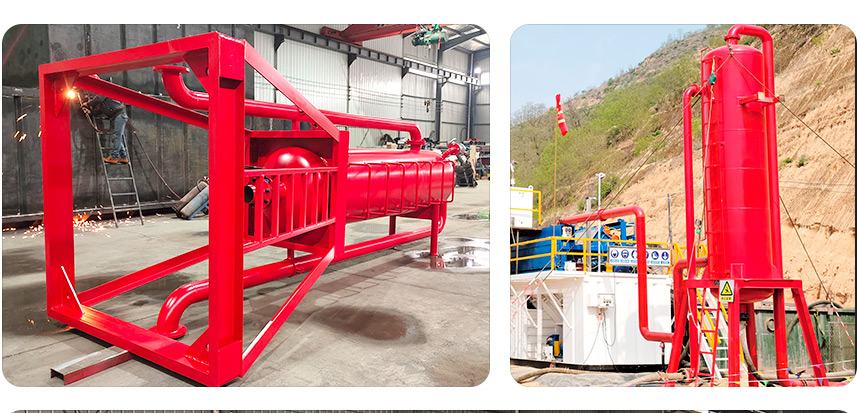

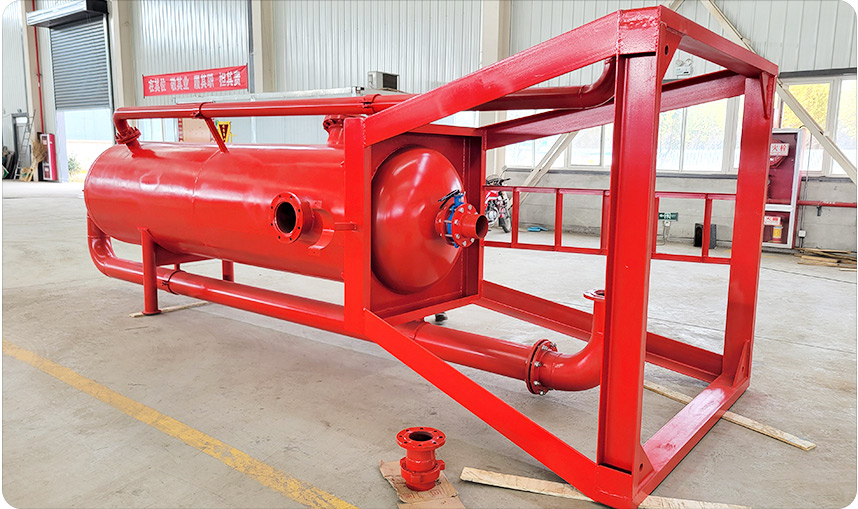

Delivered Cases

Delivered Cases

Why work with HL Petroleum?

HL Petroleum is professional in drilling fluids solids control equipment production, which is a high-tech manufacturer in China.It is a one-stop provider of solids control equipment and solutions. The HL quality inspection team strictly inspects each component, and after the equipment is completed, debugs the entire solids control system until the equipment can work normally. The control has also passed the product quality certification of Xi'an Bureau of Quality and Technical Supervision. It can specifically design and match different drilling rigs and solid control equipment for horizontal directional drilling rigs according to the actual needs of customers and different working conditions. It can make the entire mud purification system become a a unified whole. And provide regular maintenance, system modification, system installation and other related services to minimize drilling costs and improve your economic benefits.

>>Send an Enquiry sales@hlshiyou.com<<
