Mud Tanks

HL Petroleum is a leading OEM factory of mud tanks.Contact HL Petroleum for the details of mud circulation tanks, mud mixing tanks, mud storage tanks, and clean water tanks.
Availability:
Quantity:

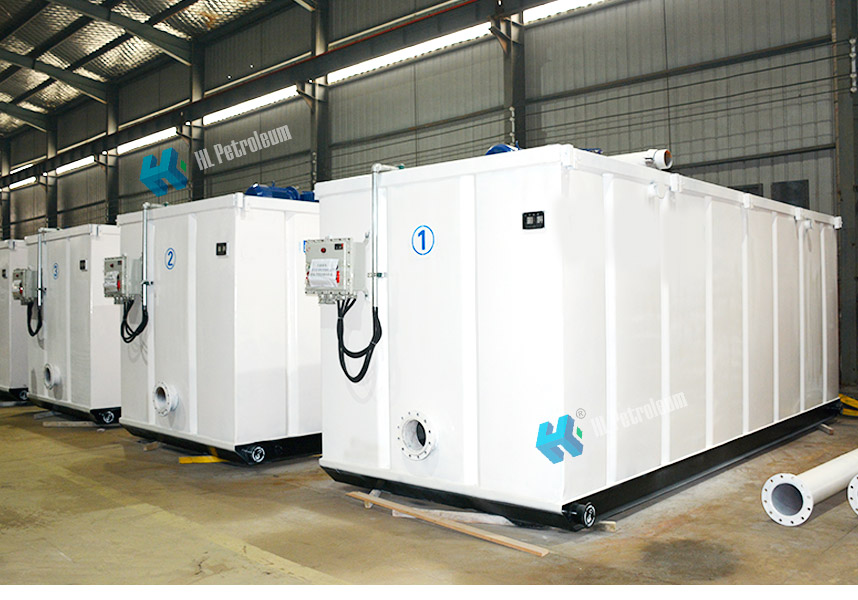

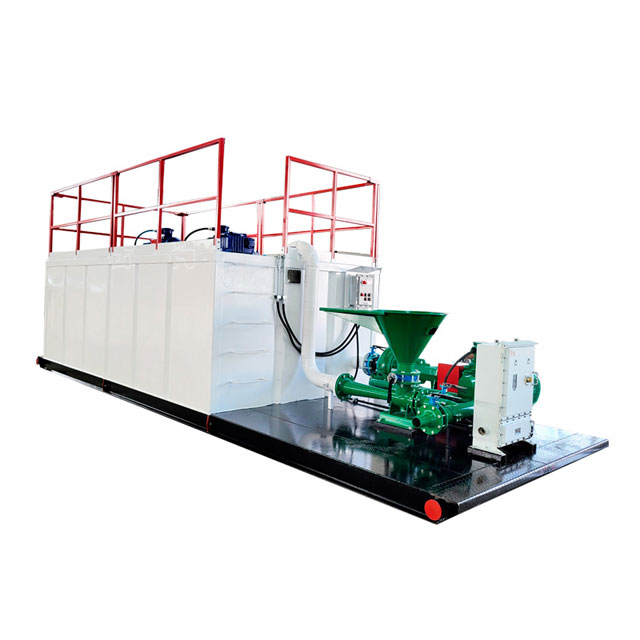

Mud Tanks
Mud Tanks
Mud Tanks
Mud Tanks
Mud Tanks

Product Description

HL Petroleum designs and manufactures various types of tanks including mud tanks, water tanks, oil tanks, etc. These tanks are used in oil drilling,Horizontal Directional Drilling, coal gas exploration, waste water treatment and more industries. Here mainly introduces the mud tanks produced by HL Petroleum for oil and gas field projects, which are often used to install solids control equipment, store mud, configure mud, etc., to meet the use requirements of drilling solids control systems and mud liquid plant. According to different working conditions, the tanks are designed into horizontal mud tanks, vertical mud tanks and vehicle-mounted mud tanks.


HL Petroleum manufactures vertical and horizontal mud tanks, water tanks and oil tanks according to API & ISO standards. The tank body usually uses corrugated sheets to make the side walls stronger. ISO standard interfaces are usually installed to facilitate lifting from the top of the tank. Walkways, stairs and inspection holes are covered with galvanized grilles. The steel used for the tank body is first sandblasted, and the well-known brand of epoxy zinc-rich paint is used for painting. The first layer is 75μ thick, the epoxy medium is applied twice, the thickness is 250μ, and the polyurethane topcoat is applied twice, the thickness of the tank is 70μ.

>>Send an Enquiry sales@hlshiyou.com<<



TDS

There are multiple sizes of mud tanks to be selected. Here shows the tank size which is commonly selected by clients.>>Send an Enquiry sales@hlshiyou.com<<

Model

Capacity (m³)

Dimension(L×W×H,mm)

Weight(kg)

HNG-2.5

2.5

1500×1500×1350

850

HNG-5

5.0

2000×2000×1450

1250

HNG-8

8.0

2500×2000×1760

1800

HNG-15

15

5000×2000×1800

3400

HNG-20

20

6000×2000×1800

4020

HNG-25

25

6000×2000×2100

4250

HNG-30

30

9000×2200×1800

6030

HNG-40

40

9500×2350×2100

6850

HNG-45

45

9500×2400×2350

7800

HNG-50

50

10000×2500×2350

8200

HNG-60

60

11000×2800×2350

9400

HNG-70

70

11500×3000×2400

12000

HNG-80

80

13500×3000×2400

13400

The Features of HL Petroleum mud tanks

* The mud tank body adopts corrugated board structure, which has the advantages of high strength, beautiful appearance, etc., while reducing the tank body's own weight.

* The layout of solids control equipment is reasonable, and it reaches the five-level purification standard (coarse screen, degassing, desanding, desiltering, centrifugation), so that the mud performance can be further optimized.

* The surface of the mud tanks is made of galvanized steel grating, which is beautiful, light, and corrosion resistant.

* The mud tank connection adopts pneumatic tire union and glass steel pipe, which has the advantages of convenient installation, beautiful appearance, and reliable sealing.

* Thorough corrosion protection. The use of wind sand to remove rust and spray marine paint and other advanced technologies and materials enhances the surface strength of the tank body, ensuring that the mud storage tank body is beautiful and durable.

* Customized services are provided for mud tanks. You design the size, color and structure of the tanks, and then HL Petroleum manufactures it for you.

Delivered Cases

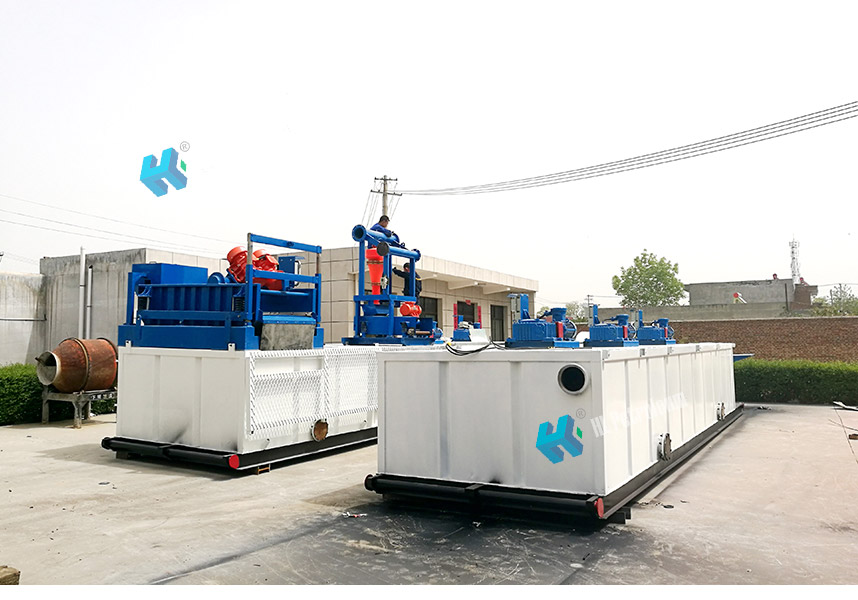

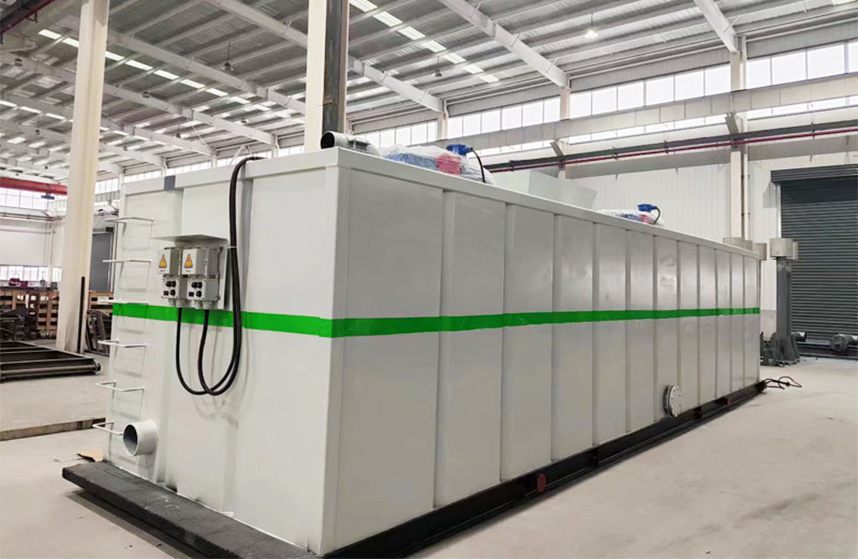

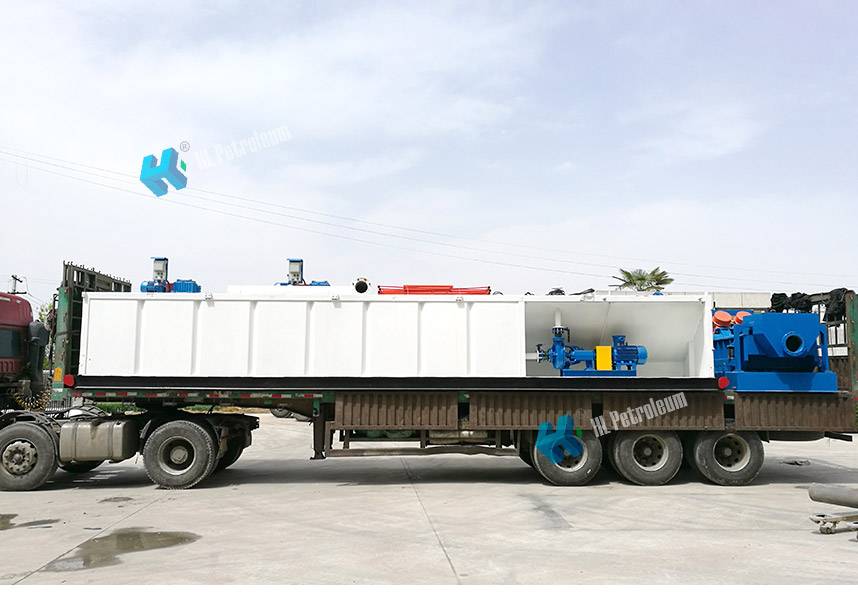

Here are some mud tanks produced by HL Petroleum for clients.

Why purchase mud tanks from HL Petroleum?>>Send an Enquiry sales@hlshiyou.com<<

HL Petroleum provides reasonable mud tank solutions according to your requirements.

* The tank body is made of high-quality steel according to the external use environment.

* The tank body is welded with steel plates and profiles, and the welds are inspected for flaw detection and the tank body is pressure tested.

* The tank structure is humanized, with manholes and ladders for easy operation.

* The connectors between tanks are made of accessories from manufacturers certified by ISO and API, with reliable quality.The tank spray paint uses highly anti-corrosive and wear-resistant ship paint.

* The base of the mud tank produced by HL Petroleum uses I-beam as the main beam and other profiles to make a skid-type structure on the basis to meet its strength requirements.

* The mud tank adopts electrical centralized control, and its manifolds (mixing manifold, mud gun manifold, mud pump suction manifold, supply manifold, etc.) are all built-in manifolds, which are convenient for installation, disassembly and transportation. In polar low-temperature areas, the tank body is equipped with a heating system and an insulation system.
