Product Description
The mud desilter is a three-stage solids control device used in the solid phase control system of the drilling fluid. It is a combination of a cyclone desilter and a vibrating screen, also can be supplied without the underflow screens according to customer's request.
The drilling fluid desilter usually use 4" and 5" desilter cyclones, which is mainly used to separate solid particles with a particle size of 15-44 microns in the drilling fluid. HCN series desilter is one of the important equipment to stabilize and adjust the technical indicators of drilling fluid. >>Send an Enquiry sales@hlsolidscontrol.com<<

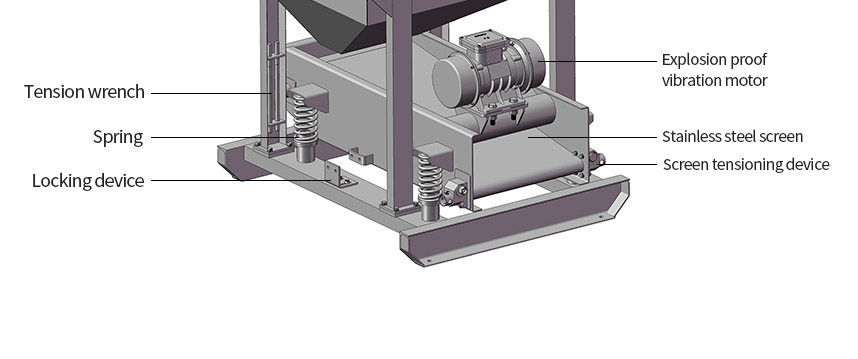

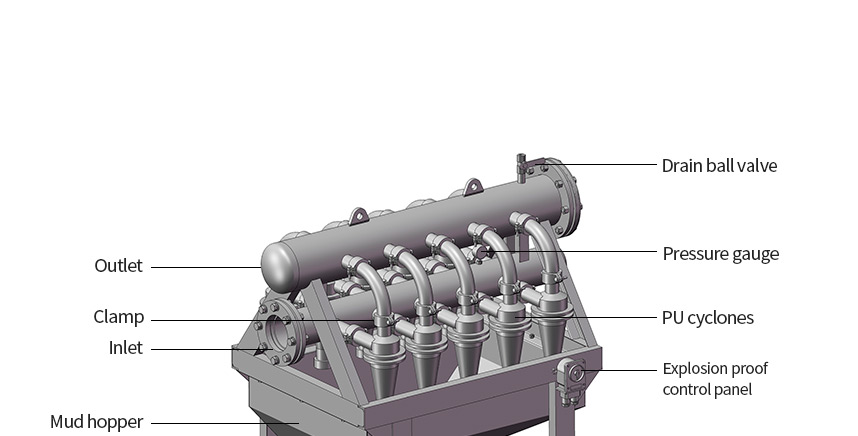

Mud Desilter Features
1. The desilter has a high separation capacity and a wide separation particle size range;
2. The bottom outflow port of the cyclone is shaped like an umbrella-shaped "wet bottom" sand discharge so that the particles in the separation zone can be quickly discharged, reducing the probability of underflow port clogging;
3. Advanced small two The screen mud vibrating screen has large processing capacity, low noise and long screen life;
4. the symmetrical liquid inlet mechanism makes the swirling flow distribution reasonable and stable.
HL Petroleum is a professional OEM manufacturer of mud desilter
TDS
Technical parameters of mud desilter >>Send an Enquiry sales@hlsolidscontrol.com<<
Model | HCN100x4S | HCN100xS | HCN100x10S | HCN100x16S |
Capacity | 50 m3/h | 100 m3/h | 160 m3/h | 200 m3/h |
Cyclone Diameter | 100mm(4") | 100mm(4") | 100mm(4") | 100mm(4") |
Cyclone Quantity | 4 | 8 | 10 | 16 |
Separation Particle Size | 20～40μm | 20～40μm | 20～40μm | 20～40μm |
Motor Power | 0.5 KW | 0.5 KW | 0.5 KW | 0.75 KW |
Applicable Field | Wells less than 100 meters | Horizontal Directional Drilling | 4000m oil drilling | Oil drilling above 5000 meters |
Supporting Sand Pump | SB4x3-15KW | SB5x4-22KW | SB8x6-55KW | SB8x6-55KW |
Weight | 550KG | 750KG | 800KG | 1100KG |
Dimension: LxWxH | 1500x800x1800 mm | 1500x1200x1800 mm | 1500x1300x1800 mm | 1500x1500x1800 mm |

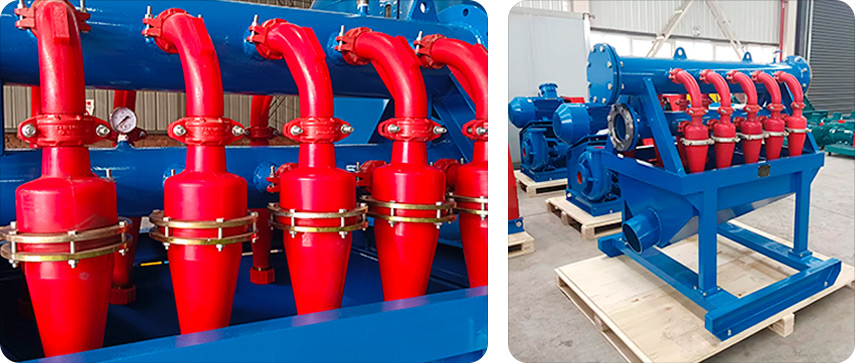

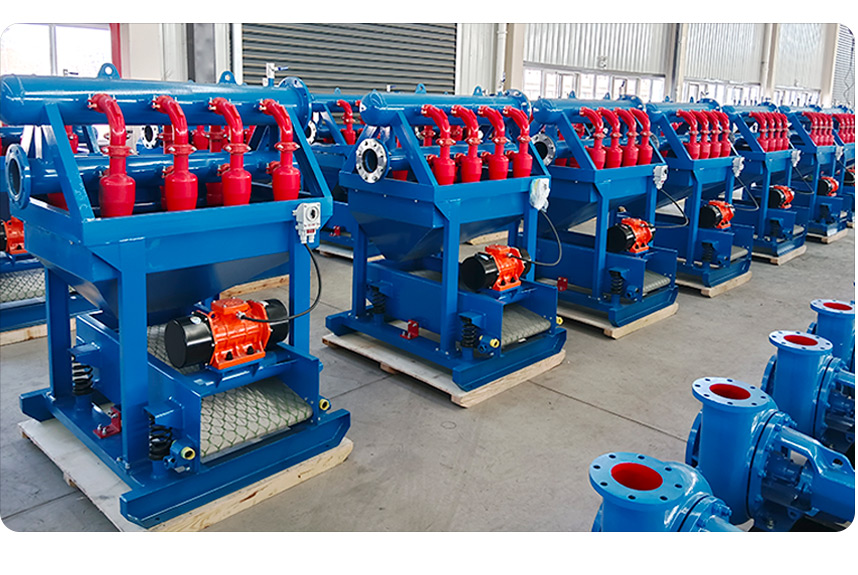

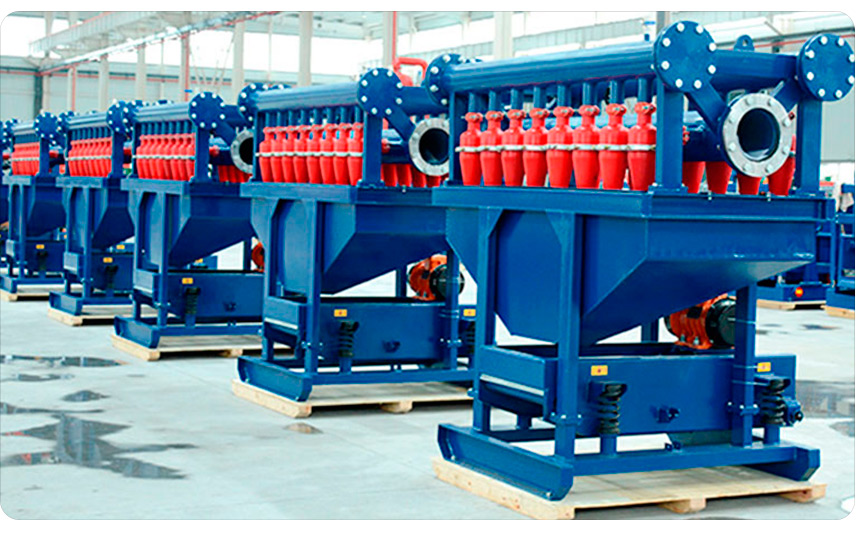

Pictures of drilling fluid desilter
Desilter Cleaner Maintenance >>Send an Enquiry sales@hlsolidscontrol.com<<
1. The screen box locking bolts must be removed before the first use of the newly purchased desilter cleaner or the first use after moving.
2. When the cyclone is out of service for a long time, it must be cleaned with clean water circulation to prevent dry sand from accumulating in the cyclone.
3. Grease the vibration motor every 1500~2500 hours, and the amount of oil for each bearing is 5~10ml.
4. The screen should be cleaned after the machine is shut down to prevent the sand from becoming dry and unusable next time.

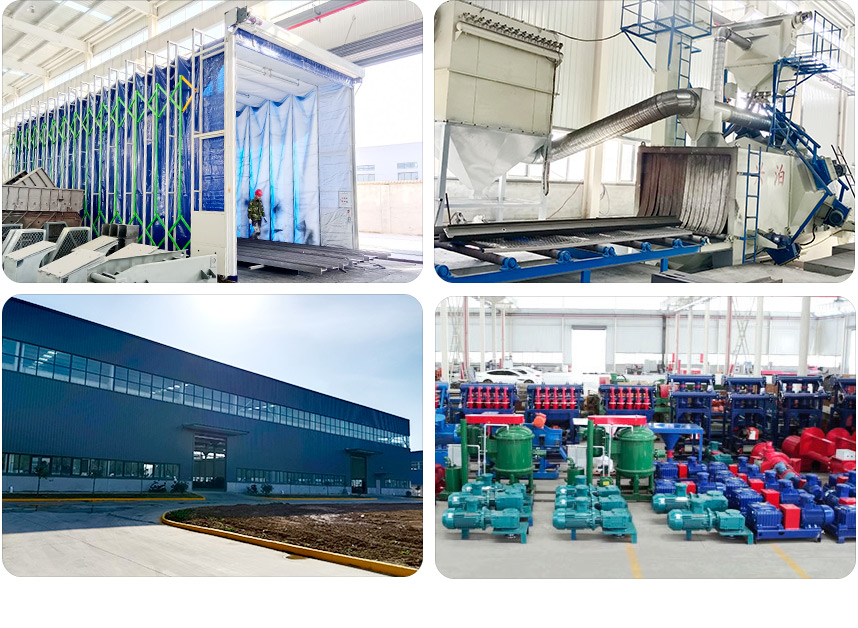

Processing Pictures

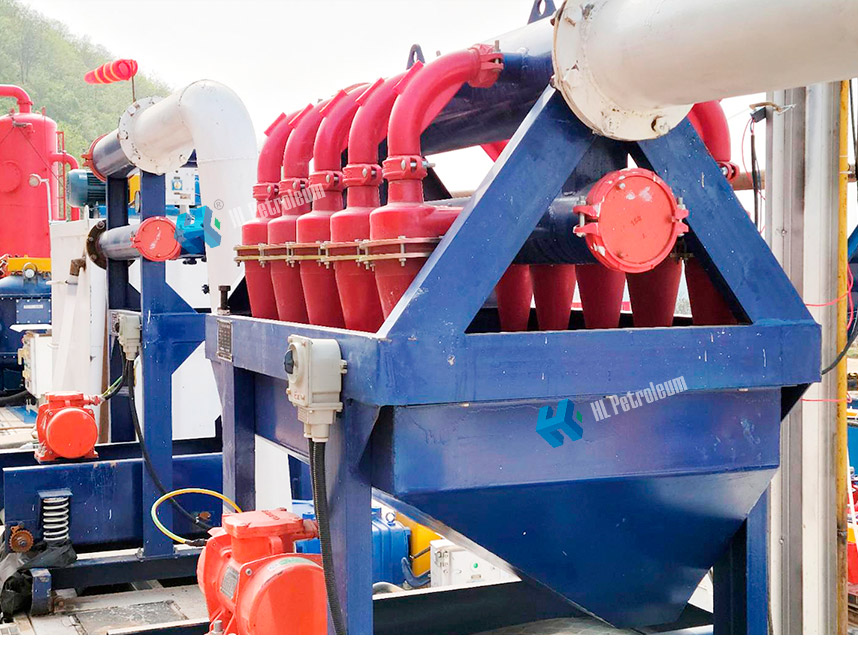

Mud Desilter Working Site >>Send an Enquiry sales@hlsolidscontrol.com<<
Silt separator operation manual.pdf
Xi'an HL Petroleum Equipment Co., Ltd. is a company specializing in the production and development of solids control equipment. It provides various types of products and supports customized services. If you are interested in mud desilter or other products, welcome to consult. You can contact our sales team to learn more about our product specifications, customization options, prices and more. We will wholeheartedly provide you with high-quality products and professional services.
