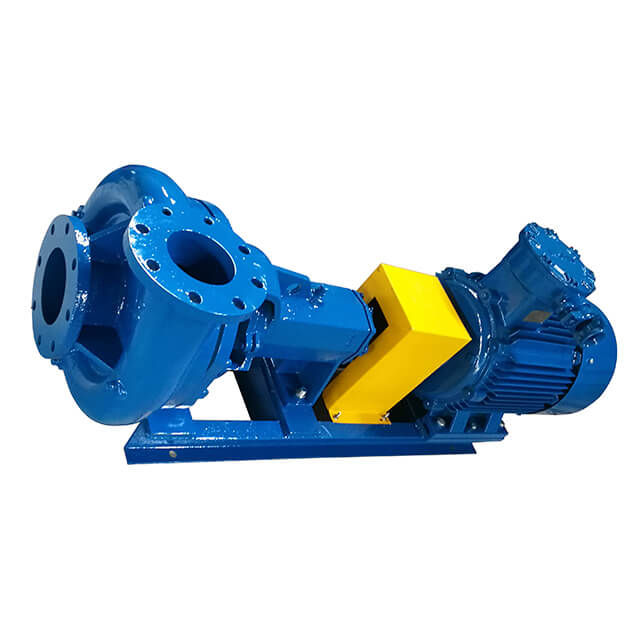

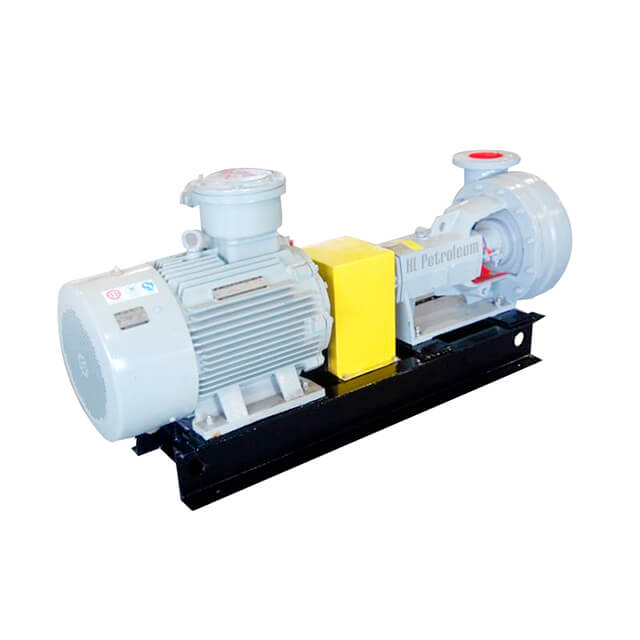

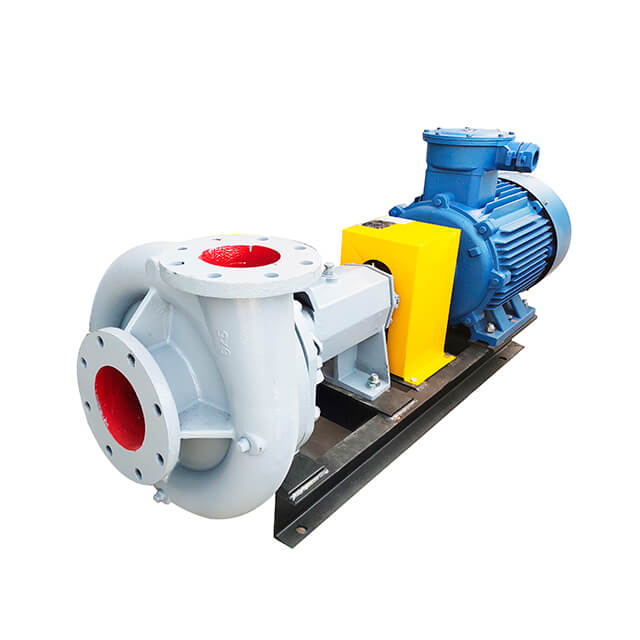

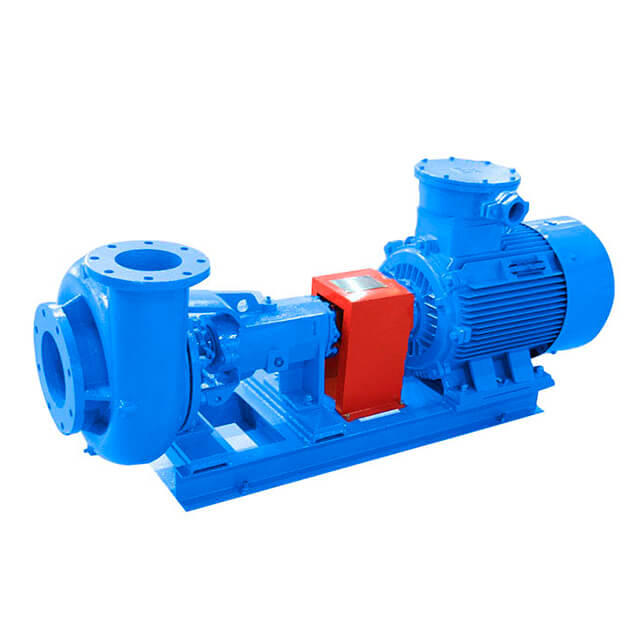

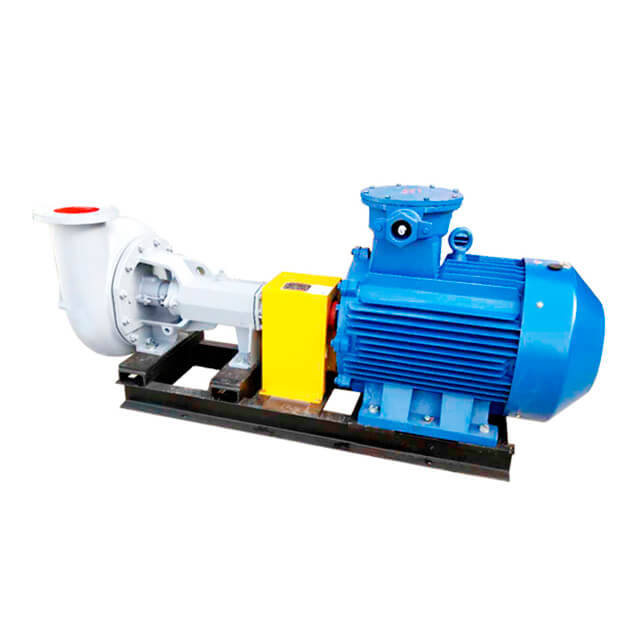

Mission Centrifugal Pump

  • HL Mission pump design features:
    1. Large flow, fluid mechanics blade curve design.
    2. Flow-through parts are made of wear-resistant and corrosion-resistant materials.
    3. Mechanical seal and packing seal are used for double-stage sealing.
    4. Open impeller structure, can convey high-density and high-viscosity fluid media.
    5. External impeller adjustment structure, easy to adjust.
    6. 6 series, 24 specifications, suitable for different industries.
    7. Metric and imperial interfaces to meet different user needs.
Availability:
Quantity:
Mission Centrifugal Pump
Mission Centrifugal Pump
Mission Centrifugal Pump
Mission Centrifugal Pump
Mission Centrifugal Pump
Mission Centrifugal Pump

Product Description

HL sand pump are 100% interchangeable with Mission Magnum pump. The Mission pump are designed and manufactured for solids control equipment based on the characteristics of drilling fluids or industrial muds. They are suitable for conveying abrasive, viscous and corrosive fluid media. They are the best pump for desander, desilter, truck-mounted drilling rigs, metering tank, water tank or water cooling system, and mixing hopper. They are also ideal priming pumps for mud pump.>>Send an Enquiry sales@hlsolidscontrol.com<<

HL Petroleum SB series Centrifugal Sand Pumps have been used for land and offshore drilling rigs more than 20 countries over the world.

fadae59a42531f50772e62c2dd517c13

HL SB series Mission centrifugal pump have stable performance, high temperature resistance, large flow, easy maintenance and cost saving, and can provide the best customized options for the intended application according to the fluid conditions. They are currently widely used in land and offshore drilling platforms around the world, and are suitable for industry, construction, chemical industry, agriculture and other fields.>>Send an Enquiry sales@hlsolidscontrol.com<<

TDS

The Technical Parameters Of Mission Centrifugal Pump

Model

Flow

(GPM)

Head  (FEET)

Speed

(RPM)

Eff .

(%)

NPSH

(FEET)

Shaft Power

(HP)

Motor Power

(HP)

SB10×8-14

2000

95

1750

60

16

83

150

SB10×8-13

1550

88

1750

60

16

59

125

SB10×8-12

1320

82

1750

60

16

46

100

SB8×6-14

1320

131

1750

67

15

65

125

SB8×6-13

1050

121

1750

67

15

49

100

SB8×6-12

880

118

1750

66

15

42

75

SB8×6-11

880

108

1750

64

15

38

60

SB6×5-14

880

114

1750

64

15

40

75

SB6×5-13

880

108

1750

64

15

38

60

SB6×5-12

780

102

1750

61

13

34

50

SB6×5-11

700

92

1750

61

13

25

40

SB6×5-10

615

79

1750

61

13

22

30

SB5×4-14

395

130

1750

61

11

26

50

SB5×4-12

340

100

1750

60

11

16

30

SB4×3-12

375

100

1750

60

10

19

40

SB4×3-11

350

82

1750

58

10

12

25

SB4×3-10

350

75

1750

57

10

11

15

SB4×3-9

310

58

1750

57

10

7

10

SB3×2-13

350

110

1750

56

10

15

30

SB3×2-11

220

90

1750

56

10

9

15

SB3×2-10

200

70

1750

54

10

7.5

10

SB3×2-9

175

50

1750

54

10

4.4

7.5

HL SB series Mission centrifugal pump have stable performance, high temperature resistance, large flow, easy maintenance and cost saving, and can provide the best customized options for the intended application according to the fluid conditions. They are currently widely used in land and offshore drilling platforms around the world, and are suitable for industry, construction, chemical industry, agriculture and other fields.>>Send an Enquiry sales@hlsolidscontrol.com<<

砂泵修改_04

HL Mission Magnum Centrifugal Pump Product Type

HL Petroleum offers a full range of Mission centrifugal sand pumps, suitable for various types of oil and gas drilling and industrial applications. HL SB series Mission pump models include 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14, 12x10x23 to 14x12x22b. The power range of this series of sand pumps, bare pumps and matching motors supports from 7.5KW to 90KW, speeds of 800, 1000, 1150, 1450, 1750 to 3500 RPM, and frequencies of 50Hz or 60Hz.>>Send an Enquiry sales@hlsolidscontrol.com<<

砂泵_02砂泵_03

HL Mission Magnum Centrifugal Pump Structure Diagram

cbe24f12a56e52647a3a427d7d0a302f


HL SB Series Mission Centrifugal Pump Dimensions Table

model power A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
J
mm
K
mm
SB10×8×14 90Kw 2040 700 960 267 200 1200 600 650 450 810 1600
SB10×8×14 75Kw 1990 700 960 267 200 1100 600 650 450 810 1600
SB10×8×14 55Kw 1977 700 930 267 200 1100 600 650 450 810 1600
SB8×6×14 90Kw 2030 675 925 255 200 1200 600 650 450 805 1600
SB8×6×14 75Kw 1980 675 925 255 200 1100 600 650 450 805 1600
SB8×6×14 55Kw 1910 650 890 255 200 1100 550 600 420 775 1550
SB8×6×14 45Kw 1855 640 860 255 200 1100 535 585 395 750 1500
SB8×6×11 75Kw 1980 675 925 255 200 1100 600 650 450 805 1600
SB8×6×11 55Kw 1910 650 890 255 200 1100 550 600 420 775 1550
SB8×6×11 45Kw 1855 640 860 255 200 1100 535 585 400 750 1500
SB8×6×11 37Kw 1840 640 815 265 200 1100 535 585 400 750 1500
SB8×6×11 30Kw 1800 605 840 265 200 1100 470 520 400 755 1490
SB6×5×14 75Kw 1950 650 925 255 200 1100 600 650 450 730 1600
SB6×5×14 55Kw 1885 600 890 255 200 1100 550 600 420 700 1550
SB6×5×14 45Kw 1780 585 860 230 200 1100 535 585 400 675 1500
SB6×5×14 37Kw 1810 585 815 230 200 1100 535 585 400 675 1500
SB6×5×14 30Kw 1770 540 845 230 200 1100 470 520 400 680 1490
SB6×5×11 55Kw 1885 600 890 255 200 1100 550 600 420 700 1550
SB6×5×11 45Kw 1780 585 860 230 200 1100 535 585 395 675 1500
SB6×5×11 37Kw 1810 585 815 230 200 1100 535 585 400 675 1500
SB5×4×14 37Kw 1770 585 815 200 200 1100 535 585 400 675 1500
SB5×4×14 30Kw 1740 540 845 200 200 1100 470 520 400 680 1490
SB5×4×14 22Kw 1660 510 770 200 200 1100 438 490 400 680 1420
SB5×4×14 18.5Kw 1640 510 770 200 200 1100 438 490 400 680 1380
SB4×3×13 30Kw 1700 540 845 170 200 1100 470 520 400 660 1490
SB4×3×13 22Kw 1625 500 770 170 200 1100 470 520 400 660 1420
SB4×3×13 18.5Kw 1605 500 770 170 200 1100 438 490 400 660 1380
SB4×3×13 15Kw 1580 500 720 215 200 900 340 386 360 617 1290
SB3×2×13 15Kw 1565 500 720 200 200 900 340 386 357 617 1290
SB3×2×13 11Kw 1515 485 720 190 200 900 340 386 357 617 1245
SB3×2×13 7.5Kw 1425 485 650 190 200 900 340 386 330 590 1185
SB3×2×13 5.5Kw 1390 485 650 190 200 900 340 386 330 590 1185

>>Send an Enquiry sales@hlsolidscontrol.com<<

Processing Pictures

砂泵_05

Xi'an HL Petroleum Equipment Co., Ltd. is a company specializing in the production and development of solids control equipment. It provides various types of products and supports customized services. If you are interested in Mission type centrifugal sand pump or other products, welcome to consult. You can contact our sales team to learn more about our product specifications, customization options, prices and more. We will wholeheartedly provide you with high-quality products and professional services.砂泵_06

FAQ

Q1: How can I make order online?

A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, you can make order.

Q2: Can I buy parts separately?

A: Yes, all of the pump spare parts can buy separately.
