Product Description

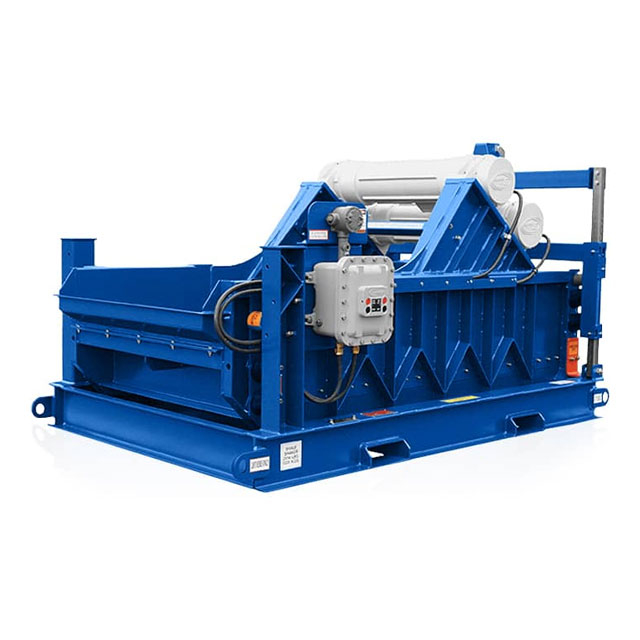

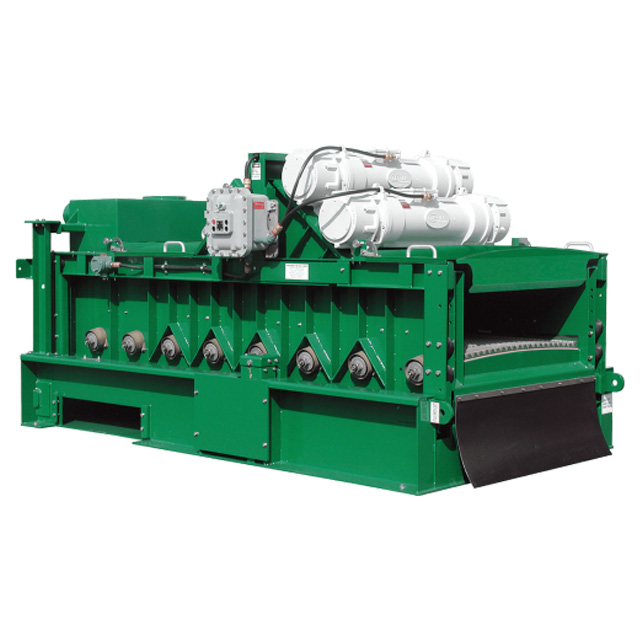

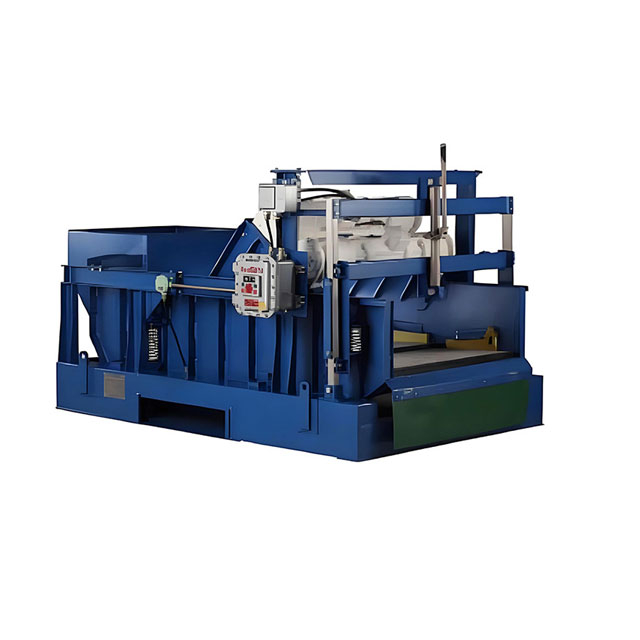

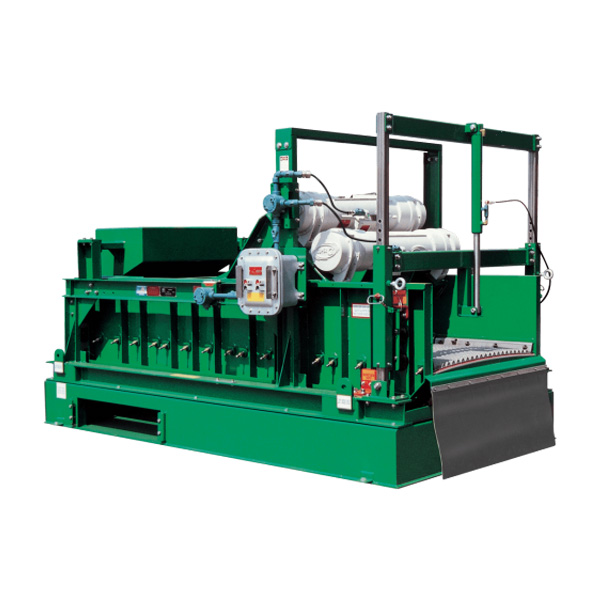

Overview of linear motion shale shaker
Linear motion drilling fluid shale shaker is a first-stage equipment for solid-liquid separation of drilling fluid. It is suitable for the drilling fluid solid control system of oil and gas drilling. Linear movement along a certain direction achieves the purpose of screening and discharging cuttings particles in drilling fluid. >>Send an Enquiry sales@hlsolidscontrol.com<<
Features of linear shale shaker
1. High efficiency of linear vibration trajectory.
2. Any combination of double, triple and quadruple.
3. The angle of the screen box can be adjusted to prevent the slurry from running out.
4. Hook edge plate screen, economical and affordable.
5. Screen box inclination adjustment device to prevent pulp running.
TDS
Technical parameters of linear motion shale shaker >>Send an Enquiry sales@hlsolidscontrol.com<<
Model | HZS703 | HZS803 | HZS604 | HZS605 |
Vibration Mode | Linear Motion | Linear Motion | Linear Motion | Linear Motion |
Capacity | 30L/S | 35L/S | 40L/S | 45L/S |
Screen Area | 2.2㎡ | 2.7㎡ | 2.7㎡ | 3.4㎡ |
Screen Qty & Size | 3×1050×700mm | 3×1080×830mm | 4×1165×585mm | 5×1165×585mm |
Motor Power | 2×1.5kW | 2×1.8kW | 2×2.2kW | 2×2.5kW |
Deck Angle Range | -1°~3° | -1°~3° | -1°~3° | -1°~3° |
Dimension: L×W×H | 2850×1590×1550 | 3150×1800×1630 | 2650×1700×1750 | 2850×1750×1650mm |
Weight | 1680kg | 1800kg | 1950kg | 2350kg |
What are the commonly used mesh sizes of shale shaker in drilling?
The commonly used mesh sizes (the number of holes per inch) are 12 mesh, 16 mesh, 20 mesh, 40 mesh, 60 mesh and 80 mesh, and the densest mesh used on site is 200 mesh. The mesh size of the shale shaker used in drilling rig can be reasonably selected according to the on-site drilling needs, and the screen should be tightened and replaced in time.
HL Petroleum is a professional drilling fluid shale shaker suppliers.
